Teradek Bolt 4K LT 1500 3G-SDI/HDMI Wireless Transmitter and Receiver Kit
Original price was: ₹690,990.₹580,000Current price is: ₹580,000. & Free Shipping
Out of stock
- Bolt LT 1500 Transmitter & Receiver Set
- Transmits up to 1500′ Line of Sight
- Supports up to 4K30 Resolution Input
- HDMI/3G-SDI Inputs & Outputs
EXTRA 2% Discount: ₹568400
Free shipping on orders!
- GST Invoice For Input Credit
- Price Includes GST
- Secure Payments
- No Hassle Refunds

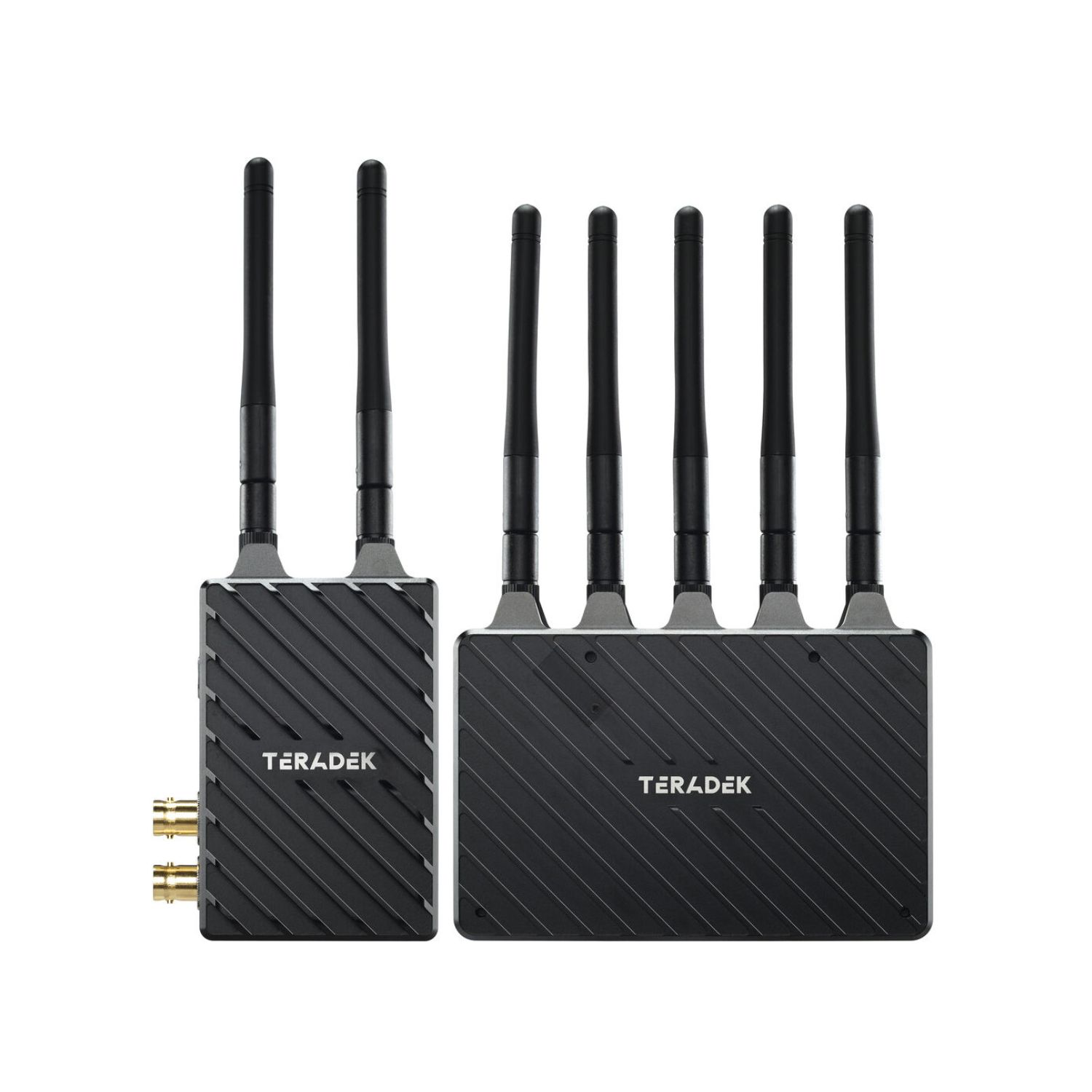

Teradek Bolt 4K LT 1500 3G-SDI/HDMI Wireless Transmitter and Receiver Kit
Transmit and receive lossless HD video from up to 1500′ line of sight with the Bolt 4K LT 1500 3G-SDI/HDMI Wireless Transmitter and Receiver Kit from Teradek. The kit includes a wireless transmitter and receiver that feature bright OLED displays and can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support. The transmitter inputs up to 4K video over HDMI or up to 1080p60 video via 3G-SDI, and the receiver outputs video via HDMI and 3G-SDI.
The transmitter sends up to 4K30 video to the Bolt 4K LT receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera.
The Bolt 4K series units are all cross-compatible, so you can transmit to different Bolt 4K series receiver models. The system also supports an iOS app that easily connects via Bluetooth, which provides a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4″-20, 3/8″-16, and M3 mounting threads to mount your transmitter and receiver on a variety of cameras, cages, or rigs.
Features
- Transmitter/receiver set cross-compatible with all Bolt 4K series devices over 5 GHz signal spectrum
- Transmitter input up to 4K via HDMI video; input 1080p via 3G-SDI, and transmit up to 4K30 video
- Receiver supports up to 4K30 video and outputs 1080p via 3G-SDI and 4K via HDMI
- Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
- Smaller and lighter chassis design than other Bolt transmitters
- Transmit to up to six Bolt 4K series receivers
- AES-256 encryption support and RSA 1024 key pairing support
- Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
Specifications
Wireless Range | 1500′ / 457.2 m (Line-of-Sight) |
# of Channels | 13 (40 MHz) 25 (20 MHz) |
Channel Bandwidth | 40 MHz, 20 MHz |
Frequency Range | Non-DFS Frequencies US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
Latency | < 0.01 ms |
RF Power | 17 dBm |
Wireless Video Compression | Uncompressed |
Transmitter Antenna Ports | 2 x RP-SMA |
Receiver Antenna Ports | 5 x RP-SMA |
Transmitter Video Connectors | 1 x HDMI Input 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Loop Output |
Receiver Video Connectors | 1 x HDMI Output 1 x BNC (3G-SDI) Output |
Transmitter Other I/O | 1 x USB Micro-B Input |
Receiver Other I/O | 1 x USB Micro-B Input |
Embedded Audio | SDI: 2-Channel HDMI: 2-Channel |
Encryption | 256-Bit AES |
Video Format | SDI/BNC: 1080p 4:2:2 YCC 10-Bit at 23.98, 24, 25, 29.97, 30, 59.94, 60 fps 1080PsF 4:2:2 YCC 10-Bit at 23.98, 24, 25, 29.97, 30 fps 1080i/720p 4:2:2 YCC 10-Bit at 50, 59.94, 60 fps 576p at 25, 50 fps 576i at 50 fps 480p at 59.94, 60 fps 480i at 59.94 fps HDMI: UHD 4K 4:4:4 RGB 10-Bit at 23.98, 24, 25, 29.97, 30 fps 1080p 4:4:4 RGB 10-Bit at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1080PsF 4:4:4 RGB 10-Bit at 23.98, 24, 25, 29.97, 30 fps 1080i/720p 4:4:4 RGB 10-Bit at 50, 59.94, 60 fps 576p at 25, 50 fps 576i at 50 fps 480p at 59.94, 60 fps 480i at 59.94 fps |
Audio Format | 2-Channel 24-Bit 48 kHz LPCM Audio |
Timecode Support | Yes |
Transmitter Panel Type | OLED |
Receiver Panel Type | OLED |
Transmitter Built-In Battery | None |
Receiver Built-In Battery | None |
Transmitter Power Connector | 1 x 2-Pin LEMO (6 to 28 VDC) Input |
Receiver Power Connector | 1 x 2-Pin LEMO (6 to 28 VDC) Input |
Transmitter Power Consumption | Device: (9 W) |
Receiver Power Consumption | Device: (11 W) |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Transmitter Mounting | 1 x 1/4″-20 Female 1 x M3 Female |
Receiver Mounting | 1 x 1/4″-20 Female 1 x M3 Female |
Materials | Aluminum, PCB |
Transmitter Dimensions | 4.1 x 2.4 x 1.3″ / 103 x 60 x 33 mm |
Receiver Dimensions | 4.8 x 3.7 x 1.1″ / 122 x 94 x 27 mm |
Transmitter Weight | 7.3 oz / 206 g |
Receiver Weight | 10.3 oz / 292 g |
