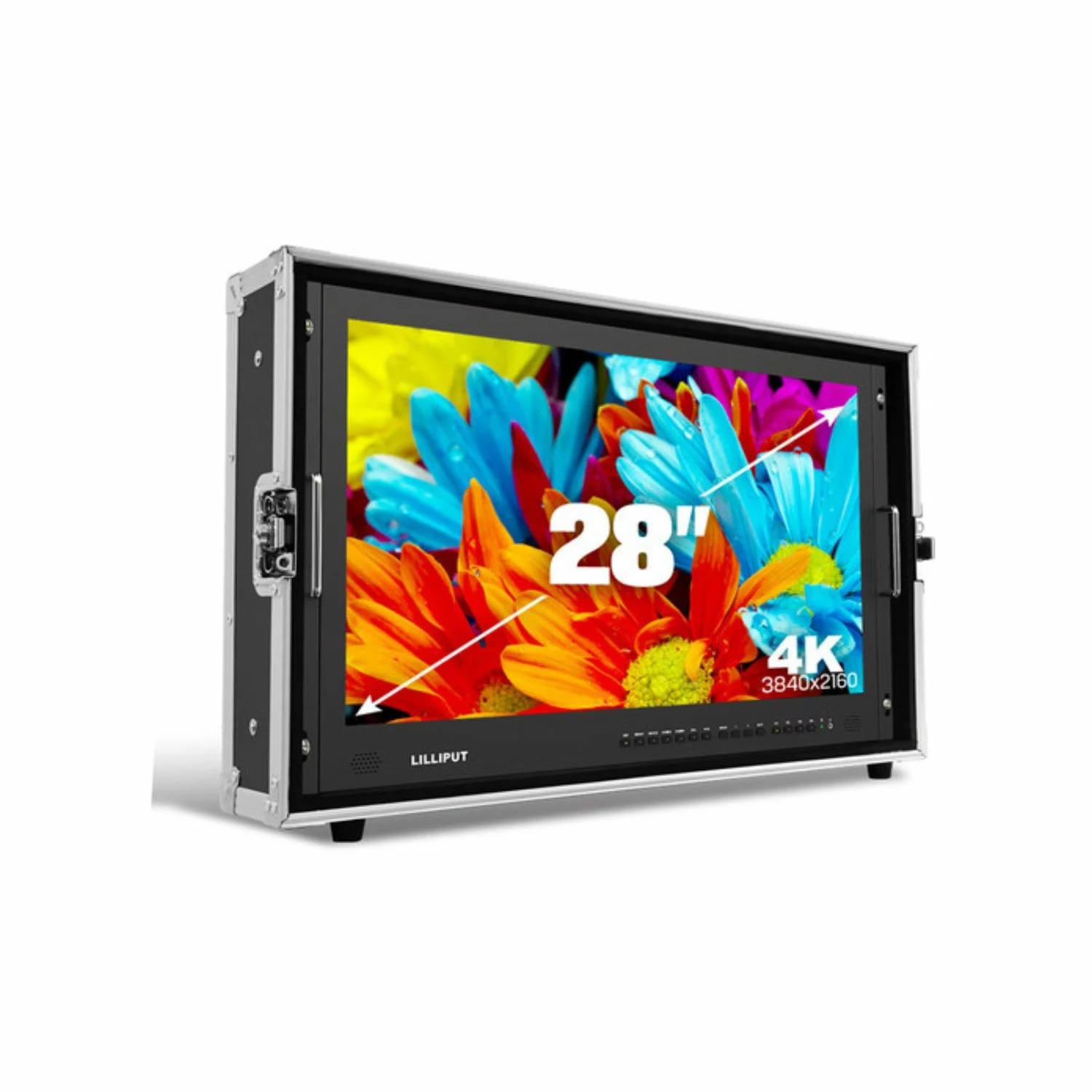

Lilliput BM280-4K Carry-On 4K Monitor (V-Mount)

Lilliput BM280-4K Carry-On 4K Monitor (V-Mount)

The Lilliput BM280-4KS is a 28″ 4K resolution monitor with 3D LUTS and HDR. Designed for the professional video and film industry and is ideally suited for directors and camera operators operating 4K capable equipment.

Look Up Tables
3D look up tables, make it easy to standardize, colour reproduction between multiple devise, to ensure that all your devises display the same colour.

High Dynamic Range
High dynamic range offers a way of better reproducing a greater dynamic range of luminosity than is possible with standard digital imaging.

4K Ultra-HD resolution
The BM150-4KS monitor features the latest 4K imaging technology. Connected through by HDMI 2.0, 4K screens are Ultra HD – containing 8.3 million pixels making the resolution four times more powerful than full HD making them the ultimate in cinematic displays.

Image flip mode – View it your way
Integrate the monitor into your current workflow at whatever angle you choose. X flip – Y flip functionality gives you that flexibilty

Precision colours with 1000:1 contrast ratio
The BM150-4KS has a 1000:1 contrast ratio and 330cd/m brightness ratio, giving you sharper pictures and rich colours. Enjoy more detailed images than ever before.

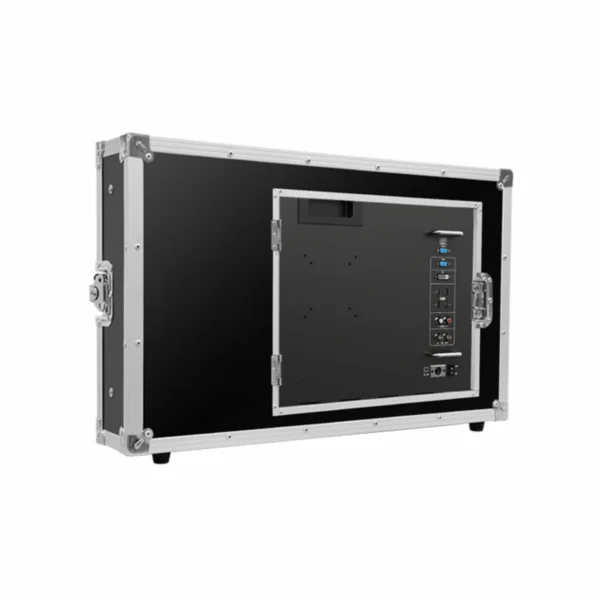

Carry-on suitcase for superior protection
The monitor comes with a specially designed flight case for greater robustness and portability. The design also allows for greater heat radiation and ensures greater reliability over longer shoots

Connectivity for all video standards
The monitor comes with all of the major video standards used in commercial and the video industry. The BM150KS connects using HDMI for 4K resolutions, and can connect using either HDMI or SDI for standard 1080p and below resolutions. This gives the ability to meet the needs of any professional display solution

Metal outer housing
An aluminium outer body provides excellent protection to extend the lifetime of your monitor.

Programmable Function keys
4 Programmable function keys on the front of the monitor allow you to shortcut to your most used functions, such as peaking, histograms, check field, image flip etc.

Wireless HDMI receiver (OPTIONAL)
With wireless HDMI (wHDI) technology you can transmit 1080p 60Hz signals direct to the monitor without the need for cables, making for a much more portable solution when on set. One transmitter can connect to multiple receiver units giving you a video village without the need for cables.

Specifications

Monitor Specification
Screen Size (diagonal)	28″
Aspect Ratio	16:9
Native Resolution	3840 x 2160
Viewing Angle (degrees)	176/176
Brightness Ratio (cd/m2)	330
Contrast Ratio	1000:1
Backlight	LED
Video Inputs	3G-SDI x 1, HDMI x 4 (1 x HDMI 2.0 – 4K at 60Hz, 3 x HDMI 1.4 – 4K at 30Hz), DVI x 1, VGA x 1, Tally x 1
Video Outputs	3G-SDI x 1
Audio Outputs	Speaker x 2, 3.5mm Jack x 1
Input Power	DC12V – 24V (XLR)
Operating Temperature	0 degrees – 60 degrees
Dimensions
Height (mm)	425 (761 in case)
Width (mm)	670 (474 in case)
Depth (mm)	45 (173 in case)
Weight (g)	21kg with case (9.4kg without case)
