Blackmagic Design MultiView 16

153,490
You save 22,094! & Free Shipping

Out of stock

EXTRA 2% Discount: ₹150420.2

FLAT 2% Off when you make a payment via Bank Transfer at Check Out.

  • Native Ultra HD multi-view output
  • 16x 6G-SDI inputs; accepts SD, HD, and Ultra HD resolutions
  • Supports Ultra HD 4K (3840×2160) up to 30p; DCI 4K (4096×2160) at 24p
  • 2x 6G-SDI, 2x HD-SDI, and 1x HDMI multi-view outputs
  • 16x SDI loop outputs
  • 2×2, 3×3, and 4×4 multi-view configurations
  • SOLO button for instant full screen of single source
  • 2-channel audio meters for each view
  • 16×9 SD support
  • Tally support with ATEM switchers
  • 1RU machined aluminum chassis
  • Front panel control using illuminated buttons, spin knob, and 1.5″ LCD screen
  • Software control over Ethernet; supports Videohub router protocol
  • Built-in 90 to 240VAC power supply
  • IEC power cable required

Free shipping on orders!

  • Done GST Invoice For Input Credit
  • Done Price Includes GST
  • Done Secure Payments
  • Done No Hassle Refunds
GUARANTEED SAFE CHECKOUT
  • BHIM
  • Visa
  • MasterCard
  • RuPay
  • Net Banking
SKU: 10455 Category:

The Blackmagic Design MultiView 16 features sixteen 10-bit 6G-SDI inputs that let you monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs. This lets you take advantage of the high resolution displays to view each source with increased clarity. The MultiView 16 allows for 4, 9, or 19 views to be selected, with each input fully re-synchronized. Two HD-SDI, two 6G-SDI, and one HDMI multi-view outputs are provided, as well as a loop output for each 6G-SDI input for passing the signals to additional devices.

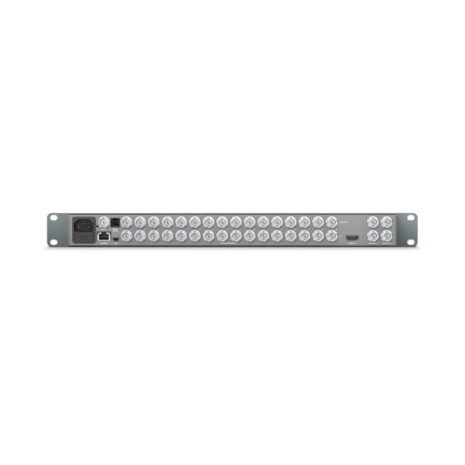

Housed in a 1RU machined aluminum frame, the MultiView 16 is ready for use in the studio, broadcast truck, or even on location. It can be controlled using the illuminated buttons, spin knob, and 1.5″ LCD screen on the front panel, or with the included control software via the Ethernet port. A SOLO button lets instantly full screen a single source. For easy integration into any facility, a built-in multi-voltage power supply supports 90 to 240VAC.
