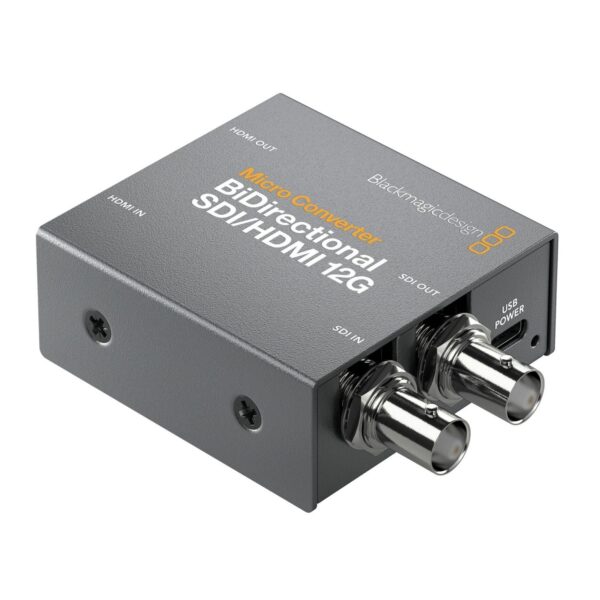

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G

Now you can convert SDI to HDMI and HDMI to SDI in all SD, HD and Ultra HD formats up to 2160p60! Each conversion direction can be a different SD, HD or Ultra HD video standard, it’s like getting two converters in one! The all metal durable design is perfect for live production and broadcast. Plus it’s small enough to be hidden and used anywhere. It can be powered from any USB-C socket!

Specifications

• Connections
  SDI Video Inputs : 1
  SDI Video Outputs : Automatically matches the HDMI video input.
  HDMI 2.0 Video Inputs : 1 x type A.
  HDMI 2.0 Video Outputs : 1 x type A.
  SDI Rates : 270Mb, 1.5G, 3G, 6G, 12G.
  Multi Rate Support : Auto detection of SD, HD, 2K, Ultra HD and 4K.
  Updates, Configurations and Power : USB Type‑C.
  Reclocking : Yes
• Standards
  SD Video Standards : 525i59.94 NTSC, 625i50 PAL
  HD Video Standards
  720p50, 720p59.94, 720p60.
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60.
  1080PsF25, 1080PsF29.97, 1080PsF30.
  1080i50, 1080i59.94, 1080i60.
  2K Video Standards
  2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI.
  2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI.
  Ultra HD Video Standards
  2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60.
  4K Video Standards
  4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
  SDI Compliance
  SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
  SDI Video Rates
  SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
  SDI Color Precision : 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
  SDI Color Space : YUV
  SDI Auto Switching : Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output.
  HDMI Video Standards
  525i59.94 NTSC, 625i50 PAL
  720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
  1080i50, 1080i59.94, 1080i60
  2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
  4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
  HDMI Color Precision
  4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
  HDMI Color Space : YUV
• Copy Protection : HDMI input is unable to capture from copy protected HDMI sources.
  Always confirm copyright ownership before capture or distribution of content.
• Camera Control : Bidirectional signal conversion supports Blackmagic Camera Control and Tally.
• Settings Control : Via MacOS™ and Windows™ software utility connected by USB.
• Operating Systems
  Mac 10.15 Catalina,
  Mac 11.1 Big Sur or later.
  Windows 10, 64-bit.
• Software : Internal software upgrade via USB.
• Power Requirements
  Power Consumption : 5W max.
  Operational Voltage Range : 4.4V to 5.25V DC
• Environmental Specifications
  Operating Temperature : 0° to 40° C (32° to 104° F)
  Storage Temperature : -20° to 60° C (-4° to 140° F)
  Relative Humidity : 0% to 90% non-condensing
