AVMatrix PVS0615U Portable 6-Channel Switcher

181,720 & Free Shipping

Only 2 left in stock

  • 4 SDI + 2 HDMI 4K60 / 2 DVI/VGA / 2 USB
  • USB 3.0 Type-C Live Streaming Output
  • 1080p/i60 Scaled PGM SDI/HDMI Out
  • Full HD 15.6″ 6-Ch Multiview Display
  • SDI AUX Output, PGM or PVW
  • RCA L/R Audio I/O
  • Headphone Output
  • GPIO Tally
  • Metal Case
  • Luma Key / Chroma Key

Free shipping on orders!

  • Done Satisfaction Guaranteed
  • Done No Hassle Refunds
  • Done Secure Payments
GUARANTEED SAFE CHECKOUT

Description

AVMatrix PVS0615U Portable 6-Channel Switcher

The PVS0615U Portable 6-Channel Switcher from AVMATRIX is similar to the predecessor PVS0615 model but additionally features a USB Type-C live streaming output (UVC/UAC). It supports up to six signals in different resolutions and frame rates. The first four channels must be SDI and the other two can be any mix from two HDMI, two DVI/VGA, and two USB Type-A inputs, with HDMI supporting up to UHD 4K60 resolution. All the connections are autodetecting. The portable switcher provides a flexible solution for sports, events, education, and other live production applications. It allows video switching, audio mixing, and up to 1080p60 H.264 PGM recording via an SD card slot.

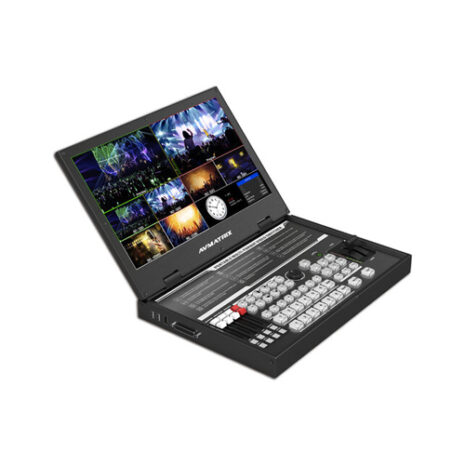

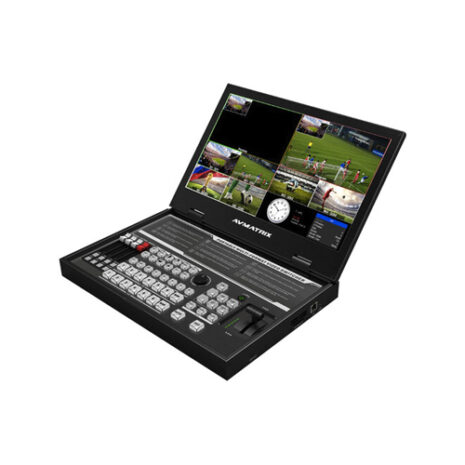

All the signals can be scaled to 1080p60 or 1080i60 on PGM output via SDI/HDMI. The switcher is housed in a robust metal case and has a 15.6″ Full HD display and familiar switching controls, including a T-bar. The display allows for multiview monitoring of six sources along with PVW and PGM with an audio meter.

Features

  • Uncompressed capture for live streaming over a USB Type-C port (UVC/UAC compliant)
  • Supports six inputs over four SDI, plus any mix from two HDMI, two DVI/VGA, and two USB Type-A inputs
  • Three SDI outputs (PGM); the third output can be used for AUX
  • Two HDMI PGM and one HDMI multiview output
  • Multiformat input autodetected, and PGM/AUX output format selectable
  • T-Bar/Auto/Cut transitions
  • Mix/Fade/Wipe transition effects
  • Luma and chroma key
  • TRS audio and SDI/HDMI/USB embedded audio
  • SD card slot

Specifications

Input
Video Input Connectors 2 x HDMI
4 x BNC (3G-SDI)
2 x DVI-I DL (DVI / VGA)
Input Video Format HDMI (4:4:4/4:2:2 RGB, YUV)
UHD 4K: 30/50/60 fps
DCI 2K: 30/50/60 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 23.98/24/25/29.97/30/50/59.94/60 fps
576p: 50 fps
576i / 625 lines: 50 fps
SDI (4:2:2 YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
720p: 23.98/24/25/29.97/30/50/59.94/60 fps
NTSC
PAL
DVI / VGA
1080p
WUXGA+ (1680 x 1050)
UXGA (1600 x 1200)
HD+ (1600 x 900)
WXGA+ (1440 x 900)
FWXGA (1366 x 768)
1360 x 768
SXVGA (1280 x 1024)
SXGA- (1280 x 960)
WXGA (1280 x 800)
1280 x 768
720p
XGA+ (1152 x 864)
XGA (1024 x 768)
VGA (640 x 480)
Audio Input Connectors 1 x 2RCA Analog
Output
Video Output Connectors 2 x HDMI (Program)
2 x BNC (3G-SDI) (Program)
1 x USB Type-C
Output Video Format HDMI / SDI
1080p: 24/25/30/50/60 fps
1080i: 50/60 fps
USB Type-C
WUXGA (1920 x 1200)
1080p
WUXGA+ (1680 x 1050)
WXGA+ (1440 x 900)
FWXGA (1366 x 768)
SXGA (1280 x 1024)
1280 x 960
WXGA (1280 x 800)
720p
XGA (1024 x 768)
1024 x 576
960 x 540
856 x 480
SVGA (800 x 600)
PAL (768 x 576)
720 x 576
720 x 480
VGA (640 x 480)
640 x 360
Audio Output Connectors 1 x 2RCA Analog
1 x 1/8″ / 3.5 mm TS
Multiview Output 6-Way Multiview viaHDMI
Connectivity
Other I/O 2 x USB Type-A Input
1 x BNC Output
1 x DB-25 Tally
1 x RJ45 Firmware, LAN, Sync
Video Standard Compliance SMPTE 259M/292M/424M
Display
Display Size 15.6″
Screen Resolution 1920 x 1080
Hardware
OS Compatibility Windows 10
Windows 8
Windows 7
macOS 10.8 or Later
Linux 2.6.38 or Later
Power
Power Connector 1 x Barrel (12 VDC at 2.8 A) Input
Power Consumption 33 W
Environmental
Operating Temperature -4 to 140°F / -20 to 60°C
Storage Temperature -22 to 158°F / -30 to 70°C
Operating Humidity 20 to 70%
Storage Humidity 90%
General
Weight 8.8 lb / 4 kg
