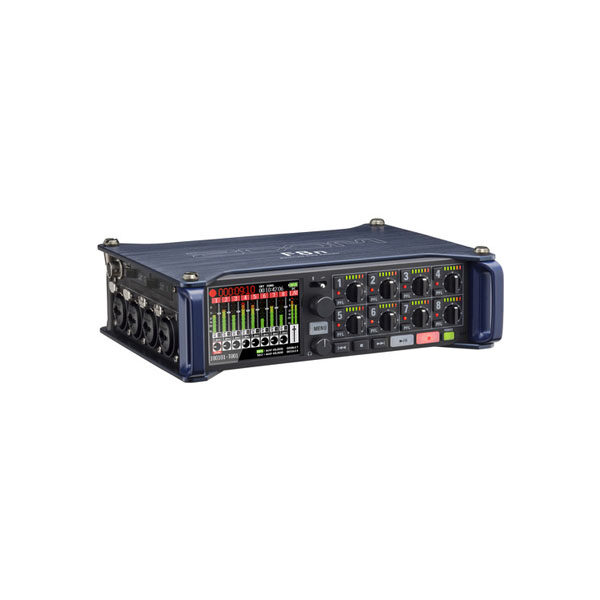

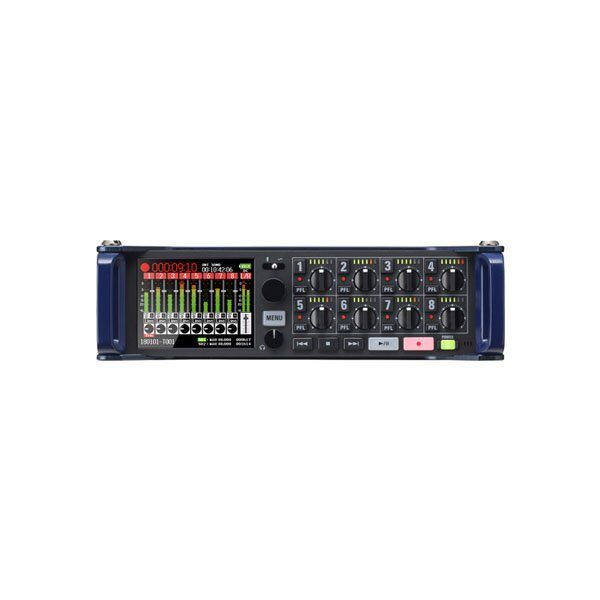

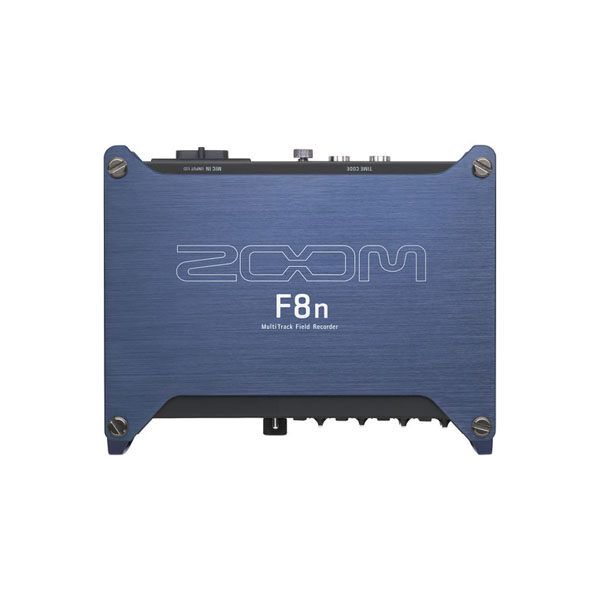

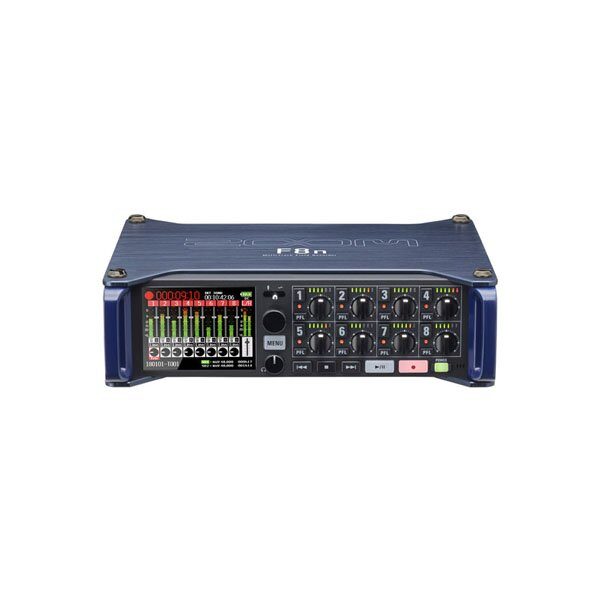

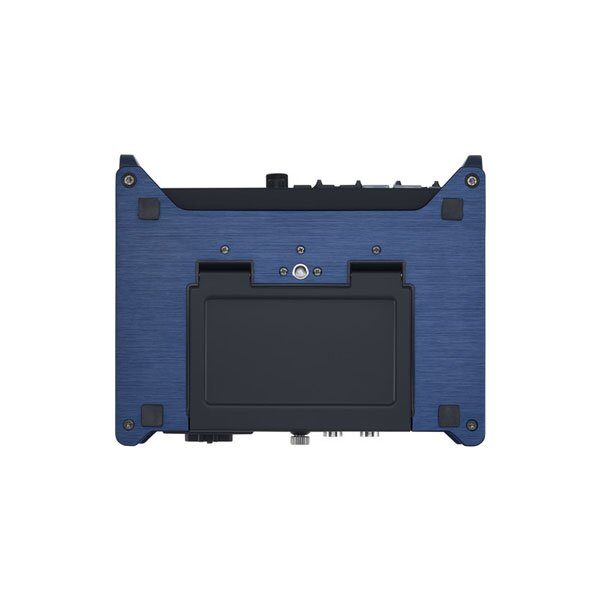

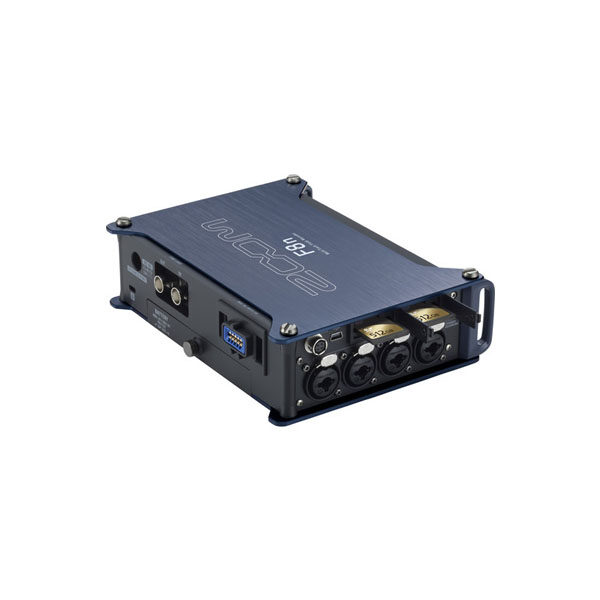

Zoom F8n Multi-Track Field Recorder

Zoom
Compare
Make an Inquiry

85,490 72,690

Save: 12,800 (15%)

  • 8 x XLR/TRS Combo Jacks with +75 dB Gain
  • Up to 192 kHz/ 24-Bit PCM Recording
  • Record up to 10 Tracks Simultaneously
  • Look-Ahead Limiters Eliminate Clipping
  • Zoom AutoMix: Automatic Level Adjustment
  • 2 x SD Card Slots
  • Built-In Slate Microphone
  • 8 x AA Batteries, AC, External Power Pack
  • Time Code at 0.2 ppm Accuracy
  • Simultaneous Recording to SD Card & USB

Only 1 left in stock

UPC: 4515260019076 SKU: 1678 Categories: ,

Description

Zoom F8n Specs

Portable Recorder
Number of Tracks WAV:
10 (8 Inputs + Stereo Mix)
MP3:
2
Max Sample Rate/Resolution 192 kHz / 24-Bit
Microphone Built-In Slate Mic
Built-In Speaker No
Display Color LCD
Memory Card Support SD (16 MB to 2 GB)
SDHC (4 to 32 GB)
SDXC (64 to 512 GB)
Recording
Audio File Formats BWF, ID3v1, MP3, WAV, iXML
Sample Rates WAV:
44.1 / 47.952 / 48 / 48.048 / 88.2 / 96 / 192 kHz
MP3:
44.1 / 48 kHz
Bit Depth 16/24-Bit
Bit Rates 128 to 320 kb/s
Timecode Yes
Frame Rates Supported 23.976 / 24 / 25 / 29.97 / 29.97 DF / 30 / 30 DF
Clock Accuracy ±0.2 ppm
Recording Time WAV 48 kHz/24-Bit:
57.8 Mins per GB (Stereo)
WAV 192 kHz/24-Bit:
14.4 Mins per GB (Stereo)
Connectivity

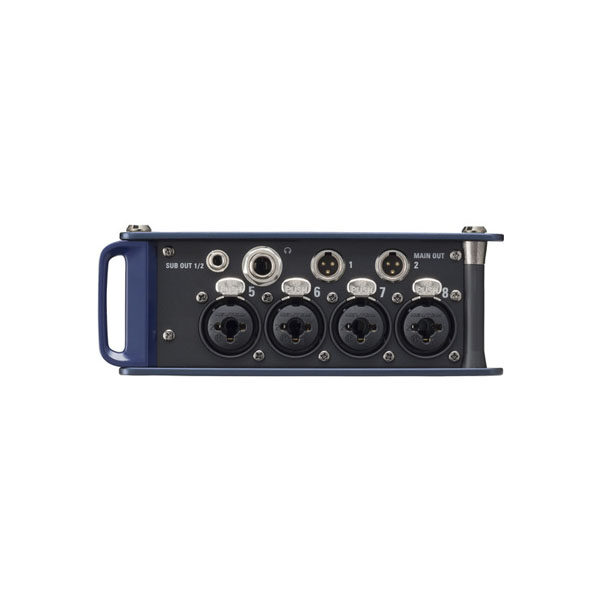

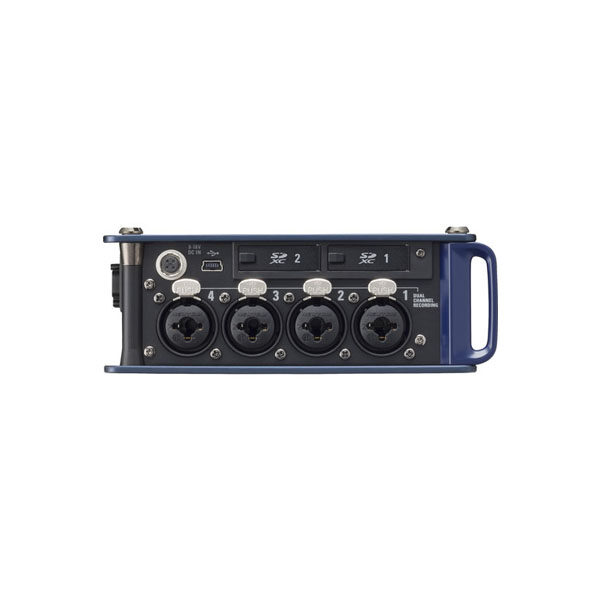

Analog I/O 8 x Combo XLR / 1/4″ TRS Input
1 x Proprietary Mic Capsule Input
2 x TA3 Balanced Output
1 x 1/8″ / 3.5 mm TRS Unbalanced Output
1 x 1/4″ TRS Unbalanced Headphone Output

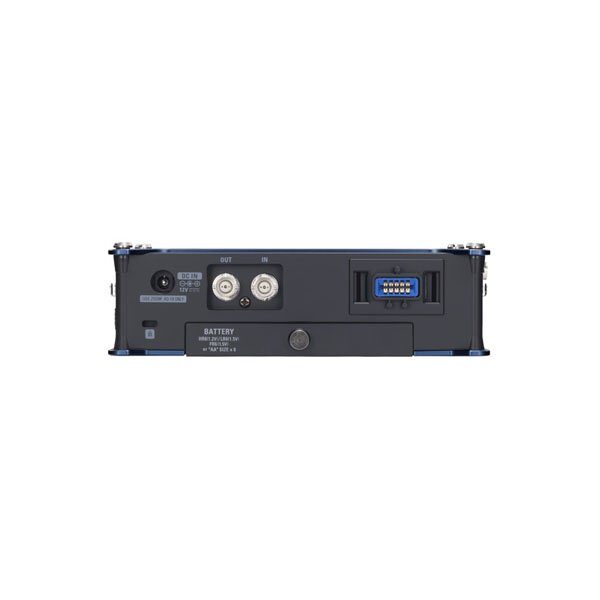

Digital I/O 1 x BNC Timecode Input
1 x BNC Timecode Output
Phantom Power +24 / 48 V
Phantom Power Current ≤10 mA per Channel
Host Connection 1 x Micro-USB (USB 2.0)
Performance
Frequency Response 10 Hz to 80 kHz +0.5/-1 dB (At 192 kHz)
Gain Range Mic Inputs:
+10 to +75 dB
Line Inputs:
-10 to +55 dB
Max Input Level Mic Inputs:
+14 dBu (Limiter On, at 0 dBFS)
Line Inputs:
+24 dBu (Limiter On, at 0 dBFS)
Max Output Level Outputs:
+24 dBu
Aux Outputs:
+10 dBV
Headphone Output Power 100 mW per Channel into 32 Ohms
Dynamic Range A/D Converters:
120 dBA
D/A Converters:
106 dBA
Impedance Mic Inputs:
2 kOhms
Line Inputs:
2.6 kOhms
Outputs:
≤150 Ohms
Aux Outputs:
≤100 Ohms
Headphone Outputs:
≤15 Ohms
BNC Inputs:
4.6 kOhms
BNC Outputs:
≤50 Ohms
EIN ≤-127 dBu
Power
Power Options Batteries, AC/DC Power Adapter

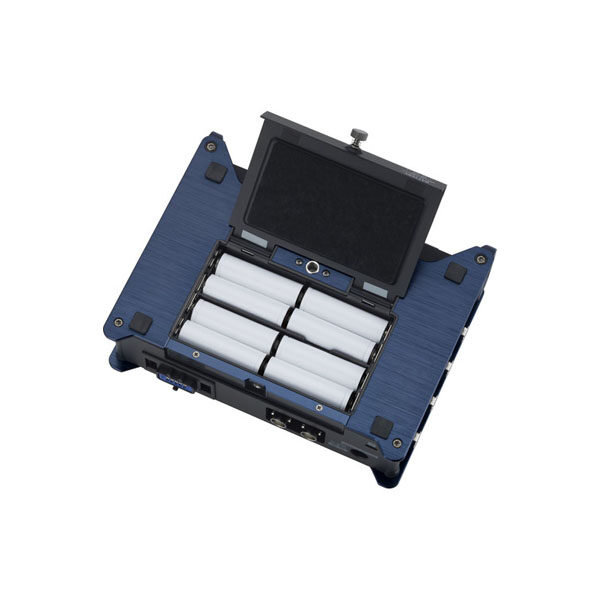

Battery Type 8 x AA
Approximate Battery Life 48 kHz/16-Bit:
6 Hours (Alkaline, 2 Channels)
8.5 Hours (Alkaline, 2 Channels)
12 Hours (Lithium, 2 Channels)
48 kHz/24-Bit:
3.5 Hours (Alkaline, All Channels)
6 Hours (NiMH, All Channels)
8 Hours (Lithium, All Channels)
192 kHz/24-Bit:
1 Hour (Alkaline, All Channels)
2 Hours (NiMH, All Channels)
3 Hours (Lithium, All Channels)
AC/DC Power Adapter 12 VDC at 2 A (Included)
Physical
Dimensions 7.0 x 5.5 x 2.1″ / 178.2 x 140.3 x 54.3 mm
Weight 2.2 lb / 1.0 kg
Packaging Info
Package Weight 4.5 lb
Box Dimensions (LxWxH) 11.7 x 10.2 x 4.1″
