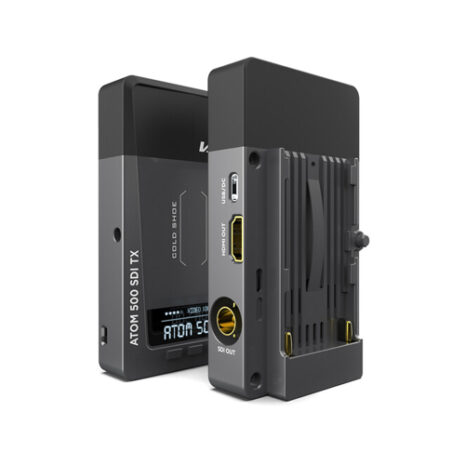

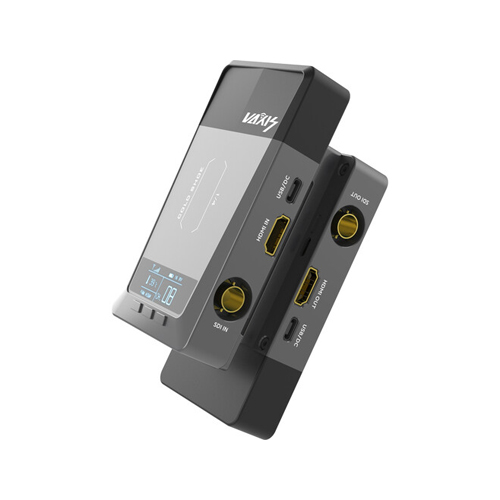

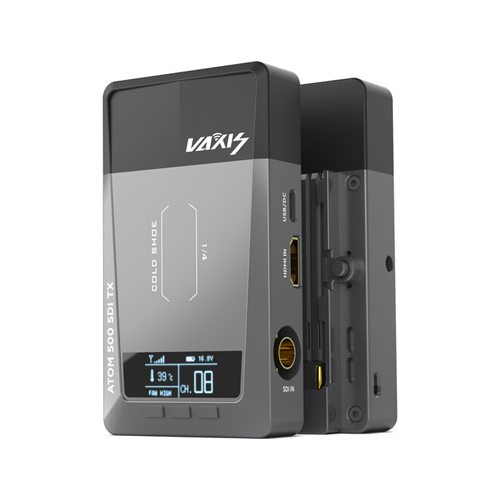

Vaxis ATOM 500 SDI Wireless Video Transmitter and Receiver

Name: Vaxis ATOM 500 SDI Wireless Video Transmitter and Receiver Kit
Brand: Vaxis
SKU: 3761
Price: 34990 INR
Availability: OutOfStock

Vaxis ATOM 500 SDI Wireless Video Transmitter and Receiver Kit

Sporting both 3G-SDI and HDMI connections, the ATOM 500 SDI Wireless Video Transmitter and Receiver Kit from Vaxis enables transmitting visually lossless, H.265 video signals to the Vaxis receiver with less than 80 ms latency. The transmitter sends a powerful line-of-sight signal up to 500′ and it can also multicast via Wi-Fi to up to three mobile devices for monitoring.

The transmitter features one 3G-SDI and one HDMI input while the receiver has one 3G-SDI and one HDMI output. Each unit features a bright, clear OLED display and they have a cooling fan that can be turned on and off to prevent noise during your production. They can be powered using its USB Type-C connector with the included cable or by using a separately available L-series battery. The USB input can also be used to upgrade the firmware.

Transmitter and receiver kit transmits 1080p wireless video up to 500′ line of sight
Transmit H.265 video with very-low latency
Transmitter features one 3G-SDI and one HDMI input, and the receiver features one 3G-SDI and one HDMI output
Units are powered by either a USB Type-C power source or by using an L-series battery on its integrated plate
Multicast support for transmitting video via Wi-Fi to up to three iOS devices running the Vaxis Vision app
Adjustable cooling fan that can be turned on and off
Bright OLED screen
Lightweight metal housing; both units are the same size with integrated antennas
Large menu buttons are easier to press than on the HDMI only model
The unit’s temperature screen can read out in Fahrenheit
A long press on the right menu button displays a WQR code, which makes it simpler to connect your phone/app to
control the units
The unit supports manual and automatic channel scanning

Specifications

Wireless

Wireless Range	500′ / 152.4 m (Line-of-Sight)
# of Channels	13
Frequency Range	US: 5.1 to 5.9 GHz
Latency	< 80 ms
RF Power	17 dBm
RF Sensitivity	-80 dBm
Wireless Video Compression	Compressed

Interfaces

Transmitter Video Connectors	1 x BNC (3G-SDI / HD-SDI / SD-SDI) Input 1 x HDMI (HDMI 1.4) Input
Receiver Video Connectors	1 x BNC (3G-SDI / HD-SDI / SD-SDI) Output 1 x HDMI Output
Embedded Audio	SDI: 2-Channel HDMI: 2-Channel

Format Support

Broadcast System Compatibility	NTSC, PAL
Video Format	SDI/BNC: 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1080i at 50, 59.94 fps 720p at 60 fps HDMI: 1080p at 24, 25, 30, 50, 60 fps 1080i at 50, 60 fps 720p at 60 fps
Timecode Support	Yes
LUT Support	None

Display

Transmitter Panel Type	OLED
Receiver Panel Type	OLED

Power

Transmitter Built-In Battery	None
Receiver Built-In Battery	None
Transmitter Battery Support	1 x Sony L-Series / NP-F Type
Receiver Battery Support	1 x Sony L-Series / NP-F Type
Transmitter Power Connector	1 x USB Type-C Input
Receiver Power Connector	1 x USB Type-C Input
Transmitter Power Consumption	Device: 5 VDC (6.5 W)
Receiver Power Consumption	Device: 5 VDC

General

Materials	Metal
Transmitter Dimensions	4.13 x 2.5 x 0.79″ / 10.5 x 6.35 x 2 cm
Receiver Dimensions	4.13 x 2.5 x 0.79″ / 10.5 x 6.35 x 2 cm
Transmitter Weight	4.7 oz / 134 g
Receiver Weight	4.6 oz / 130 g
