Teradek Bolt 4K 12G-SDI 750 TX/RX Set

Teradek Bolt 4K 12G-SDI 750 TX/RX Set

Recipient of Scientific and Engineering Award from the Academy of Motion Picture Arts and Sciences. Learn More.

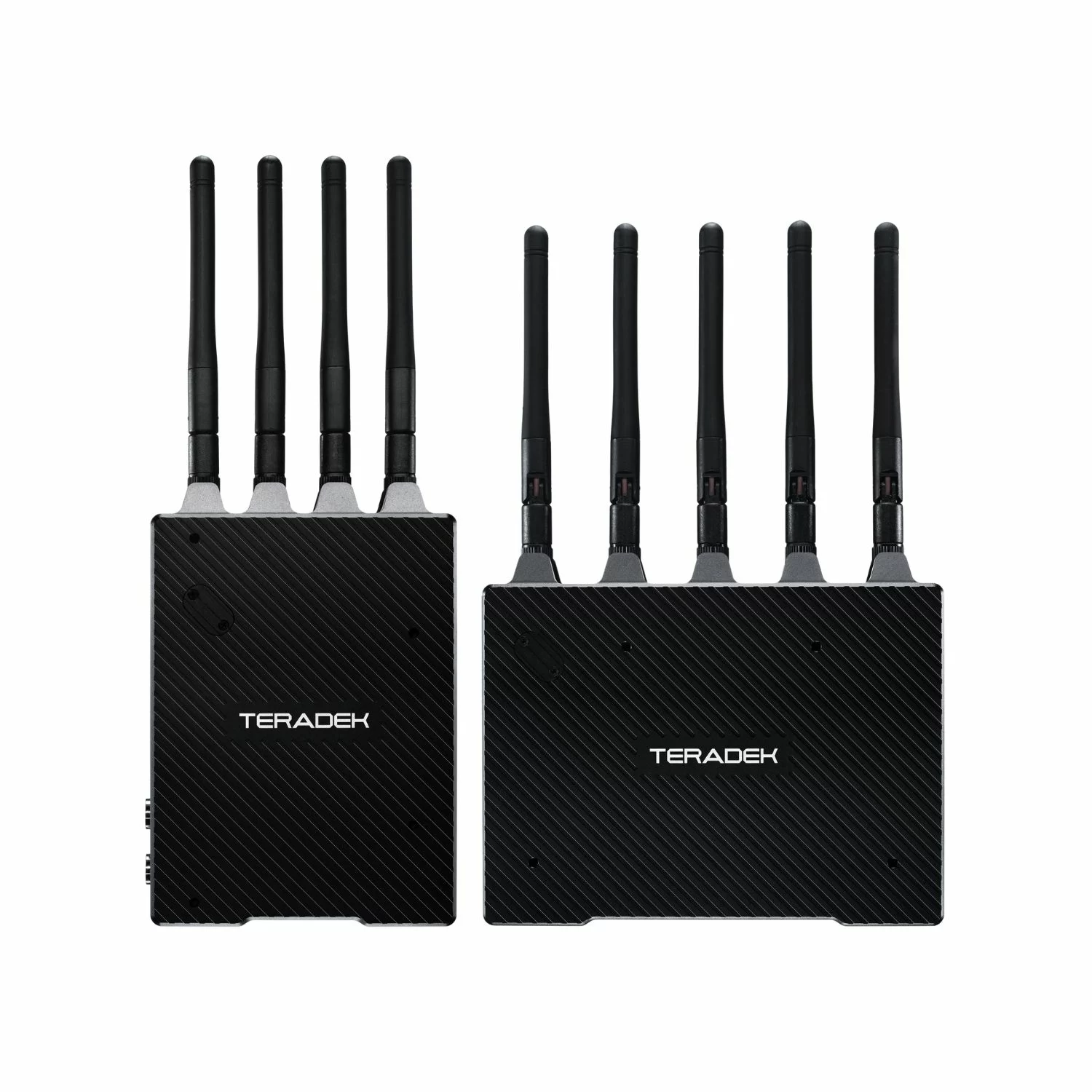

The Bolt 4K 750 TX/RX Set is a real-time wireless video transmission system that supports 1080p and 2160p video signals at 60FPS with less than 1ms of delay at up to 750 feet. Key features include increased range, faster reconnection times, easier setup with Bluetooth App for iOS or Android, and more stable connectivity. These devices are cross-compatible with the entire Bolt 4K Family. Includes integrated 1/4″x20 and M3 mounting points. Optional Battery Plates are sold separately.

Real-Time 4K Wireless Video
Transmit and receive uncompressed video in 1080p and 2160p at 60FPS with less than 1ms of delay. Up to 750 feet of range.

True HDR Color
Bolt 4K is compliant with the HLG, PQ, and HDR-10 standards, making it an invaluable tool on set for HDR workflows.

Rock-Solid Reliability
Bolt 4K features 8x the wireless performance of previous Bolt generations, ensuring video is delivered in even the toughest of RF environments.

Universal Compatibility
Each transmitter can send video to up to 6 receivers. Compatible with any model in the Bolt 4K line.

Inputs/Outputs
Transmitter: 1x 12G-SDI, 1x HDMI 2.0, 1x 12G-SDI looping output.
Receiver: 2x 12G-SDI, 1x HDMI 2.0

Battery Plates
Optional Gold Mount or V-Mount battery plate with pass-through power available on both TX & RX.

Camera Metadata
Send start / stop flags, timecode, and other ancillary data over the wireless link. On the receiver side, upload and apply custom 3D LUTs to monitor each take with the look you’re after.

Bolt App for iOS and Android
Remotely pair units, configure settings, and utilize all of Bolt 4K’s features from any iOS smartphone or tablet. The Bolt App uses Bolt 4K’s integrated Bluetooth to give you all of its settings in the palm of your hand.

Specifications

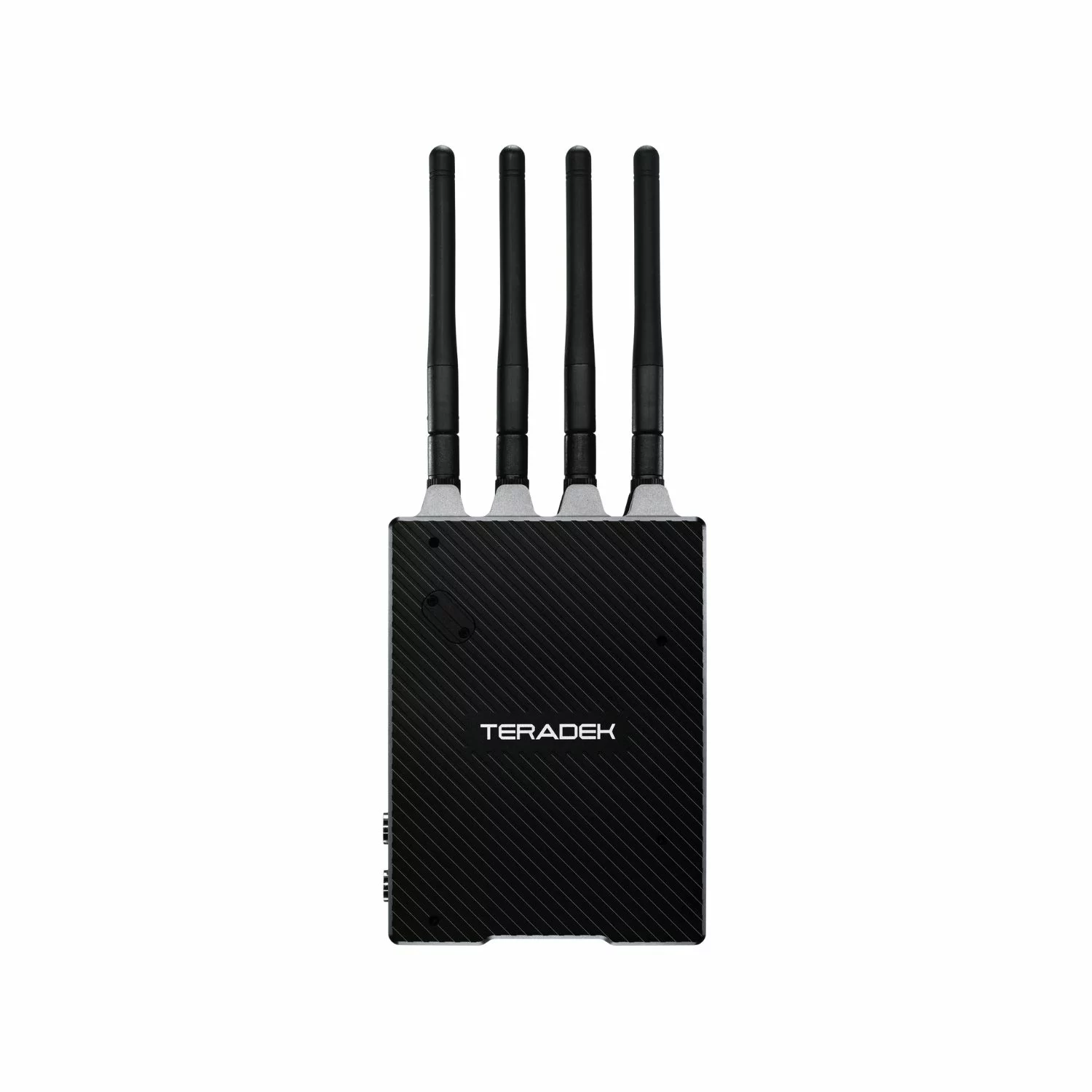

Bolt 4K 750 TX No Mount

• Video –
  Video Inputs
  1 x 12G-SDI SMPTE 2082-1 standard / 75 Ω (accepts 12G-SDI, 6G-SDI, or 3G-SDI)
  1 x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4)
  Video Outputs
  1 x Loopout 12G-SDI SMPTE 2082-1 standard / 75 Ω
  Sdi Ancillary Data Support
  Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
  Color Sampling
  SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
  Delay Tx To Rx
  <0.001sec
  Input Cross Conversion
  Yes, HDMI to SDI
• Supported Resolutions –
  Supported Resolutions
  4Kp23.98/24/25/29.97/30/50/59.94/60
  1080p23.98/24/25/29.97/30/50/59.94/60
  1080psf23.98/24/25/29.97/30
  1080i50/59.94/60
  720p50/59.94/60
  480p50 576p59.94/60
  480i(NTSC)/576i(PAL)
• Video Processing –
  Video Compression
  Visually Lossless
  Video Format Conversion Support
  Connect an HD source to the Tx and get a 4K signal out of Rx
  Connect a 4K source to the Tx, get HD resolution out of Rx
  You can also mix & match from a single source:
  4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx
  Input/output configurations are controlled directly on units or via Bolt 4K app
  Color Correction
  None
• Audio Processing –
  Audio Format
  48kHz 24-bit PCM
• Inputs –
  Audio Input
  Embedded SDI/HDMI Audio Input (2 Channel)
• Physical –
  Dimensions
  132 x 91 x 27 mm
  Weight
  358g (12.6 Oz)
  Construction
  Milled Aluminum(Chassis) and regulation-compliant PCB
  Mountability
  Multiple mounting options with 1/4″x20 and M3 holes
• Interfaces –
  Configuration Interfaces
  OSD with Menu, Joystick Navigation
  Switches
  On/Off Switch
  Usb Interface Functionality
  Upgrade via Micro-USB
• Network –
  Antennas
  4 External 2dBi RP-SMA antennas (included)
  Wireless
  Non-DFS Frequencies:
  5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz
  DFS Frequencies:
  5.270 ~ 5.670 GHz
  Channel Bandwidth
  13x 40MHz wide channels
  Rf Channel Selection
  Auto, Manual
  Manual available for non-DFS Channels
  Encryption
  AES-256, RSA-1024 key exchange
  Rf Power
  19 dbm EIRP (4 external 2dBi antennas) (<80mW transmit power)
  Range
  Up to 750 ft, line of sight
  Unicast Multicast
  Can connect one Transmitter to up to 6 Receivers
  Noise Rejection
  Can coexist with WiFi and 5GHz cordless phones
  Can operate up to 6 sets in same location
• Power –
  Power Input
  2-Pin Circular locking Connector 6-28 VDC
  Battery
  None, optional Gold or V mount battery plate
  Nominal Power Consumption
  20 Watts
• Environmental –
  Operating Temperature
  0-40℃

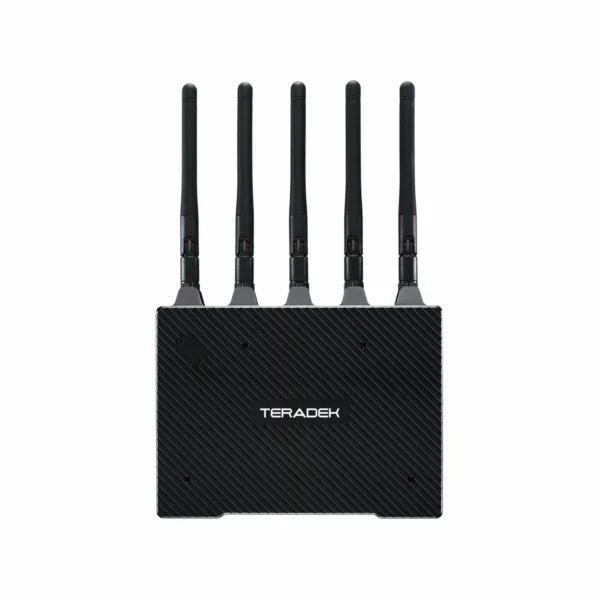

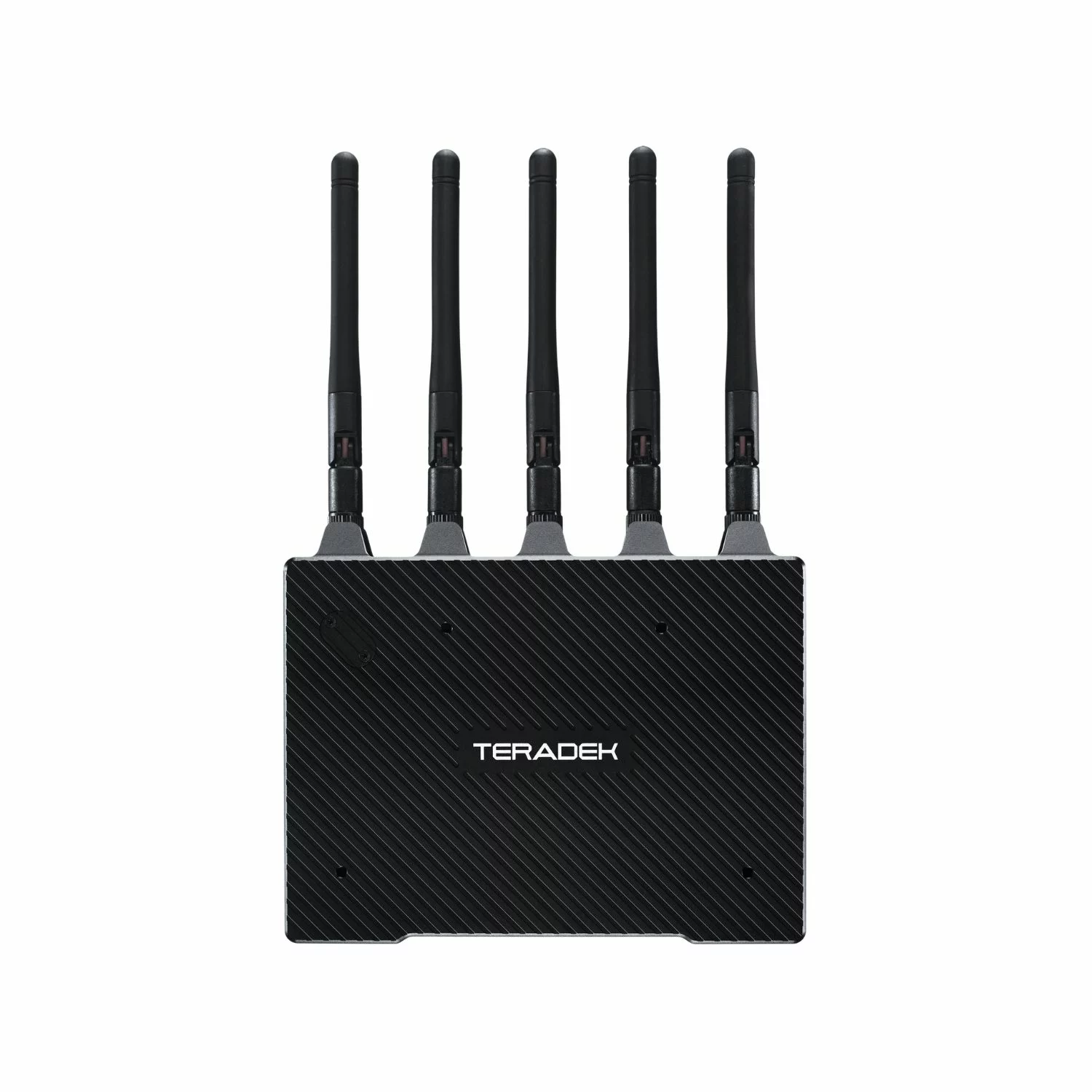

Bolt 4K 750 RX No Mount

• Video –
  Video Outputs
  2 x 12G-SDI SMPTE 2082-1 standard / 75 Ω (accepts 12G-SDI, 6G-SDI, or 3G-SDI)
  1 x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4)
  Sdi Ancillary Data Support
  Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
  Color Sampling
  SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
  Delay Tx To Rx
  <0.001sec
  Input Cross Conversion
  Yes, HDMI to SDI
• Supported Resolutions –
  Supported Resolutions
  4Kp23.98/24/25/29.97/30/50/59.94/60
  1080p23.98/24/25/29.97/30/50/59.94/60
  1080psf23.98/24/25/29.97/30
  1080i50/59.94/60
  720p50/59.94/60
  480p50 576p59.94/60
  480i(NTSC)/576i(PAL)
• Video Processing –
  Video Compression
  Visually Lossless
  Video Format Conversion Support
  Connect an HD source to the Tx and get a 4K signal out of Rx
  Connect a 4K source to the Tx, get HD resolution out of Rx
  You can also mix & match from a single source:
  4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx
  Input/output configurations are controlled directly on units or via Bolt 4K app
  Color Correction
  17x17x17 3D LUT (supports 10-bit color)
• Audio Processing –
  Audio Format
  48kHz 24-bit PCM
  Outputs –
  Audio Output
  Embedded SDI/HDMI Audio Output (2 Channel)
• Physical –
  Dimensions
  112 x 139 x 27 mm
  Weight
  432g (15.2 Oz)
  Construction
  Milled Aluminum(Chassis) and regulation-compliant PCB
  Mountability
  Multiple mounting options with 1/4″x20 and M3 holes
• Interfaces –
  Configuration Interfaces
  OSD with Menu, Joystick Navigation
  Switches
  On/Off Switch
  Usb Interface Functionality
  Upgrade via Micro-USB
• Network –
  Antennas
  5 External 2 dBi antennas (included) or optional Array Panel Antenna
  Wireless
  Non-DFS Frequencies:
  5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz
  DFS Frequencies:
  5.270 ~ 5.670 GHz
  Channel Bandwidth
  13x 40MHz wide channels
  Rf Channel Selection
  Auto, Manual
  Manual available for non-DFS Channels
  Encryption
  AES-256, RSA-1024 key exchange
  Rf Power
  17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power)
  Range
  Up to 750 ft, line of sight
  Unicast Multicast
  Can connect one Transmitter to up to 6 Receivers
  Noise Rejection
  Can coexist with WiFi and 5GHz cordless phones
  Can operate up to 6 sets in same location
• Power –
  Power Input
  2-Pin Circular locking Connector 6-28 VDC
  Battery
  None, optional Gold or V mount battery plate
  Nominal Power Consumption
  18 Watts
  Environmental –
  Operating Temperature
  0-40℃
