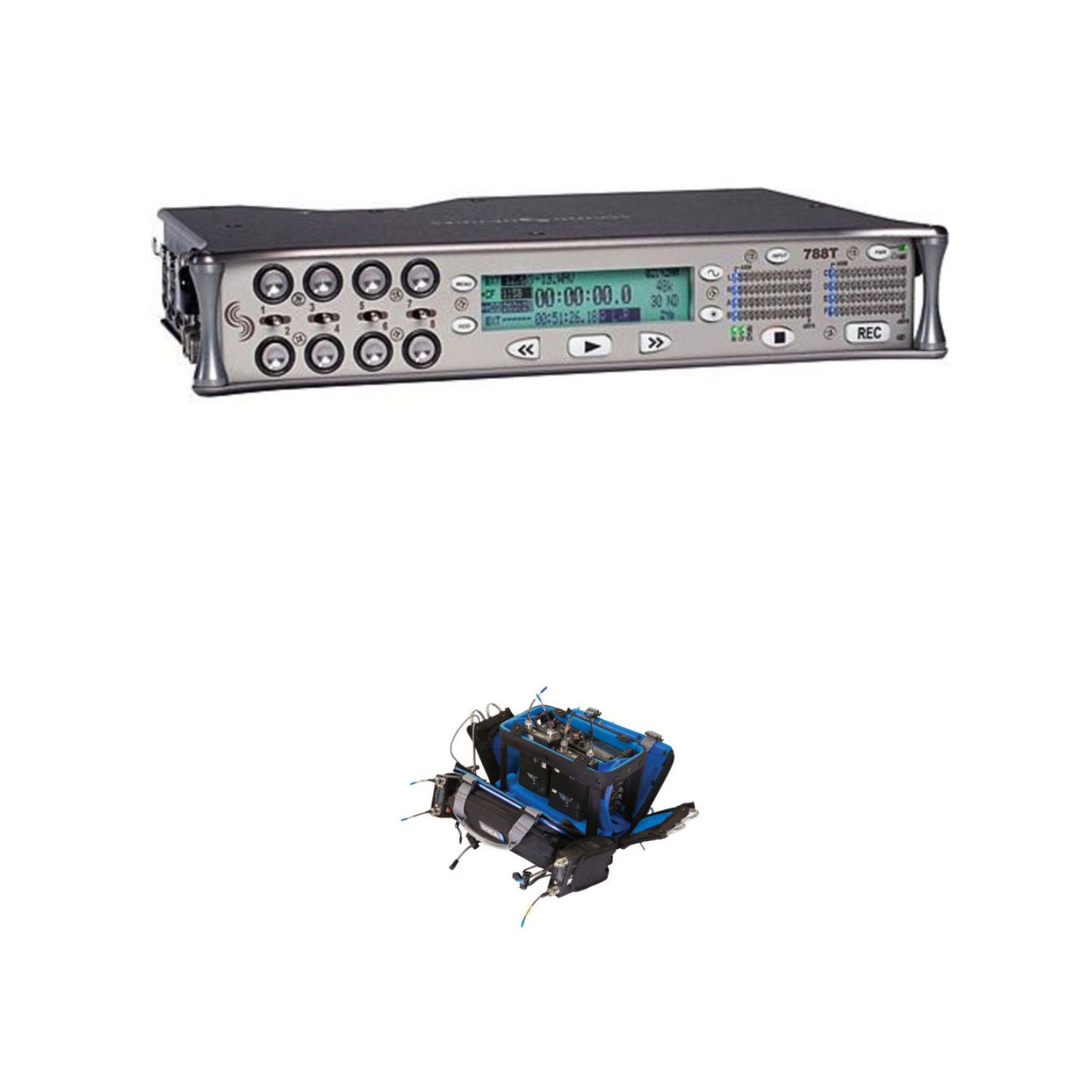

Sound Devices 788T-SSD 8-Input/12-Track Field Recorder with OR-34 Bag Kit

Sound Devices 788T-SSD 8-Input/12-Track Field Recorder with OR-34 Bag Kit

Sound Devices 788T-SSD 8-Channel Portable Solid-State Audio Recorder The Sound Devices 788T-SSD Portable Digital Recorder builds on the success of the Sound Devices 7-series digital recorders. The 788T-SSD is a lightweight and compact professional recorder that features 8 digital recording tracks. An internal 256GB SSD, CompactFlash media with UDMA support, external FireWire hard drive or DVD-RAM (with bus powering) all serve as compatible recordable media. Any or all of these options may be used to record audio simultaneously and the 788T-SSD serves as a mass storage device when connected to high-speed USB or FireWire ports on Windows and Mac OS X computers.

The 8 microphone and line-level inputs are provided as 4 XLR and 4 TA3-male connections. The 788T-SSD has 8 channels of balanced AES3 digital input and 6 channels of balanced AES3 output for simple integration with compatible AES3 digital cameras and mixers. All of the 7-series feature still apply; including 48V phantom, limiter, polarity reverse, high-pass, selectable delay and headphone monitoring on each input. Note: Please note that not all memory cards are approved to work with this device. Please check manufacturer’s website for a list of approved cards.

Compact and Durable

• 8-track portable SSD/CompactFlash audio recorder with 256GB internal SSD and full time code implementation
• Compact aluminum and stainless-steel chassis for exceptional durability and light weight, resistant to environmental extremes

Comprehensive Professional Connectivity

• 8 channels of improved microphone and line inputs with phantom power, limiting, and high-pass filters
• 3-channel, balanced mic/line level outputs on TA3 connectors
• Multi-pin AES3 I/O for complete compatibility with supported digital cameras, mixers, etc
• High speed FireWire and USB ports for high-speed data transfer to computers for editing and backup

High-Resolution Recording and Synchronization

• 24-bit or 16-bit with or without dither, 32kHz – 96kHz sampling rates
• Input-to-track assignment with 256 possible routing combinations
• WAV or BWF format, mono or poly files, uncompressed PCM audio
• MP3 encode and decode, 32 to 320kbps stereo files
• Stable, reliable Ambient time code circuitry, tunable to <0.2 PPM accuracy with all relevant TC rates and full Word Clock I/O

Flexible Metering and Powering

• Programmable backlit, sunlight-viewable LED level metering; selectable, menu-driven metering ballistics
• Large backlit, adjustable LCD display; fully dedicated status and activity LED indicators, backlit controls
• Removable Lithium-ion rechargeable battery, compatible with Sony M- and L-mount batteries
• 10-18VDC external input powers and charges on-board battery, 100-240V worldwide power supply

ORCA OR-32 Audio / Mixer Bag The OR-32 Audio / Mixer Bag from ORCA is designed to carry, protect, and enable access to your audio mixer. The bag’s aluminum frame allows for access to the gear from six directions, and its bright blue polyester lining provides easy viewing of the equipment. The top clear TPU allows you to see your gear without opening the bag. The bag features two pockets for accessory storage, front bungee cords to hold a boom pole or cables, 2 external detachable pouches, and 9 rubber bands to support your wireless system. The rubber battery fittings secure your battery in place while the interior sliding system secures your gear. The bag also features detachable carrying handles and a shoulder strap and can be connected to the ORCA Harness for easier carrying.

• Sliding system to secure mixture inside the bag
• Top clear TPU for viewing
• Battery pocket with extra battery fittings
• Detachable carrying handles and shoulder strap
• 2 pockets for storing audio accessories
• 2 external detachable pouches and 9 rubber bands to hold a wireless system
• Front bungee cords can hold a boom pole or cables
• Aluminum frame allows access to the gear from six directions
• Inside lining made from bright blue brushed polyester for easier equipment viewing

ORCA Audio Bag Harness The ORCA Audio Bag Harness is a ventilated harness to help distribute the weight while carrying an audio mixer. An internal cable and pouch for a battery or power bank are built-in to the harness. The harness features aluminum buckles for connection to any Orca audio bag and can be adapted for different users. The EVA skeleton and mesh fabric allows for ventilation.

• Internal cable and pouch for battery or power bank
• Ventilated using EVA skeleton with mesh fabric
• Aluminum buckles provide strength and connect to any Orca audio bag
• Sliding system fits any operator of any size

In the Box

• 788T-SSD 8-Channel Portable Solid-State Audio Recorder fzudrbffusxvfsucfdqyayfru
• XL-WPH2 Power Supply
• XL-RJ – C. Link Cable
• CS-MAN Carrying Pouch
• Owner’s Manual
• Limited 2-Year Warranty
• ORCA – OR-32 Audio / Mixer Bag fzudrbffusxvfsucfdqyayfru
• ORCA – Audio Bag Harness

Specifications

Sound Devices 788T-SSD 8-Channel Portable Solid-State Audio Recorder
Number of Tracks	8
Max Sample Rate/Resolution	96 kHz / 24-Bit
Built-In Speaker	No
Memory Card Support	CompactFlash, Microdrive Please see manufacturer’s site for a list of approved cards.
Internal Storage	256 GB FAT32 Formatted

Audio File Formats	BWF, MP3, WAV
Sample Rates	32 / 44.1 / 47.952 / 48 / 48.048 / 88.2 / 96 / 96.096 kHz
Bit Depth	16/24-Bit
Timecode	Yes

Analog I/O	4 x XLR 3-Pin Balanced Line/Mic Input 4 x TA3 Male Balanced Line/Mic Input 4 x TA3 Male Balanced Output 1 x 1/8″ / 3.5 mm TRS Unbalanced Output
Digital I/O	2 x DB15 AES3 In/Out 2 x TA3 AES3 Output 1 x LEMO 5-Pin Timecode Output 1 x BNC Video/Word Clock Input 1 x BNC Word Clock Output
Host Connection	1 x FireWire 9-Pin (FireWire 800) 1 x FireWire 6-Pin (FireWire 400) 1 x USB Type-B

Frequency Response	10 Hz to 20 kHz +0.1/-0.5 dB
Dynamic Range	A/D Converters: 114 dBA 110 dB D/A Converters: 112 dBA 108 dB
THD	Mic Inputs: 0.004% Line Inputs: 0.004%

Battery Type	Removable Rechargeable

Dimensions	10.1 x 6.4 x 1.8″ / 256.5 x 163.0 x 44.0 mm
Weight	3.8 lb / 1.7 kg (Without Batteries)

Box Dimensions (LxWxH)	15.9 x 10.9 x 5.2″

ORCA OR-32 Audio / Mixer Bag

Internal Dimensions	L x W x H: 13.0 x 5.7 x 9.1″ (33.0 x 14.5 x 23.0 cm)
External Dimensions	L x W x H:15.4 x 11.8 x 9.5″ (39.0 x 30.0 x 24.0 cm)
Weight	5.76 lb (2.62 kg)

Box Dimensions (LxWxH)	16.0 x 12.0 x 11.0″

ORCA Audio Bag Harness

Dimensions	L x W: 29.1 x 26.4″ (74.0 x 67.0 cm)
Weight	1.47 lb (0.67 kg)

Box Dimensions (LxWxH)	12.2 x 8.2 x 4.3″
