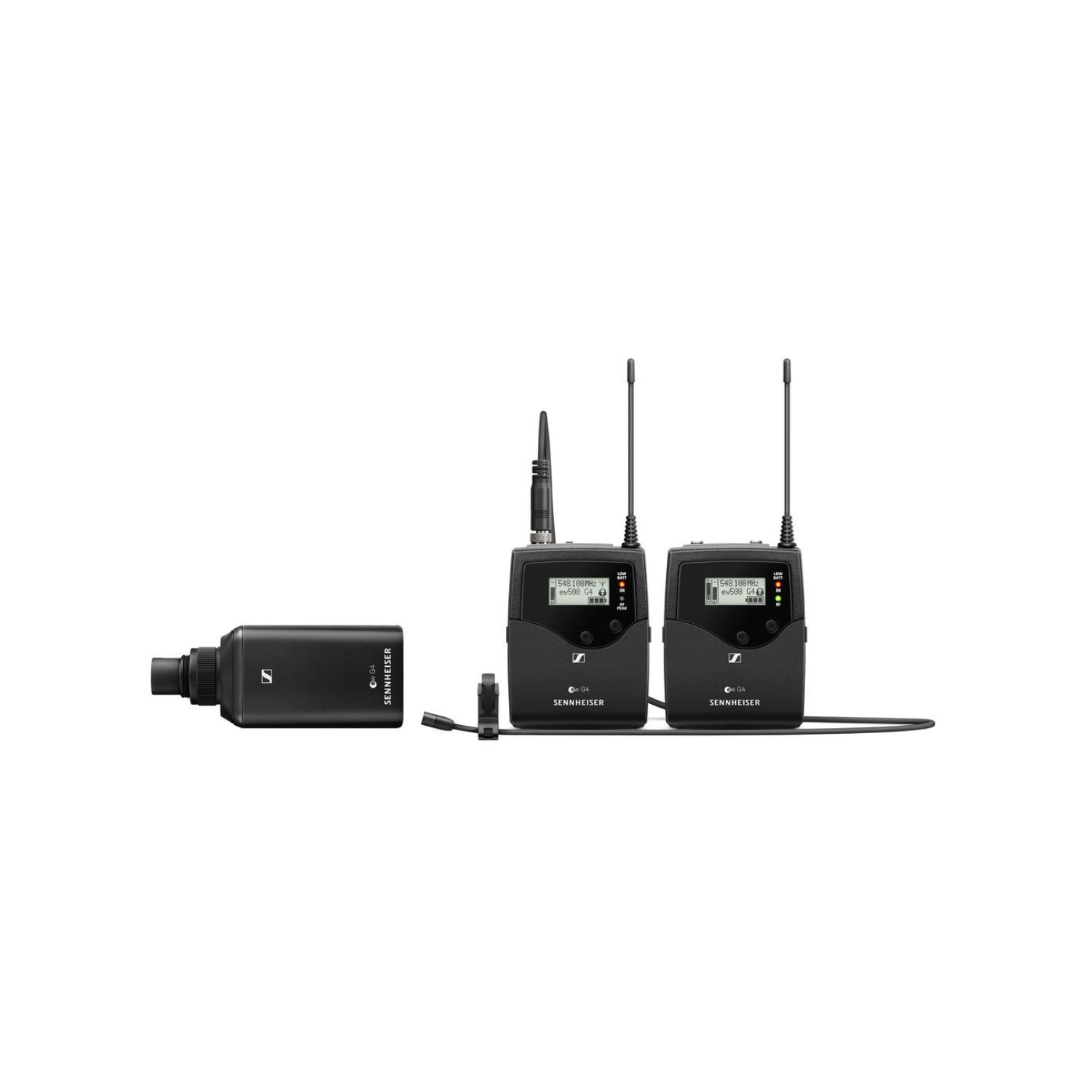

Sennheiser EW 500 FILM G4 Camera-Mount Wireless Combo Microphone

Sennheiser EW 500 FILM G4 Camera-Mount Wireless Combo Microphone

The professional‘s choice for broadcast quality sound. Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers ultimate sound quality, simple mounting and ease of use.

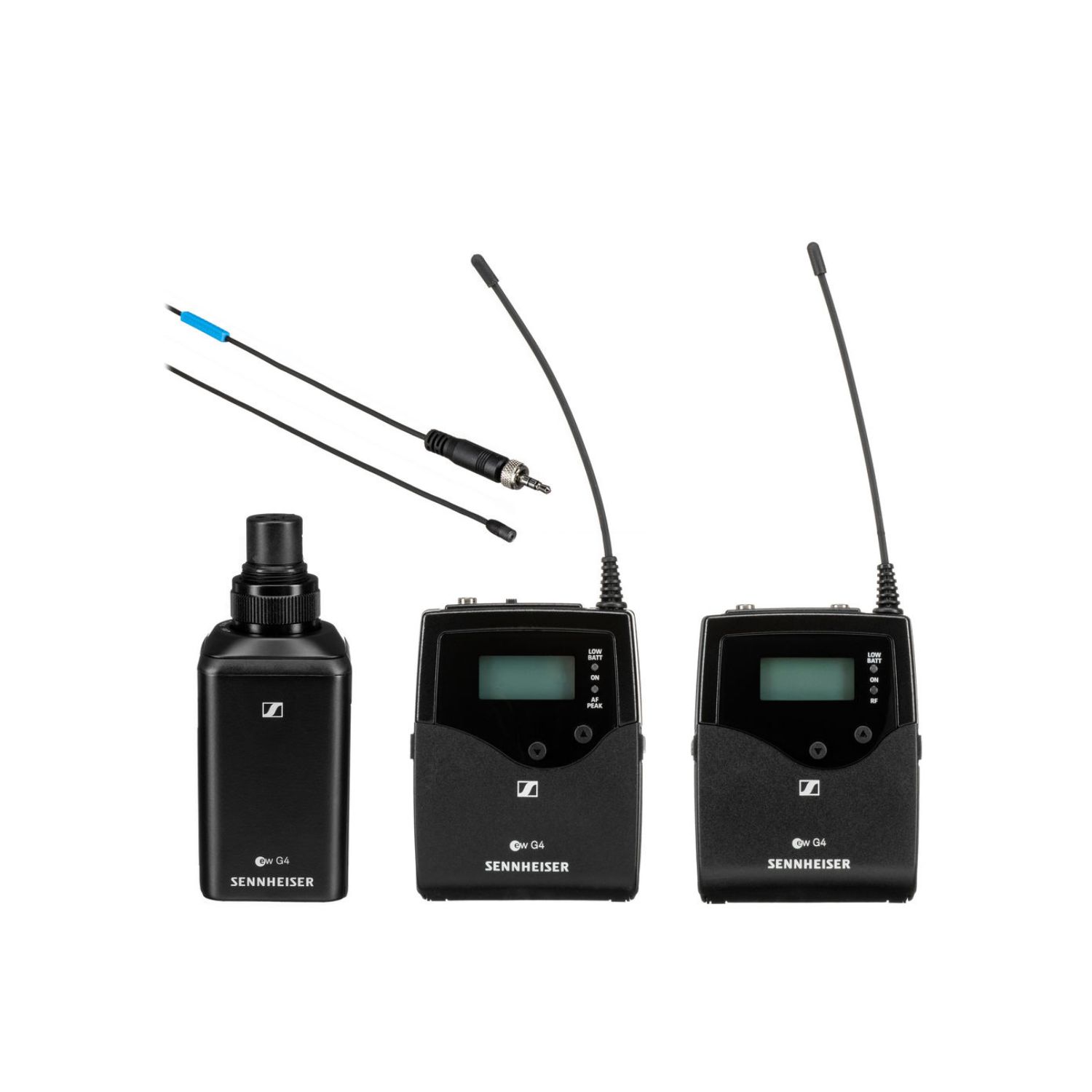

Covers all sorts of applications on the set: The 48V phantom-power equipped SKP 500 turns all wired mics into a wireless transmitter, the MKE 2 Gold is a state-of-the-art professional clip-on microphone offering the highest speech intelligibility.

Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording

• Professional sound and excellent construction quality
• Easy to use and fast setup time
• Easy and flexible wireless synchronisation between transmitter and receiver via infrared
• Up to 88 MHz bandwidth, up to 32 channels
• Range: up to 100 meters / 330 feet
• Increased RF output power (10/30/50 mW)
• Up to 8 hours of operation time
• With 48 V phantom powering

Specifications

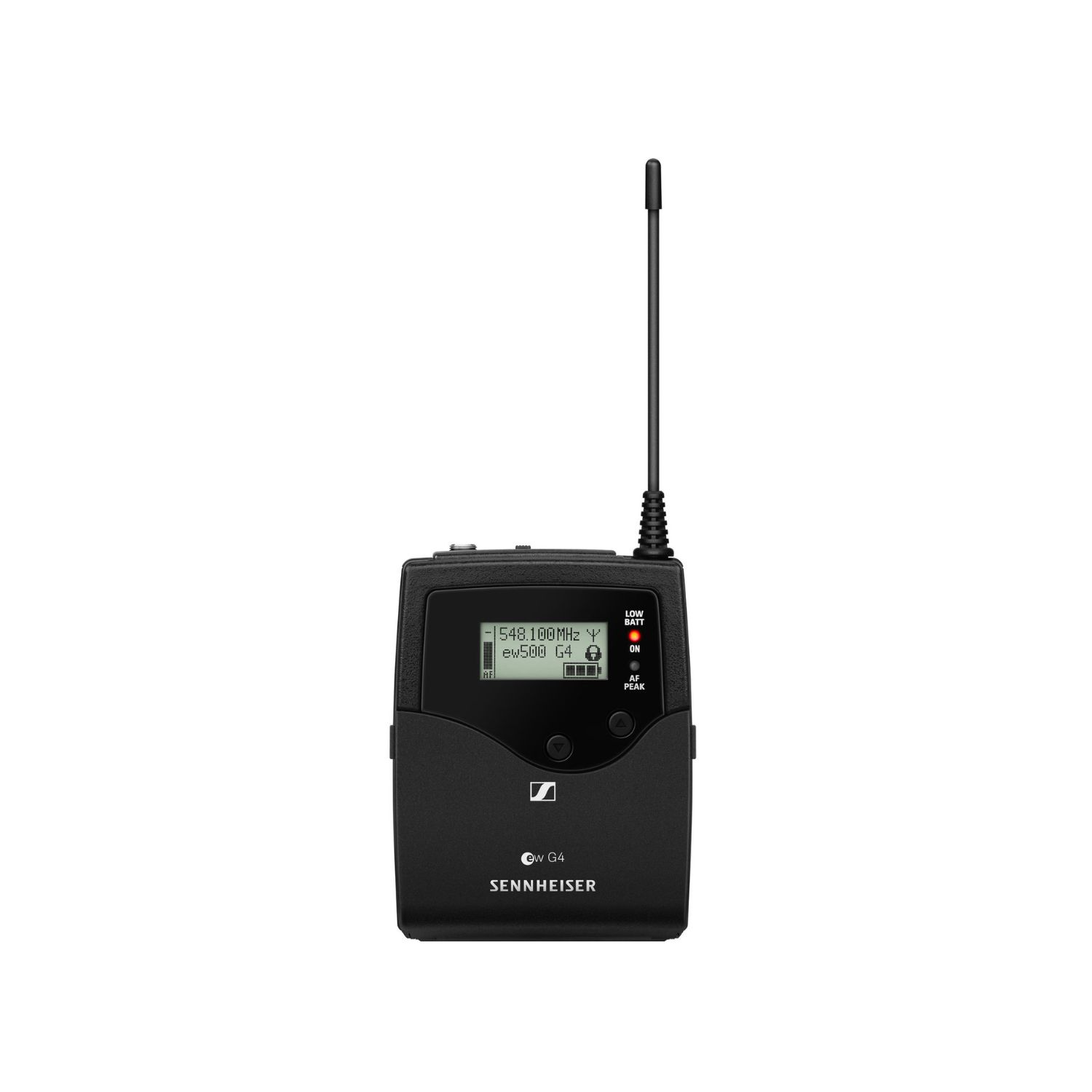

EK 500 G4

• Frequency range
  AS: 520 – 558 MHz
  Aw+: 470 – 558 MHz
  Bw: 626 – 698 MHz
  Cw: 718 – 790 MHz
  Dw: 790 – 865 MHz
  GBw: 606 – 678 MHz
  Gw: 558 – 626 MHz
  Gw1: 558 – 608 MHz
  JB: 806 – 810 MHz
  K+: 925 – 937.5 MHz
• Dimensions
  Approx. 82 x 64 x 24 mm
• Compander
  Sennheiser HDX
• THD, total harmonic distortion
  ≤ 0.9 %
• Weight
  (incl. batteries) approx. 130 g
• Audio output
  3.5 mm jack socket: +17 dBu (mono, balanced)
• Signal-to-noise ratio
  Line: ≥ 110 dBA, Phones: approx. 90 dBA
• Switching bandwidth
  up to 88 MHz
• Peak deviation
  ±48 kHz
• Nominal deviation
  ±24 kHz
• Operating time
  Typically 8 h
• Modulation
  Wideband FM
• Power supply
  2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption
  at nominal voltage: typ. 140 mA
  with receiver switched off: ≤ 25 µA
• Adjacent channel rejection
  Typically ≥ 65 dB
• Intermodulation attenuation
  Typically ≥ 65 dB
• Powering
  3 V battery / 2.4 V rechargeable battery
• Receiving frequency
  Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• RF sensitivity
  < 1.6 μV for 52 dBA eff S/N
• Squelch
  low: 5 dBµV, middle: 15 dBµV, high: 25 dBμVTemperature Range
  -10 °C to +55 °C
• Receiver Principle
  Adaptive diversity
• Blocking
  ≥ 70 dB

SK 500 G4

• Dimensions
  Approx. 82 x 64 x 24 mm
• Compander
  Sennheiser HDX
• THD, total harmonic distortion
  ≤ 0.9 %
• Weight
  (incl. batteries) approx. 160 g
• Signal-to-noise ratio
  ≥ 115 dBA
• RF output power
  switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
• Switching bandwidth
  up to 88 MHz
• Peak deviation
  ±48 kHz
• Nominal deviation
  ±24 kHz
• Operating time
  Typically 8 h
• Modulation
  Wideband FM
• Power supply
  2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption
  at nominal voltage: typ. 180 mA
  with transmitter switched off: ≤ 25 µA
• Input impedance
  40 kΩ, unbalanced / 1 MΩ
• Max. Input voltage
  3 Veff
• Powering
  3 V battery / 2.4 V rechargeable battery
• Transmission frequency
  Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• AF frequency response
  Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
• Temperature Range
  -10 °C to +55 °C
• Frequency stability
  ≤ ±15 ppm

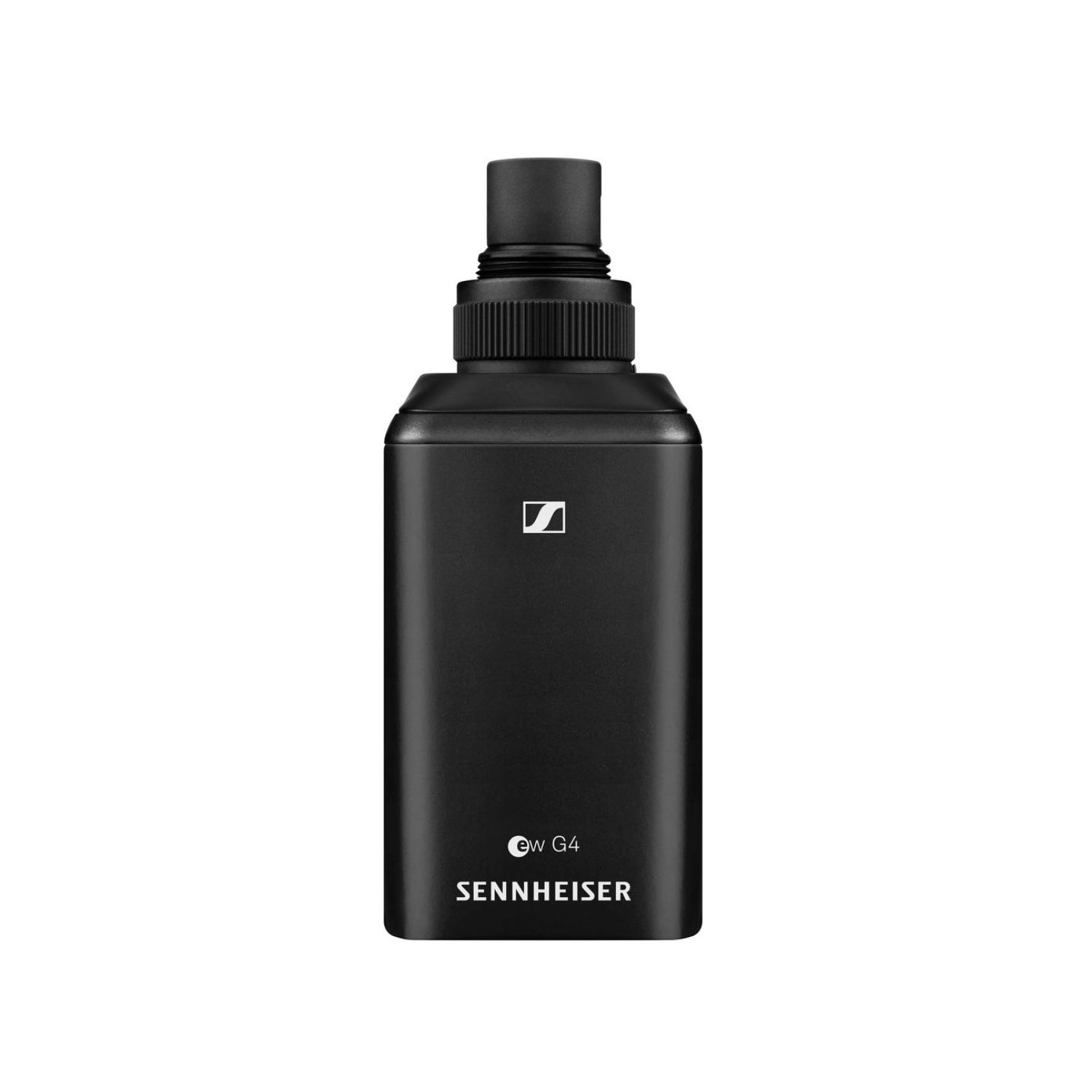

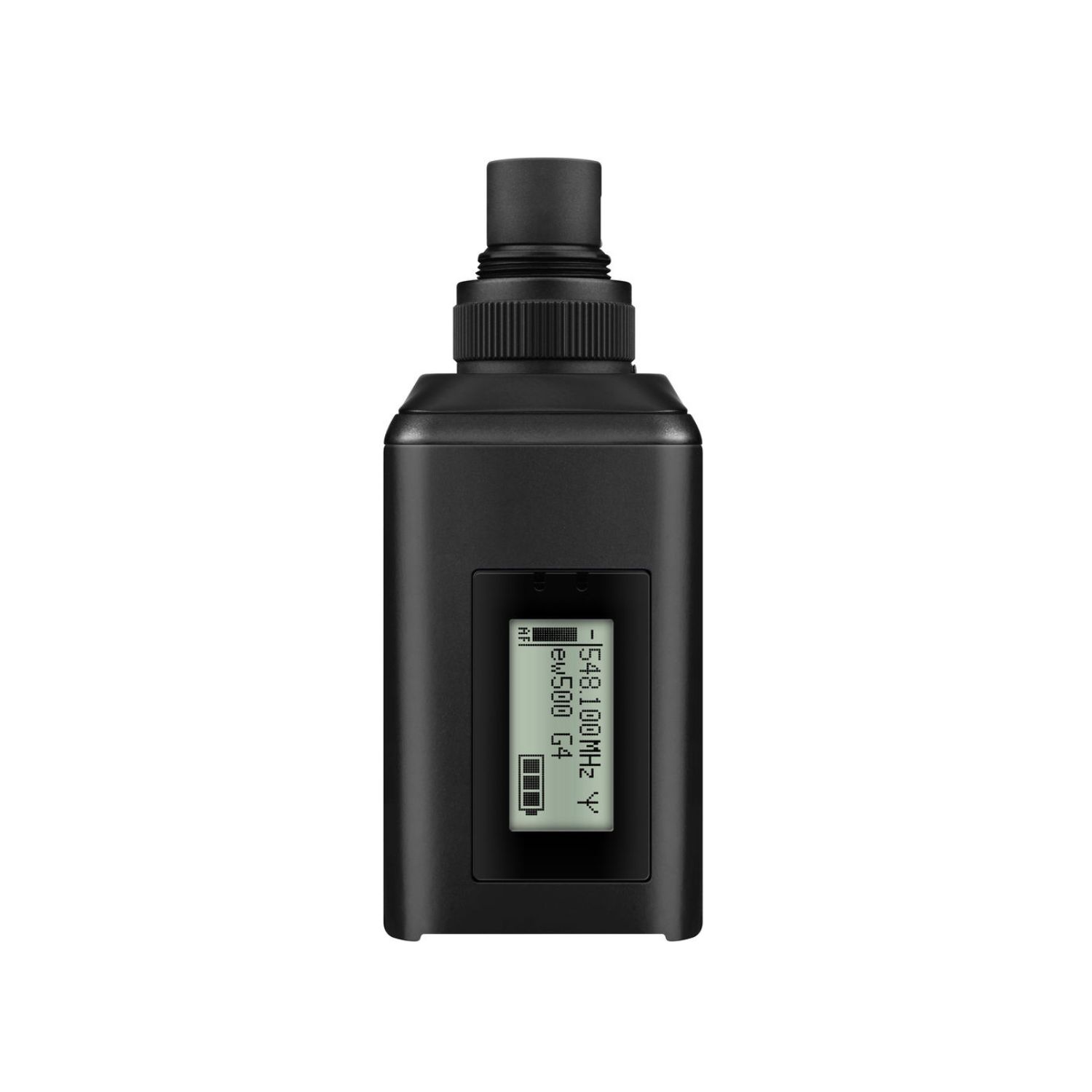

SKP 500 G4

• Dimensions
  Approx. 105 x 43 x 43 mm
• Compander
  Sennheiser HDX
• THD, total harmonic distortion
  ≤ 0.9 %
• Weight
  (incl. batteries) approx. 195 g
• Signal-to-noise ratio
  ≥ 120 dBA
• RF output power
  switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
• Switching bandwidth
  up to 88 MHz
• Peak deviation
  ±48 kHz
• Nominal deviation
  ±24 kHz
• Operating time
  Typically 8 h
• Modulation
  Wideband FM
• Power supply
  2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption
  at nominal voltage: typ. 210 mA
  with transmitter switched off: ≤ 25 µA
• Input impedance
  68 kΩ, unbalanced
• Max. Input voltage
  6 Veff
• Powering
  3 V battery / 2.4 V rechargeable battery
• Transmission frequency
  Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• AF frequency response
  80 – 18,000 Hz
• Temperature Range
  -10 °C to +55 °C
• Frequency stability
  ≤ ±15 ppm

MKE 2

• Connector
  3.5 mm jack
  Frequency response
  20 to 20.000 Hz ± 3 dB
• Max. sound pressure level
  142 dB
• Cable length
  approx. 1.60 m
• Transducer principle
  pre-polarized condensor microphone
• Pick-up pattern
  omni-directional
• Sensitivity in free field, no load (1kHz)
  5 mV/Pa, ± 3 dB
• Equivalent noise level
  26 dB
• Equivalent noise level weighted as per CCIR
  39 dB
