Lilliput PVM220S 21.5″ 3G-SDI/HDMI Quad-Split Broadcast Monitor
Original price was: ₹65,990.₹59,990Current price is: ₹59,990.
You save ₹6,000! & Free Shipping
In stock
EXTRA 2% Discount: ₹58790.2
- 21.5″ 1920 x 1080 LCD Display
- 3G-SDI & HDMI In/Out, USB Type-C In

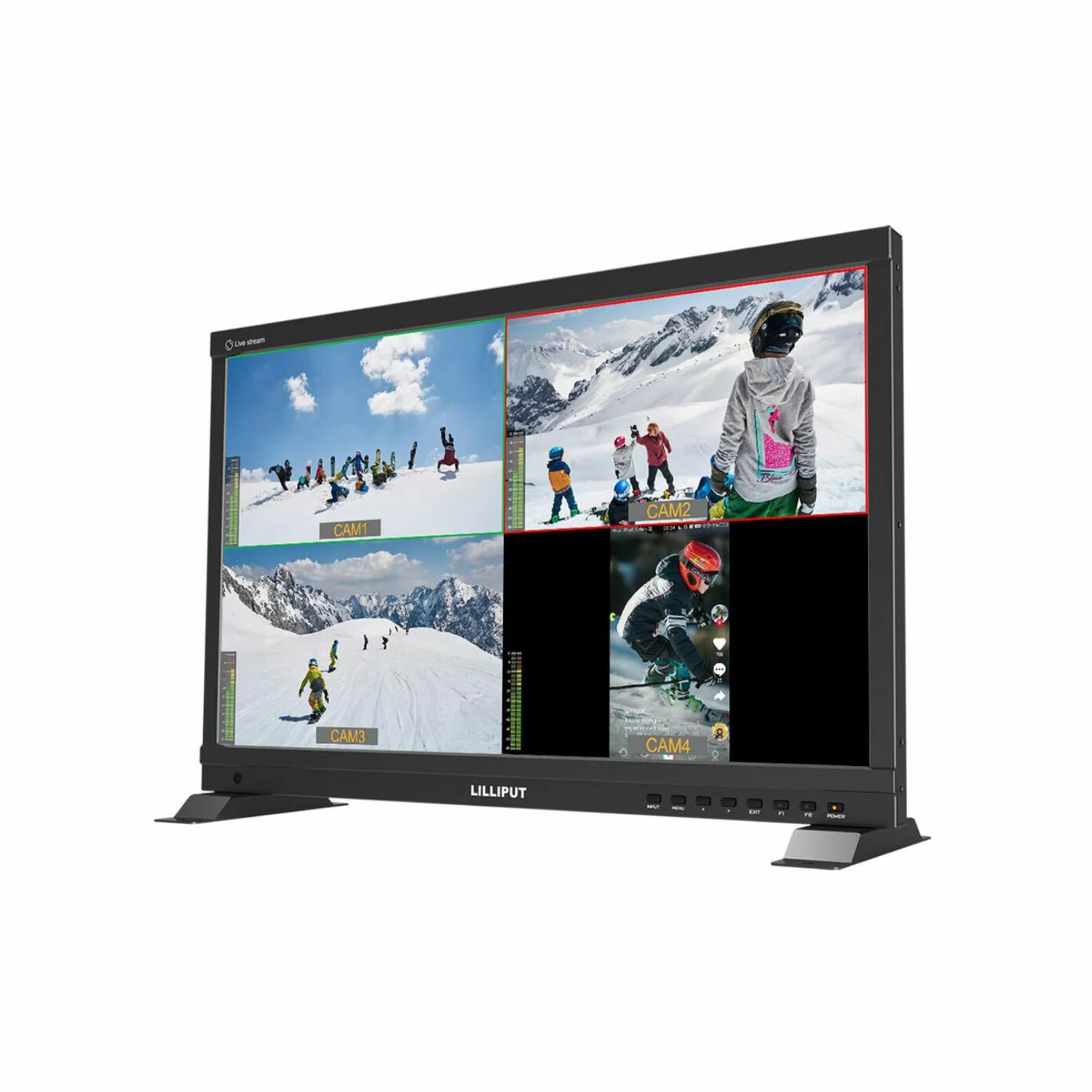

- Quad-Split Multiview + Program Out

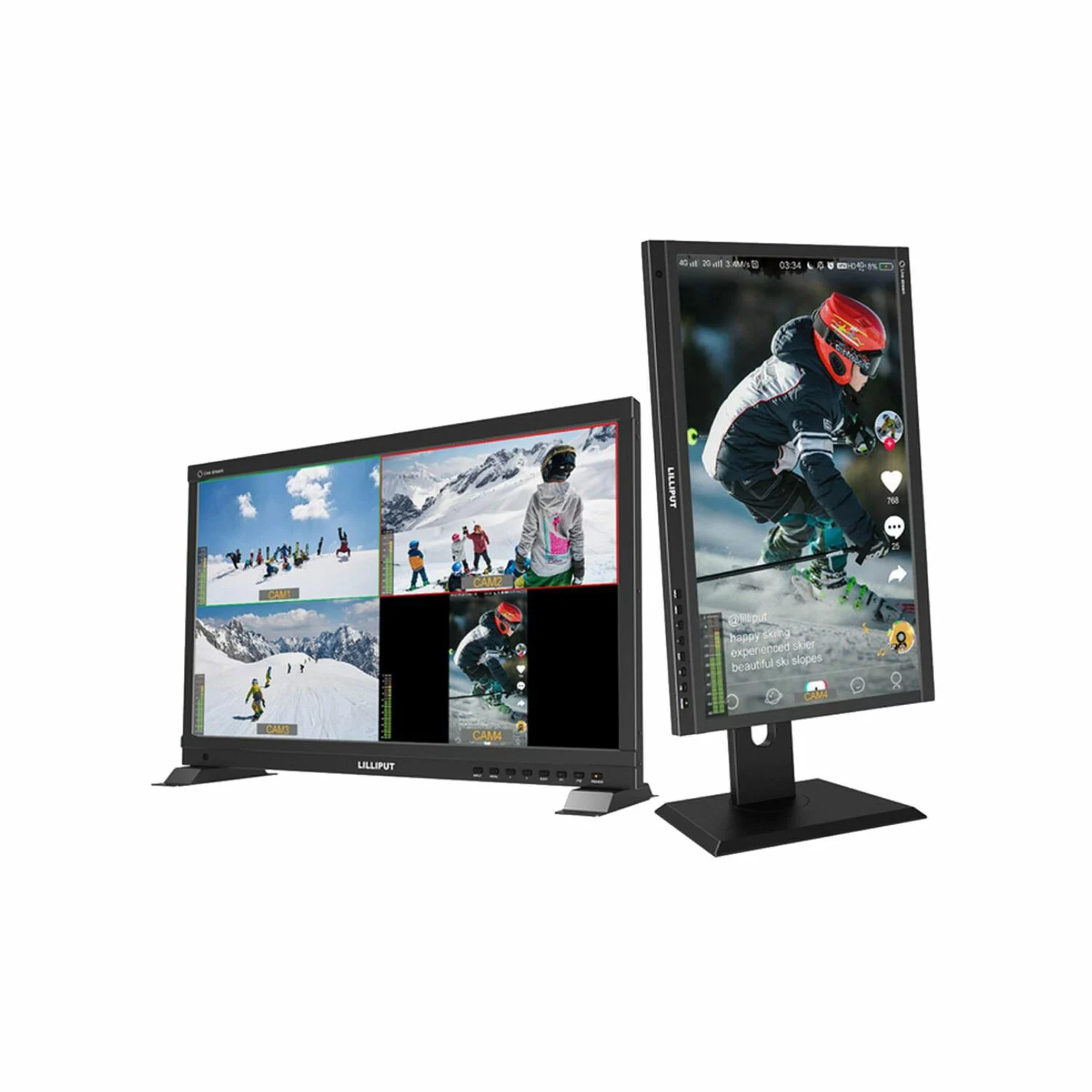

- Horizontal & Vertical Display Modes
- 500 cd/m² Brightness
- 1500:1 Contrast Ratio, 16:9 Aspect
Free shipping on orders!
- GST Invoice For Input Credit
- Price Includes GST
- Secure Payments
- No Hassle Refunds
Lilliput PVM220S 21.5″ 3G-SDI/HDMI Quad-Split Broadcast Monitor
The PVM 220S is a 21.5 inch live stream multiview monitor which can be used with Android mobile phones, DSLR cameras and camcorders and is particularly designed to work with streaming & multi camera systems. The live monitor can be switched between 4x 1080P high quality video signal inputs, making it easy to create professional multi-camera events for live streaming.
Sources can be set up as Preview and Finished Program, and you can quickly switch your source for live streaming to video capture via a number ofshortcuts, and then finally output the completed video to Youtube, Skype, Zoom and any more social media platforms.
Specifications
| Display | |
| Aspect Ratio | 16:9 |
| Brightness | 500 nit |
| Contrast Ratio | 1500:1 |
| Resolution | 1920 x 1080 |
| Viewing Angle | 170° / 170° (H/V) |
| Screen Size | 21.5″ |
| Input | |
| HDMI Video Inputs | 2160p 24 / 25 / 30 / 50 / 60 :: 1080p 24 / 25 / 30 / 50 / 60 :: 1080i 50 / 60 :: 720p 50 / 60 + PGM HDMI/SDI × 1 1080p 60/50/30/25/24 |
| Inputs | |
| SDI Video Inputs | 2160p 24 / 25 / 30 / 50 / 60 :: 1080p 24 / 25 / 30 / 50 / 60 :: 1080i 50 / 60 :: 720p 50 / 60 |
| Size | |
| Dimensions | 508mm × 321mm × 47mm |
| Weight | 5.39 Kg |
| Power | |
| Audio Output | 1x Speakers + 1x Earplug Jack |
| Input Voltage | DC 12-24V |
| Power Consumption | <=33W (15V) |
| Environment | |
| Operating Temperature | -20°c to 60°c |
| Storage Temperature | -30°c to 60°c |
| Brands |
|---|
