DJI SDR Transmission 2 Combo
Original price was: ₹64,990.₹61,000Current price is: ₹61,000. & Free Shipping
In stock
- Combo kit with two TX/RX switchable transceivers
- DCI 4K/60fps 10-bit HDR wireless video
- 35 ms latency, up to 4 km range (CE)
- 1 TX to 8 RX with multi-group transmission
- Auto Channel 2.0 across 2.4, 5.1, 5.8 GHz and DFS
- DJI RS series power and gimbal control
- Official DJI India warranty with GST invoice
Free shipping on orders!
- GST Invoice For Input Credit
- Price Includes GST
- Secure Payments
- No Hassle Refunds
DJI SDR Transmission 2 Combo

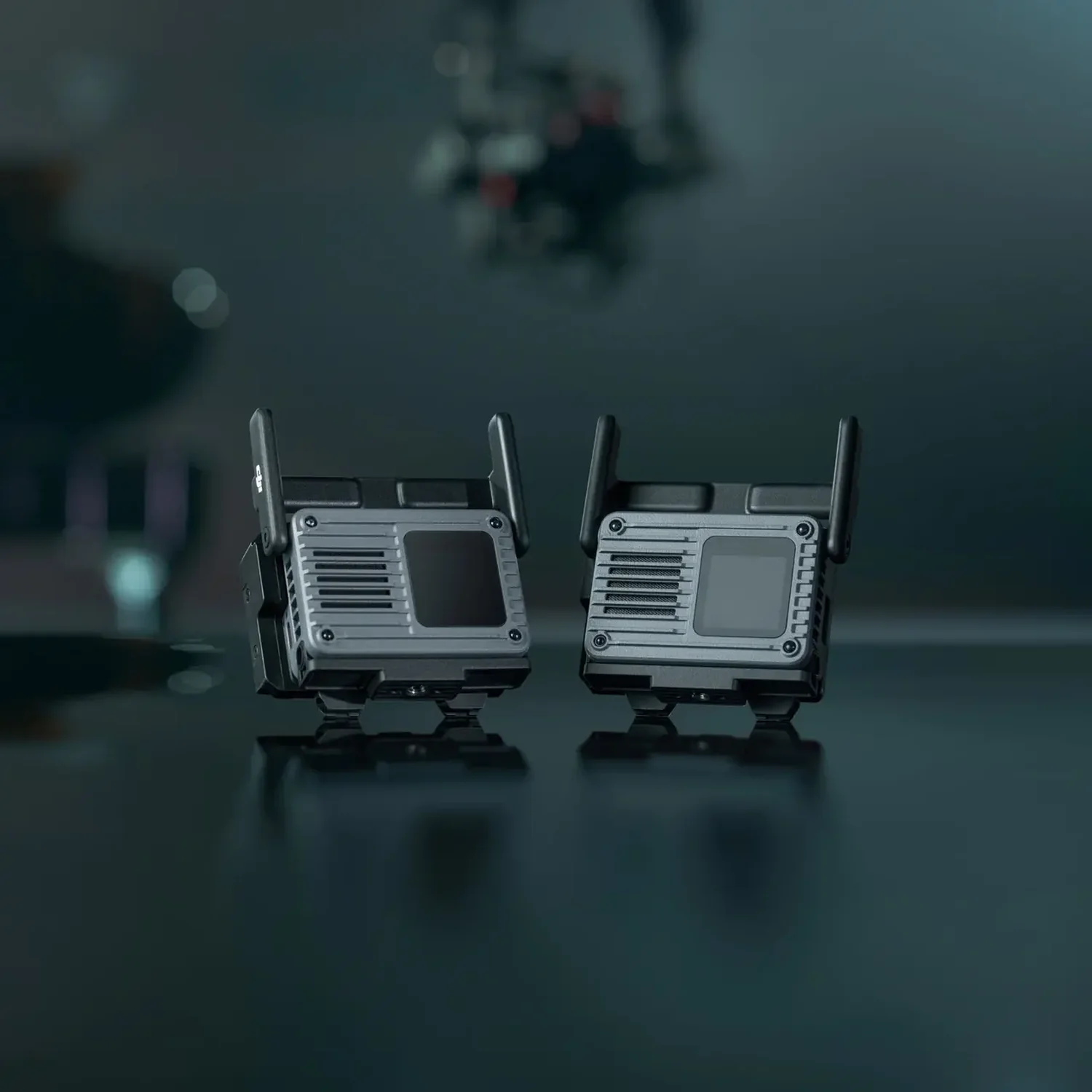

A wedding crew spread across a banquet hall, a director watching three cameras from a monitor cart, a focus puller who needs a clean image and not a stuttering one. The DJI SDR Transmission 2 Combo is built for exactly that kind of set. It ships with two identical transceivers, and each one can work as a transmitter (TX) or a receiver (RX), so one kit covers the camera end and the monitor end with nothing else to buy.
The biggest change from the first DJI SDR Transmission is image quality. Generation 1 topped out at 1080p60. This version sends DCI 4K at 60fps in 10-bit HDR, encoded in H.265 at up to 50 Mbps, with latency as low as 35 ms. Rated range goes up to 4 km (CE, open line of sight), and the tri-band system hops between 2.4 GHz, 5.1 GHz, 5.8 GHz and DFS channels using Auto Channel 2.0 to stay clear of crowded frequencies.
One transmitter can feed up to eight receivers, and several groups can run on the same set, so the director, the client and the colourist can all watch the same camera on their own screens. DJI recommends up to five cameras on one site. You can also watch on a phone or tablet: plug it into a receiver by USB-C and the feed arrives over SDR, not Wi-Fi, through the DJI Ronin app, which also loads your own LUTs.
Each transceiver weighs about 136 g with antennas and measures 76 x 61 x 25 mm. Power comes from a USB-C PD adapter (65 W or higher), a 6.8 to 17.5 V DC source, or an NP-F battery using the included battery adapter. On a DJI RS 5, RS 4 Pro, RS 4 or RS 3 Pro, the transceiver can draw power from the gimbal and give wireless gimbal control from the Ronin app, including Force Mobile and a virtual joystick.
The Pooja Electronics team rates this as the sensible upgrade for crews still running the first-generation SDR kit or Wi-Fi based monitoring: 4K monitoring, one kit that swaps roles, and Ronin integration in a unit small enough for a cold shoe. One point to plan for: SDI is not on the transceiver itself. For SDI input or output you need the DJI SDR Transmission 2 Expansion Plate, sold separately. Every unit we sell is genuine, authorised stock with an official DJI India warranty and a GST invoice.
Key Features
- DCI 4K/60fps 10-bit HDR: A monitoring feed sharp enough to judge focus and exposure, where the first generation stopped at 1080p60.
- TX/RX Switchable Transceivers: Both units in the box are identical, so either one can sit on the camera or at the monitor.

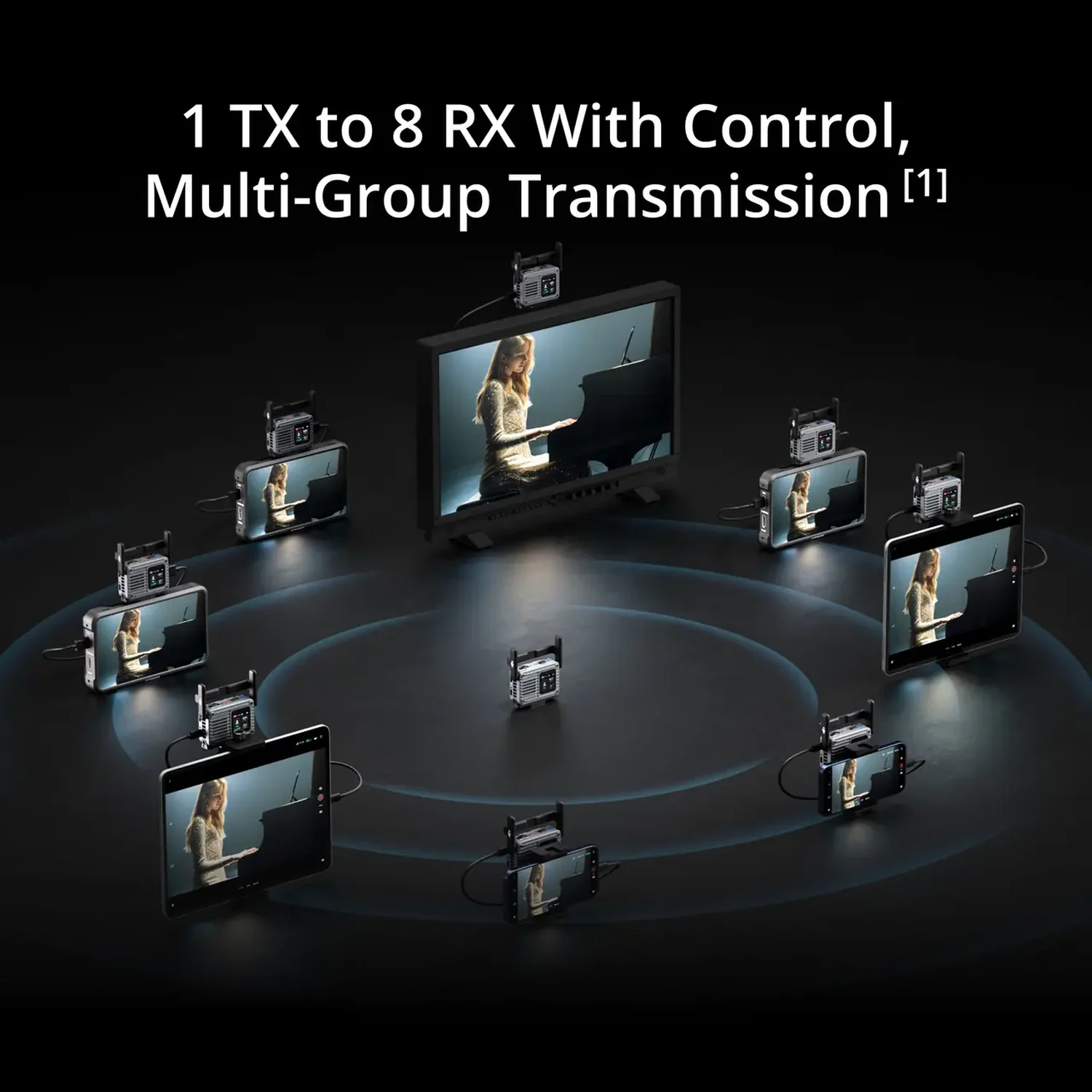

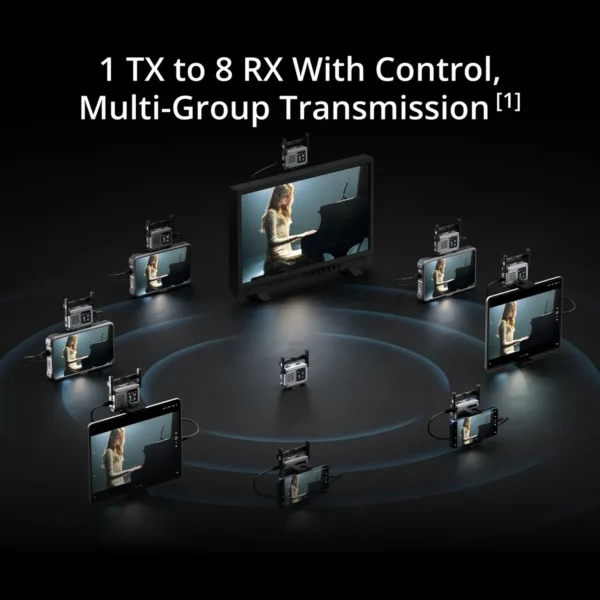

- 1 TX to 8 RX, Multi-Group: Send one camera to eight screens, and run several camera groups side by side on the same set.
- 35 ms Latency, 4 km Range: Low enough delay for focus pulling and gimbal operation, with range rated up to 4 km (CE) in open conditions.

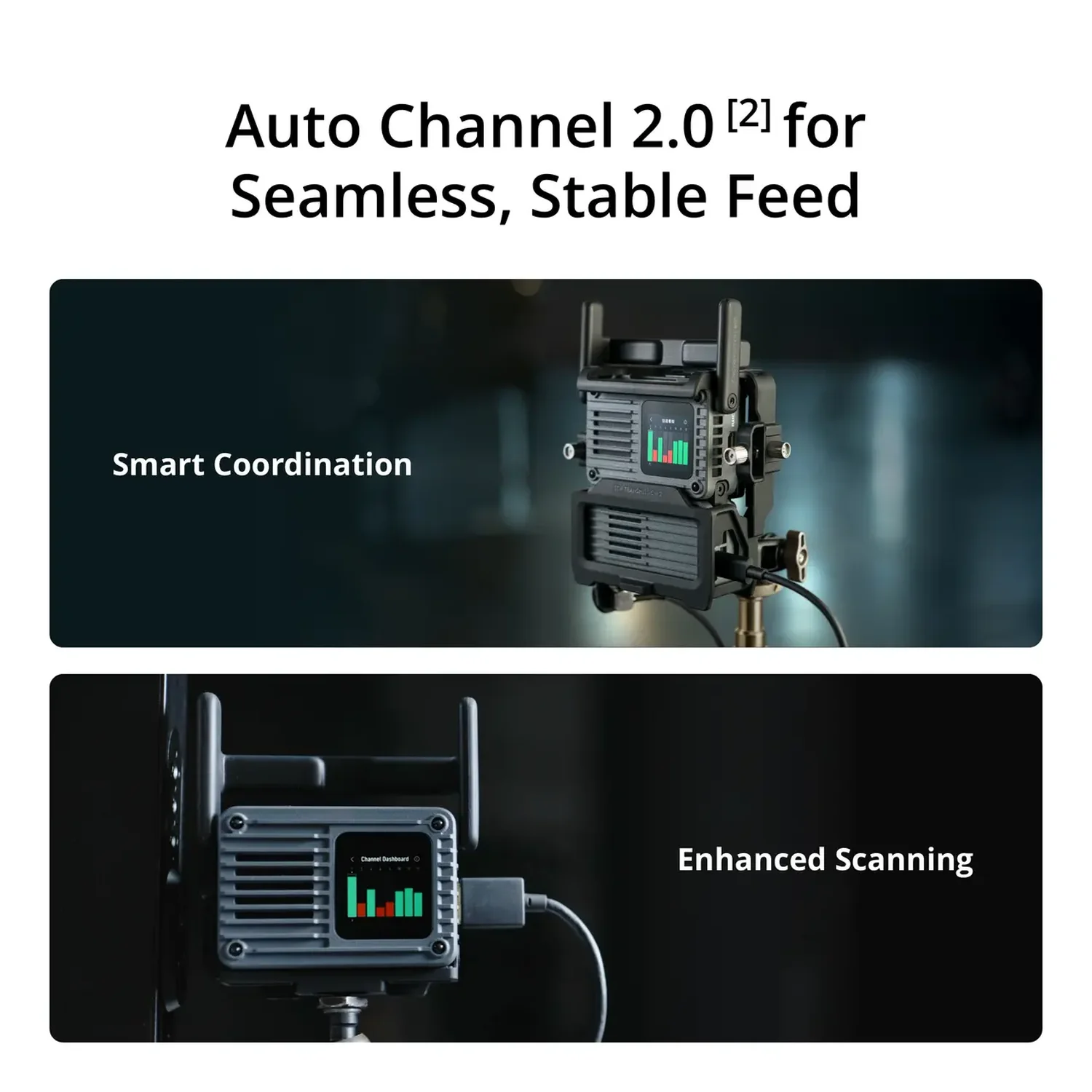

- Auto Channel 2.0 Frequency Hopping: Moves across 2.4 GHz, 5.1 GHz, 5.8 GHz and DFS bands to keep the link steady at busy events.
- Ronin and Camera Control: Power from and control a DJI RS series gimbal, and start or stop recording and adjust aperture, shutter and ISO on supported cameras.
Advantages
Frequency hopping and multi-group transmission keep several camera feeds stable in halls full of phones, Wi-Fi routers and wireless mics.
For Film and Ad Sets:
A 4K 10-bit feed to up to eight monitors lets the director, DOP and client review the same image with custom LUTs applied.
For Gimbal Operators:
With a DJI RS series stabiliser, one transceiver handles power, video and remote gimbal control, which means fewer cables on the rig.
Why Buy From Pooja Electronics
- Guaranteed Authenticity: As an authorised retailer we sell only genuine DJI products, never grey market imports.
- Complete Wireless Range: Compare this kit with the rest of our wireless video transmission systems and the wider professional video range.
- Upgrade Advice: Still on the first-generation DJI SDR Transmission Combo? Our team can explain what changes for your setup.
- Pairs With Your Gimbal: Built to work with the DJI RS 5 and other DJI RS series stabilisers.
- Official Documentation: Every order includes a valid GST invoice for warranty claims and input tax credit.
Frequently Asked Questions
| Specification | Details |
|---|---|
| Video Transmission System | SDR, TX/RX switchable transceiver |
| Max Video Format | DCI 4K / 4K UHD / 1080p up to 60fps, 10-bit HDR |
| Other Formats | 1080i 50/59.94/60 (input), 720p 50/59.94/60 |
| Video Coding | H.265, up to 50 Mbps |
| Minimum Latency | 35 ms |
| Max Transmission Distance | 4 km (CE, open and unobstructed) |
| Operating Frequency | 2.400-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz, DFS 5.250-5.350 / 5.470-5.725 GHz |
| Max Bandwidth | 40 MHz |
| Receivers per Transmitter | Up to 8 |
| Ports | HDMI in/out, USB-C (PD power), USB-C (DP video, PD power, app and Ronin connection) |
| Audio Output | 16-bit, 48 kHz stereo PCM |
| Power Supply | USB-C PD 15 V 3 A (65 W+ adapter), 6.8-17.5 V DC, NP-F battery 6.8-8.4 V |
| Weight | Approx. 136 g per transceiver (with antennas) |
| Dimensions | 76 x 61 x 25 mm |
| Operating Temperature | -10 to 40 C |

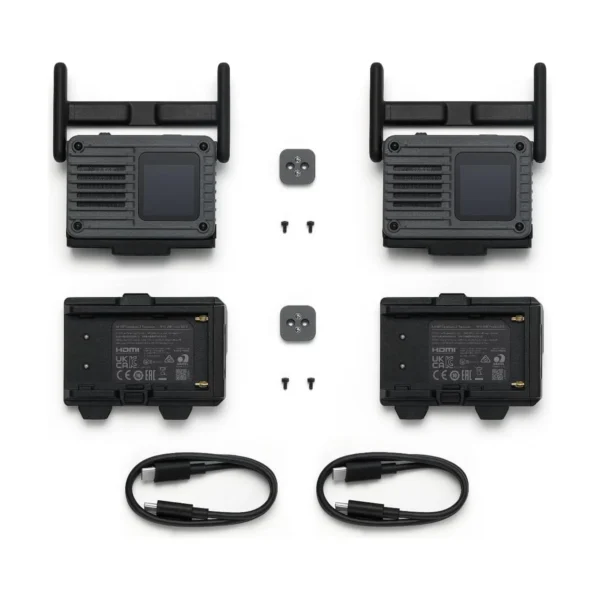

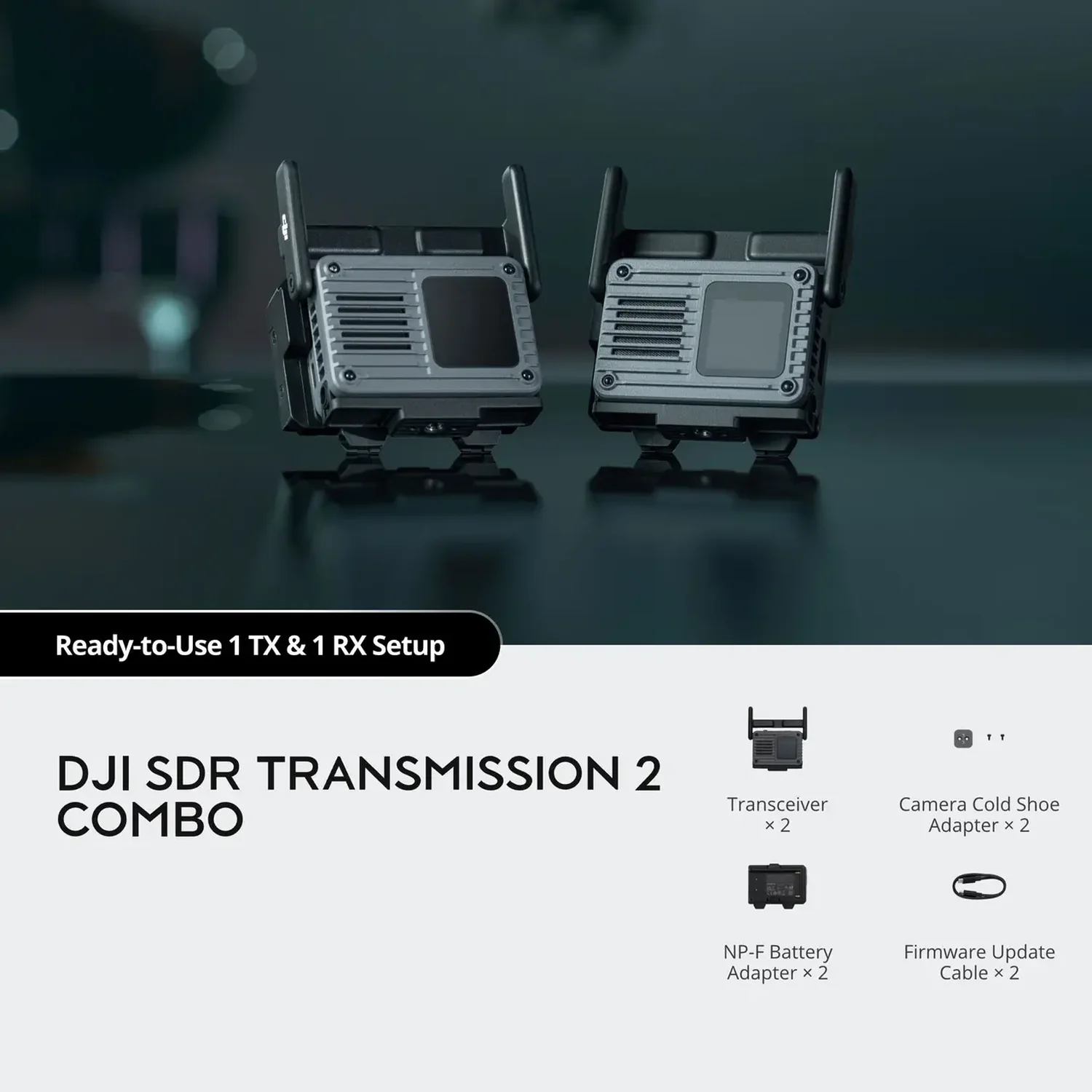

| In the Box | 2x Transceiver, 2x Camera Cold Shoe Adapter, 2x NP-F Battery Adapter, 2x Firmware Update Cable |
| Warranty (India) | 1-Year Official DJI India Warranty |
