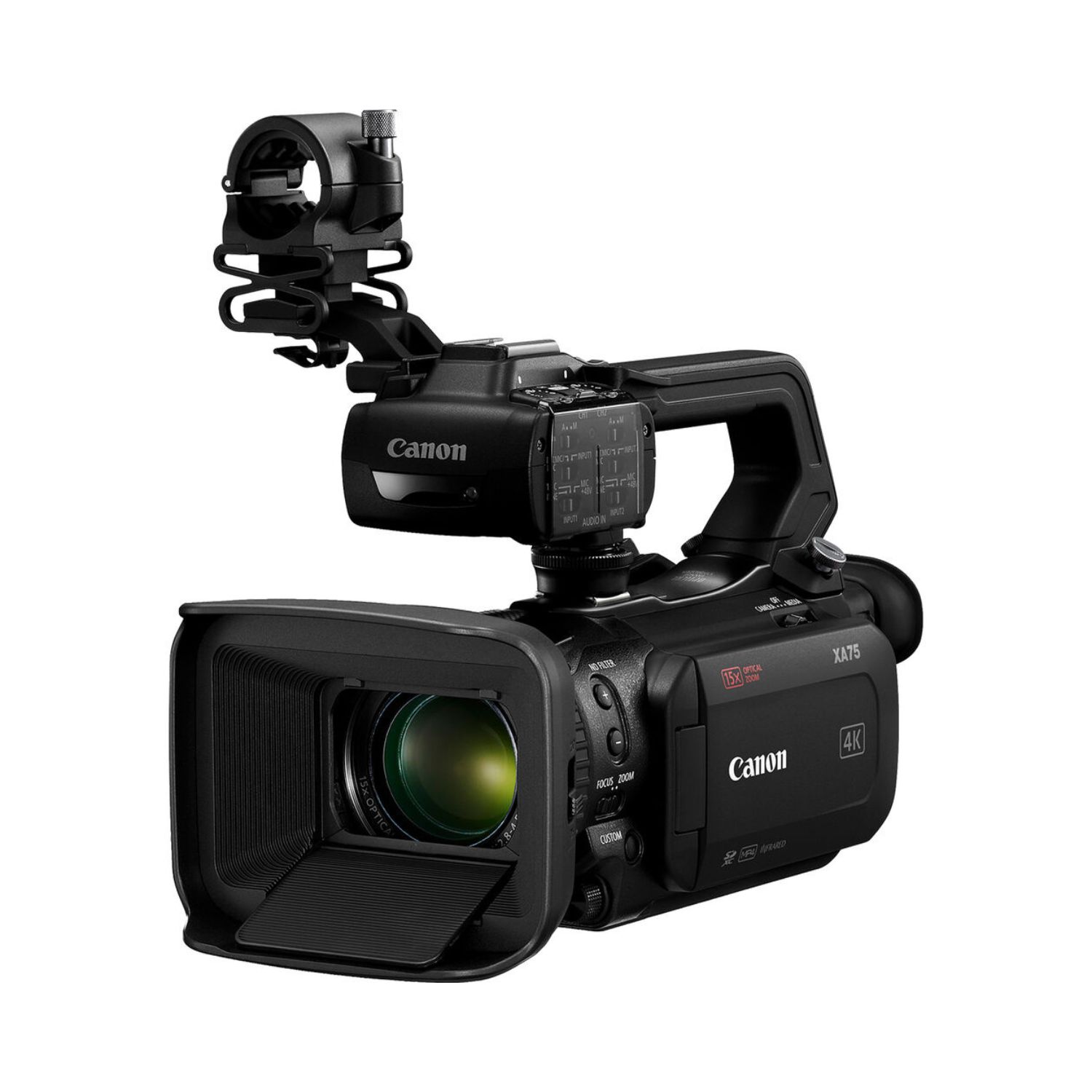

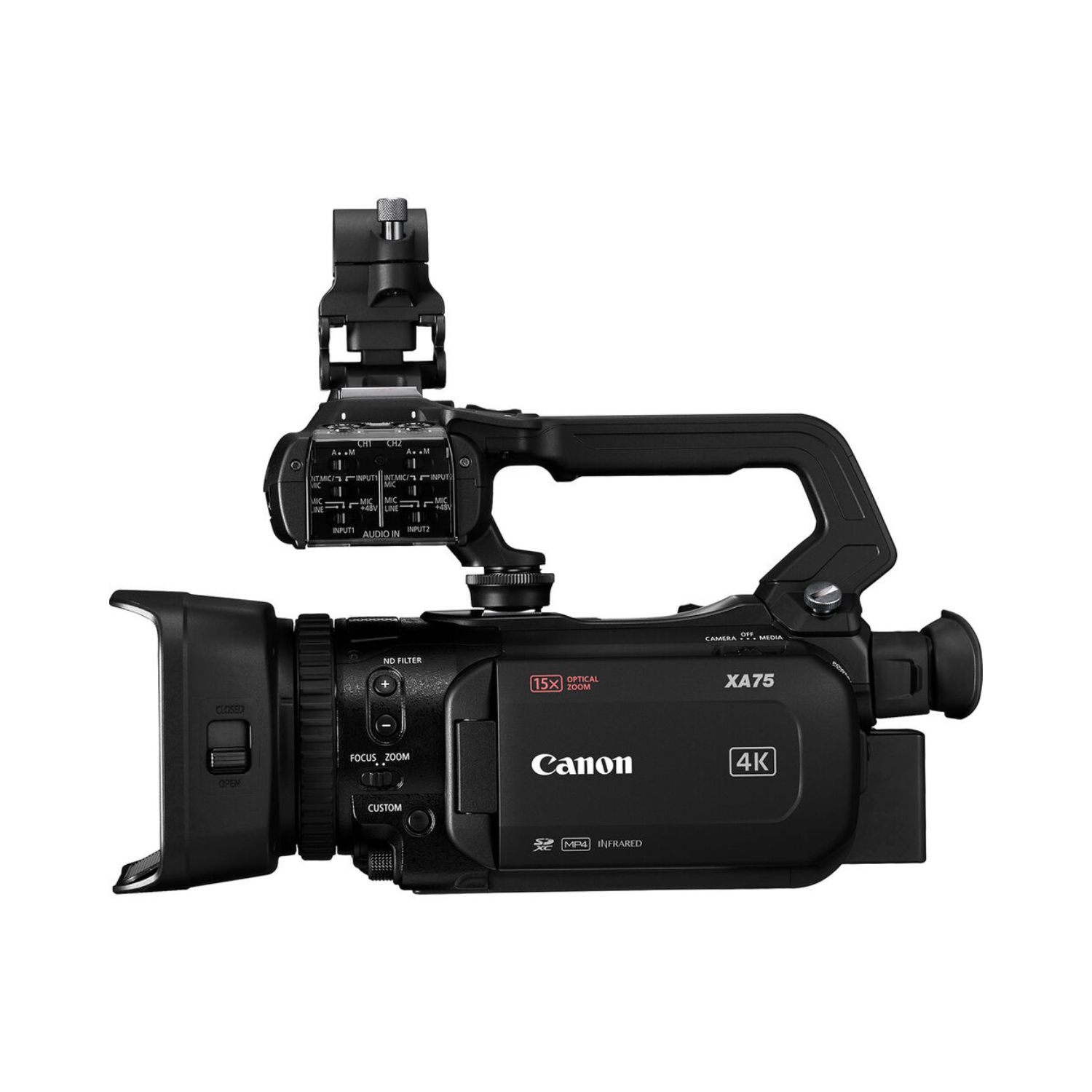

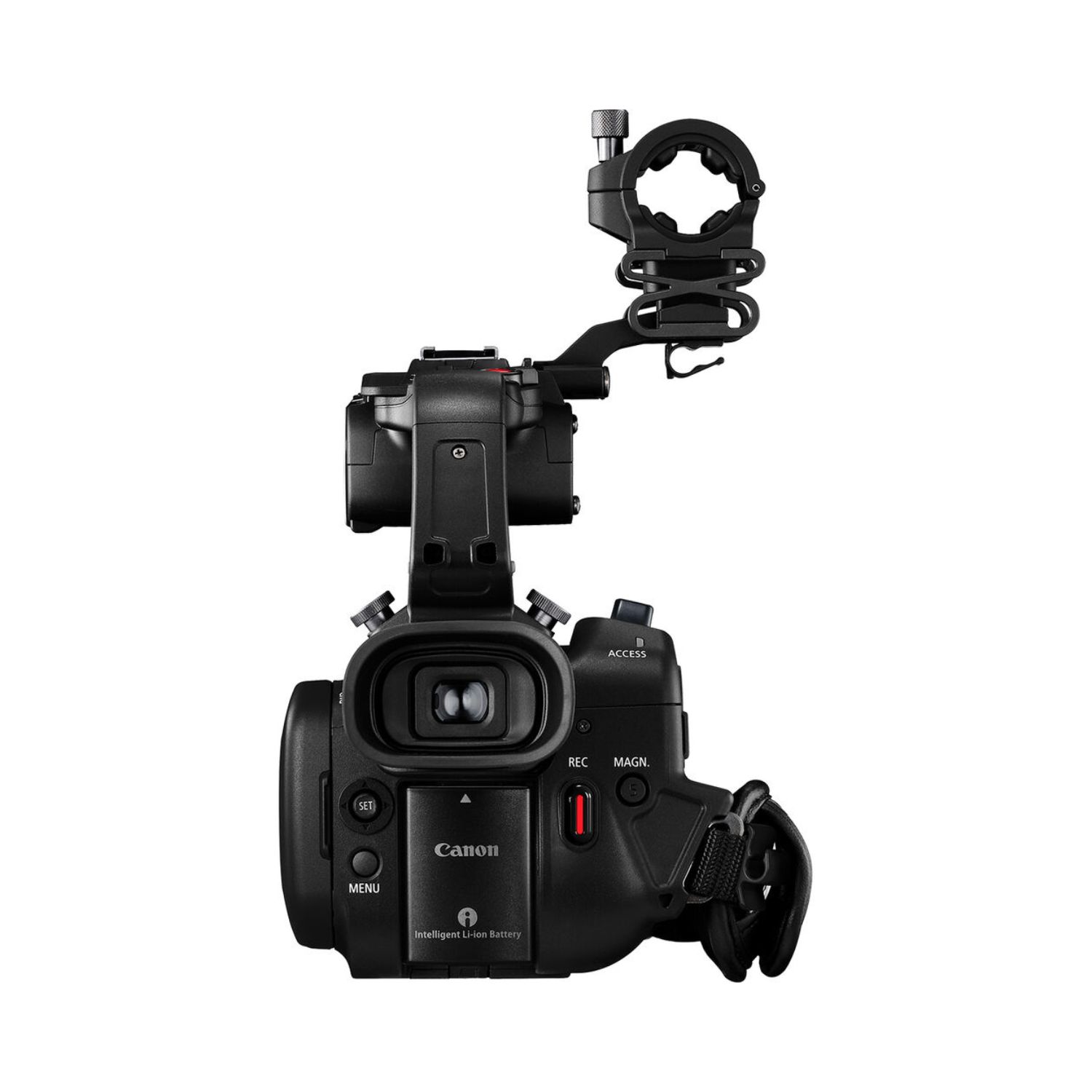

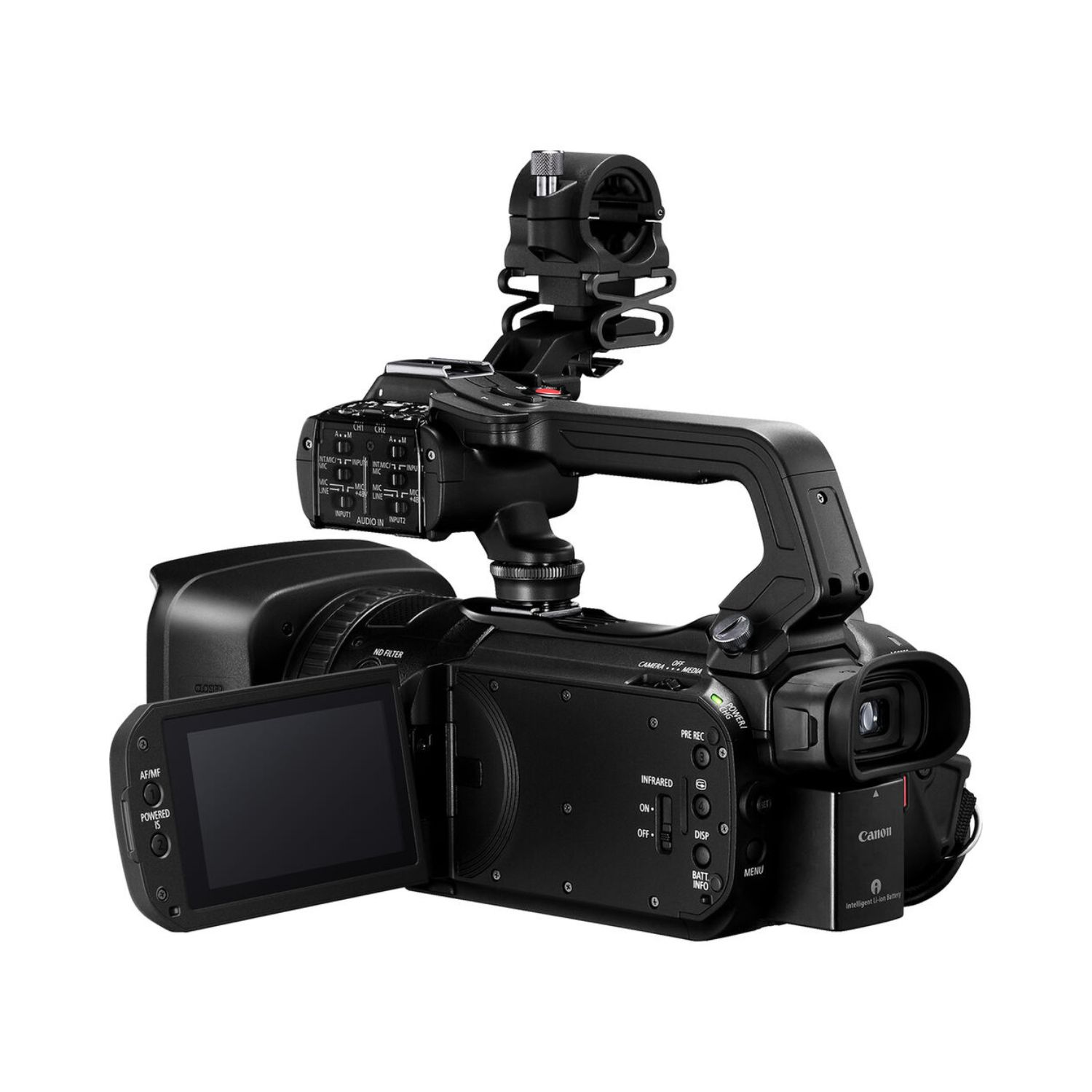

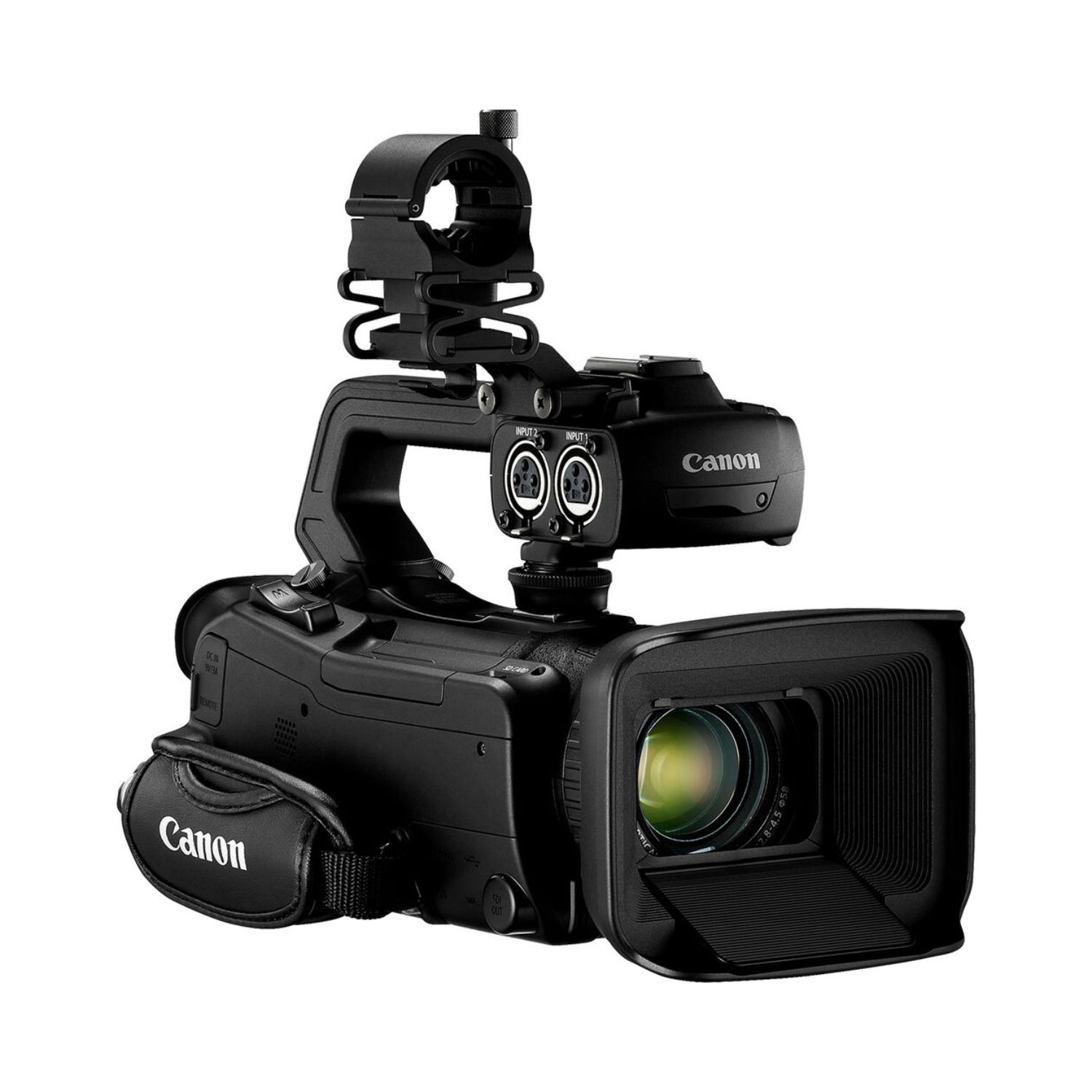

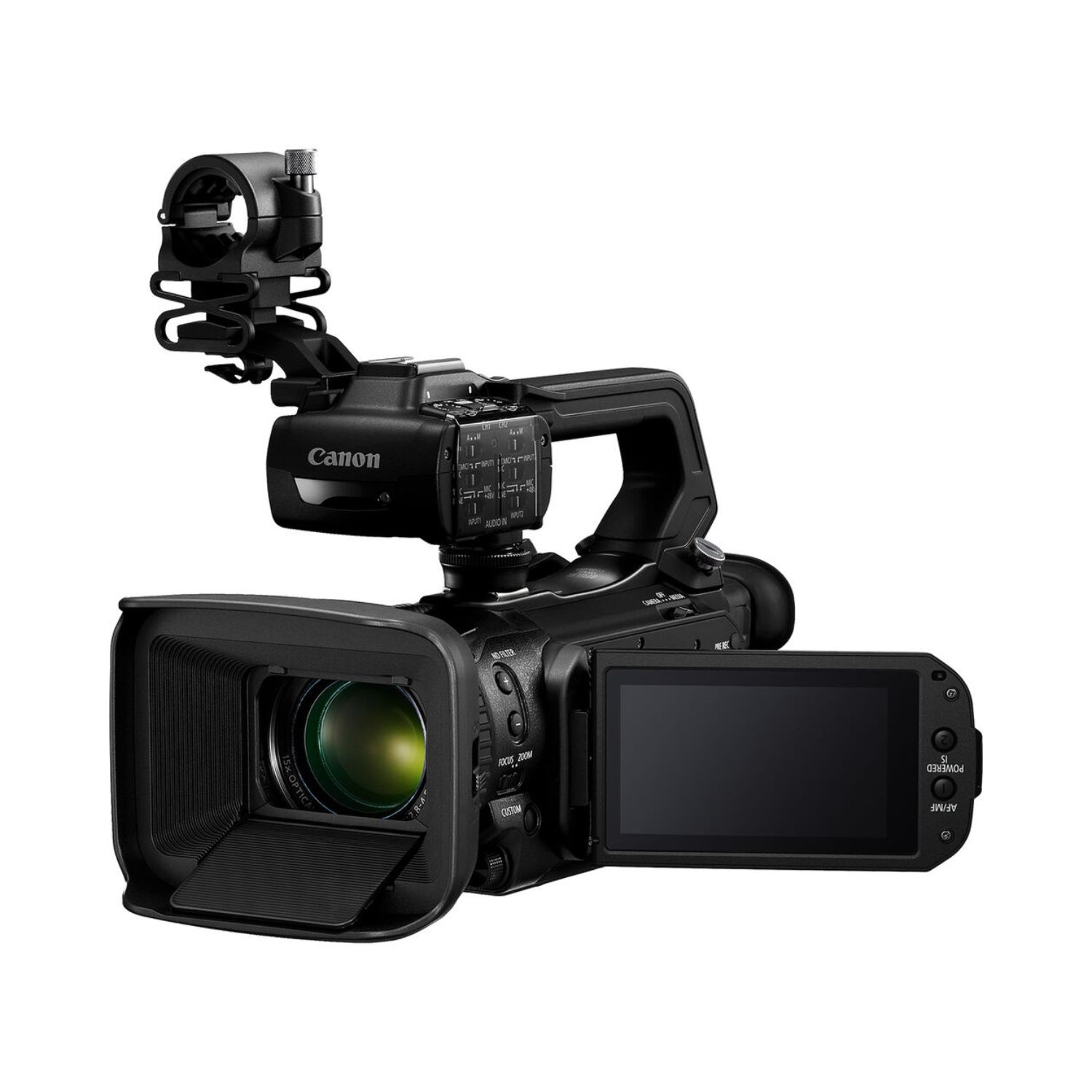

Canon XA75 UHD 4K30 Camcorder with Dual-Pixel Autofocus

Canon XA75 UHD 4K30 Camcorder with Dual-Pixel Autofocus

Streaming Ready
To meet the growing demand for online streaming content creation while keeping the same advanced core functionality and high-mobility form.
The new XA75 offers high-quality 4K recording with newly added features such as UVC (USB Video Class), 2.54cm (1.0in)-type CMOS sensor, optical 15x zoom lens, improved LCD, EVF and USB power supply(PD-E1). In addition, this model is equipped with a 3G-SDI output.

1.0″-type CMOS sensor
Ssupports 4K recording for high-definition video.

DIGIC DV 6
Get improved picture quality for 4K UHD video and full HD with the Over Sampling HD System.

High zoom & wide-angle
The XA75 features a lens with 15x optical zoom with high-magnification and a wide-angle that covers a variety of shooting needs.

Five-axis image stabilisation
The electronic correction function substantially reduces image distortion, even when shooting while walking, resulting in clear and sharp videos.

8.89cm (3.5in) LCD
The 2.76 million dots LCD has four backlight brightness levels, improving visibility during news coverage and other outdoor shoots.

XF-AVC & MP4
Supports 4K UHD 25.00p 4:2:0 8bit recording. Choose from XF-AVC or MP4 formats according to needs.

USB Video Class (UVC)
Connect the camera with a USB cable, and the computer can recognise it as a webcam for online conferences, classes, and more without special software.

0.91cm (0.36in) EVF
The 1.77 million dots tiltable electronic viewfinder (EVF) allows users to check the on-screen picture with crisp detail even under bright outdoor conditions.

Robust & compact design
Weighing only at approx. 990g (body only), the XA75 is really compact and lightweight.

4K UHD 25p & High Image Quality Full HD
The XA75 features DIGIC DV 6 high-performance video processing platform that enables 4K 25p 4:2:0 8bit shooting and output. It also supports Over Sampling HD Processing for premium quality Full HD utilising the 4K sensor.

MXF-based XF-AVC & MP4 Formats
Supports broadcast standard compliant MXF-based XF-AVC and versatile MP4 formats that supports 4K UHD 25.00p 4:2:0 8bit recording.

Amazing Zoom Capability
The XA75 features a 15x optical zoom lens that starts from 25.5mm (35mm equivalent) for use in a variety of applications.

Powerful Image Stabilisation
Five-axis image stabilisation
The electronic correction function that comes with a Dynamic Mode can substantially reduces image shake, even when shooting while walking, resulting in clear and sharp videos.

Dual Pixel CMOS AF
High-performance, high-precision focusing over a large screen area
The Dual Pixel CMOS AF is the technology that uses every pixel on the imaging sensor to detect focus and capture actual image information–achieving high precision focus and high image quality.

Touch Tracking
Simplified Operation
Just touch the screen to track a subject other than a face – it’s that easy, allowing you to record without missing the scenes you want to capture.

Note: Object tracking with direct touch is available when AF range is set to “auto”. Auto focus will be Contrast AF for “conversion lens settings other than OFF,” “infrared shooting,” and “digital zoom area.

Slow and Fast (S&F) Motion Recording
Creative possibilities are further enhanced with slow & fast motion recording. Durations for shooting and playback at specific set numerical values displayed on the screen, letting users verify the effects at a glance.

USB Video Class (UVC)
The XA75 supports UVC for better computer compatibility. Simply connect the camera with a USB cable, and the computer can recognise it as a webcam for online conferences, classes, and more without special software.

OSD Recording
With the new function of on-screen display (OSD) recording, it allows the XA75 to be used as a surveilance camera, enhancing its value as it can be used for verification. Information such as date, time, time code and other text on the screen can be recorded. Users can select the items to be displayed and its recording position.

600x Digital Zoom
The ability to zoom up to 600x digitally allows user to enlarge in to check on details for monitoring, security and other purposes.

High definition LCD
The 2.76 million dots, 3.5-inch LCD can deliver crisp high definition image quality details. The LCD has four backlight brightness levels (about twice as bright as previous models).

This improves on the visibility during news coverage and other outdoor shoots.

Tiltable EVF with High Dot Count
The 0.36-inch eletronic viewfinder (EVF) features a high pixel count of approx. 1.77 million dots, letting users check the on-screen picture with even fine details displayed crisply and clearly. The tiltable, user-friendly viewfinder aids shooting by providing easy visibility even under bright outdoor conditions.

Specifications

Key Features	UVC support LCD/EVF enhanced visibility USB Type-C USB power supply(PD-E1) OSD recording function 600x digital zoom Dual Pixel CMOS AF 5-axis optical image stabilisation
Sensor Size	2.54cm (1in) CMOS
Zoom Ratio Focal Length (35mm Equi)	15x (25.5mm-382.5mm) (F2.8-F4.5)
ND Filter	Turret Switchable (1/4, 1/16, 1/64)
Autofocus System	Dual Pixel CMOS AF
Best Recording Quality (Reso, FPS, color space) Full HD Recording Quality	4K UHD (3840 x 2160)25P YCC 420 Full HD (1920 x 1080) 50P YCC420
Recording File Formats Bit Depth	XF-AVC (8 bit) MP4 (8 bit)
Media Type, recording time (highest quality, 32GB card)	SD Card x 2 (25 Minutes)
Packaged Battery Type (Continuous Record Time) Optional Battery Type (Continuous Record Time)	BP-820 & BP-828
Screen Size (inch) EVF Specification	8.89cm (3.5in) LCD capacitive touch screen 0.91cm (0.36in) OLED Tilting EVF
Dimensions (mm) Weight (kg) (With battery)	Dimensions 141 x 216 x 265 Weight 1.47kg
Highest quality SDI Output, 50i, SDI output format	3G SDI 1080p YCC422 10bit @ 50p. 50i (PsF) capable
Network Capability	Nil
Infra Red	Yes
