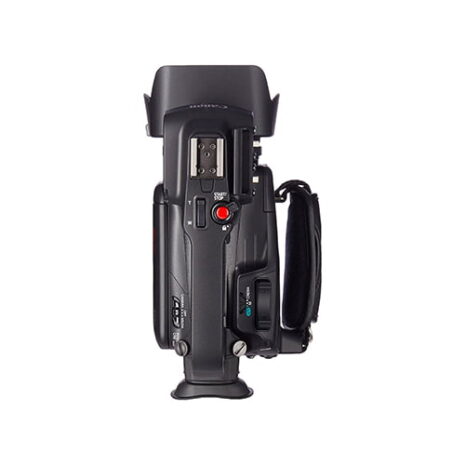

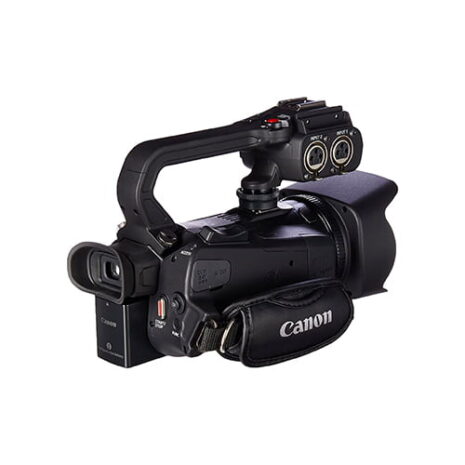

Canon XA30 Professional Camcorder

Canon XA30 Professional Camcorder

The compact XA30 camcorder boasts a wide dynamic range and is ideal for discretely capturing accurate, professional-quality content for corporate videos, weddings and online use, among other applications – especially in challenging high-contrast lighting conditions.

20x zoom wide angle Canon HD video lens
Capture superb quality footage thanks to the XA30’s stunning and versatile 26.8mm¹ wide angle lens. A 20x zoom gets you up close to the action, while Dynamic Optical Image Stabilisation compensates for shake in 5 directions to provide ultra-steady images. f/1.8 maximum aperture, an 8-blade iris and EDM technology enable beautiful ‘bokeh’ effects.

Improved 1/2.84″ HD CMOS Pro sensor
The newly developed Canon HD CMOS Pro sensor achieves an effective pixel count of approximately 2.91 megapixels to deliver stunning Full HD picture quality. With increased sensitivity and an improved signal-to-noise ratio, low light images in particular appear cleaner with reduced noise.

Flexible new image settings
Two new picture settings help you achieve even more impressive results. Wide DR mode gives you a 600% dynamic range, resulting in bright images with high contrast that retain detail in both highlight and shadow areas, without the need for post-production. Highlight Priority mode reproduces footage with more natural tones, richer colours and detail particularly in areas of high brightness² perfect for scenes with bright skies and reflective surfaces.

8.77cm (3.5″) OLED touchscreen and tiltable EVF
Despite its compact size, the XA30 provides high-quality monitoring. An easy-to-use OLED touch screen with a 1.23 million dot resolution offers faster response times and superior definition, contrast and colour reproduction compared to LCD equivalents. A 0.61cm (0.24″) 1.56 million dot EVF can tilt up to 45° – easily accommodating a range of shooting positions.

Versatile dual-format recording
AVCHD video can be recorded at up to 28Mbps in 1080/50P; while for maximum quality, select the 35Mbps 1080/50P MP4 recording mode. The two SDXC/SDHC memory card slots allow for simultaneous recording³ of high-quality HD and lower resolution MP4 files for easier file transfer – ideal when a quick turn-around of footage is needed. Fast and slow motion recording options with interval recording (x2 to x1200) are available in MP4 modes.

Professional audio
The XA30 features comprehensive audio control. Two XLR terminals provide professional connectivity, while high quality linear PCM and Dolby Digital recording options come as standard.⁴ A built-in microphone and 3.5mm input jack offer extra choice and flexibility.

Infrared shooting
The XA30 can easily be used at night or in low ambient light conditions thanks to the improved sensor sensitivity and bright infrared light source built into the handle – making it ideal for the wildlife videographer.

Built-in Wi-Fi, expandable for GPS
Transfer footage wirelessly using an iOS phone or tablet, or via FTP at up to 150 Mbps⁵. Remotely control camera functions through a Wi-Fi enabled device with no need for separate apps. Location data can be recorded using an optional GPS accessory.

Compact, lightweight body
With its detachable handle, this discreet and highly portable camera is ideal for shooting in sensitive or confined environments. Its lightweight body reduces fatigue during extended periods of hand-held filming.

• 35mm equivalent
• Monitor brightness settings may need to be increased
• Simultaneous recording not available in 1080/50P recording modes
• Linear PCM audio available in AVCHD 28Mbps recording mode only
• Wireless internet access point required for FTP file transfer

Specifications

• CAMERA
  Sensor
  1/2.84 type HD CMOS Pro
  System
  RGB primary colour filter
  Total pixels per sensor
  Approx. 3.09 megapixels
  Effective pixels per sensor
  Approx. 2.91 megapixels (2136 x 1362)
  Minimum illumination (PAL Version)
  Auto: 1.0 lux With Auto Slow Shutter selected
  Low Light Mode: 0.1 lux
  Horizontal Resolution
  900 TV lines at highest image quality
  Zoom ratio
  20x
  Focal length
  26.8 – 576mm (35mm equivalent / 28.8-576mm with Dynamic IS on)
  Minimum focus distance
  60cm (throughout zoom range);
  10mm (wide angle)
  ND filter
  Built-in gradation filter (Auto or Off)
  Zoom control
  Zoom rockers on body and handle;
  Selectable manual zoom/focus ring on lens;
  Selectable High Speed and Soft Zoom modes available.
  Zoom speed
  Variable (body rocker only) or Constant speed (body and handle rocker; Fast/Normal/Slow, 16 speed level settings in each)
  Focus control
  MANUAL: Lens ring, Touchscreen OLED (touch Focus, Touch and Track), Focus Preset
  AUTO: Face Priority AF / Face Only AF / Instant AF / Medium AF / TV AF
  Iris control
  Custom dial; Touchscreen; Auto
  Aperture range
  f1.8 – f8
  Filter diameter
  58mm
  Lens elements/groups
  12/10
  Aperture blades
  8 Blade Circular Aperture
  Image stabilization system
  Optical lens shift system (angle & vector movement detection) + electronic stabilisation;
  4 modes: Intelligent (Auto), Dynamic, Standard, Powered
  Digital zoom
  Up to 400x;
  Built-in 2x Digital Teleconverter (cannot be used with Digital Zoom)
  Type
  DIGIC DV 4
• RECORDING
  Video storage media
  SDXC/SDHC/SD memory card (2 card slots);
  Dual Format recording, Double slot (simultaneous) recording and Relay (continuous) recording possible.¹
  Type
  Class 6 (or higher) cards recommended for 1080/50P recording;
  Class 4 (or higher) cards recommended for other Full HD recording
  Recording time
  128GB SDXC card:
  10hrs 10mins (AVCHD max. quality)¹
  8hrs 00mins (MP4 max. quality)¹
  91hrs 55mins (MP4 lowest quality)¹
  Recording file format
  AVCHD Progressive (v2.0, high profile);
  MP4
  Recording format
  AVCHD (all modes variable bit rate, 4:2:0 colour sampling):
  1920×1080: 50p (28Mbps, linear PCM audio available);
  1920×1080: 50i/PF25 (24Mbps, 17Mbps);
  1440×1080: 50i/PF25 (5Mbps)
  MP4 (all modes variable bit rate, 4:2:0 colour sampling):
  1920×1080: 50p (35Mbps);
  1920×1080: 25P (24Mbps, 17Mbps);
  1280×720: 25P (4Mbps);
  640×360: 25P (3Mbps)
  Slow/Fast motion
  YES (MP4 HD mode only, x0.5/x2/x4/x10/x20/x60/x120x1200
  Interval Record
  NO
  Frame Record
  NO
  Pre Record (cache record)
  YES (3 seconds)
  Scan Reverse
  NO
  HD->SD conversion
  NO
  Internal Data Transfer
  MOVIE & STILLS: Yes (card to card)
  Photo storage media
  SDXC/SDHC/SD memory card
  Still quality
  During video recording or playback: 1920 x 1080/1280 x 720/640 x 360
• SYSTEM
  Type
  Capacitive Organic LED
  Size
  8.77cm (3.5″), 100% view
  Dots
  1.23 million-dot equivalent
  Touch Screen
  Yes. Touch and Drag operations supported
  Image quality adjustments
  Brightness, backlight, OLED colour balance
  Adjustable
  YES (270 degree rotation about horizontal axis)
  Waveform Monitor
  NO
  Focus Assist
  Peaking; Magnifying
  Peaking
  YES
  Zebra
  YES (70% or 100% reference level)
  Markers
  ON/OFF (Level, Grid)
  Size
  0.61cm (0.24″), 100% view
  Dots
  1.56 million dots equivalent
  Adjustable
  YES (tiltable to 45 degrees)
  Correction lens
  + 2.0 to -5.5 diopter
  Audio in
  XLR inputs with 48V phantom power (x2), 3.5mm microphone input jack
  Headphone output
  3.5mm stereo jack
  Video monitor output
  NO
  HDMI
  YES (HDMI™ mini connector, output only)
  IEEE 1394 (Firewire)
  NO
  USB
  YES (Mini-B, USB 2.0 Hi-Speed, output only)
  HD/SD-SDI output
  NO
  Time code
  YES (Superimposed on HDMI Output signal)
  Genlock
  NO
  Component out
  NO
  AV terminal
  3.5mm mini jack (output only for video and audio)
  DC input
  YES
  Remote Control Terminal
  2.5mm mini jack
  Colour Bars
  YES (SMPTE or EBU), with 1KHz Tone
  Tally lamp
  YES, in detachable handle
  Accessory shoe
  YES (cold shoe)
  Custom key
  YES (5 assignable buttons; select from 22 functions)
  Custom Dial
  YES (Shutter Priority (Tv), Aperture Priority (Av), Manual Exposure, exposure compensation, AGC limit)
• SHOOTING FUNCTIONS
  Exposure metering
  Centre-weighted average or segment evaluative (determined by shooting mode);
  No metering: Fireworks mode, Fixed exposure (1/50 sec.)
  Exposure compensation
  -3 to +3 EV (12 steps);
  Backlight Correction available (Auto or always on)
  Auto Exposure mode
  Smart Auto, Face Detection AE;
  Manual control via Touch Exposure and Exposure Compensation functions.
  Push Auto Iris
  YES (via touchscreen)
  Exposure Lock
  YES. Touch Exposure available
  Auto Gain Control setting
  Auto / Manual
  Auto Gain Control limit
  0 to 24dB, 1dB increments (0 to 18dB in Cinema Mode)
  Gain setting
  0 to 24dB, 1dB increments (0 to 18dB in Cinema Mode)
  Control Modes
  Full Auto / Manual control (touchscreen LCD or control dial)
  Shutter speed
  1/6 to 1/2000 (depending on Scene Mode and frame rate)
  Slow Shutter (SLS)
  Yes. Auto On or Off
  Clear Scan
  NO
  Infrared shooting mode
  YES (green or white)
  Built-in IR lamp
  YES, in detachable handle
  OIS Axis Shift
  NO
  Focal Length Guide
  NO
  Smart AUTO
  YES
  Program AE
  AUTO;
  M mode: P, Tv, Av, M (manual exposure), SCN (Portrait, Sports, Snow, Beach, Sunset, Night, Low Light, Spotlight, Fireworks);
  Cinema mode: P, Tv, Av, M
  Image Looks settings
  Standard, Highlight Priority, Wide DR
  Cinema Features
  Cinema-Look Filter (9 options, including customisable ‘Cinema Standard’)
  Image Effects
  Brightness, Contrast, Sharpness, Colour Depth
  Wireless LAN standards
  IEEE 802.11b/g/n/a(2.4GHz or 5GHz band)¹
  Supported Wi-Fi Functions
  Remote Operation; Movie Uploader (YouTube and Facebook)¹; Playback (in browser); Media Server; FTP File Transfer
  Supported Browser for Remote Operation
  Internet Explorer 8 or later, Safari (iOS), Safari (MacOS),
  Android standard browser
  Remote Operation Control Features
  Aperture, Focus, WB, shutter Speed, Gain, Exposure Compensation, Shooting Mode, Slot select, Start/Stop Recording
  Live view image Resolution
  Camera setting mode: 680 x 383; Simplified setting: 284 x 160
  Authentication Systems
  Open/WPA-PSK/WPA2-PSK
  Encryption
  WEP64, WEP128, TKIP, AES
  GPS Information (Optional Accessory)
  Latitude/Longtitude/Elevation, Coordinated Universal Time (UTC)
  Auto
  YES
  Preset
  6: Daylight, Shade, Cloudy, Tungsten (incandescent lamps or halogen bulbs), Fluorescent H (3-wavelength type fluorescent), Fluorescent (white fluorescent)
  Manual setting
  Set 1, Set 2, Colour Temperature (2,000-15,000 K, 100K steps)
  Countup system
  Regen/Rec Run/Free Run/Preset (Non-Drop Frame)
  Start value setting
  “00:00:00:00”, Set/Reset selectable
  Recording
  AVCHD: Linear PCM¹ (2ch, 16 bit, 48 kHz) or Dolby Digital (AC-3 2ch, 48kHz)
  MP4: MPEG-2 AAC LC (2 ch)
  Control
  Audio controls include:
  Independent 2ch Line/Mic/Mic+48V input;
  Independent level control per channel (-∞ to +18 dB);
  Independent audio limiters (2 ch);
  Input mic trimming
  Microphone attenuation
  Auto/On/Off (20dB)
  Microphone level meter
  YES
  Wind Screen
  YES
  Zoom Microphone
  YES (customisable frequency response and directivity)
• ACCESSORIES
  Supplied
  Lens hood with barrier, Mic holder unit, Handle unit (HDU-1), Wireless Controller (WL-D89), Battery Pack BP-820, High Speed HDMI Cable (HTC100/S), Compact Power unit CA-570, AC Cable, Interface Cable (IFC-300PCU/S), Stereo Video Cable (STV-250N), PIXELA Data Import Utility Ver2.0
  Optional
  Canon Battery Pack BP-820/BP-828
  Canon Compact Power Adapter CA-570,
  Canon Battery Charger CG-800E/CG-800B,
  Canon HDMI cable HTC-100,
  Canon Stereo Video Cable STV-250N,
  Canon Tele Converter TL-H58,
  Canon Wide Attachment WA-H58,
  Canon Wireless Microphone WM-V1,
  Canon Soft Carrying Case SC-2000,
  Canon PROTECT Filter 58 mm, Canon ND4-L Filter 58 mm, Canon ND8-L Filter 58 mm,
  Canon GPS Receiver GP-E2,
  Canon Battery Video Light VL-10Li/VL-10LiII,
  Canon Battery Pack BP-900 series (for VL-10Li/VL-10LiII),
  Canon Compact Power Adapter CA-910/920/930 (for charging BP-900 series)
  Backup power supply
  Lithium coin battery (built-in)
  Power Consumption
  Max Approx. 5.0W¹ (AVCHD) / 5.1W (MP4)¹
  Continuous Recording Time
  Supplied BP-820: Approx. 145 minutes¹
  Optional BP-828: Approx. 220 minutes¹
• MISCELLANEOUS
  Dimensions
  Approx. 109 x 84 x 182 mm (main body only)
  Approx. 131 x 180 x 231 mm (fully equipped)
  Detachable handle
  YES
  Weight (camera only)
  Approx. 765 g
  Weight (fully equipped)
  Approx. 1155 g
  Operating Temperature range
  -5 to +45ºC, 60% relative humidity
  0ºC to +40ºC, 80% relative humidity
