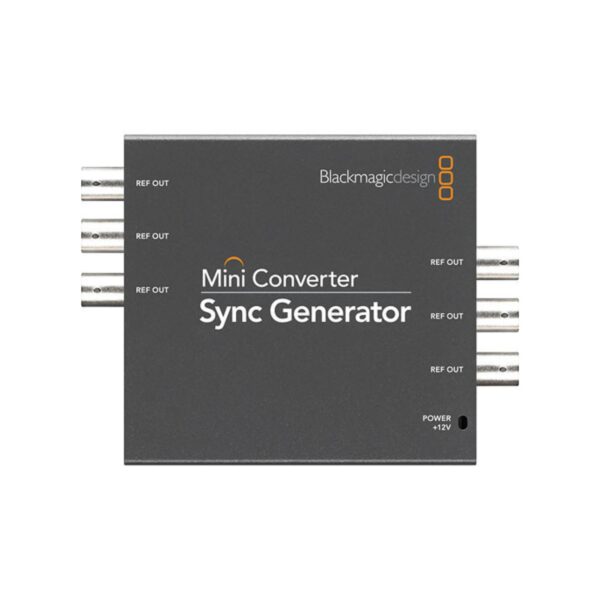

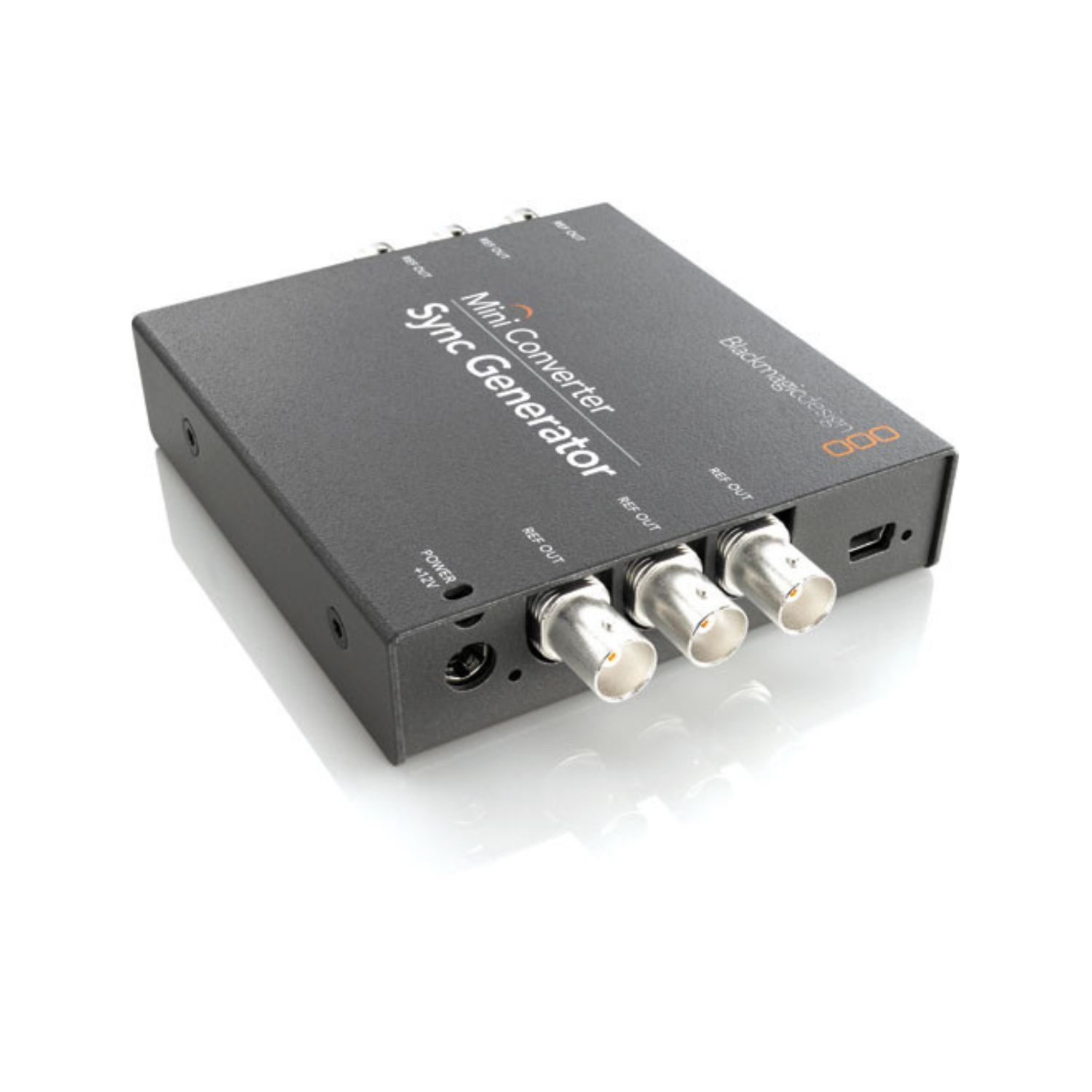

Blackmagic Design Sync Generator

Includes 6 crystal stabilized video reference outputs for referencing all the video equipment in your studio in either high definition Tri‑Sync or standard definition Blackburst television standards. Perfect for small studios and outside broadcasts!

Specifications

  • Connections
    Analog Video Outputs
    6 x common Blackburst or Tri Level reference outputs.
    SDI Rates
    270Mb, 1.5G.
    Multi Rate Support
    Via mini switches
    Updates and Configuration
    USB
  • Standards
    Analog Format Support
    525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60
  • Software
    Software Control
    Mac™ and Windows™ software upgrade via USB.
    Internal Software Upgrade
    Via included updater application.
  • Operating Systems
    Mac 10.15 Catalina,
    Mac 11.1 Big Sur or later.
    Windows 10, 64-bit.

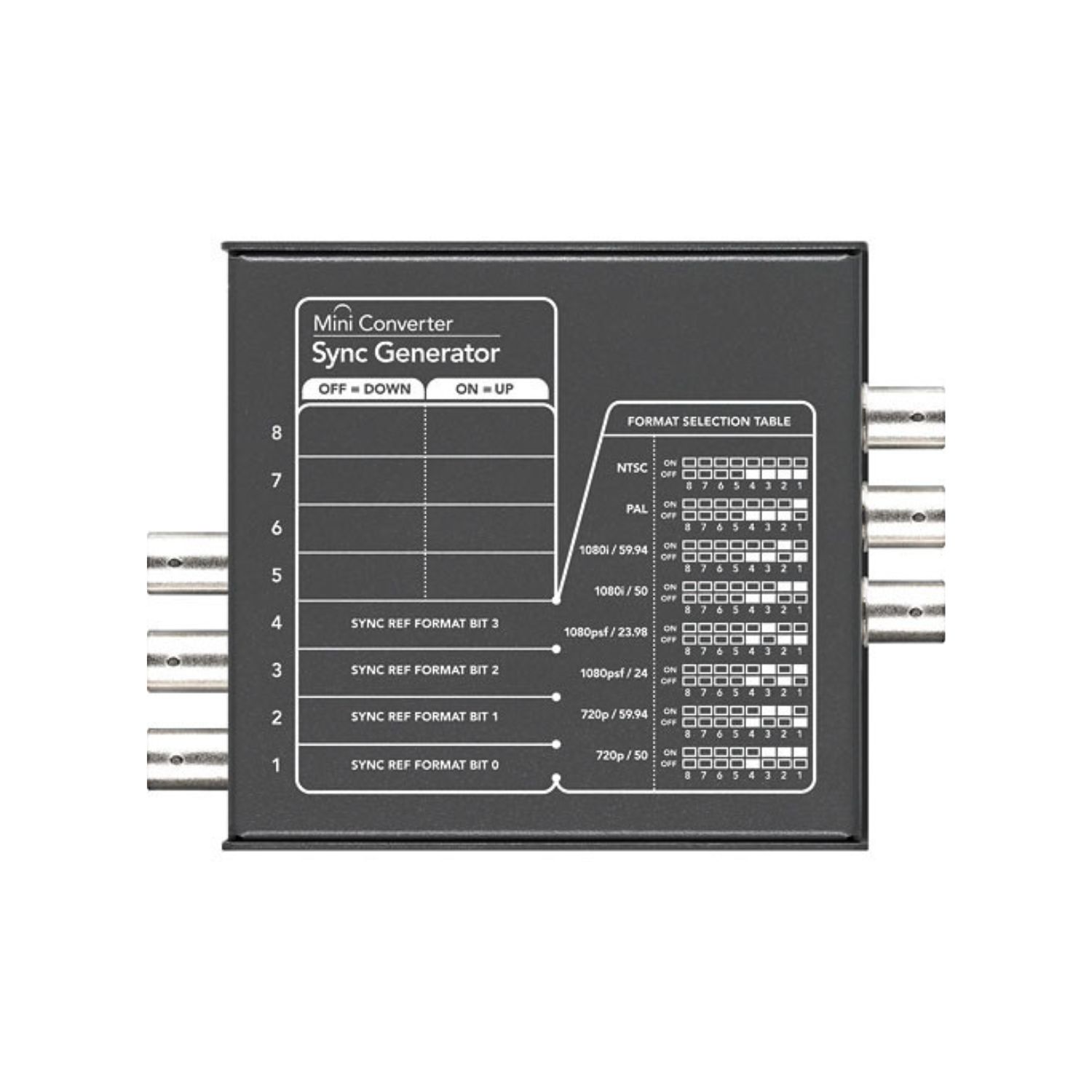

  • Settings Control
    Mini Switches or USB software.
  • Power Requirements
    Power Supply
    +12V universal power supply included with international socket adapters for all countries. Cable tie point.
    Power Consumption
    3.00 Watts
    Operational Voltage Range
    12V DC
  • Environmental Specifications
    Operating temperature
    0° to 40° C (32° to 104° F)
    Storage temperature
    -20° to 45° C (-4° to 113° F)
    Relative Humidity
    0% to 90% non‑condensing
  • What’s Included
    Mini Converter Sync Generator
    12V universal power supply with international socket adapters
