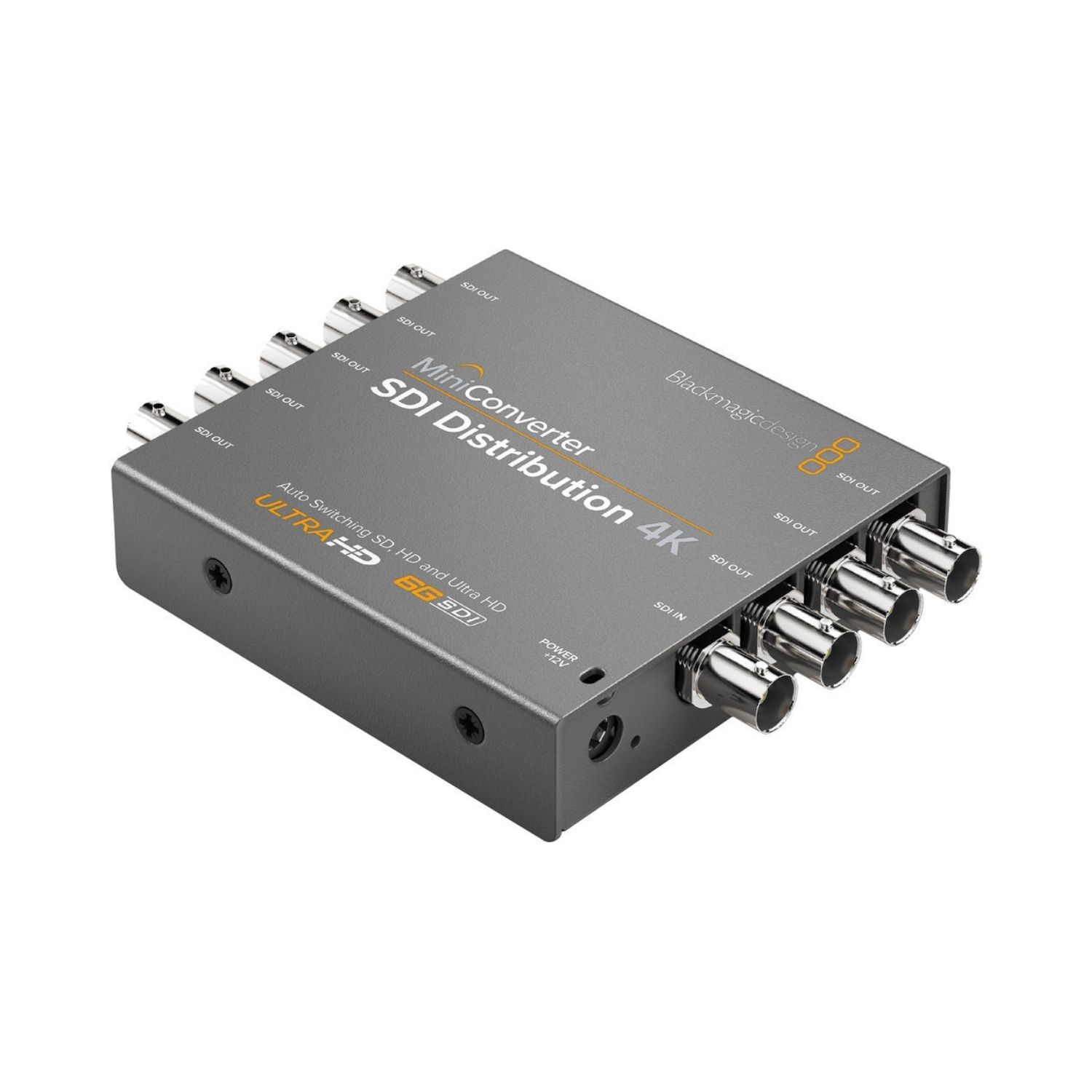

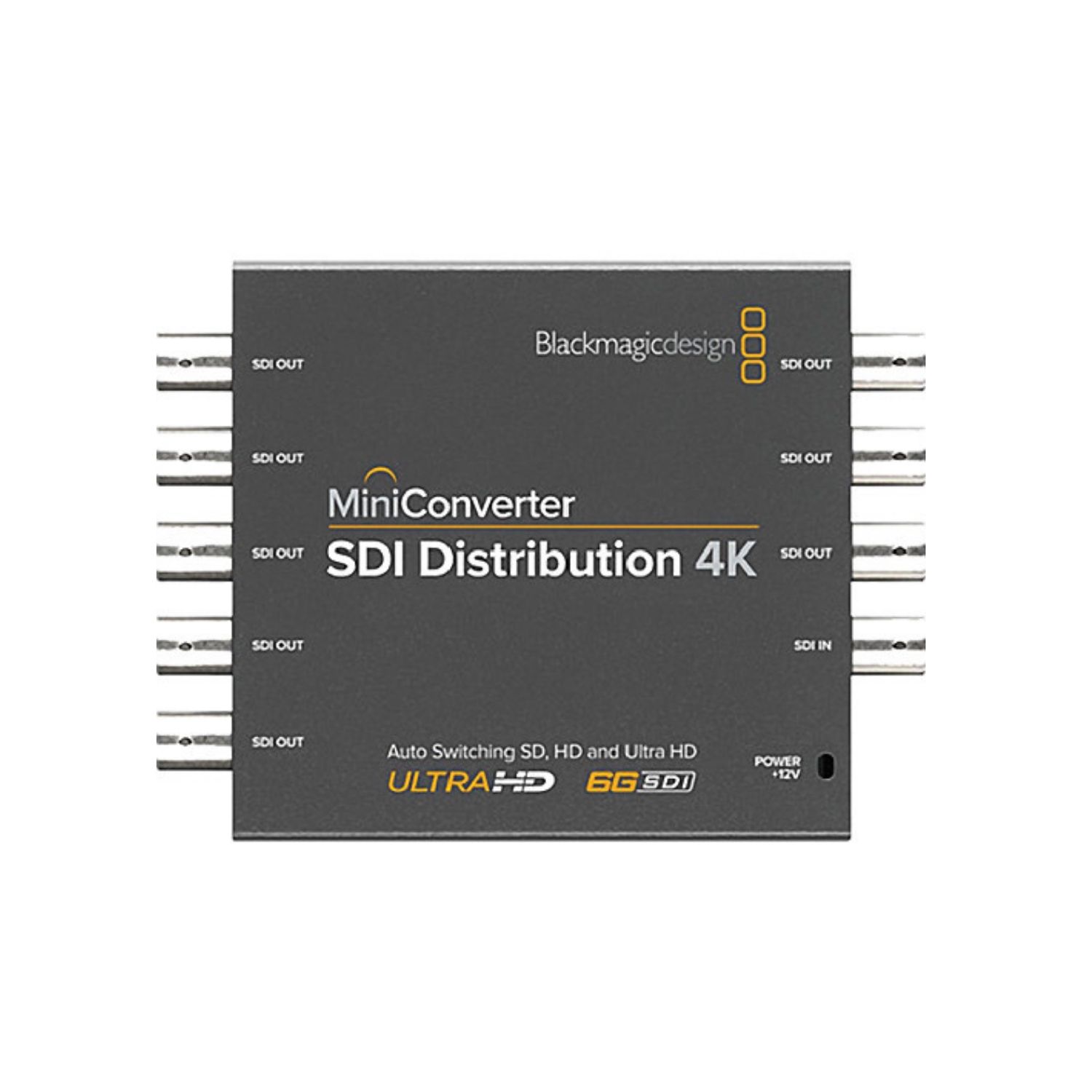

Blackmagic Design Mini Converter – SDI Distribution 4K

Blackmagic Design Mini Converter SDI Distribution 4K

When you need to connect to multiple SDI devices, then Mini Converter SDI Distribution 4K is the perfect solution! Connect a single SDI source to 8 re‑clocked SDI outputs with automatic switching between all SD‑SDI, HD‑SDI, 3G‑SDI and 6G‑SDI video formats, plus all ASI, ancillary and embedded audio formats.

Specifications

• Connections
  SDI Video Inputs : Switchable between SD, HD and 6G‑SDI.
  Reclocking : Yes
  SDI Video Outputs : 8 outputs automatically match the SDI video input.
  Multi Rate Support : Auto detection of SD, HD or 6G‑SDI.
• Standards
  SD Video Standards : 525i59.94 NTSC, 625i50 PAL
  HD Video Standards : 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60
  2K Video Standards : 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
  Ultra HD Video Standards : 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
  4K Video Standards : 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
  SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601
  SDI Video Rates : SDI video inputs are automatically detected between standard definition and high definition.
  SDI Video Sampling : 4:2:2 and 4:4:4
  SDI Audio Sampling : Television standard sample rate of 48 kHz and 24 bit.
  SDI Color Precision : 4:2:2 and 4:4:4
  SDI Color Space : YUV and RGB
  SDI Auto Switching : Automatically detects SD, HD or 6G‑SDI.
  ASI Support : Yes
• Power Requirements
  Power Supply : +12V universal power supply included with international socket adapters for all countries. Cable tie point.
  Power Consumption : 4.80 Watts
  Operational Voltage Range : 12 ‑ 31V DC
• Operating Systems
  Mac 10.15 Catalina
  Mac 11.1 Big Sur or later.
  Windows 10, 64-bit.
• Environmental Specifications
  Operating temperature : 0° to 40° C (32° to 104° F)
  Storage temperature : -20° to 45° C (-4° to 113° F)
  Relative Humidity : 0% to 90% non-condensing
• What’s Included
  Mini Converter SDI Distribution 4K
  12V universal power supply with international socket adapters
