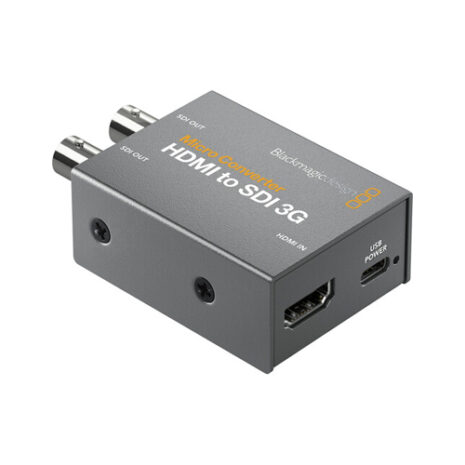

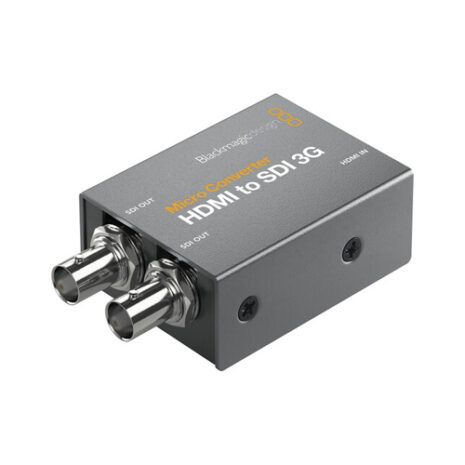

Blackmagic Design Micro Converter HDMI to SDI 3G

Blackmagic Design Micro Converter HDMI to SDI 3G

This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48.

Specifications

• Connections
  SDI Video Outputs
  2 x SD, HD or 3G‑SDI.
  Automatically matches the HDMI input.
  HDMI Video Inputs
  HDMI Type A in.
  Multi Rate Support
  Auto detection of SD or HD.
  Updates, Configurations and Power
  USB Type‑C.
  Reclocking
  Yes
• Standards
  SDI Video Standards
  525i59.94 NTSC, 625i50 PAL
  HD Video Standards
  720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
  1080i50, 1080i59.94, 1080i60
  SDI Compliance
  SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
  SDI Video Rates
  SDI video connections are switchable between standard definition and high definition, and user selectable level A and B for 3G‑SDI via setup utility.
  SDI Color Precision
  4:2:2
  SDI Color Space
  YUV
  SDI Auto Switching
  Automatically detects SD, HD and 3G-SDI
  HDMI Video Standards
  525i29.97 NTSC, 625i25 PAL
  720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
  1080i50, 1080i59.94, 1080i60
  HDMI Color Precision
  4:2:2
  HDMI Color Space
  YUV
• Copy Protection
  HDMI input is unable to capture from copy protected HDMI sources.
  Always confirm copyright ownership before capture or distribution of content.
• Settings Control
  Via MacOS™ and Windows™ software utility connected by USB.
• Operating Systems
  Mac 10.15 Catalina,
  Mac 11.1 Big Sur or later.
  Windows 10, 64-bit.
• Software
  Internal software upgrade via USB.
• Power Requirements
  Power Consumption
  2 W
  Operational Voltage Range
  4.4 to 5.25V DC
• Environmental Specifications
  Operating Temperature
  0° to 40° C (32° to 104° F)
  Storage Temperature
  -20° to 60° C (-4° to 140° F)
  Relative Humidity
  0% to 90% non-condensing
• What’s Included
  Micro Converter HDMI to SDI 3G
