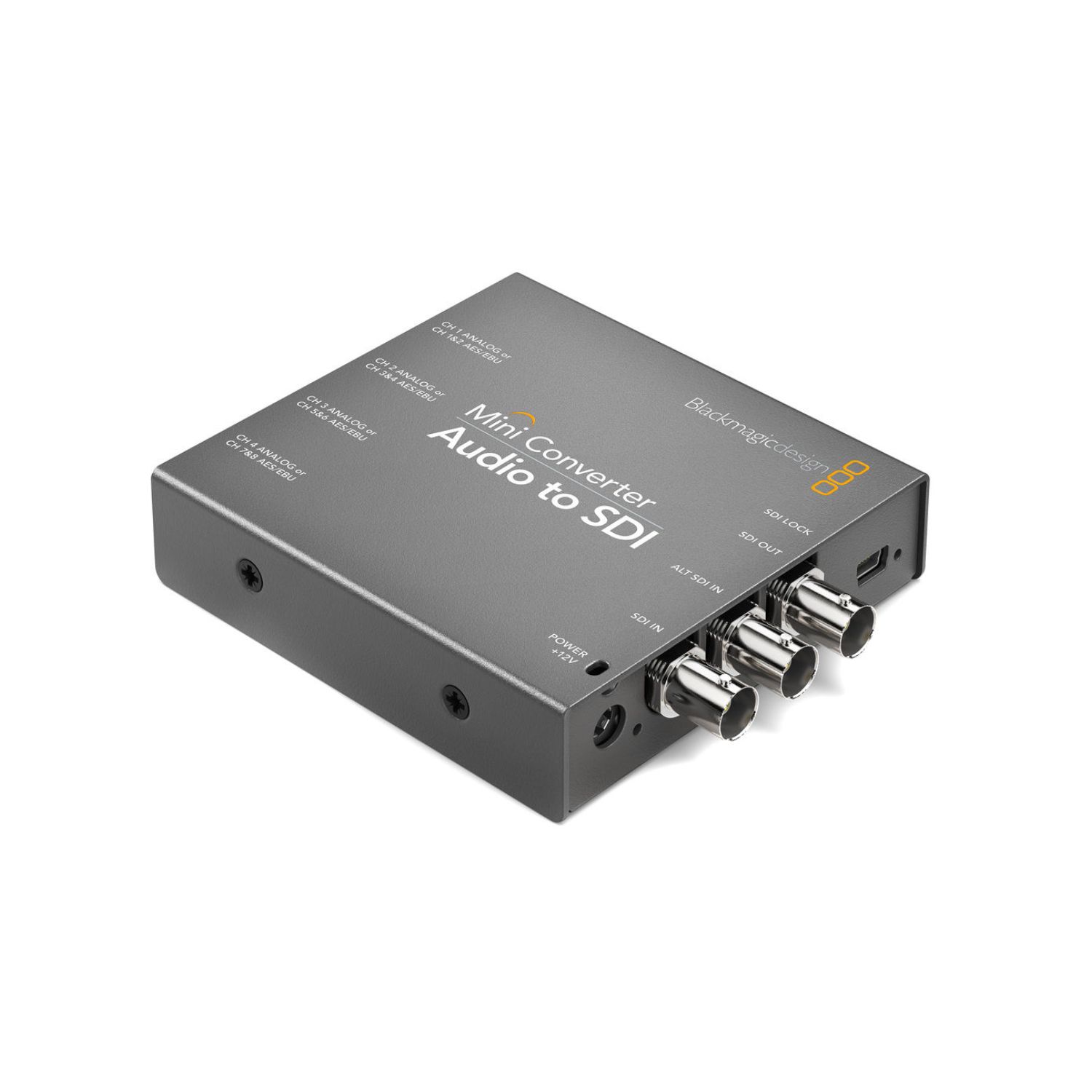

Blackmagic Design Audio to SDI Mini Converter

Blackmagic Design Audio to SDI Mini Converter

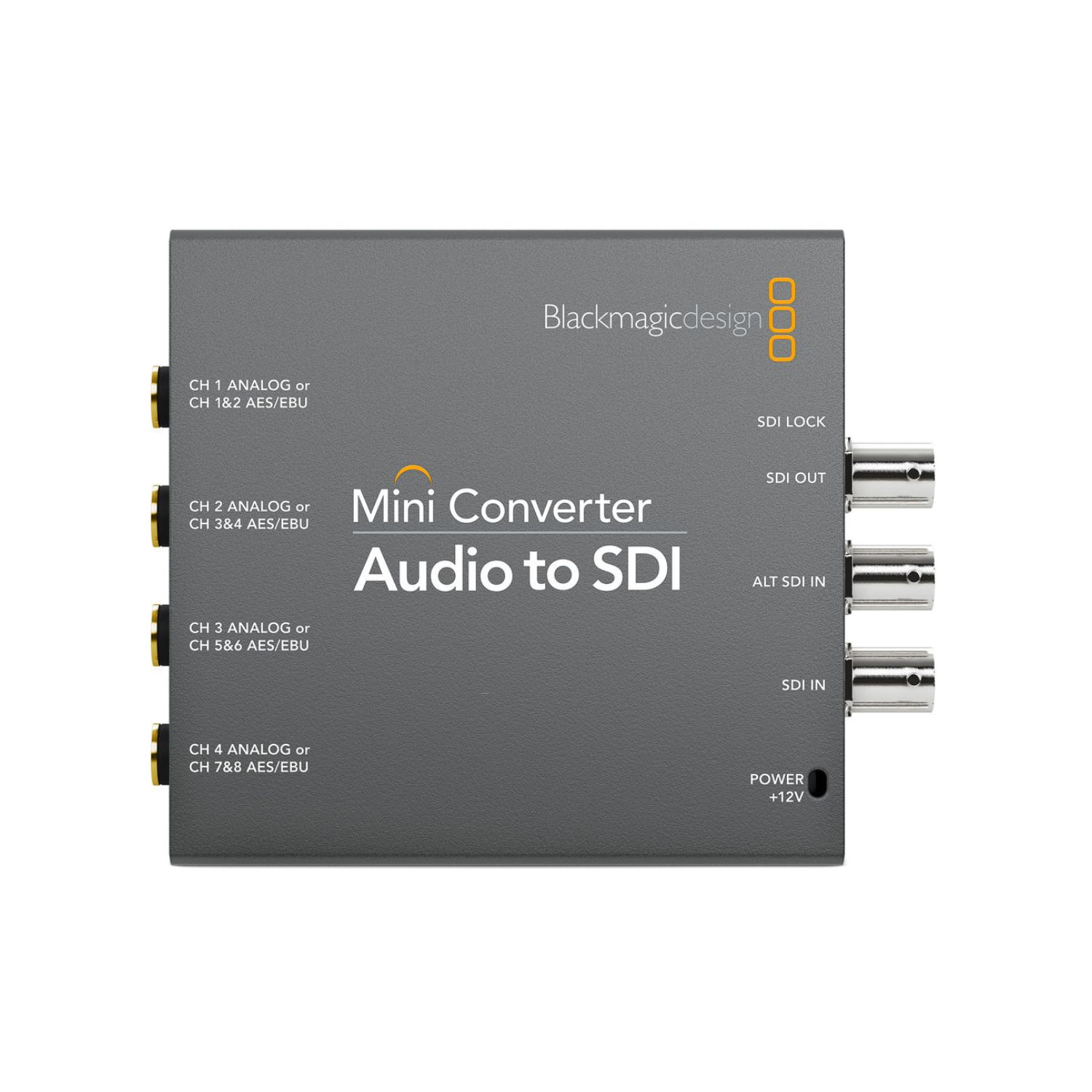

Embed audio into 3G/HD/SD-SDI sources in up to 1080p60 resolution with the Audio to SDI Mini Converter from Blackmagic Design. Connect up to four channels of balanced analog or eight channels of AES/EBU audio via four 1/4″ jacks.

In addition to a dedicated SDI input, the converter also features a redundant SDI input that allows you to run a backup cable in case the first is lost. This is useful in mission-critical applications, especially outdoors or in crowded venues where there is a higher chance of damage to the cable.

Specifications

• Connections
  SDI Video Inputs
  1 x SD, HD or 3G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
  SDI Video Outputs
  1 x Embedded SDI Output.
  Analog Audio Inputs
  4 channels of balanced analog audio.
  Digital Audio Inputs
  8 channels of balanced AES/EBU audio.
  SDI Redundant Input
  Automatically switches over if main SDI input is lost.
  Multi Rate Support
  Auto detection of SD, HD or 3G‑SDI.
  Updates and Configuration
  Via USB 2.0 high speed. (480 Mb/s)
  Reclocking
  Yes
• Standards
  SD Video Standards
  525i59.94 NTSC, 625i50 PAL
  HD Video Standards
  720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
  2K Video Standards
  2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
  SDI Compliance
  SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU‑R BT.656 and ITU‑R BT.601
  SDI Video Rates
  SDI video inputs are automatically detected between standard definition, high definition and level B 3G‑SDI.
  SDI Video Sampling
  4:2:2, 4:4:4
  SDI Audio Sampling
  Television standard sample rate of 48 kHz and 24 bit.
  SDI Color Precision
  4:2:2, 4:4:4
  SDI Color Space
  YUV, RGB
  SDI Auto Switching
  Automatically selects between SD, HD, and 3G‑SDI.
• Software
  Software Control
  Mac™ and Windows™ software upgrade via USB.
  Internal Software Upgrade
  Via included updater application.
• Operating Systems
  Mac 10.15 Catalina,
  Mac 11.1 Big Sur or later.
  Windows 10, 64-bit.

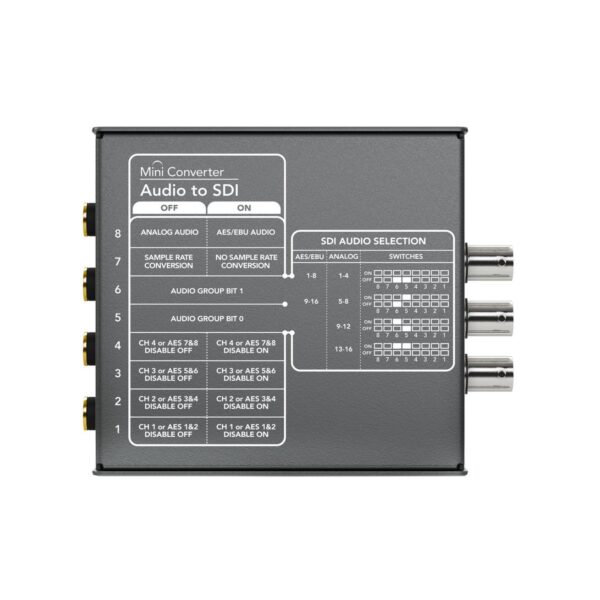

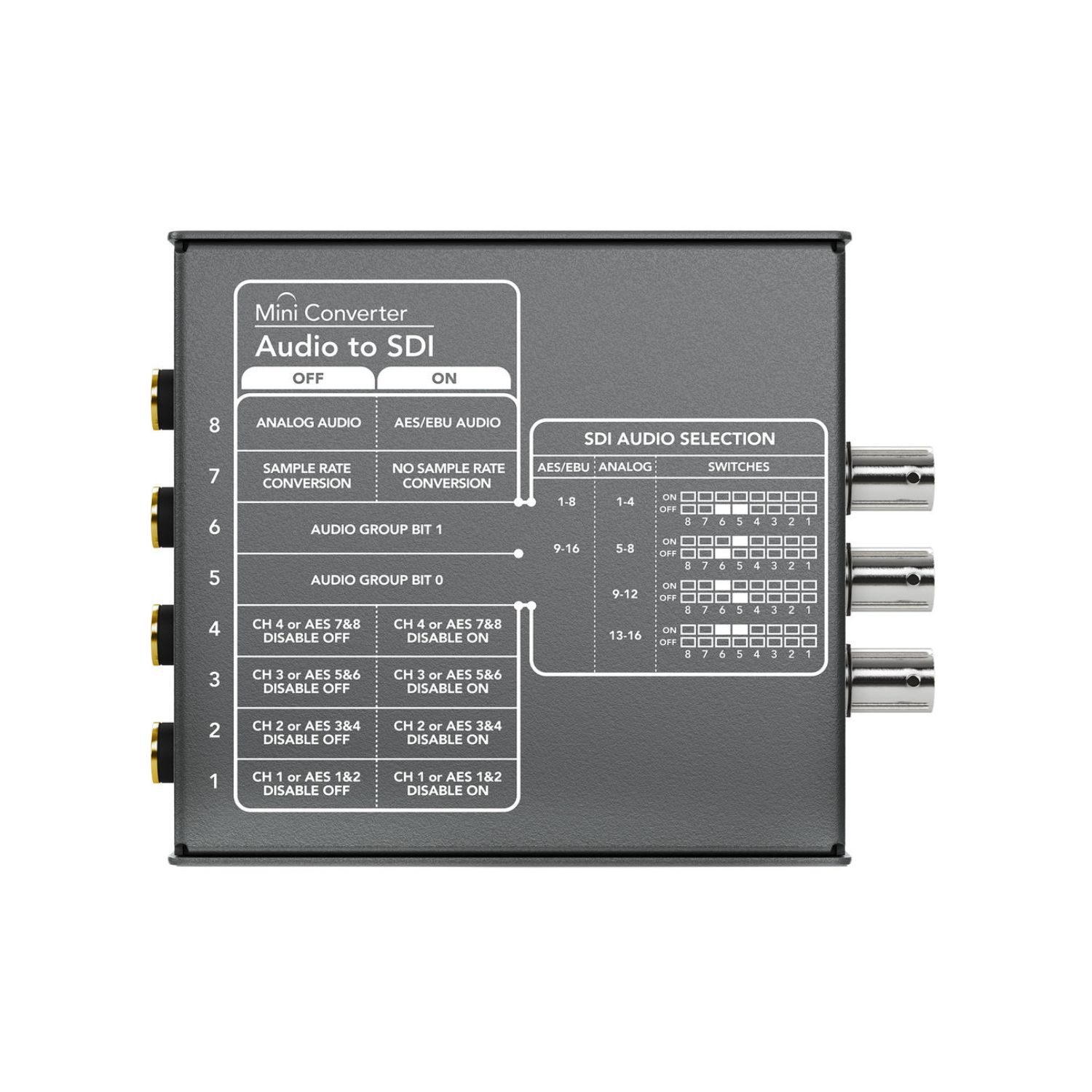

• Settings Control
  Mini Switches or USB software.
• Power Requirements
  Power Supply
  +12V universal power supply included with international socket adapters for all countries. Cable tie point.
  Power Consumption
  8.40 Watts
  Operational Voltage Range
  12V DC
• Environmental Specifications
  Operating Temperature
  0° to 40° C (32° to 104° F)
  Storage Temperature
  -20° to 45° C (-4° to 113° F)
  Relative Humidity
  0% to 90% non‑condensing
• What’s Included
  Mini Converter Audio to SDI
  12V universal power supply with international socket adapters
