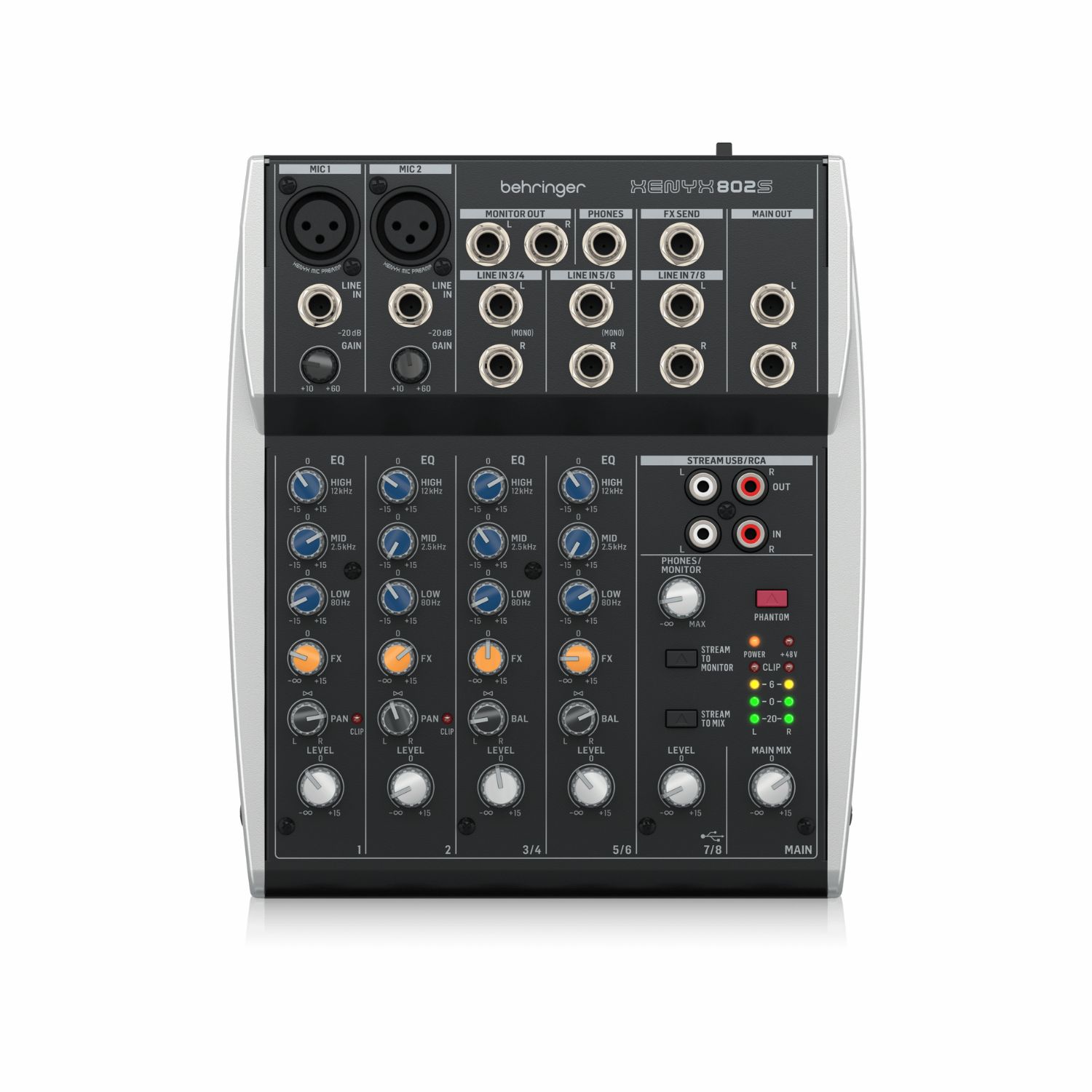

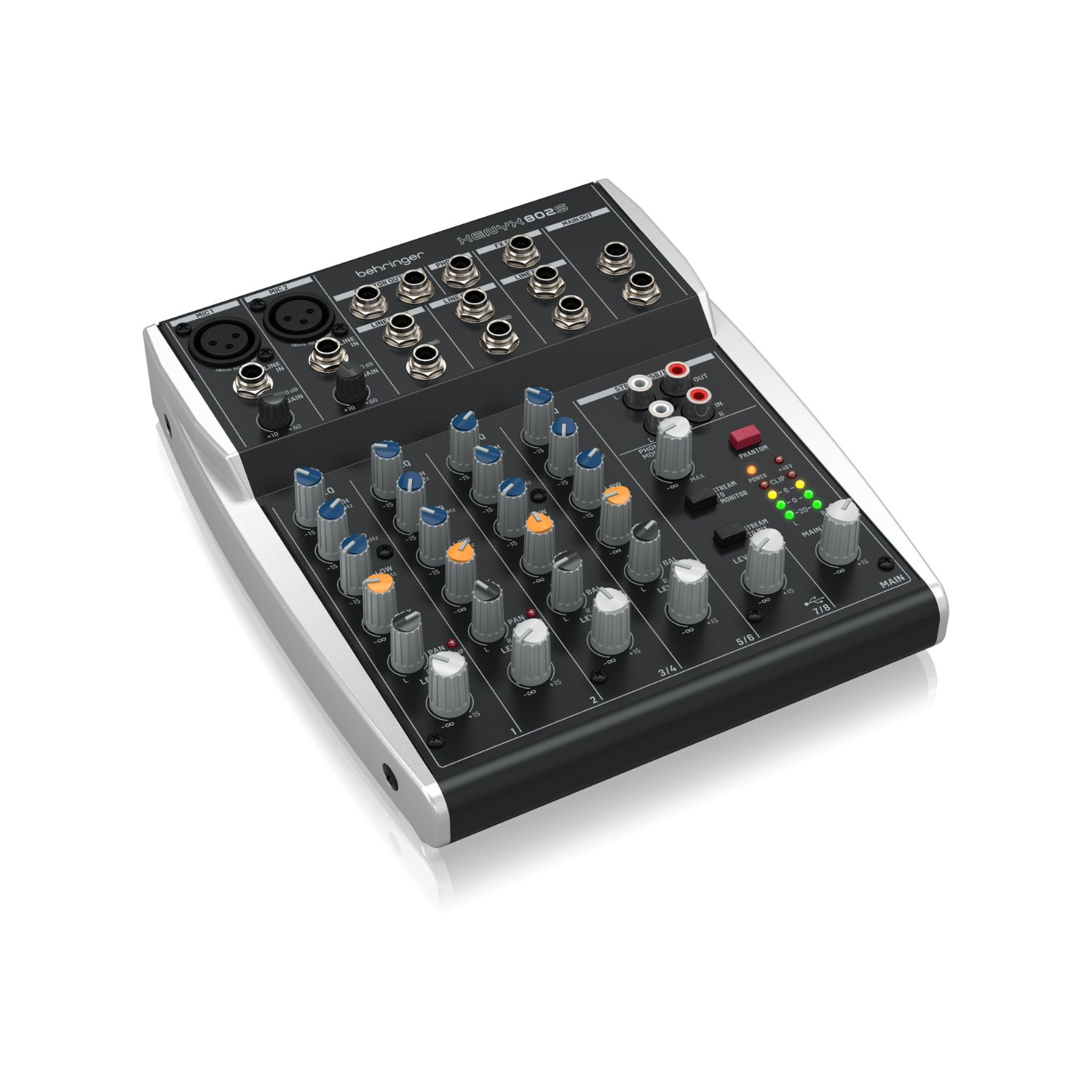

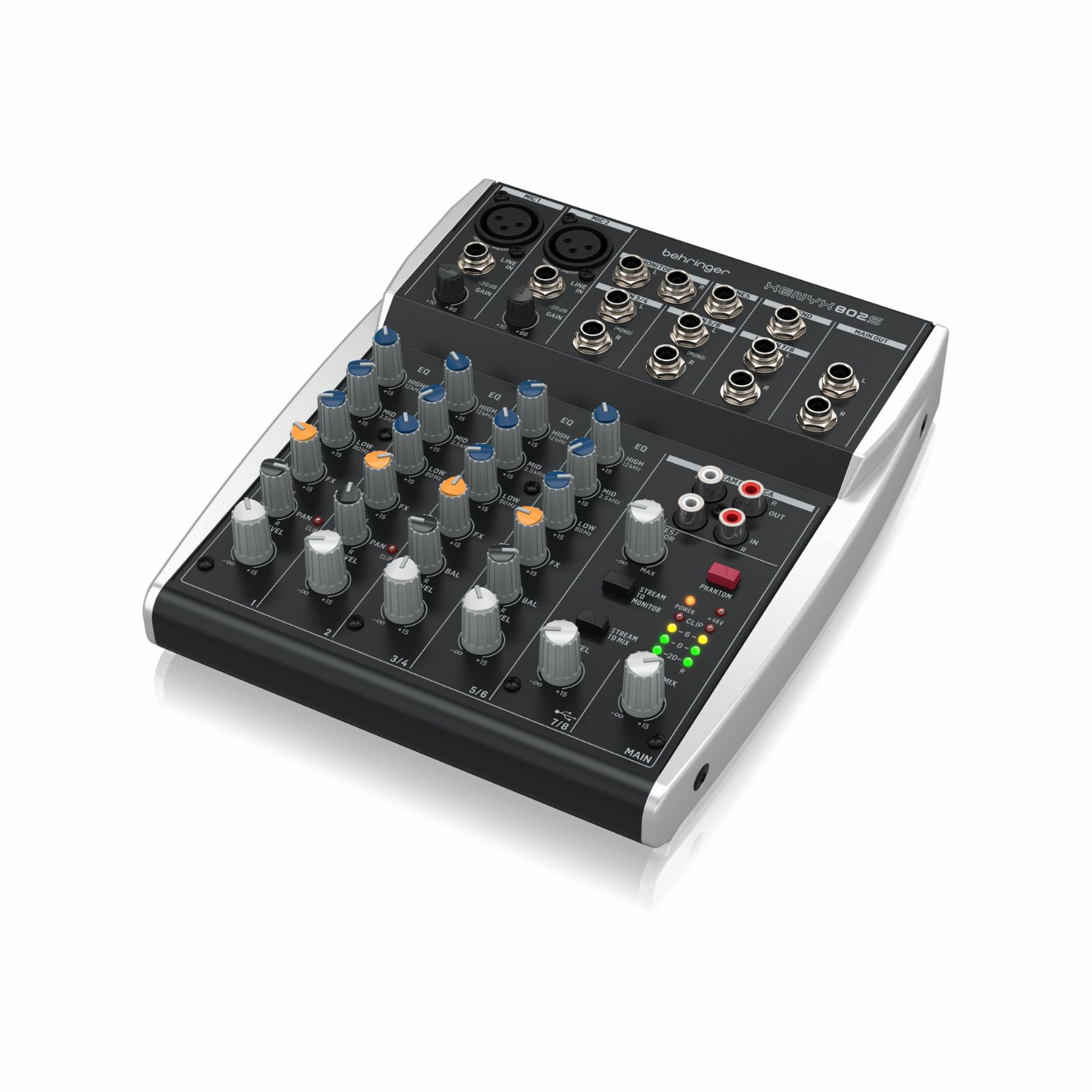

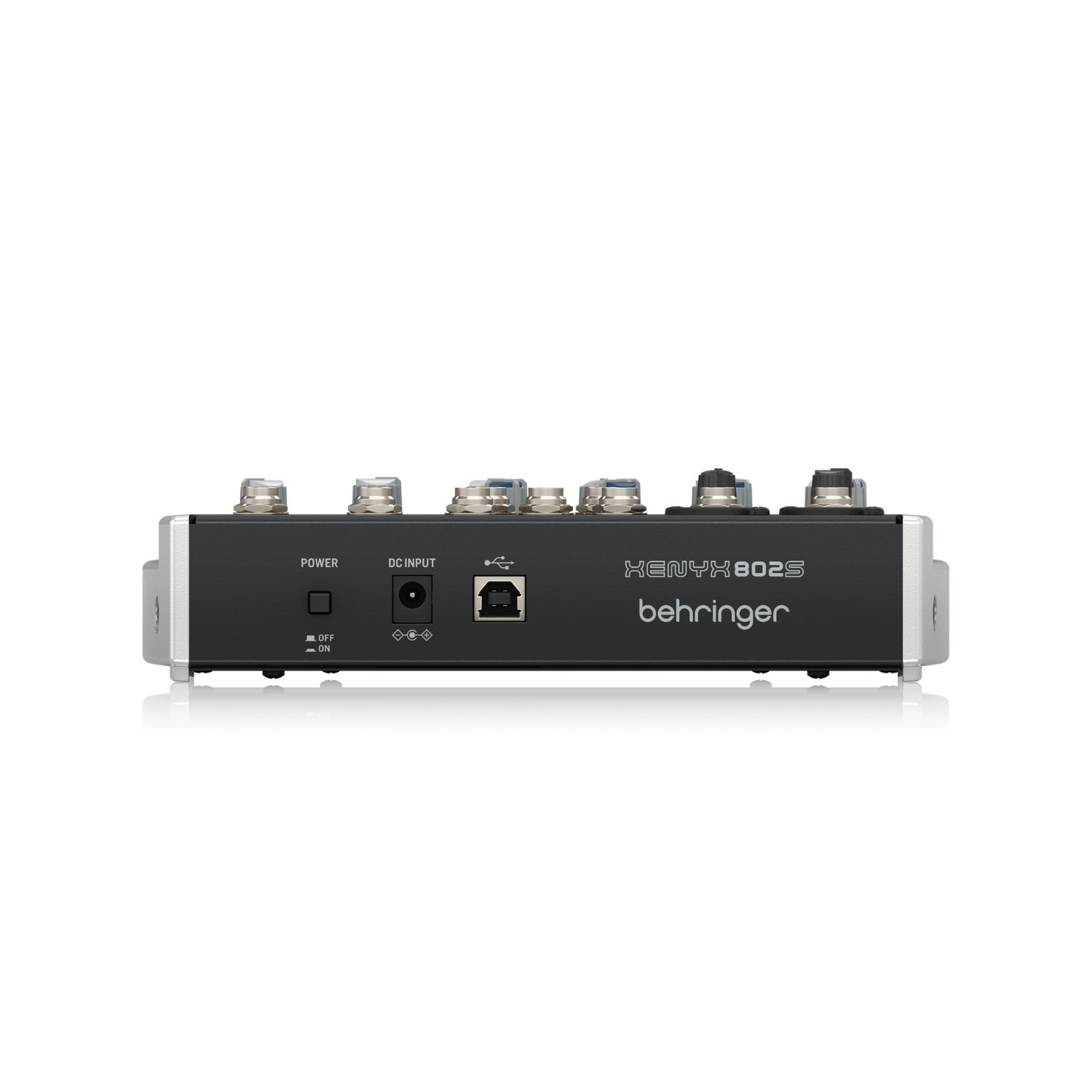

Behringer XENYX 802S 8-Input Mixer with USB Streaming Interface

The compact XENYX 802S mixer’s 8 inputs allow you to effortlessly achieve premium-quality sound that’s perfect for streaming, podcasting and recording. It provides a warm and ultra-musical sound thanks to its award-winning XENYX microphone preamps featuring 48V Phantom Power for hi-end studio microphones.

Great for Any Setup
The new XENYX “S” series can be connected to computers or mobile devices via USB making it super easy to integrate digital sources with analog equipment. Two mono and 2 stereo channels with EQ, plus another stereo channel, a stereo RCA streaming input and stereo USB input allow you to blend a total of 12 crystal-clear audio signals for monitoring via headphones or on high-quality TRS outputs. Hence, the 802S can also be used as a versatile sub mixer for combining network enabled audio devices with several other audio signals.

Control Made Easy
The 802S features a 3-band EQ on Mono and Stereo inputs and allows for precise sound shaping for any input source. An integrated FX send control per channel lets you plug in any external FX processor of your choice, such as the Behringer FX2000, for amazing audio effects flexibility. When nothing is plugged into the stereo line inputs 7/8, then the Level 7/8 control can be used to adjust the USB input level conveniently.


Mono Inputs

Microphone Input Balanced XLR, discrete input circuit

Mic EIN (22 Hz-22 kHz) @ 50 Ω: 132 dB, A-weighted

Frequency response Gain +10 dB: 10 Hz to 150 kHz

Frequency response Gain +60 dB: 20 Hz to 70 kHz

Gain range: +10 dB to +60 dB

Max input level @ +10 dB Gain: +12 dBu

Input Impedance: 2 kΩ balanced

Distortion (THD + N) 1 kHz @ +10 dB Gain: 0.005%

Mono Line Inputs 1/4″ TRS connector balanced

Impedance: 22 kΩ balanced, 10 kΩ unbalanced

Gain range: -10 dB to +40 dB

Max input level @ 0 dB Gain: +21 dBu

Stereo Inputs

Stereo Line 1/4″ TRS connector balanced

Frequency response: 20 Hz to 200 kHz

Impedance: 22 kΩ balanced, 10 kΩ unbalanced

Max input level @ 0 dB Gain: +21 dBu

STREAM Inputs (Analog) RCA connector unbalanced

Impedance: 10 kΩ unbalanced

Max input level: 10 dBu


Low 80 Hz/±15 dB
Mid 2.5 kHz/±15 dB
High 12 kHz/±15 dB

Main, Monitor & FX Send Outputs

Type 1/4″ TRS connector impedance-balanced
Impedance 120 Ω
Max output leve 21 dBu

Phones Out

Type 1/4″ TRS connector unbalanced
Impedance 23 Ω
Max output level 19 dBu/150 Ω

STREAM out (Analog)

Type RCA connector unbalanced
Impedance 1 kΩ unbalanced
Max output level 10 dBu

Main Mix noise

Main Mix @ -∞ -109 dBu A-weighted
Channel @ -∞ -109 dBu A-weighted


Type Type-B connector
USB Audio Data 48 kHz 16 bit
UAC2 Class Compliant stereo in/out

Power Supply

Power Consumption 12 W
Adaptor input 100 – 240 V~, 50/60 Hz, 0.5 A
Adaptor output 18 V DC 1.0 A
