AVMatrix VS0605 6-Channel SDI/HDMI Multi-Format Video Switcher

122,990 & Free Shipping

Only 2 left in stock

  • 6-Channel Video Switcher
  • 3G/HD/SD-SDI, HDMI, DVI, and USB Inputs
  • Input up to 4K60 Video via HDMI
  • Remote PTZ Camera Control
  • Luma/Chroma Key, Mix/Fade/Wipe Effects
  • T-Bar, Auto, and Cut Transitions
  • Audio Mixing, Multiview, PiP Layout
  • Record to SD Card

Free shipping on orders!

  • Done GST Invoice For Input Credit
  • Done No Hassle Refunds
  • Done Secure Payments
GUARANTEED SAFE CHECKOUT
  • BHIM
  • Visa
  • MasterCard
  • RuPay
  • Net Banking

AVMatrix VS0605 6-Channel SDI/HDMI Multi-Format Video Switcher

This compact VS0605 6-Channel SDI/HDMI Multi-Format Video Switcher from AV Matrix can switch up to six different video inputs while recording the program feed. The multiview layout allows you to show preview, program, and input sources all on the same screen with PiP functionality. Effectively, this makes the VS0605 a portable TV studio that you can take anywhere and set up with minimal effort or extra equipment.

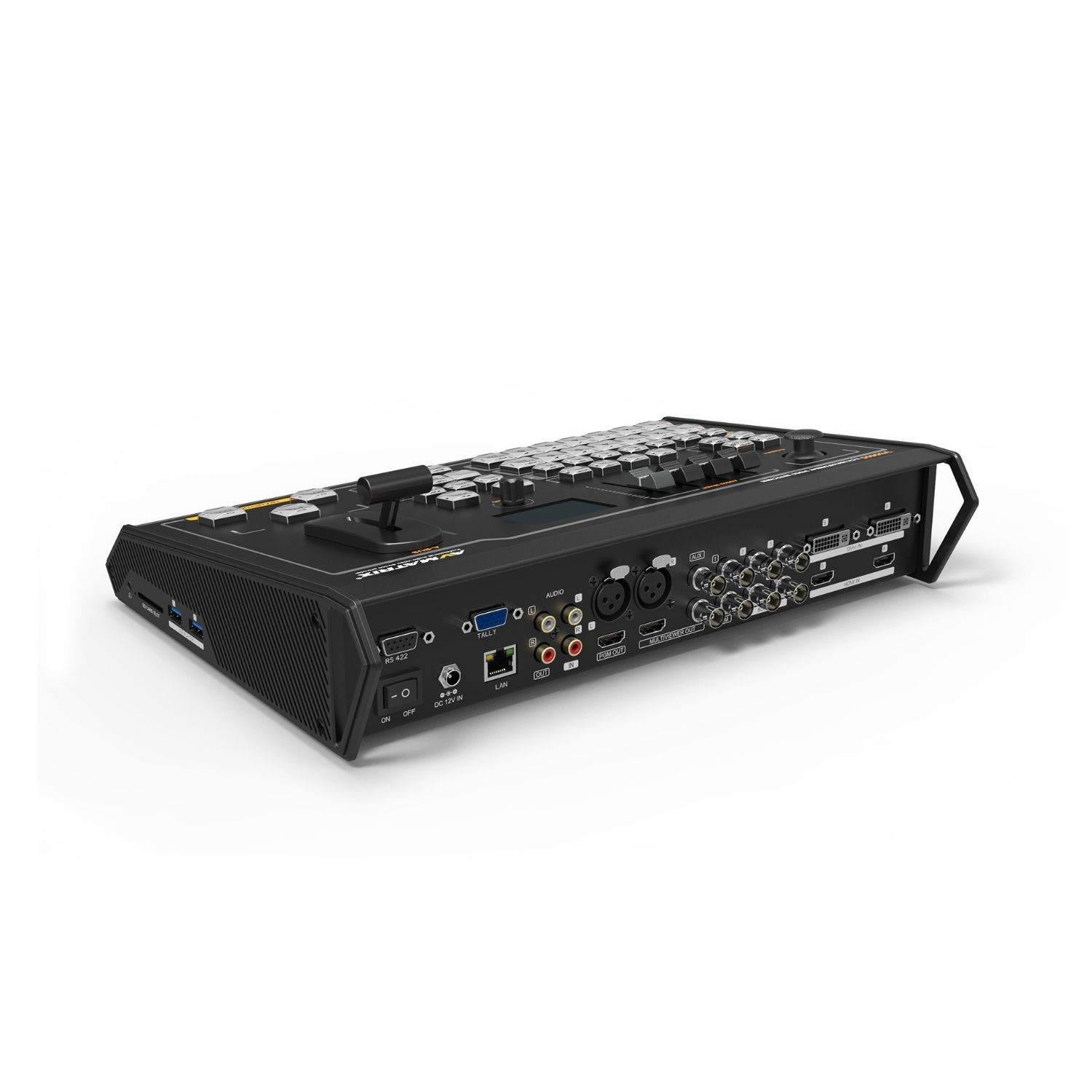

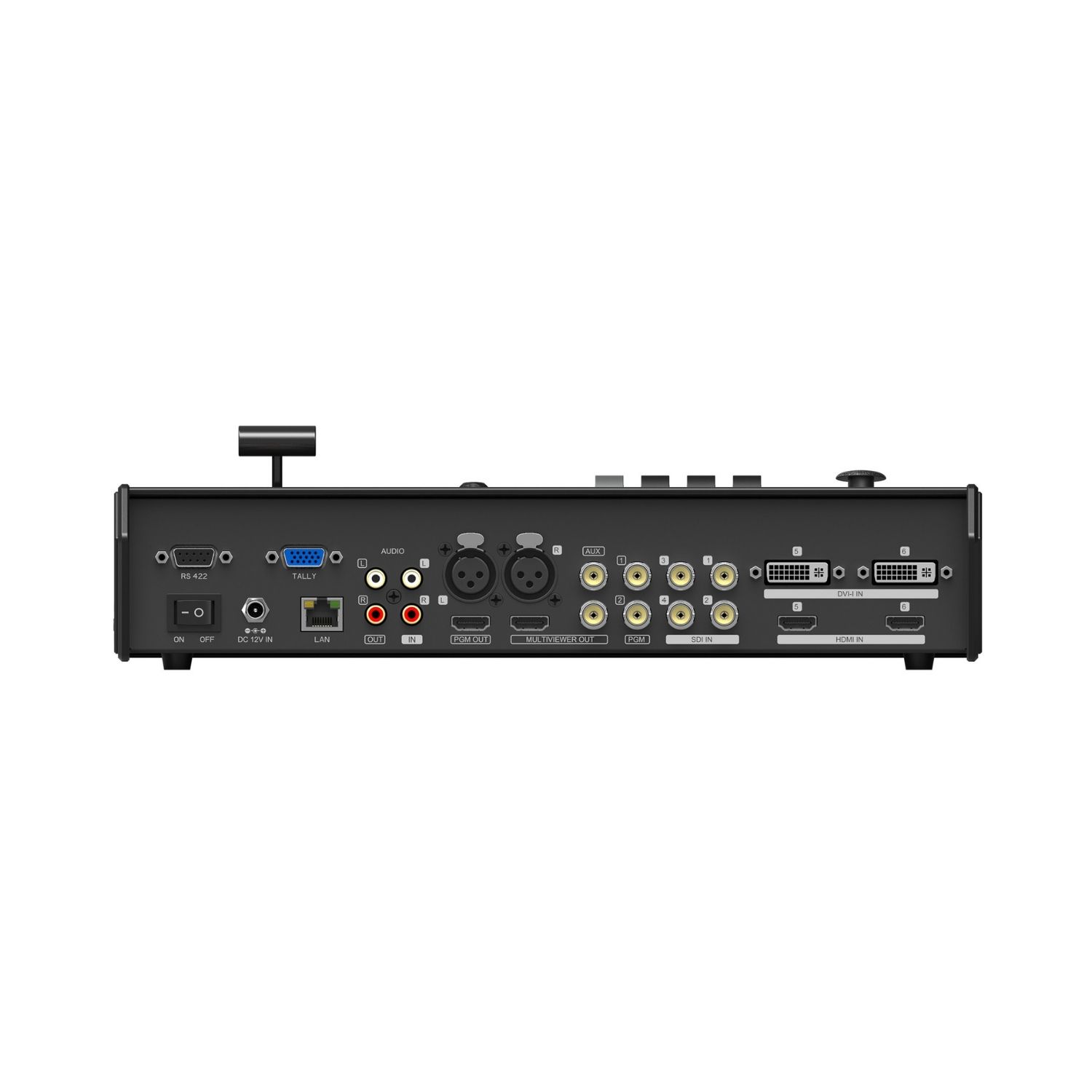

Four SDI, two HDMI, two DVI, and two USB inputs can be connected to cameras or other consumer or professional sources for switching up to 4K60 video over HDMI with embedded audio. Analog audio support includes stereo 2RCA and XLR inputs, and 2RCA and headphone outputs. The input format will be autodetected by the switcher, and the output format is selectable by the user. You can even record program output up to 1080p60 to separately available media in the built-in SD card slot.

The VS0605 also features remote PTZ camera control over its RS-422 port. It supports the VISCA, Pelco-P, and Pelco-D serial protocols so you can control various operations of your PTZ camera such as zoom, pan, and tilt. Concert productions, events, parties, competitions, virtual studio, educational institutions, and live sports programming are some of the use cases where the VS0605 could be utilized.

  • Multiformat input:SD, HD,FHD
  • 6 channel inputs: 4×SDI and 2×DVI-I/ HDMI/ VGA/ USB player inputs
  • 3×SDI/ HDMI PGM outputs, 1×SDI AUX output, 2×SDI/ HDMI multiview outputs

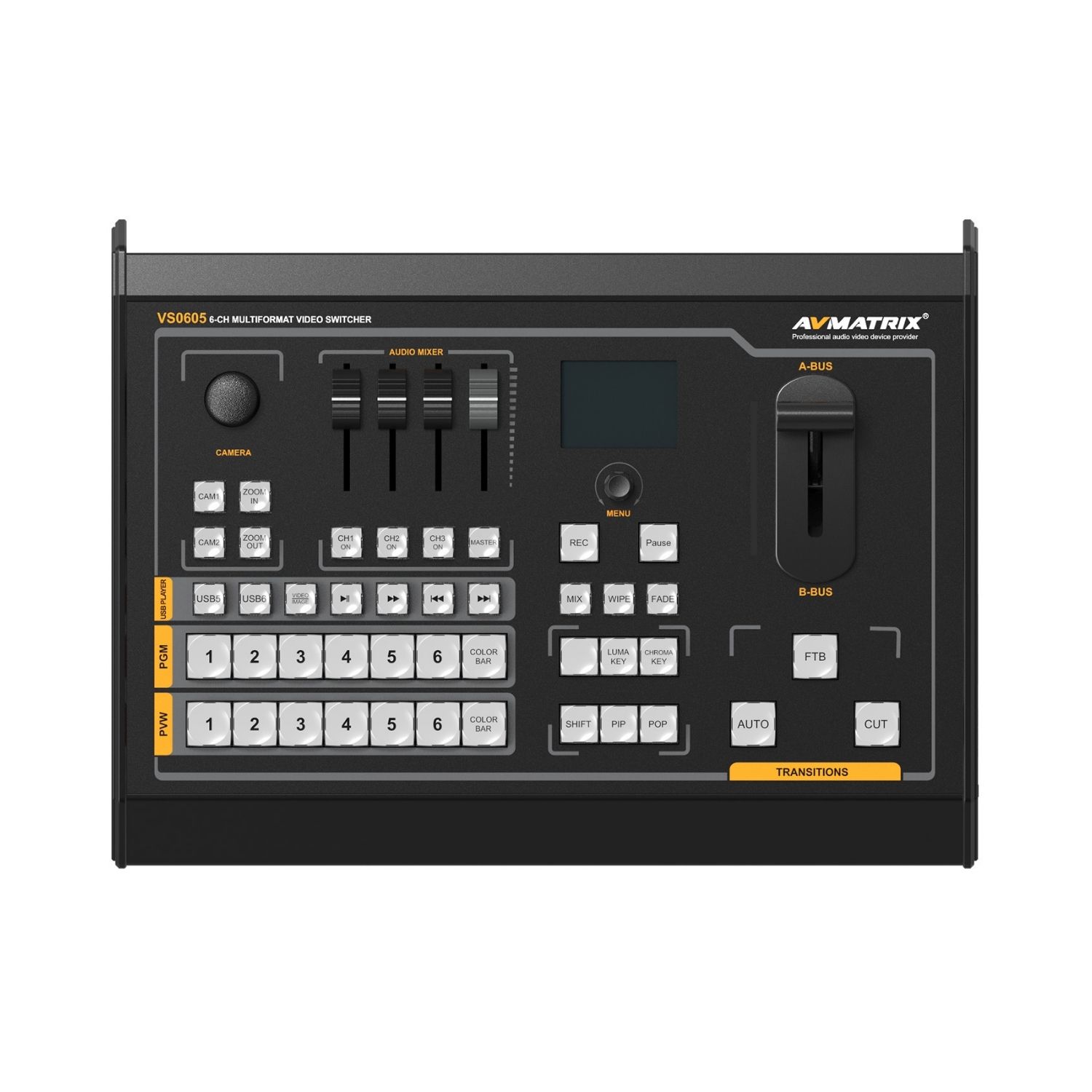

  • T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
  • T-Bar/AUTO/CUT transitions and MIX/ FADE/ WIPE effects
  • Luma Key/ Chroma Key for virtual studio
  • PIP/POP window size and position adjustable

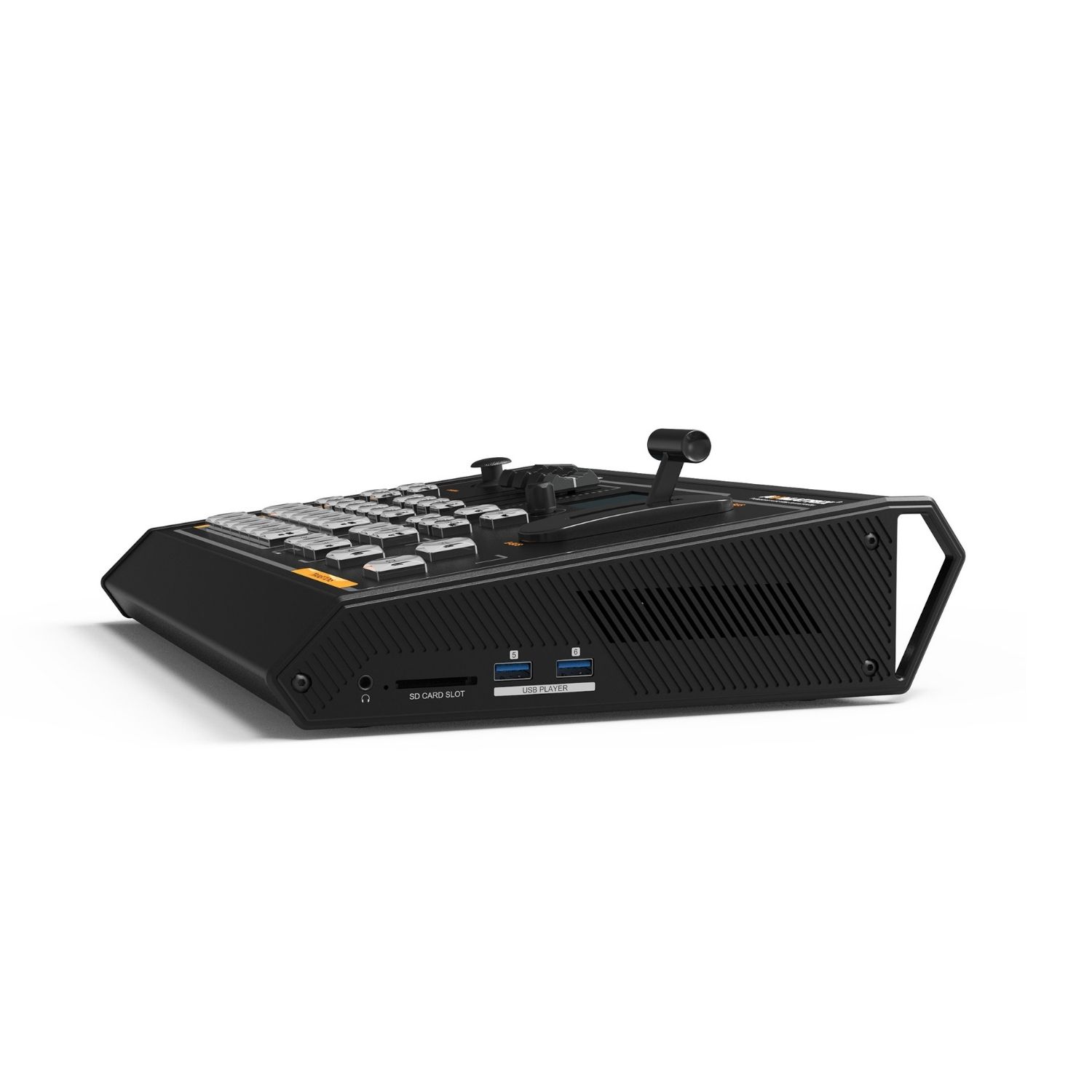

  • Record PGM video to SD card, up to 1080p60
  • Audio mixer: XLR/ RCA audio & SDI/ HDMI/ USB embedded audio
  • Tally port for multiple camera system

Specifications

Effect Types 1 x Transition, Chroma Key, Alpha Key, Luma Key
Processing
Switching Type T-Bar
Input
Number of Video Input Sources 8
Video Input Connectors 4 x BNC (3G-SDI / HD-SDI / SD-SDI) Female
2 x HDMI (HDMI 2.0) Female
2 x DVI-I DL (VGA / DVI) Female
1 x HDMI (HDMI 1.4) Female
1 x BNC Female
Input Video Format HDMI (4:4:4/4:2:2 RGB, YUV)
UHD 4K at 30/50/60 fps
DCI 2K 30/50/60 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 23.98/24/25/29.97/30/50/59.94/60 fps
576p 50 fps
PAL 50 fps
480p 60 fps
NTSC 60 fps
SDI (4:4:4/4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
720p 23.98/24/25/29.97/30/50/59.94/60 fps
PAL 50 fps
NTSC 59.94 fps
DVI
1080p at 60 fps
WUXGA (1920 x 1200) 60 fps
Audio Input Connectors 2 x XLR 3-Pin Stereo Analog Female
1 x 2RCA Stereo Analog
Output
Video Output Channels 6
Video Output Connectors 2 x BNC (3G-SDI / HD-SDI) Female
2 x HDMI Female
1 x BNC (3G-SDI) Female (Preview)
1 x HDMI Female (Preview)
Output Video Format HDMI / SDI
1080p at 24/25/30/50/60 fps
1080i 50/60 fps
Audio Output Connectors 1 x 2RCA Stereo Analog Female
Embedded Audio Output HDMI: 2-Channel (per Output)
SDI: 2-Channel (per Output)
Multiview Output 2-Way Multiview viaHDMI, SDI
Connectivity
Other I/O 1 x DE-9/DB-9 RS-422 Input/Output
1 x DE-15/DB-15 Tally Input
1 x RJ45 LAN Input/Output
Video Standard Compliance SMPTE 259M/292M/424M-B
HDCP Support None
Recording Media 1 x SD (Unspecified Type)
Recording Modes 1920 x 1080p up to 60 fps (MP4 via H.264/AVC)
Power Connector 1 x Barrel (12 VDC at 2 A) Input
Power Consumption Power Supply: 24 W
Environmental
Operating Temperature -4 to 140°F / -20 to 60°C
Storage Temperature -22 to 158°F / -30 to 70°C
Operating Humidity 20 to 70%
Storage Humidity 0 to 90%
General
Dimensions 12.6 x 7.76 x 2.28″ / 32 x 19.7 x 5.8 cm
Weight 8.16 lb / 3.7 kg
