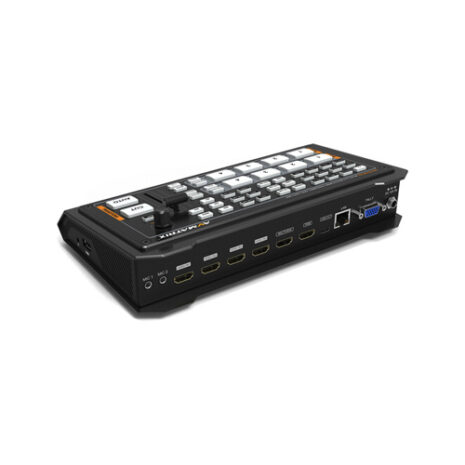

AVMatrix HVS0402U 4-Channel Live Streaming Video Switcher

Original price was: ₹57,000.Current price is: ₹48,990.
You save 8,010! & Free Shipping

Only 1 left in stock

EXTRA 2% Discount: ₹48010.2

FLAT 2% Off when you make a payment via Bank Transfer at Check Out.

  • Compact 4-Channel Video Switcher
  • 4 x Autodetected HDMI Inputs
  • HDMI PGM and Multiview Outputs
  • 1 x USB Type-C Output to Computer Apps
  • Supports up to 1080p60 Video I/O
  • Luma/Chroma Key, Mix/Fade/Wipe Effects
  • T-Bar, Auto, and Cut Transitions
  • Audio Mixing, Multiview, PiP Layout

Free shipping on orders!

  • Done GST Invoice For Input Credit
  • Done Price Includes GST
  • Done Secure Payments
  • Done No Hassle Refunds
  • BHIM
  • Visa
  • MasterCard
  • RuPay
  • Net Banking

AVMatrix HVS0402U 4-Channel Live Streaming Video Switcher

Switch up to four different HDMI video inputs while monitoring the program feed with the HVS0402U 4-Channel Live Streaming Video Switcher from AVMATRIX. Concert productions, events, houses of worship, virtual studios, educational institutions, and live sports programming are some of the use cases where the HVS0402U could be utilized. Its portable form factor makes it a TV studio you can take anywhere and set up with minimal effort or additional equipment.

You can output the four HDMI inputs via one HDMI multiview and one HDMI program output using scaling features, allowing you to view them all on the same screen with configurable PiP functionality. You can also output program video via the USB Type-C port to a computer for video capture and streaming applications. The HVS0402U features four HDMI inputs that can be connected to cameras or other consumer or professional sources for switching up to 1080p60 video with embedded audio. You can also mix the audio using the two analog stereo 3.5mm mic/line inputs and output along with the embedded audio. You can also remotely control the switcher via IP using software using the LAN port.

Its interface features source and destination buttons and a T-bar for transitions and cuts, as well as mix, fade, and wipe effects. It also features upstream luma key, chroma key, picture-in-picture (PiP), and picture-over-picture (PoP), as well as downstream keying and logo overlay. You can capture up to 16 screenshots and store up to 16 images using the USB Type-A input. The USB input supports disks up to 256GB in capacity. It also features two color generators and one pattern generator.

The HVS0402U features a tally interface that supports GPIO, mute, still frame, and fade-to-black (FTB) functionality. A power supply, USB cable, and tally connector are included, and the 1/4″-20 thread on the bottom provides the ability to mount onto a separately available stand or in a console.

  • Four autodetected HDMI inputs
  • One HDMI Program (PGM) output and one HDMI multiview output
  • One USB Type-C for capturing and streaming on a computer with software
  • AUX output, configurable and assignable
  • Upstream key: Luma key, chroma key, two picture-in-picture (PiP), and one picture-over-picture (PoP)
  • Downstream key and logo overlay
  • T-bar/auto/cut transitions; wipe (9×2 patterns)/mix/dip effects
  • Audio mixer: HDMI embedded audio and 2-channel mic/line input; audio delay available
  • 3.5mm headphone output
  • Media library: 49 default patterns, 16 imported images, 16 captured images, and 2 color generators
  • LAN port for computer software remote control
  • Tally support for fade-to-black (FTB), mute, still, and GPIO
  • Customer configuration import and export via USB Type-A as well as input of image and logo from drives up to 256GB


Available M/E Layers 2 M/E
Effect Types 1 x Graphic, Transition, Chroma Key, Alpha Key, Luma Key
Graphics Memory 32 Images
Downstream Keys 1 x Chroma, Luma, DVE
Generators 2 x Color
1 x Pattern
Audio Mixing 2-Channel Mixing
Switching Type Pushbutton, Software, T-Bar
Processing Resolution 1080p
Color Processing YUV
Number of Video Input Sources 4
Video Input Connectors 4 x HDMI Female
Input Video Format HDMI
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 23.98/24/25/29.97/30/50/59.94/60 fps
576p: 50 fps
PAL: 50 fps
480p: 59.94/60 fps
NTSC: 59.94/60 fps
Audio Input Connectors 2 x 1/8″ / 3.5 mm TRS Stereo Analog Female
Input Audio Format Analog
Embedded Audio Input HDMI: 2-Channel (per Input)
Video Output Channels 2
Video Output Connectors 1 x HDMI Female (Program)
1 x HDMI Female (Monitor)
1 x USB Type-C (USB Video) Female
Output Video Format HDMI
1080p: 24/25/30/50/60 fps
1080i: 50/60 fps
USB Type-C
1080p: 60 fps
Audio Output Connectors 1 x 1/8″ / 3.5 mm TRS Stereo Analog Female (Loop Output)
Output Audio Format Analog
Embedded Audio Output HDMI: 2-Channel (per Output)
USB Type-C: 2-Channel (per Output)
Multiview Output 4-Way Multiview viaHDMI
Monitor Output 1 x HDMI
Other I/O 1 x DE-15/DB-15 Tally Input
1 x RJ45 LAN Input/Output
1 x USB Type-A Firmware, Service Input
Video Standard Compliance SMPTE 259M/292M/424M
HDCP Support None
Compatible Services Facebook Live, Livestream, Skype, Twitch, YouTube Live
Recording Media 1 x USB 2.0 Type-A(External Drives)
Power Connector 1 x Barrel (7 to 24 VDC) Input
Power Consumption Device: 12 VDC at 1 A (12 W)
Power Supply: 12 VDC at 2 A
Operating Temperature -4 to 140°F / -20 to 60°C
Storage Temperature -22 to 158°F / -30 to 70°C
Dimensions 9.63 x 5.64 x 1.75″ / 24.45 x 14.32 x 4.45 cm
Weight 2.3 lb / 1 kg
