AVMatrix 3G-SDI Fiber Optic Extender Transmitter & Receiver Set

AVMatrix 3G-SDI Fiber Optic Extender Transmitter & Receiver Set

3G-SDI Fiber Optic Extender

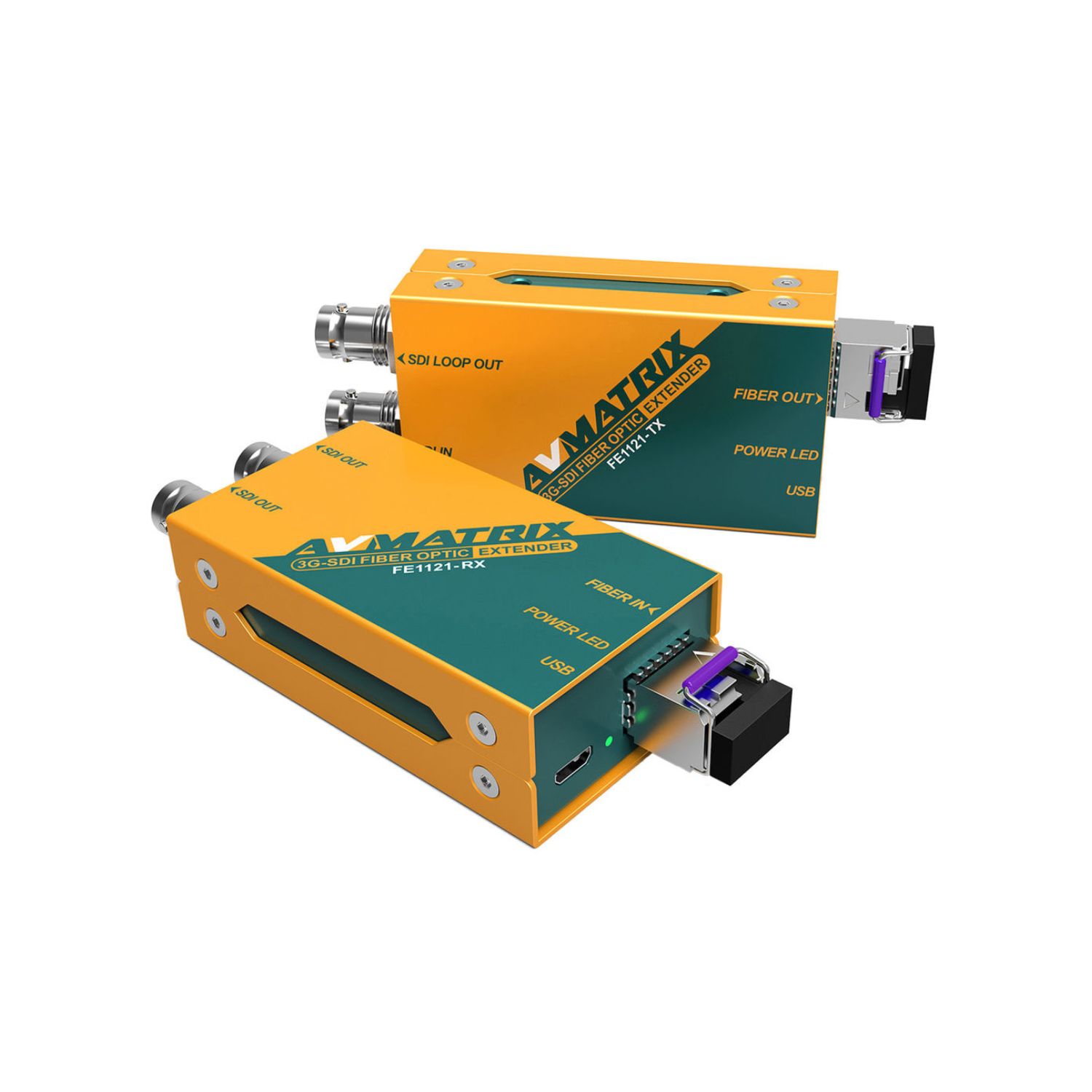

The FE1121 3G-SDI Fiber Optic Extender is a transmitter/receiver kit supporting single-mode LC simplex fiber extensions up to 20km. It is a miniature-style extension solution that supports all SDI formats resolutions up to 1080p with audio and metadata, also supports level A and level B. It features a local SDI loop out and dual SDI outputs and supports 3G/HD/SD SDI signals. Multimode fiber can also be used but at shorter distances.

• Extends HD/SD signals up to 3G-SDI, 1080p over single-mode LC fiber optic cable
• Supports range of up to 12.5 miles

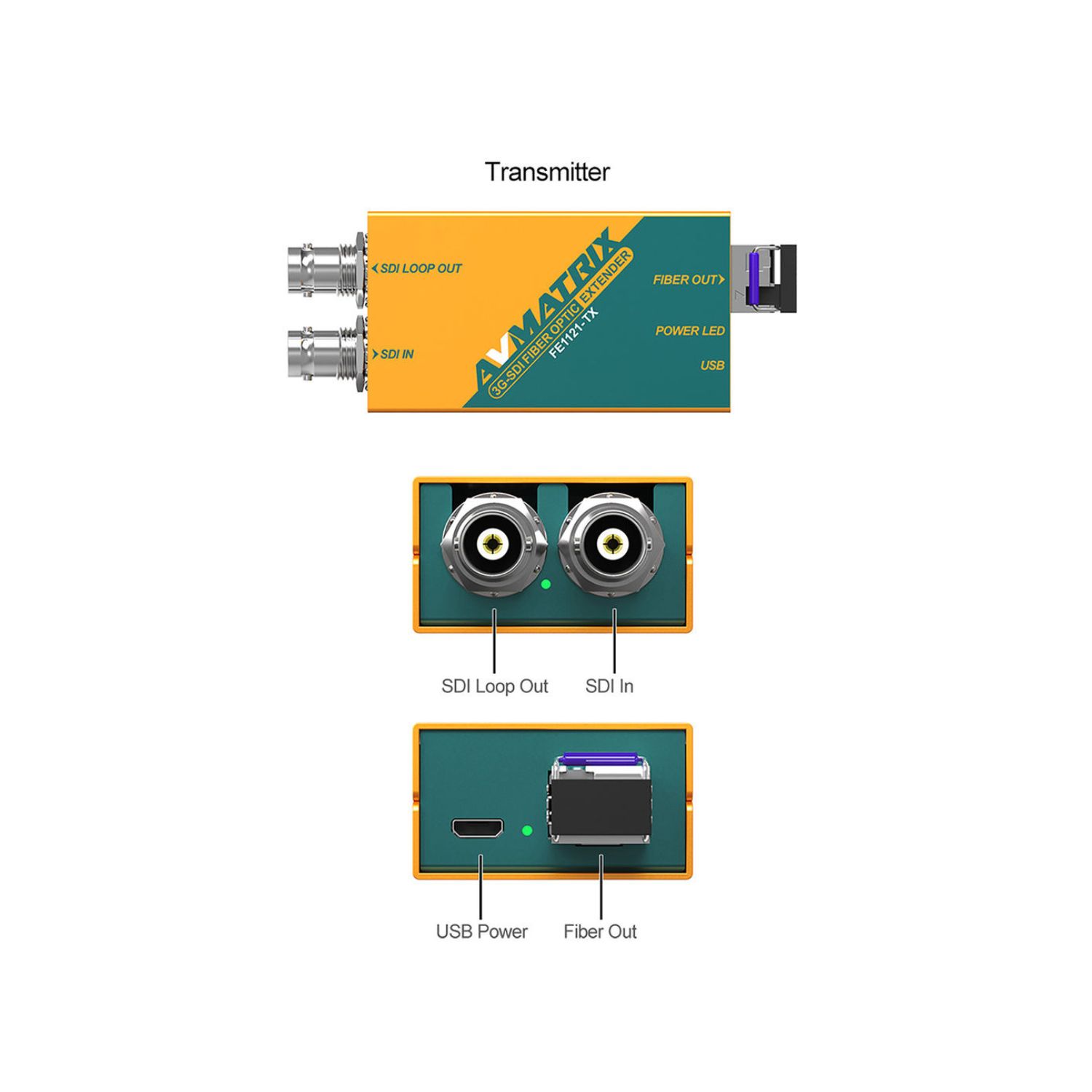

• SDI input and loop out, LC single-mode fiber output on transmitter

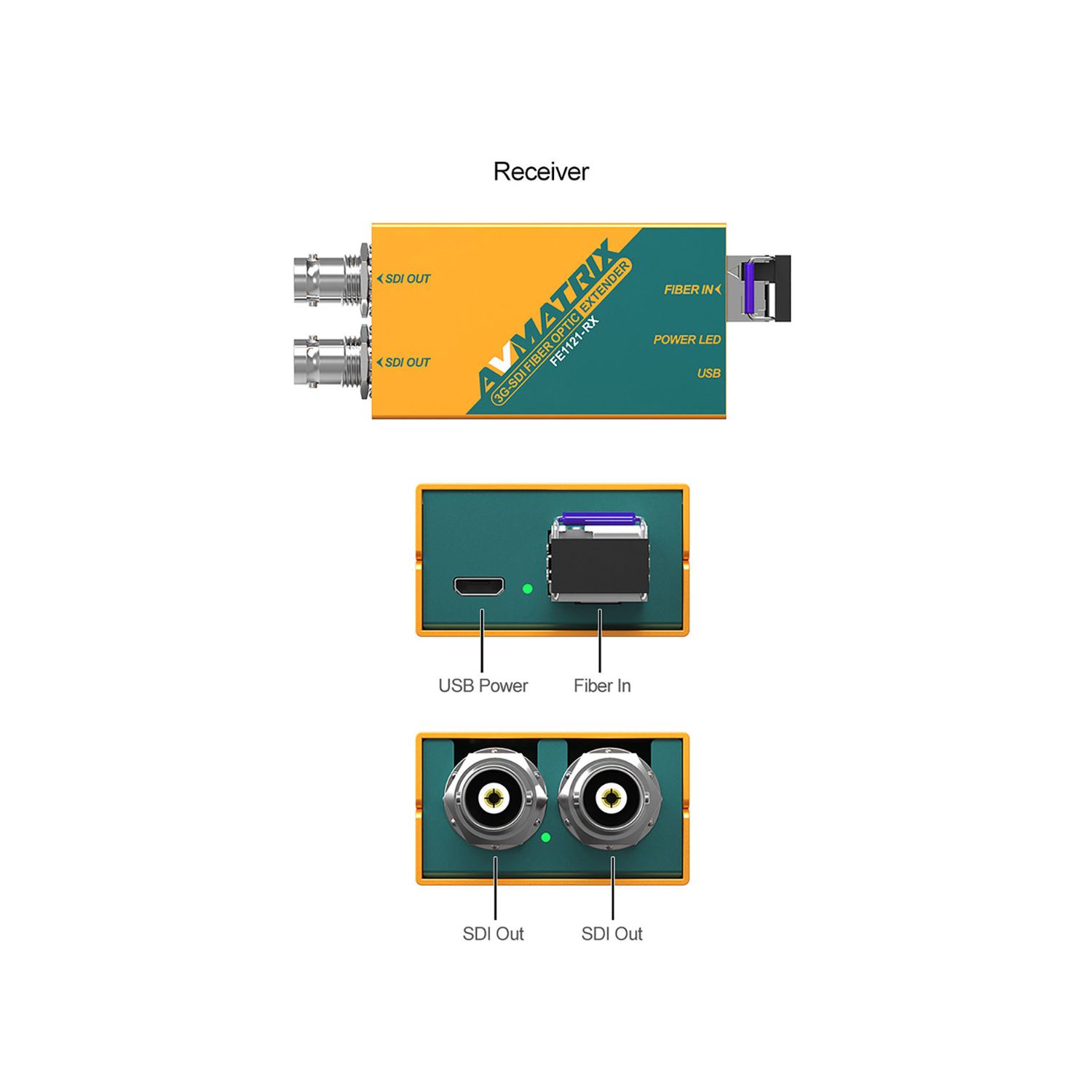

• LC single-mode fiber input, dual SDI outputs on receiver
• Supports metadata and 16-channel embedded audio
• Signal re-clocking
• Compact, USB-powered form
