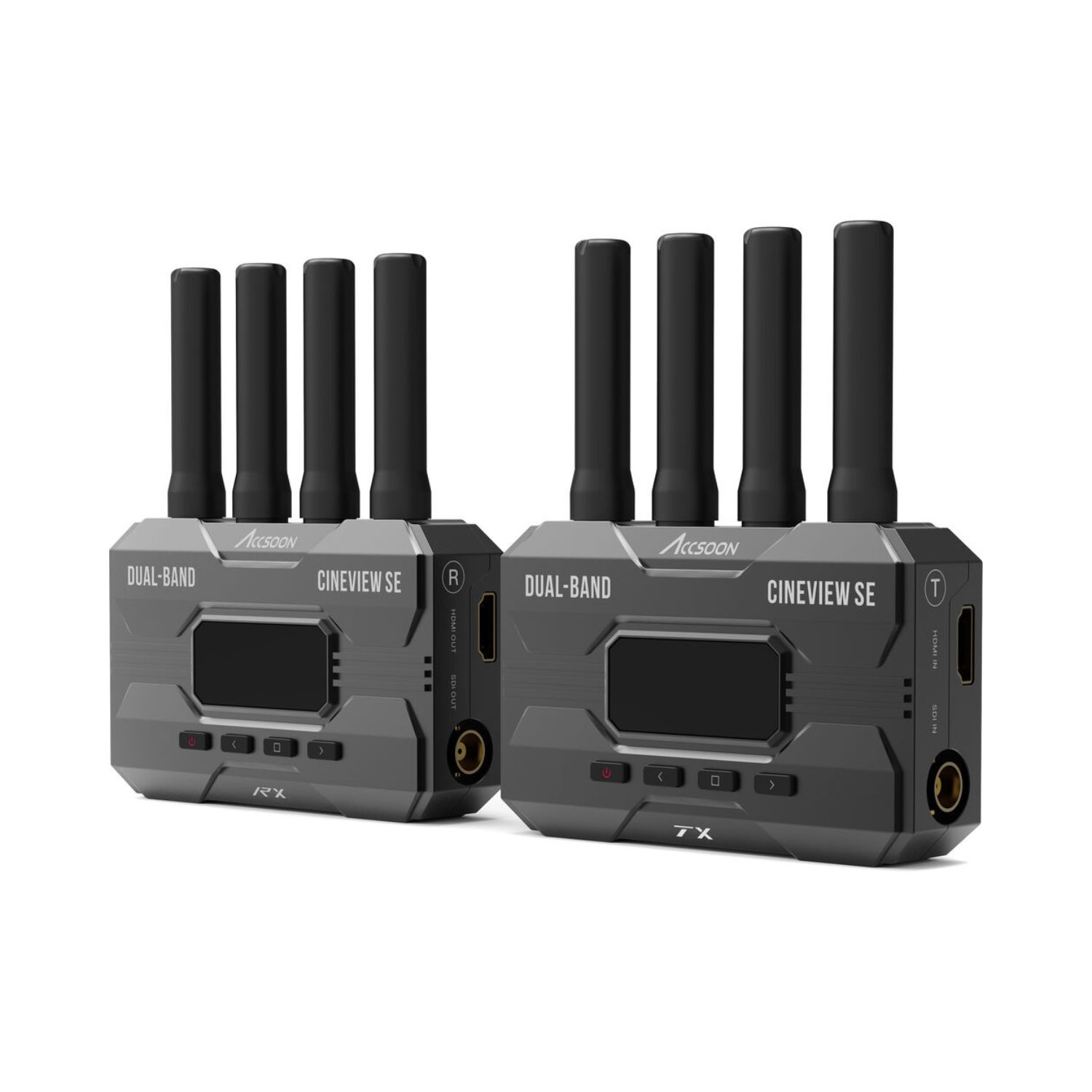

Accsoon CineView SE Multi-Spectrum Wireless Video Transmission System

Accsoon CineView SE Multi-Spectrum Wireless Video Transmission System

Small in size, big on features. With new best in class latency at under 50ms, the CineView SE can transmit a video source via SDI & HDMI up to 1080p 60fps inputs/outputs. It transmits the signal on 2.4GHz+5GHz Dual-Band frequencies simultaneously for increased signal stability and sends video at an impressive maximum range of 1200ft line-of-sight.

Market proved wireless stability.
The CineView SE utilizes dual-band transmission technology, which allows it to stream video via 2.4GHz and 5GHz Wi-Fi at the same time. The receiver can then intelligently identify interference and combine the two streams to form the complete audio and video stream.

BREAKTHROUGH
Superlow. Superfar.
The CineView SE is the most powerful model ever created for a faster, more responsive feel. Add to that a strong and powerful enough signal that can transmit up to 1200ft distance.

CONNECT
Everything you need.
The TX and RX feature both HDMI and SDI connections that support 1080p video inputs at up to 60fps.

DESIGN
Compact and lightweight. Easy to rig.

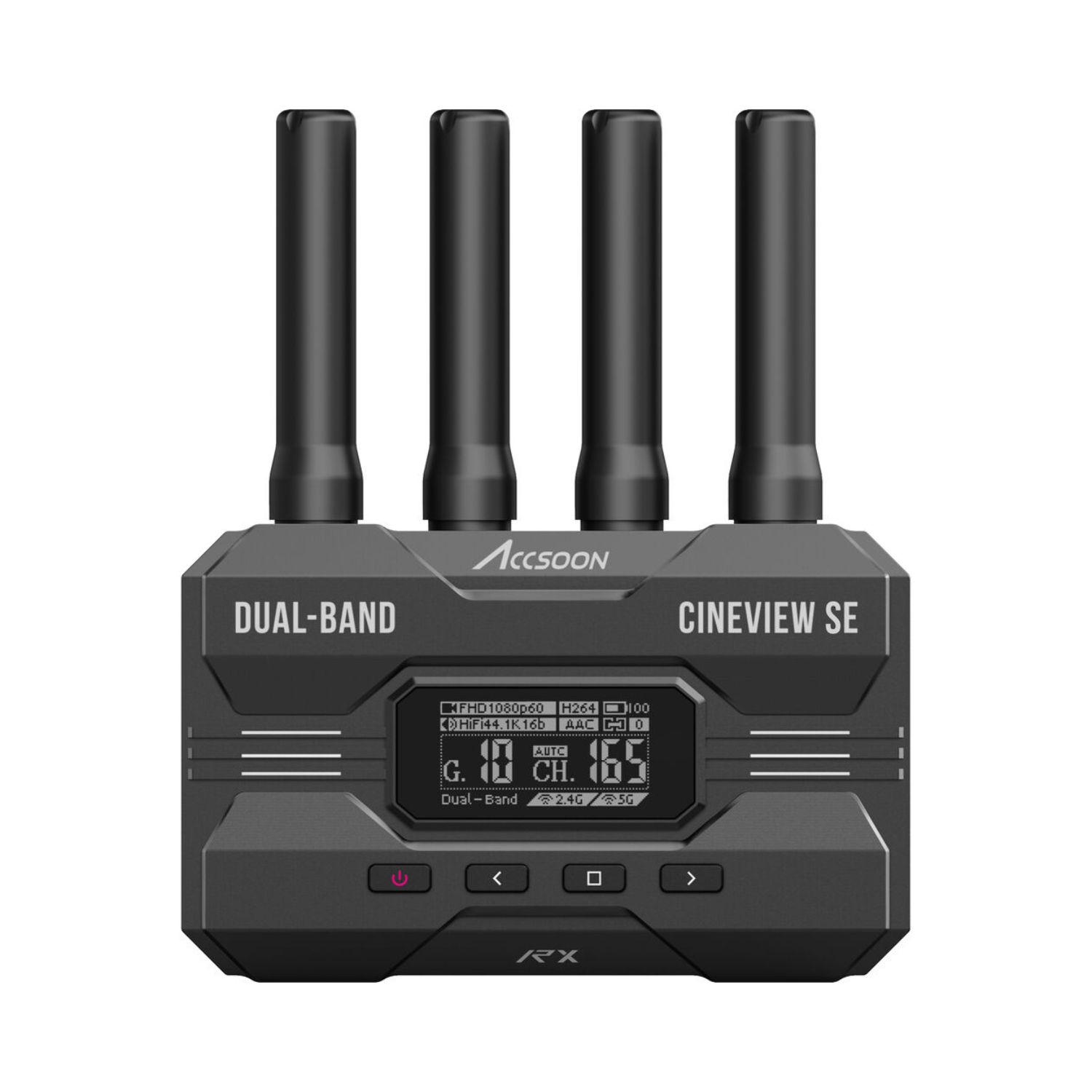

Rugged design with a 1.3-inch OLED display that fits in the palm of your hand. The solid aerospace-grade aluminum construction keeps the weight of the units down to a minimum.

PRO POWER
Lower power draw for longer shootings.
Choose between an NP-F style battery, a DC input port (7.4V~16.8V) as well as a USB-C power source (5V).

SILENT COOLING
No noise at all
Seriously, you won’t hear any noise. And it’s very COOL.

VIEW
Monitoring as you like
Enjoy monitoring on up to 4 different devices.

SMART APP
Unlock ultrafun possibilities
Connect and instantly share previews on Accsoon GO.

LUT Loading & Recording
Monitor and preview the colors in a much better and creative way.

Onion Skin Overlay
Load a preexisting picture then compare or match the still with the live image.

Multitask with Split View on iPad
Great for working more efficiently.

Specification

Projects	Transmitter
Video Input	SDI/HDMI
SDI Input Format	1080p 23.98/24/25/29.97/30/50/59.94/60fps Level A/B
HDMI Input Format	1080p 23.98/24/25/29.97/30/50/59.94/60fps
DC Port	5.5mmx2.1mm center positive
DC Voltage	7.4~16.8V
Audio	44.1KHz/48KHz 16bit/24bit PCM
Latency	<0.05s (Camera latency not included)
OLED Display	1.3inch
Transmission Power	17~20dBm
Transmission Range	1200ft (No obstacles, no interference)
Power Consumption	4.5Watt (Typical)
Operating Environment Temperature	-10~40℃
Dimensions	105mmx66mmx32mm (Antennas not included)
Weight	210g (Antennas not included)
Projects	Receiver
Video Output	SDI/HDMI
SDI Output Format	1080p 24/25/30/50/60fps Level A
HDMI Output Format	1080p 24/25/30/50/60fps
DC Port	5.5mmx2.1mm center positive
DC Voltage	7.4~16.8V
OLED Display	1.3inch
Power Consumption	3.5Watt (Typical)
Operating Environment Temperature	-10~40℃
Dimensions	105mmx66mmx32mm (Antennas not included)
Weight	210g (Antennas not included)
