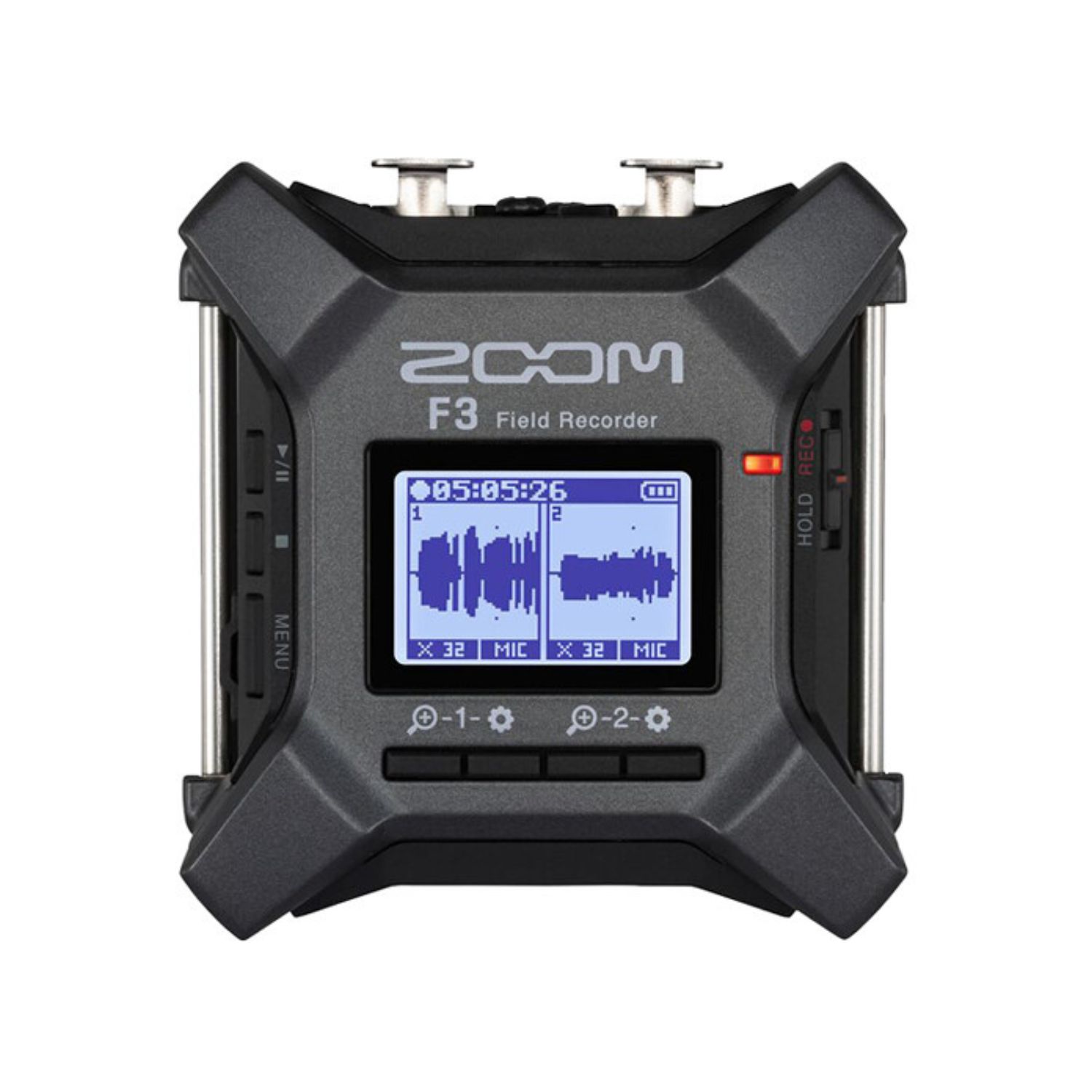

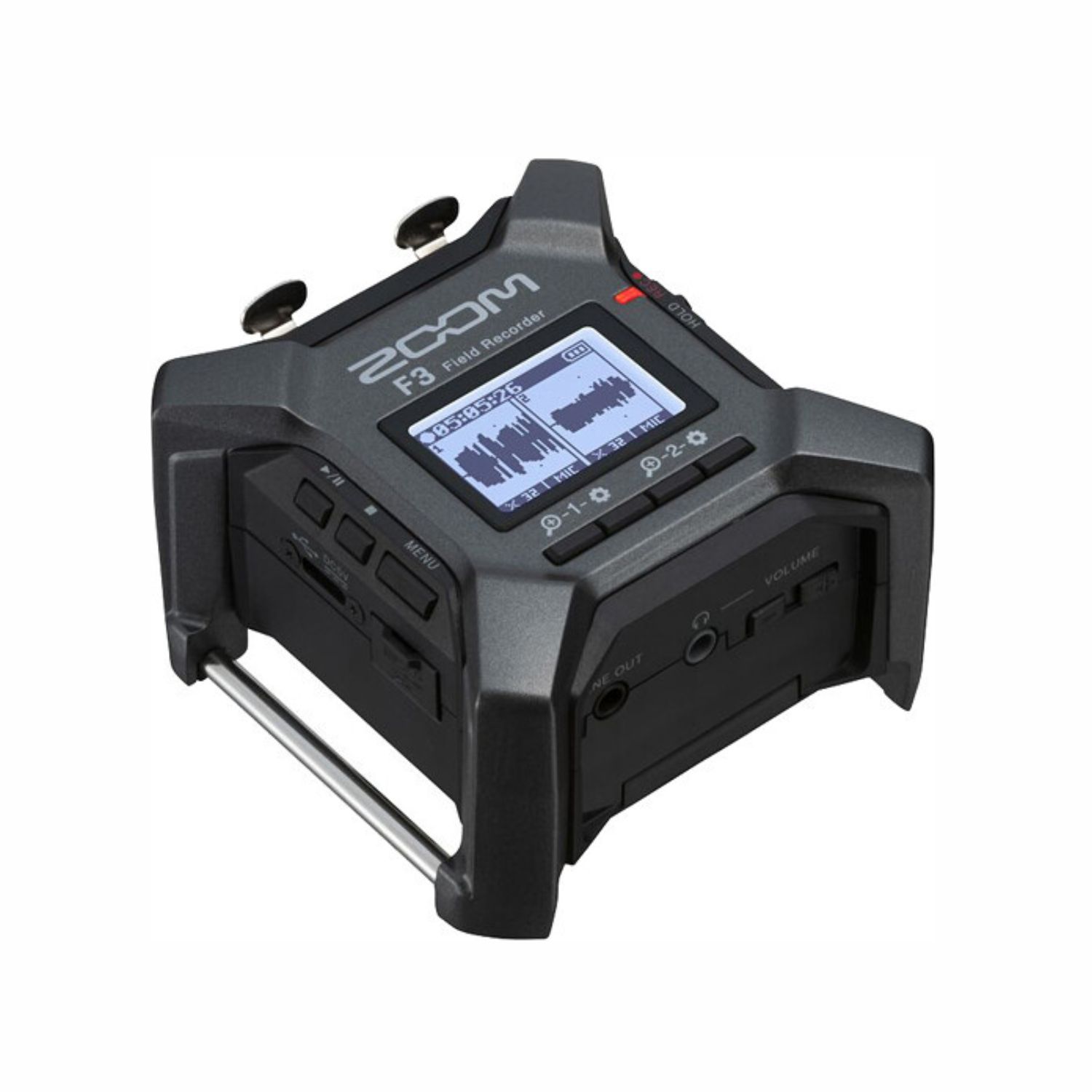

Zoom F3 2-Input / 2-Track Portable Field Recorder

Name: Zoom F3 2-Input / 2-Track Portable Field Recorder
Brand: Zoom
SKU: 5002
Price: 27990 INR
Availability: InStock

Zoom F3 2-Input / 2-Track Portable Field Recorder

Small Design, Big Sound
With 32-bit float recording, the F3 effortlessly captures the quietest raindrops and the loudest explosions. Its small footprint allows for this recorder to be placed anywhere, as you capture and monitor up to 192 kHz of high-quality audio.

Focus on the Scene
When you’re working in the field or on set, sound levels can fluctuate often and quickly. The F3 allows you to adapt to your scene without having to set the gain or worry about clipping. In post, you’ll be able to work with your capture, regardless of extremely low or high levels.

Award Winning Audio
Featuring the dual A/D converters and low-noise preamps found in our professional F-Series recorders, the F3 guarantees high-quality recordings in any setting or situation.

Battle Tested
The F3 is built with durable side bars, standard tripod mount and slide-resistant rubber feet ensuring that you can mount it on your gear or hide it in any scene. It’s sturdy metal casing and locking XLR connectors is designed for use in a variety of environments.

WAV Watching
Monitor your recordings with seamless accuracy as the F3 displays your audio as real-time waveforms.

Record & Listen
The headphone output allows you to keep an ear on your recordings, plus a line output enables you to go to your camera or other gear.

30′ of Control
Versatile control options give your production more flexibility than ever. Stay out of the shot and record from a distance of up to 30-feet (10m) using the F3 control app for iOS and Android*.

Audio Interface & Streaming
Connect your F3 to a computer or iOS device via USB as an audio interface and record or stream up to two channels in crystal-clear 32-bit float/96 kHz resolution. The loopback function allows you to combine your computer’s audio with the F3 inputs to complete the sound for your stream.

Specifications

Input and output channels

INPUTS	MIC/LINE (mono):	2
OUTPUTS	LINE OUT:	1
	PHONE OUT:	1

Inputs

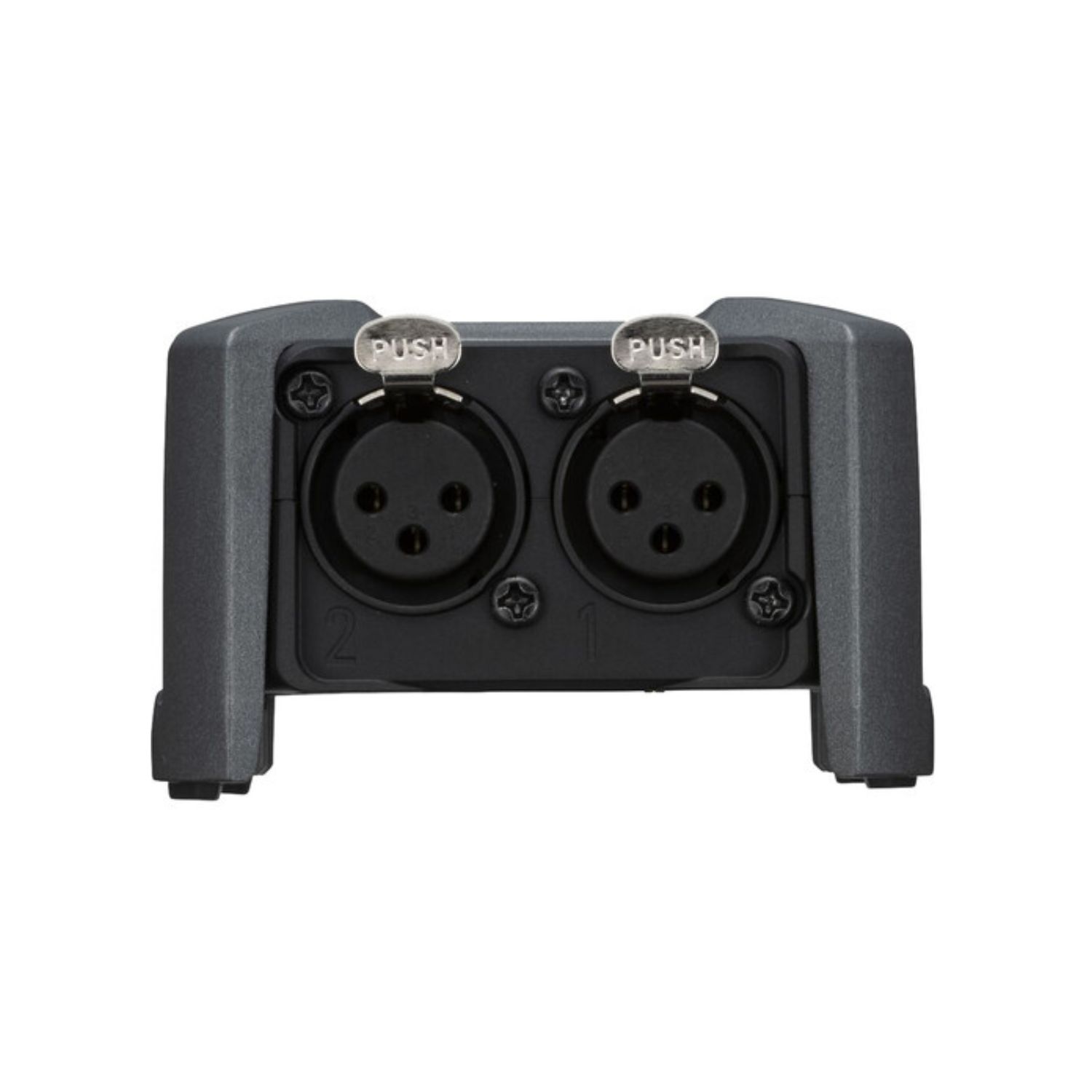

MIC/LINE (MONO)	Connectors:	2 XLR (2: HOT)
	Input gain:	Adjustment unnecessary (dual AD converter circuits used)
	Input impedance:	MIC: 3 kΩ or more
		LINE: 3 kΩ or more
	Maximum input level:	MIC: +4 dBu
		LINE: +24 dBu
	Phantom power:	+24/48 V
		Combined channel total of 10 mA or less
	Equivalent input noise:	−127 dBu or less (IHF-A) when waveform magnification is ×1024 with 150 Ω input

Outputs

LINE OUT	Connector:	1 stereo mini jack
	Maximum output level:	+1 dBu
	Output impedance:	100 Ω or less
PHONE OUT	Connector:	1 stereo mini jack
	Maximum output level:	50 mW + 50 mW (into 32 Ω load)
	Output impedance:	15 Ω or less

Recorder

	Maximum simultaneous recording tracks:	2
	Maximum simultaneous playback tracks:	2
	Recording format:	WAV
		44.1/48/ 88.2/96/192 kHz,
		32-bit float mono/stereo
		BWF and iXML formats supported
	Recording media:	4 – 32 GB cards compatible with the microSDHC specification
		64 GB – 1 TB cards compatible with the microSDXC specification

Display

LCD with backlight (96×64 resolution)

USB

	Connector:	USB Type-C
		• Use a USB cable that supports data transfer. USB bus power is supported.
	Audio interface operation:	USB2.0 High Speed
		44.1/48/88.2/96 kHz, 24-bit linear/32-bit float
		• 32-bit float format is supported for firmware version 2.0 or later.
		2-in/2-out
	Mass storage operation:	USB 2.0 High Speed

REMOTE

Dedicated wireless adapter (ZOOM BTA-1)

POWER

		2 AA batteries (alkaline, NiMH or lithium)
		AC adapter (ZOOM AD-17): DC 5 V/1 A
		• USB bus power is supported.

ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES	48 kHz/32-bit float, 2ch recording to microSDHC card	Alkaline batteries: about 8 hours NiMH batteries (1900 mAh): about 8.5 hours Lithium batteries: about 18 hours
• THE VALUES ARE APPROXIMATE.	(without headphones, PHANTOM off, LCD Backlight off)	Alkaline batteries: about 2 hours
• CONTINUOUS BATTERY OPERATION TIMES WERE DETERMINED USING IN-HOUSE TESTING METHODS.	48 kHz/32-bit float, 2ch recording to microSDHC card	NiMH batteries (1900 mAh): about 3 hours
THEY WILL VARY GREATLY ACCORDING TO USE CONDITIONS.	(headphones into 32Ω load, PHANTOM at 48 V (5 mA), LCD Backlight off)	Lithium batteries: about 7.5 hours
