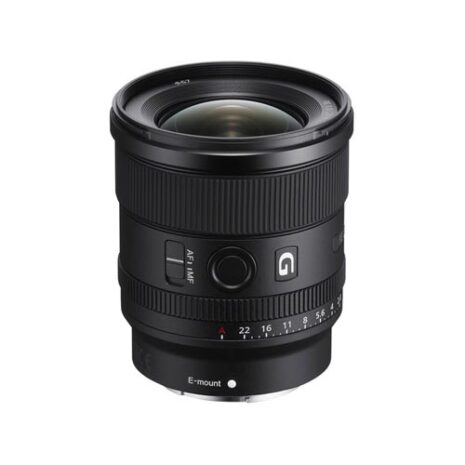

Sony FE 20mm f/1.8 G Lens

Sony FE 20mm f/1.8 G Lens

A compact high-resolution 20 mm F1.8 prime lens
Sony’s latest optical technology achieves impressive corner-to-corner resolution from maximum F1.8 aperture in a large-aperture wide-angle prime lens. It is also remarkably compact, and matched with an E-mount body makes up a versatile, mobile system with outstanding AF performance, control and reliability for a wide variety of shooting needs.

Ultra-wide 20-mm perspectives, superb resolution from F1.8
Two AA (advanced aspherical) elements in an innovative optical design minimise aberration for outstanding corner-to-corner resolution, right from the lens’s widest F1.8 aperture.

Compact and lightweight for enhanced mobility and handling
An advanced optical design that includes two AA elements is supported by a refined mechanical system in a G Lens that weighs just 373 g (13.2 oz). Small size and light weight enhance mobility when used with compact E-mount bodies, and make up a well-balanced system that is ideal for use on gimbals or accessory grips. The FE 20 mm F1.8 G is a versatile lens for a wide variety of still and movie shooting situations.

Smooth, natural-looking bokeh
In addition to precise control of spherical aberration—which has significant influence on bokeh quality—the FE 20 mm F1.8 G has a 9-blade circular aperture that contributes to smooth, creamy bokeh and natural-looking highlights that are hallmarks of the G Lens series.

Realistically rendered point sources
Two AA (advanced aspherical) elements and three ED (Extra-low Dispersion) glass elements are employed to minimise sagittal flare so that point light sources are reproduced accurately, without colour smearing.

XD Linear Motors maximise AF speed, precision and tracking
Two XD (eXtreme Dynamic) Linear Motors easily keep up with the high-speed capabilities of today’s most advanced camera bodies, taking advantage of their full autofocus speed, precision and tracking potential to capture the most dynamic subjects. New control algorithms make it possible to drive the lens’s large focus group smoothly and without delays for responsive, silent, low-vibration auto focus.

Excellent close-up performance, even for selfies
In addition to the fact that 20 mm is a great focal length for selfies, this lens has a minimum focusing distance of just 0.19 m (0.63 ft) when used in AF mode, and an even closer 0.18 m (0.59 ft) minimum focusing distance when focused manually. It is an excellent choice for gimbal/grip mounting, whether shooting selfies or other subjects.

Smooth operation and high reliability in a compact lens
A focus hold button, focus mode switch, aperture ring and other controls are designed and positioned for easy operation and a smooth workflow. Alternative functions that support the user’s individual shooting needs can be assigned to the focus hold button via the camera body menu settings. The front lens element is fluorine-coated to repel water and grime, and the lens’ dust- and moisture-resistant design provides the reliability needed for outdoor use in challenging conditions.

Specifications

• Lens Specifications
  MOUNT: Sony E-mount
  FORMAT: 35 mm full-frame
  FOCAL LENGTH (MM): 20
  35 MM EQUIVALENT FOCAL LENGTH (APS-C): 30
  LENS GROUPS / ELEMENTS: 12-14
  ANGLE OF VIEW (35 MM): 94
  ANGLE OF VIEW (APS-C): 702
  MAXIMUM APERTURE (F): 1.8
  MINIMUM APERTURE (F): 22
  APERTURE BLADES: 9
  CIRCULAR APERTURE: Yes
  MINIMUM FOCUS DISTANCE: 0.19 m (AF), 0.18 m (MF) (0.63 ft [AF], 0.59 ft [MF])
  MAXIMUM MAGNIFICATION RATIO (X): 0.20 (AF), 0.22 (MF)
  FILTER DIAMETER (MM): 67
  IMAGE STABILISATION (STEADYSHOT): – (body-integrated)
  TELECONVERTER COMPATIBILITY (X1.4): –
  TELECONVERTER COMPATIBILITY (X2.0): –
  HOOD TYPE: Petal shape, bayonet type
• Size & Weight
  DIMENSIONS (D X L): 73.5 × 84.7 mm (3 × 3-3/8)
  WEIGHT: 373 g (13.2 oz)
