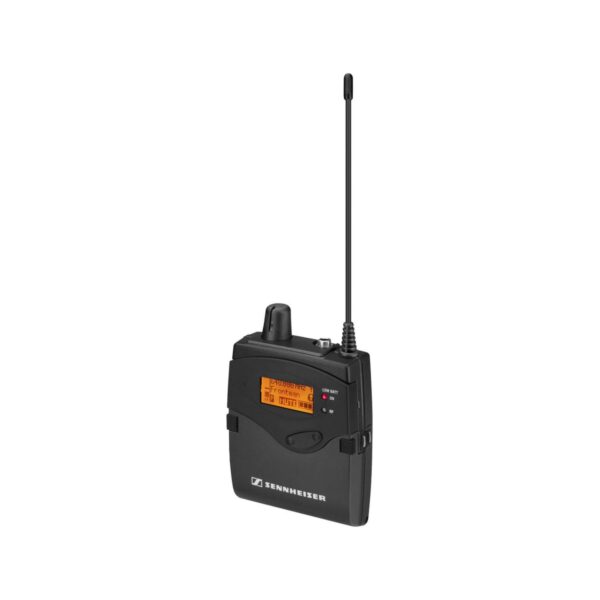

Sennheiser EK 2000-IEM Stereo Wireless Bodypack Receiver

Sennheiser EK 2000-IEM Stereo Wireless Bodypack Receiver

The receiver of this in-ear wireless monitoring set works with Adaptive Diversity Technology. The cable of the earphone is used as second antenna. Thus, significantly fewer dropouts can be achieved. It is compatible with all In Ear headphones with a 3.5 mm jack plug and provides an authentic picture of the live sound, allowing perfect performance control.

• Robust all-metal housing
• Up to 3000 frequencies in up to 75 MHz switching bandwidth
• 20 fixed frequency banks with up to 32 compatible presets
• 6 banks with up to 32 tunable channels
• Adaptive Diversity technology for high reliability
• Pilot tone squelch can be set in 2 dB steps for interference-free reception
• Frequency scan feature searches for available reception frequencies
• Wireless synchronization of receiver parameters from transmitter
• User-friendly menu interface with a backlit graphic display
• HDX compander for crystal clear sound
• Enhanced audio frequency response
• Backlit graphic display
• 4-stage battery status display
• Power supplied by BA2015 rechargeable batteries or AA batteries/rechargeable
• Charging contacts for recharging BA2015
• Auto-lock feature to prevent settings from being changed accidentally
• Hi Boost, adjustable limiter, stereo/focus mode, selectable balance on receiver
• For universal application due to extensive range of accessories

Specifications

• Frequency range
  470 … 558 MHz / EK 2000 IEM-Aw+
  558 … 626 MHz / EK 2000 IEM-GW
  626 … 698 MHz / EK 2000 IEM-BW
  606 … 678 MHz / EK 2000 IEM-GBW
  558 … 607.9 MHz / EK 2000 IEM-GW1
• Dimensions
  82 x 64 x 24 mm
• Presets
  max. 32
• Frequency response
  25 – 15000 Hz
• Jack plug
  3,5 mm Jack
• Weight
  200 g
• Signal-to-noise ratio
  > 90 dB(A)
• Switching bandwidth
  max. 75 MHz
• Operating time
  4 – 6 h
• Modulation
  FM, MPX-stereo
• Carrier frequencies
  max. 3000
• Squelch threshold
  off, 5 … 25 dBμV in 2 dB steps
• Audio-Output-Power
  100 mW @32 Ω
• Operating voltage (stand alone)
  2 x 1,5V AA

What’s in the Box

• 1 EK 2000 IEM diversity receiver
• 1 IE 4 earphones
• 1 instruction manual
• 1 supplementary frequency sheet
