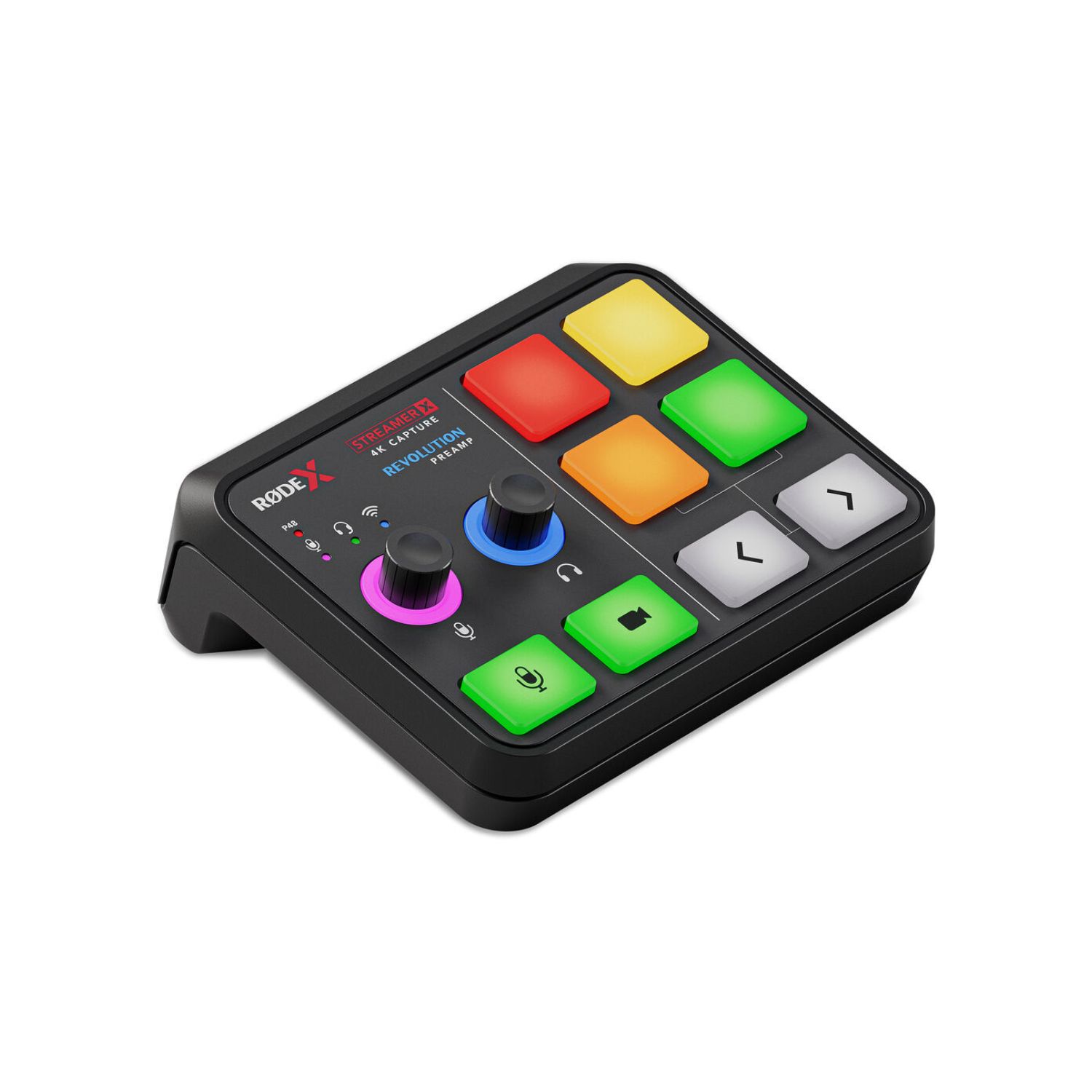

Rode Streamer X Audio Interface and Video Streaming Console

Rode Streamer X Audio Interface and Video Streaming Console

The Streamer X is a professional video capture card, audio interface and control surface integrated in one compact device that makes creating incredible content incredibly easy. It features studio-grade audio inputs for XLR microphones and instruments, headsets and RØDE wireless microphones, with an ultra-low-noise, high-gain Revolution Preamp™ and powerful APHEX® audio processing delivering pristine sound quality. HDMI connections offer up to 4K30 streaming and 4K60 pass-through for incredible video quality in a wide range of applications, from streaming and gaming, to podcasting and content creation, to business presentations. Dual USB-C connections seamlessly accommodate dual PC setups, and four fully customisable SMART pads allow for on-the-fly triggering of sound or voice FX and other actions on a computer. The ultimate all-in-one streaming solution.

Upgrade Your Stream with Pristine Audio and Flawless Video
Don’t compromise your audio or your video. With up to 4K30 video capture and 4K60 HDR, zero-latency pass-through, the Streamer X delivers incredible video quality for you and your audience. It also features our ultra-low-noise, high-gain Revolution Preamp™ for capturing pristine, studio-grade audio – no need for boosters or lifters – and with its advanced audio processing on-board, you can give your voice that rich, broadcast sheen.

Professional Microphone, Headset and Wireless Connectivity
With the Streamer X, you can connect a wide array of audio devices to stream with, including an XLR microphone, instrument, headset microphone or even a RØDE Series IV wireless transmitter like the Wireless GO II or Wireless ME . You can adjust your input and output levels and switch input sources with ease thanks to the hands-on control interface, or you can even use all inputs at the same time via the included UNIFY software.

Versatile Video Streaming and Recording
Whatever content you are creating, whatever your setup, Streamer X will take it up a level. Whether you need to capture crisp gameplay from a PC or console, connect a DSLR for capturing incredible IRL streams, meetings or presentations, or create a compact set-up that can be taken anywhere, Streamer X is the perfect solution.

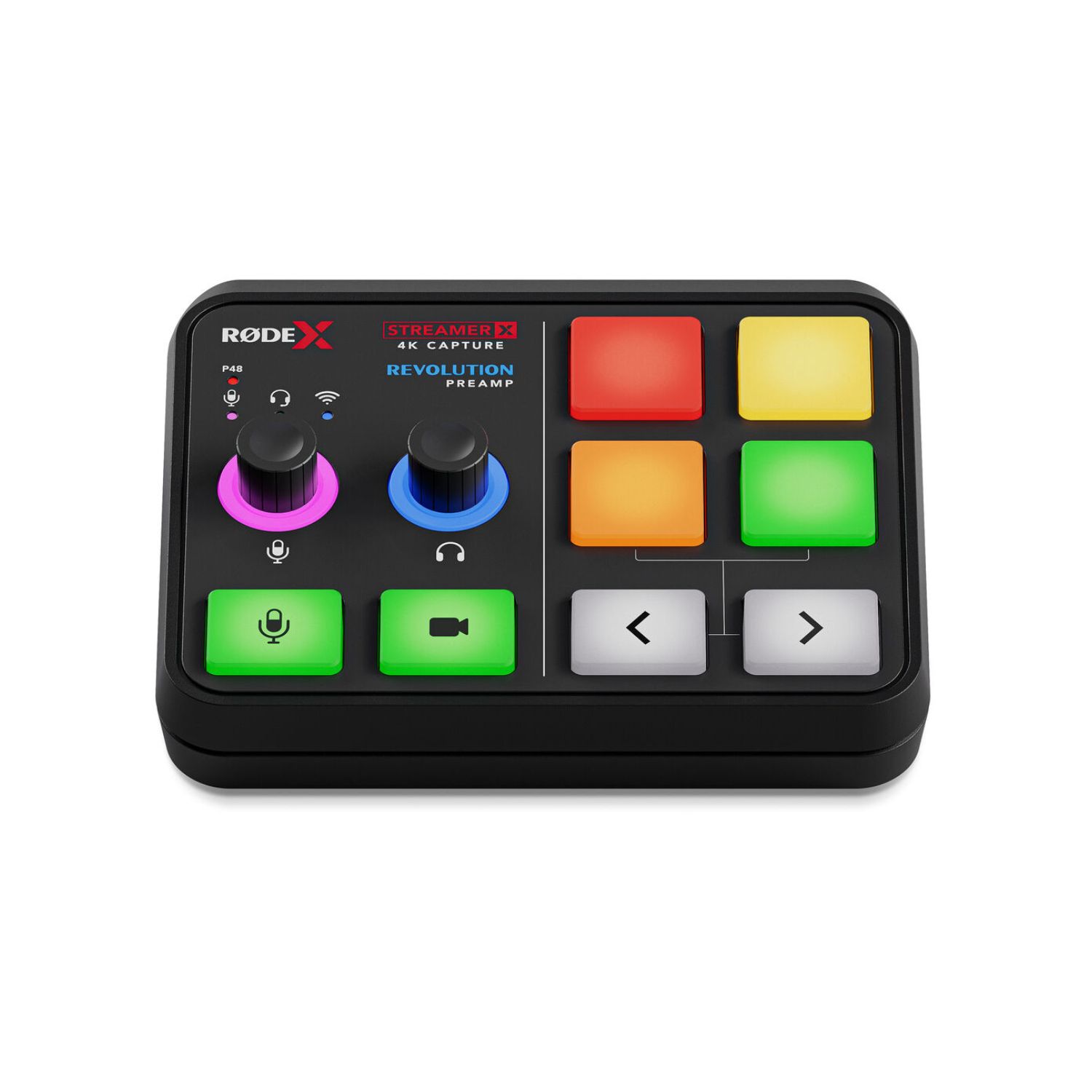

Flexible Control On The Fly
The Streamer X gives you flexible, on-the-fly control of your video and audio. It features dedicated controls for mic and headphones levels, and large audio and video mute buttons. It also features four fully customisable SMART pads, with up to 64 accessible via bank switching. These can be configured to trigger audio playback, add voice FX, and even send MIDI messages to your computer, allowing you to trigger any keyboard shortcut with a single press of a pad – super useful for everything from changing slides on a presentation to switching scenes in your streaming software.

Simple, Sleek and Everything You Need
Replace a complicated, multi-device set-up with a single compact device that delivers better quality with far less complexity. Out of the box, you can connect XLR microphones, headsets, instruments, and even RØDE wireless systems, as well as cameras, computers and consoles to get your stream running in minutes. With an intuitive design that offers full control whilst taking up very little precious desk space, the Streamer X represents a new way to stream with incredible audio and video.

RØDE CENTRAL
RØDE Central is a companion app for the Streamer X, giving you access to the on-board audio processing, SMART pad customisation, mixer configuration, firmware updates and other advanced device settings.

UNIFY
The Streamer X integrates seamlessly with UNIFY, the ultimate virtual mixing solution for livestreaming that offers everything from audio processing to advanced mixing and routing.

Streamer X User Guide
Discover all you need to know about your Streamer X audio interface and video capture card here. This comprehensive user guide covers everything you need to know about getting set up, capturing and passing through video, mixing and processing your audio and using the control surface.

Specifications

• Video Input Connectors: 1x HDMI Type A 2.0
• Video Passthrough Output : 1x HDMI Type A 2.0
• Max Input Resolutions (HDMI In)
  4Kp60 HDR
  1440p144 HDR
  1080p240 HDR
• Variable Refresh Rate Support (VRR) : Yes
• Max Capture Resolutions
  4Kp30
  1440p60
  1080p120
  1080p60 HDR

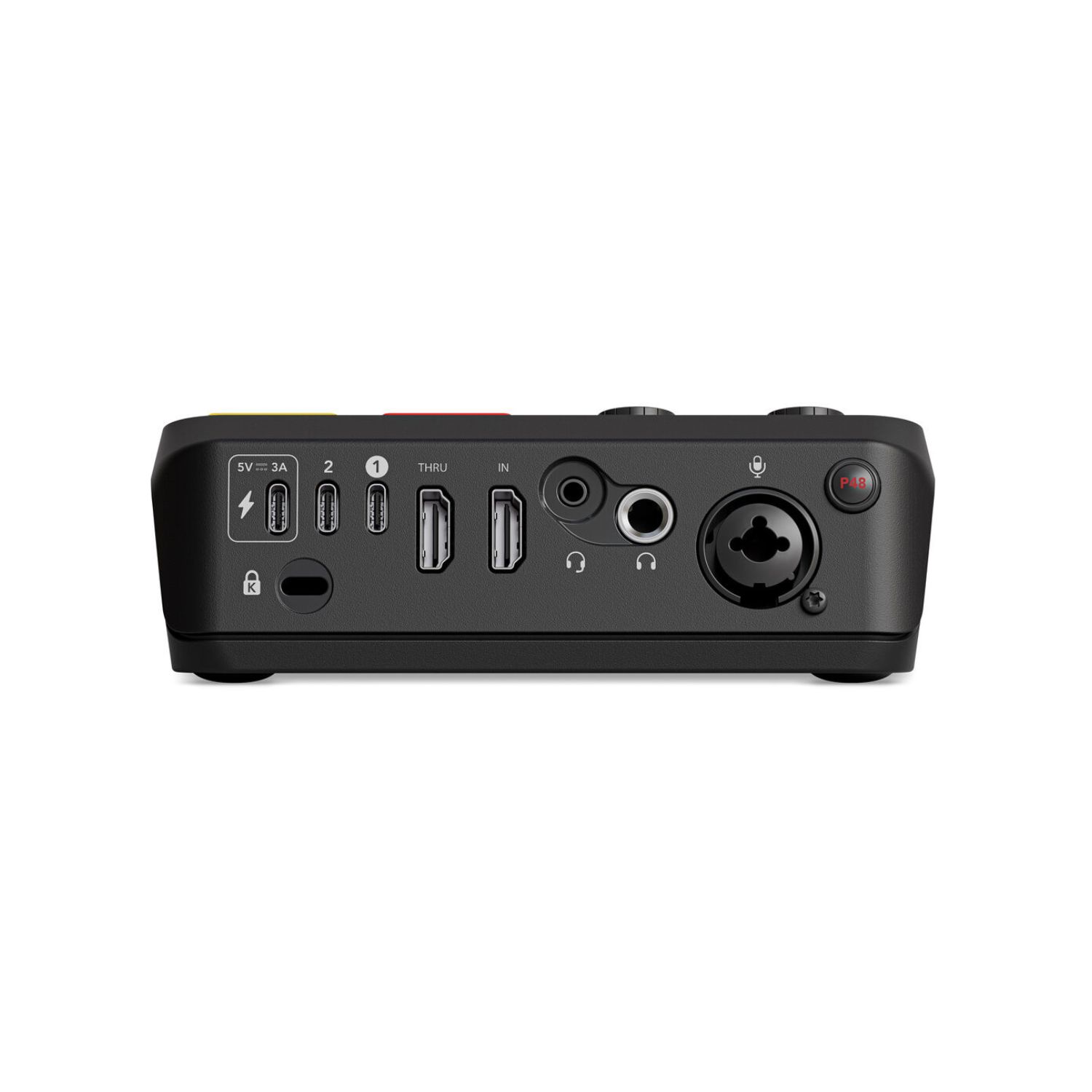

• Audio Input Connectors
  1x XLR Combo Jack (Mic/Instrument)
  1x Wireless Receiver
  1x Input HDMI
• Audio Output Connectors
  1x 3.5 TRRS Headset Jack (I/O)
  1x ¼” Headphone Jack
• Input Dynamic Range : 113dB
• Preamp Noise : -131.5dBV (A-weighted)
• Frequency Range
  Microphone Inputs: 20Hz-20kHz
  Headphone Output: 20Hz-20kHz
• Microphone Input Impedance (Ω) : 4KΩ
• Instrument Input Impedance (Ω) : 1MΩ
• Preamplifier Gain Range : 0-76dB
• Phantom Power : Yes
• Direct Monitor : Yes
• Headphone Output Power : 125mW per channel
• Internal Storage (GB) : 2GB (SMART Pads)
• Power Requirements : Via USB: 5V @ 3A
