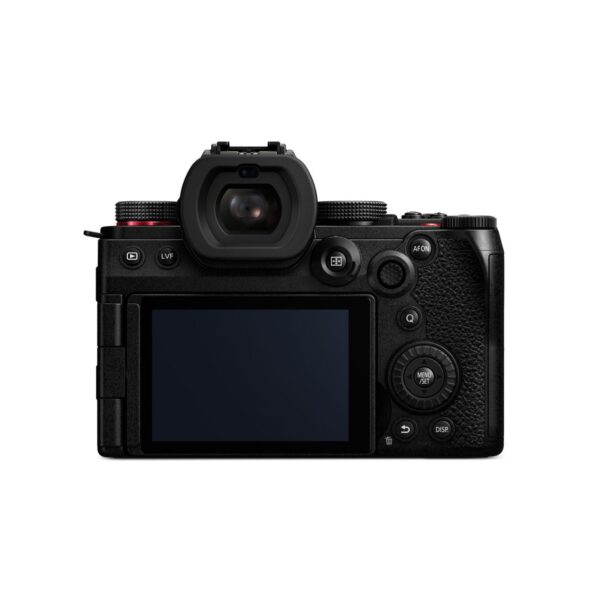

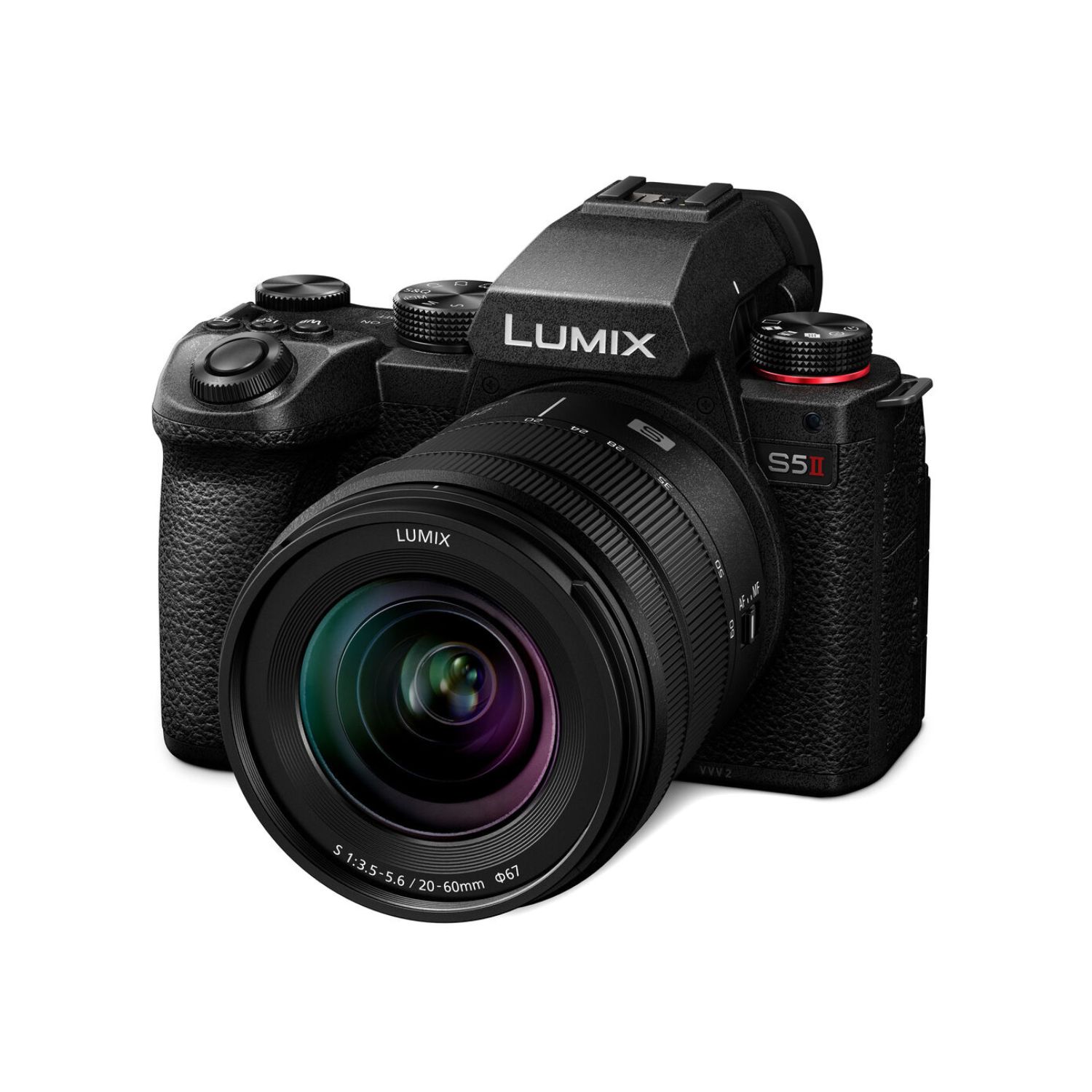

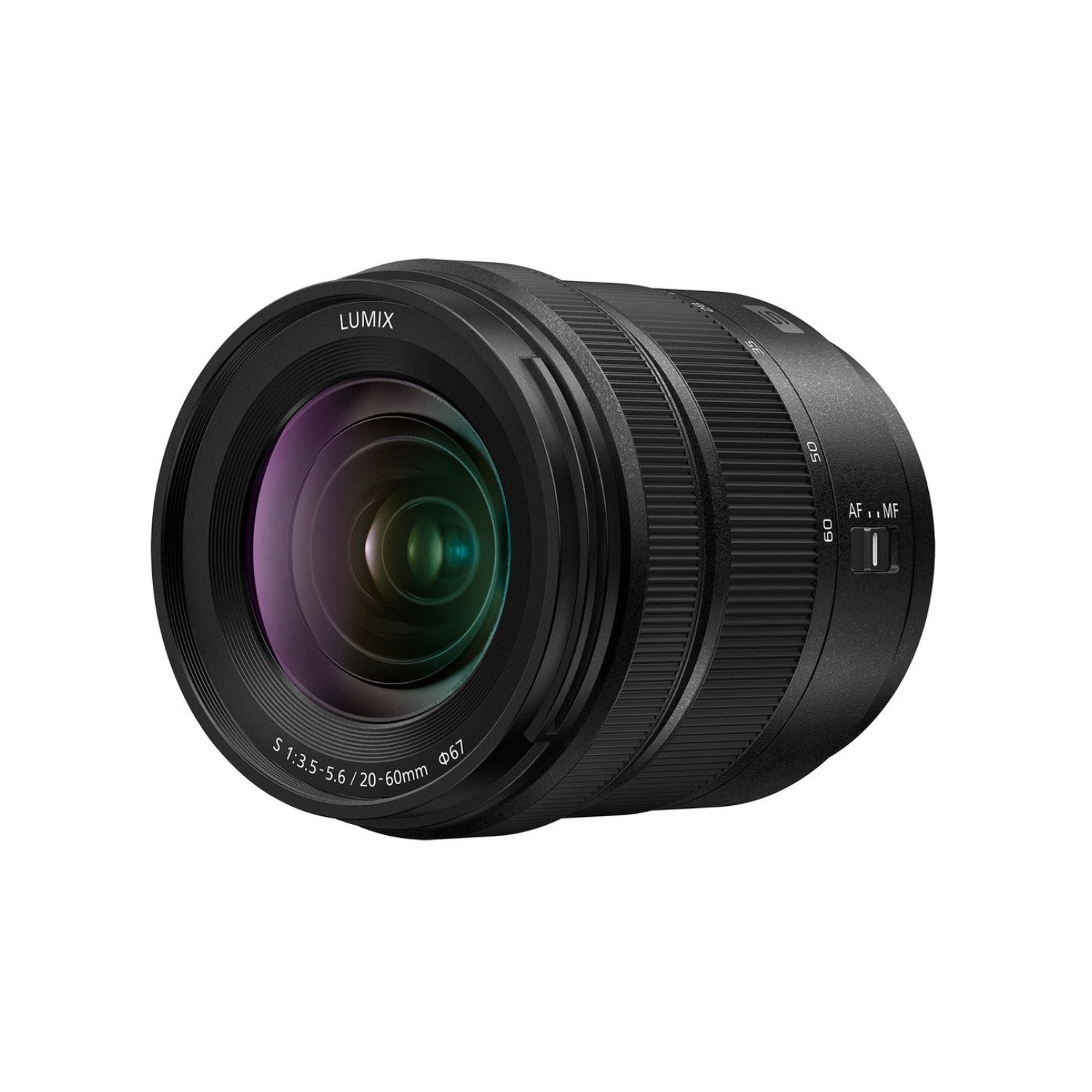

Panasonic Lumix S5 II Mirrorless Camera with 20-60mm Lens

Panasonic Lumix S5 II Mirrorless Camera with 20-60mm Lens

Mirrorless Camera

Meet the LUMIX S5II – beginning of a new phase for LUMIX. With unlimited creative possibilities, these versatile hybrid full-frame mirrorless cameras will help you capture stunning content in any situation.

Phase Hybrid AF for aggressive shooting
The most important thing in autofocus is to be dependable. The new Phase Hybrid AF delivers speed and accuracy to help you capture the target subject even in the most challenging scenes where multiple subjects are involved, and even in backlit or low-light environments.

Great for shooting as you walk: Active I.S. Technology
New Active I.S. lets you walk and shoot at the same time. By determining the status of camera shake and optimizing correction ratios, Active I.S. can compensate for even significant camera shake, approximately 200%* more than conventional systems.

Heat management for unlimited recording time
4:2:2 10-bit C4K/4K 60p/50p unlimited recording time.* With a compact body equivalent to the S5, the LUMIX S5II’s new optimized heat dissipation structure enables extended recording even when shooting at heavy loads (e.g. high-resolution video over 4K, HFR video).

The LUMIX commitment to superior image quality
The new engine delivers more true-to-life colors, finer resolution, and a natural three-dimensional effect, and combined with Dual Native ISO technology, effectively suppresses noise even when shooting at ultra-high sensitivities, beautifully rendering even dark areas.

Easy color grading with REAL TIME LUT
LUT-applied photos and videos can be recorded internally without any special software. Even if you don’t have specialized editing skills, the camera helps you expand your range of expression as much as you want.

Tough body for a wide range of weather conditions
The camera can be used in a wide range of weather conditions. The durable magnesium alloy full die-cast frame and sealing of all joints, dials, and buttons make it dust- and splash-resistant.

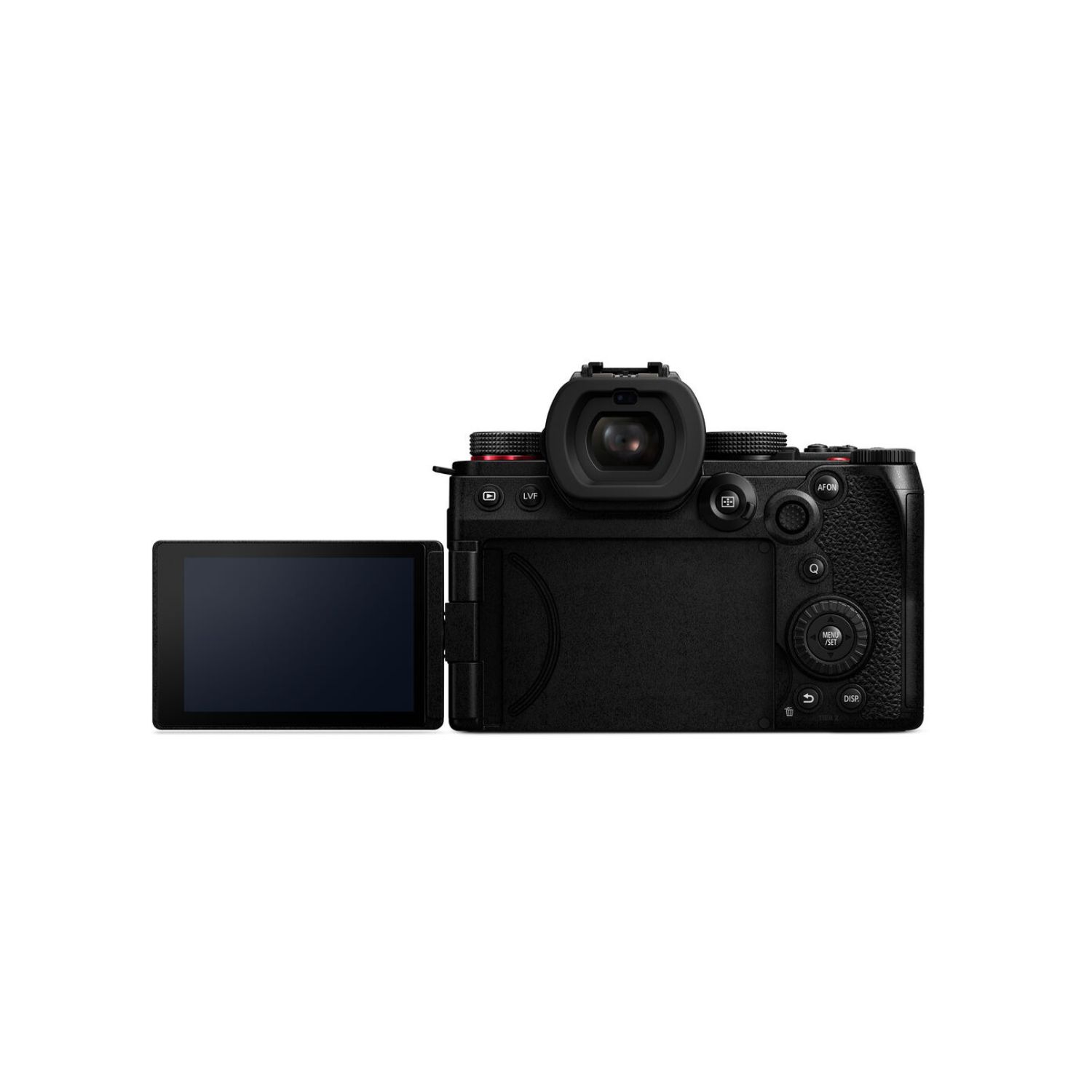

Intuitive operation
The intuitive, well-calculated layout and 8-directional joystick allow you to select the focus area intuitively with simple, one-thumb operation for speedy shooting.

Specifications

• TYPE
  Type
  Digital Single Lens Mirrorless camera
  Lens mount
  L-Mount
• IMAGE SENSOR
  Type
  35mm full-frame (35.6mm x 23.8mm) CMOS sensor
  Camera effective pixels / Total pixels
  24.20 megapixels / 25.28 megapixels
  AR (Anti Reflection) coating
  Yes
  Aspect ratio / Color filter
  3:2 / Primary color filter
  Dust reduction system
  Image sensor shift type
• LATITUDE
  14+ stops (V-Log)
• STILL IMAGE
  Recording file format
  JPEG (DCF, Exif 2.31), RAW
  Aspect ratio
  4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
  File size (pixels) when using full-frame lenses
  3:2
  6000×4000(L) / 4272×2848(M) / 3024×2016(S) / 12000×8000(XL)* / 8496×5664(LL)* *High Resolution mode.
  4:3
  5328×4000(L) / 3792×2848(M) / 2688×2016(S) / 10656×8000(XL)* / 7552×5664(LL)* *High Resolution mode.
  16:9
  6000×3368(L) / 4272×2400(M) / 3024×1704(S) / 12000×6736(XL)* / 8496×4784(LL)* *High Resolution mode.
  1:1
  4000×4000(L) / 2848×2848(M) / 2016×2016(S) / 8000×8000(XL)* / 5664×5664(LL)* *High Resolution mode.
  65:24
  6000×2208(L)
  2:1
  6000×3000(L)
  File size (pixels) when using APS-C/Super 35mm lenses
  3:2
  3984×2656(L) / 2880×1920(M) / 2064×1376(S)
  4:3
  3536×2656(L) / 2560×1920(M) / 1840×1376(S)
  16:9
  3984×2240(L) / 2880×1624(M) / 1920×1080(S)
  1:1
  2656×2656(L) / 1920×1920(M) / 1376×1376(S)
  Image quality
  RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine)
  Color space
  sRGB, AdobeRGB
• MOTION PICTURE
  Recording file format
  MOV: H.264/MPEG-4 AVC, H.265/HEVC
  MP4: H.264/MPEG-4 AVC, H.265/HEVC
  Audio format
  MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
  MP4: AAC (2ch 48kHz/16-bit)
  *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).
  System frequency
  59.94Hz / 50.00Hz / 24.00Hz
  Image area of video
  Full / APS-C / PIXEL/PIXEL
  MOV / 59.94Hz / FULL (*HLG is selectable.) (*¹) (*²)
  [6K] 5952×3968 (3:2)
  29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [6K] 5952×3136 (17:9)
  29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [5.9K] 5888×3312 (16:9)
  29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [C4K] 4096×2160
  29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [4K] 3840×2160
  29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [FHD] 1920×1080
  119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  MOV / 59.94Hz / APS-C / PIXEL/PIXEL (*HLG is selectable.) (*¹) (*²)
  [C4K] 4096×2160
  59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [4K] 3840×2160
  59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [3.3K] 3328×2496 (4:3)
  47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [FHD] 1920×1080
  119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
  119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
  59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  *When Image Area of Video is set to APS-C.
  MOV / 50.00Hz / FULL (*HLG is selectable.) (*¹) (*²)
  [6K] 5952×3968 (3:2)
  25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [6K] 5952×3136 (17:9)
  25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [5.9K] 5888×3312 (16:9)
  25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [C4K] 4096×2160
  25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [4K] 3840×2160
  25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [FHD] 1920×1080
  100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  MOV / 50.00Hz / APS-C / PIXEL/PIXEL (*HLG is selectable.) (*¹) (*²)
  [C4K] 4096×2160
  50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [4K] 3840×2160
  50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [3.3K] 3328×2496 (4:3)
  50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [FHD] 1920×1080
  100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
  100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
  50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  *When Image Area of Video is set to APS-C.
  MOV / 24.00Hz / FULL (*HLG is selectable.) (*¹) (*²)
  [6K] 5952×3968 (3:2)
  24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [6K] 5952×3136 (17:9)
  24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [5.9K] 5888×3312 (16:9)
  24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [C4K] 4096×2160
  24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [4K] 3840×2160
  24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [FHD] 1920×1080
  48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  MOV / 24.00Hz / APS-C / PIXEL/PIXEL (*HLG is selectable.) (*¹) (*²)
  [C4K] 4096×2160
  48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [4K] 3840×2160
  48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [3.3K] 3328×2496 (4:3)
  48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [FHD] 1920×1080
  48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  MP4 / 59.94Hz / FULL (*¹)
  [4K] 3840×2160
  29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
  23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
  29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
  23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
  [FHD] 1920×1080
  59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
  29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
  23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
  MP4 / 59.94Hz / APS-C / PIXEL/PIXEL (*¹)
  [4K] 3840×2160
  59.94p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
  29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
  23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
  29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
  23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
  [FHD] 1920×1080
  59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
  29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
  23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
  MP4 / 50.00Hz / FULL (*¹)
  [4K] 3840×2160
  25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
  25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
  [FHD] 1920×1080
  50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
  25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
  MP4 / 50.00Hz / APS-C / PIXEL/PIXEL (*¹)
  [4K] 3840×2160
  50.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
  25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
  25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
  [FHD] 1920×1080
  50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
  25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
  MP4 / 24.00Hz / FULL
  –
  MP4 / 24.00Hz / APS-C / PIXEL/PIXEL
  –
• SLOW & QUICK
  MOV / 59.94Hz / FULL (*¹)
  [FHD] 1920×1080
  59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
  MOV / 59.94Hz / APS-C (*¹)
  [C4K] 4096×2160
  29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [4K] 3840×2160
  29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [FHD] 1920×1080
  59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
  MOV / 50.00Hz / FULL (*¹)
  [FHD] 1920×1080
  50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
  MOV / 50.00Hz / APS-C (*¹)
  [C4K] 4096×2160
  25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [4K] 3840×2160
  25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [FHD] 1920×1080
  50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
  MOV / 24.00Hz / FULL (*¹)
  [FHD] 1920×1080
  24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
  MOV / 24.00Hz / APS-C (*¹)
  [C4K] 4096×2160
  24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [4K] 3840×2160
  24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
  [FHD] 1920×1080
  24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
• VIEWFINDER
  Type
  OLED Live View Finder
  Pixels
  Approx. 3.68 million dots
  Field of view / Magnification
  Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2
  Eye point / Diopter adjustment
  Approx. 21 mm at infinity; -1.0 m-1 / -4.0 – +2.0 (dpt)
  Eye sensor
  Yes
  Display speed
  120fps / 60fps
• REAR MONITOR
  Type
  TFT LCD monitor with static touch control
  Monitor size
  Free-angle, 3.0-inch (7.6cm), 3:2 aspect
  Pixels
  Approx. 1.84 million dots
  Field of view
  Approx. 100%
• STATUS LCD
  –
• FOCUS (*³)
  Type
  Phase Detection AF system / Contrast AF system
  DFD technology
  Yes
  Focus mode
  AFS (Single) / AFC (Continuous) / MF
  AF mode
  Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
  *Automatic Detection can be turned ON to switch between Human/ Face/Eye/ Animal+Human. Except when Pinpoint is set.
  AF detective range
  EV -6 – 18 (F1.4, ISO100 equivalent, AFS)
  AF custom setting
  AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
  AF assist light
  Yes
  AF lock
  Set the Fn button in custom menu to AF lock
  Focus ring control
  Nonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum)
  Others
  AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, AF Micro Adjustment, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resum
• EXPOSURE CONTROL
  Light metering system
  1,728-zone multi-pattern sensing system
  Light metering mode
  Multiple / Center Weighted / Spot / Highlight Weighted
  Metering range
  EV0-18 (F2.0 lens, ISO100 equivalent)
  Mode dial
  Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto
  *The same exposure operations as P/A/S/M mode is available.
  Exposure compensation
  1/3 EV step ±5EV (±3EV for motion picture)
  ISO sensitivity (Standard output sensitivity)
  [Normal]
  Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO
  [V-Log]
  Auto / 320* / 640-51200 (1/3 or 1 EV step) *Extended ISO
  [HLG]
  Auto / 400-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO
  Dual Native ISO
  [Normal]
  Native ISO: 100, 640
  Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO
  Low: Auto / 50* / 100-800 *Extended ISO
  High: Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO
  [V-Log]
  Native ISO: 640, 4000
  Auto: Auto / 320* / 640-51200 *Extended ISO
  Low: Auto / 320* / 640-5000 *Extended ISO
  High: Auto / 2000* / 4000-51200 *Extended ISO
  [HLG]
  Native ISO: 400, 2500
  Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO
  Low: Auto / 400-3200
  High: Auto / 2500-51200 / 102400* / 204800* *Extended ISO
  [Cinelike D2 / Cinelike V2]
  Native ISO: 200, 1250
  Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
  Low: Auto /100* / 200-1600 *Extended ISO
  High: Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO
  AE lock
  Set the Fn button in custom menu to AE lock
• IMAGE STABILIZATION SYSTEM
  B.I.S. (5-axis / 5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.]
  Dual I.S. 2 (6.5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.]
• WHITE BALANCE
  White balance
  AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
  White balance adjustment
  Blue/Amber bias, Magenta/Green bias
  Color temperature setting
  2500-10000K in 100K
• WHITE BALANCE
  White balance
  AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
  White balance adjustment
  Blue/Amber bias, Magenta/Green bias
  Color temperature setting
  2500-10000K in 100K
• SHUTTER
  Type
  Focal-plane shutter
  Shutter speed
  Still image: Bulb (Max. 30 minutes), 1/8,000 – 60
  Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 – 60
  Electronic shutter: Bulb (Max. 60 sec), 1/8,000 – 60
  Motion picture: 1/16,000 – 1/25
  Creative Video M mode / MF mode: 1/16,000 – 1/2
  Self timer
  10sec, 3 images / 2sec / 10sec / Custom Time
  Remote control
  Remote control by DMW-RS2 (sold separately)
  Silent mode / Shutter type
  Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)
• BRACKET
  AE bracket
  3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
  Aperture bracket
  3, 5 or all positions
  Focus bracket
  1 to 999 images, focus steps can be set in 10 levels
  White balance bracket
  3 images in blue/amber axis or in magenta/green axis, color temperature setting
• BURST SHOOTING
  Burst speed
  Mechanical shutter / Electronic front curtain shutter
  H: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View)
  M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
  L: 2 frames/sec (AFS/AFC/MF) (with Live View)
  Electronic shutter
  SH30: 30 frames/sec (AFS/AFC/MF)
  H: 9 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
  M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
  L: 2 frames/sec (AFS/AFC/MF) (with Live View)
• Number of recordable images
  H/M/L*
  RAW+JPEG: More than 200 images
  RAW: More than 200 images
  JPEG: More than 300 images
• SH
  RAW / RAW+JPEG / JPEG: 200 images
• FLASH
  Flash type
  TTL External Flash (sold separately)
  Synchronization speed
  Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode.
  Flash mode
  Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
  Flash synchronization
  1st Curtain Sync, 2nd Curtain Sync.
  Flash output adjustment
  1/3EV step ±3EV
  Wireless control
  Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
• EXTRA TELE CONVERSION
  2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses), 1.4x (EX M) *Only for still image recording.
• COLOR SETTINGS
  Photo Style
  Photo Style
  Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range* / My Photo Style 1-4 (5-10)*
  *Set to ON from Show/Hide Photo Style to select.
  Picture adjustment
  Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB / LUT
  *Adjustable settings vary depending on the Photo Style mode.
  Filter
  Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass
  LUT Library
  Vlog_709 / Set 1-10
  *REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in V-Log View Assist, LUT can be applied from these settings.
• MOTION PICTURE FUNCTION
  Time lapse shot
  Yes
  Stop motion animation
  Yes
  Live cropping
  Yes (Supports cropping from 5.9K (FULL) 30p/25p/24p video to 4K/FHD sizes)
  SS/Gain operation
  Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
  Luminance level
  8-bit: 0-255 / 16-235 / 16-255
  10-bit: 0‒1023 / 64‒940 / 64‒1023
  Synchro scan
  Yes
  Master pedestal level
  31 steps
  Color bars / 1kHz test tone
  Yes (SMPTE / EBU / ARIB) / Yes
  LUT view assist
  Supported file types: .vlt, .cube
  Monitor / HDMI
  HLG view assist
  Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
  Anamorphic desqueeze display
  2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
  Wave form monitor / Vectorscope
  Selectable
  Knee control
  Yes (in Like709 mode)
  Red REC frame indicator
  ON / OFF
• VERTICAL POSITION INFORMATION
  Still image / Motion picture (ON/OFF)
• LEVEL GAUGE
  Yes
• FUNCTION BUTTON
  REC
  Exposure Comp. / Dual Native ISO / Sensitivity / White Balance / Photo Style / Apply LUT / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Color Shading Compensation / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Slow & Quick Setting / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / AF Micro Adjustment / Lens Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
  PLAY
  Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default
• INTERFACE
  USB
  USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))
  HDMI
  HDMI TypeA
  Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)
  Monitor-through
  4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
  4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
  Playback
  59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p*
  50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p*
  24.00Hz: C4K/24p / 4K/24p / 1080p
  *Only for playback.
  Remote input
  φ2.5mm
  Audio
  Build-in microphone
  Stereo
  Wind Noise Canceller: OFF / Standard / High
  External microphone / External audio device input
  φ3.5mm for external microphone / external audio device
  MIC (Plug-in Power) / MIC / LINE
  Wind Cut: OFF / Low / Standard / High *When attaching 3.5mm microphone (sold separately).
  Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately).
  XLR microphone
  Yes with DMW-XLR1 (sold separately)
  4ch mic input
  Yes with DMW-XLR1 (sold separately)
  Speaker
  Monaural
  Headphone output
  φ3.5mm
  SD card slot
  Slot 1, Slot 2
  SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
  *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
• TC IN/OUT
  Count up
  Rec Run / Free Run
  Time code mode
  Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
  HDMI time code output
  ON / OFF
• FAN
  Auto1 / Auto2 / Fast / Normal / Slow* / OFF**
  *Not selectable when the resolution is higher than C4K, or the frame rate is higher than 60p.
  **OFF can be set when in iA/P/A/S/M mode.
• WIRELESS
  Wi-Fi
  2.4GHz bands (STA/AP) (IEEE802.11b/g/n)
  5GHz bands (STA) (IEEE 802.11a/n/ac)
  Security: WPA/WPA2/WPA3
  Bluetooth
  Bluetooth® v5.0 (Bluetooth Low Energy (BLE))
• DUST AND SPLASH RESISTANT*
  Yes.
• POWER
  Battery
  Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
  USB power supply, USB power charging, USB power delivery
  Battery life (CIPA standard)
  Approx. 370 images, 1,250 images (Power Save LVF mode*) with S-R2060
  Approx. 370 images, 1,200 images (Power Save LVF mode*) with S-S50
  *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
  Continuous recordable time (Motion picture) (*¹)
  MP4 [4K/60p]: Approx. 90 min (APS-C), MP4 [FHD/60p]: Approx. 130 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.
  Actual recordable time (Motion picture) (*¹)
  MP4 [4K/60p]: Approx. 45 min (APS-C), MP4 [FHD/60p]: Approx. 65 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.
  Battery grip
  DMW-BGS5 (sold separately)
• DIMENSIONS / WEIGHT
  Dimensions (W x H x D)
  Approx. 134.3 x 102.3 x 90.1 mm / 5.29 x 4.03 x 3.55 inch (Body only, excluding protrusions)
  Approx. 134.3 x 102.3 x 157.0 mm / 5.29 x 4.03 x 6.19 inch (with S-R2060, excluding protrusions)
  Approx. 134.3 x 102.3 x 151.8 mm / 5.29 x 4.03 x 5.98 inch (with S-S50, excluding protrusions)
  Weight
  Approx. 740g / 1.64 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap)
  Approx. 657g / 1.45 lb (Body, Hot Shoe Cover) (excluding body cap)
• OPERATING ENVIRONMENT
  Operating temperature
  0℃ to 40℃ (32℉ to 104℉)
  Operating humidity
  10%RH to 80％RH
• STANDARD ACCESSORIES
  Software
  Recording
  LUMIX Tether
  ･This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
  http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
• LUMIX Sync
  ･This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
  https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)
  Playback / Editing
  ･The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory’s website using computer connected to the Internet.
  http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
