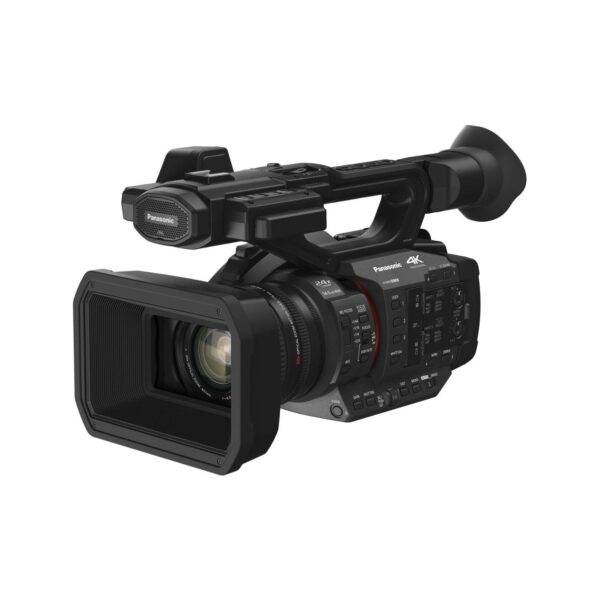

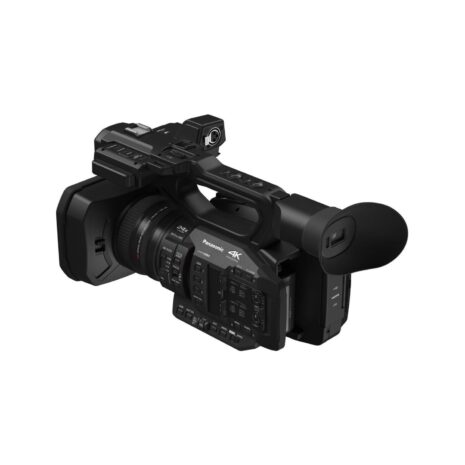

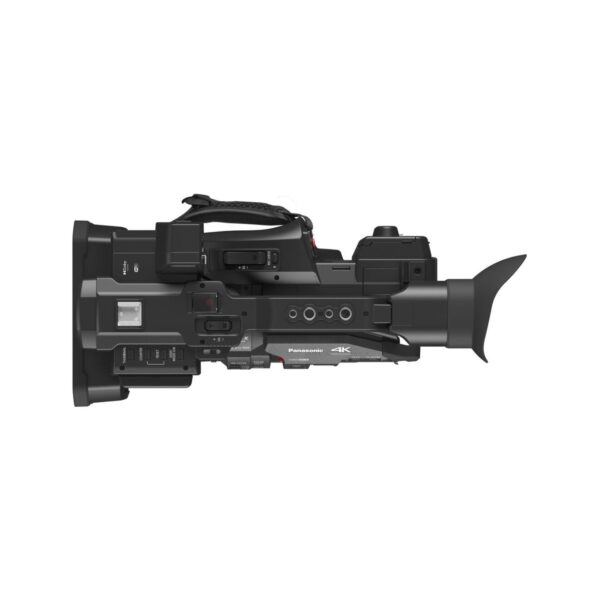

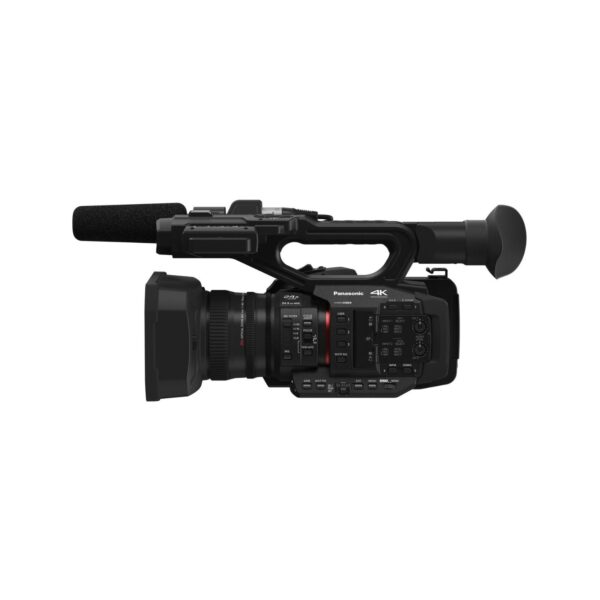

Panasonic AG-X2 4K Camcorder

Panasonic AG-X2 4K Camcorder

Versatile streaming functionality ideal for professional shooting sites
The X2 is a 4K professional camcorder with high mobility, 4K 60p/50p 10bit recording, HLG and 13-stop V-Log for HDR and HD live streaming capabilities.

Professional All-in-one 4K 60p Camcorder
With its 1.0-type (1.0-inch) sensor, the X2 provides powerful support in event shootings and more with its optical performance that reliably captures the subject and the mobility that only a handheld camera with an integrated lens can offer.

Wide 24.5mm* and Optical 20x Zoom Lens
The lens covers the range from 24.5mm wide-angle to 490mm tele with a 20x zoom. i.ZOOM achieves 24x zoom with 4K resolution, and 32x zoom with FHD.

Versatile Recording Mode
Supports a high bit rate of 200 Mbps for 59.94p/50p video recording with HEVC (LongGOP/10 bit 4:2:0/MOV) codec. The Super Slow-motion function supports 10-bit recording in FHD at 120/100fps* and 4K (UHD) VFR from 2 to 60fps** for over-cranked and under-cranked shots to allow for highly creative video expression.

4K High-Precision AF
Face Detection precisely captures subjects on-site free from out of focus problems and insufficient exposure. Also, by adding color recognition, tracking subjects is improved, without interruption, when the face moves to either side.

5-Axis HYBRID O.I.S.+
In both UHD/FHD modes, in addition to Optical Image Stabilization, Electronic Image Stabilization detects and corrects handshake in the 5-axis direction. The Ball O.I.S. System reduces friction in the drive section, especially improving the correction of small-amplitude blurring.

4:2:2 10-bit Internal Recording
Records a 4:2:2 10-bit color profile of up to LongGOP UHD 29.97p/25p (150 Mbps), or FHD 59.94p/50p (100 Mbps) with SD cards. Outputs 10-bit UHD 59.94p/50p images via HDMI.

HLG/13-stop V-Log for HDR Video Production
The X2 is equipped with HLG (Hybrid Log Gamma) shooting mode, one of the standards related to HDR. In addition, it supports V-Log, which is also available on the Panasonic VARICAM cinema camera and LUMIX mirrorless cameras, providing 13 stops of latitude. When combined with a V-Log compatible camera, color grading provides a uniform image in post-production.

Full-HD Live Streaming
RTSP/RTP/RTMP/RTMPS-compatible HD streaming enables direct connection and distribution of relays for concerts, sports events, and news flashes to Facebook, YouTube, etc.

Wireless Control from a Tablet or Smartphone
A Wi-Fi module is built-in, so Wi-Fi connection of only the body is possible. Using a tablet or smartphone app HC ROP, wireless camera settings and lens control are also possible.

Specifications

• SENSOR SECTION
  Image Sensor
  1.0-inch MOS Sensor
  Effective Pixels
  15.03 megapixels
  Latitude
  13 stops (V-log)
• LENS SECTION
  F Value
  F2.8 ― 4.5
  Optical Zoom
  20x
  Focal Length
  8.8 ― 176 mm
  35 mm Film Camera Equivalent
  24.5 ― 490 mm
  Filter Diameter
  67 mm
  Lens Brand
  Panasonic Lens
• CAMERA SECTION
  Minimum Illumination
  0.6 lx (F2.8, Super Gain+, Shutter Speed 1/30 sec)
  Focus
  Auto / Manual
  Zoom
  i.Zoom OFF
  20x
  i.Zoom ON
  Max. 32x (UHD 24x)
  Digital Zoom
  2x / 5x / 10x
  ND Filter
  Clear, 1/4, 1/16, 1/64
  IR Filter
  Incorporates the ON/OFF control function
  White Balance
  Auto / ATW LOCK / 3200K / 5600K / VAR (2000K—15000K) / Ach Fixed / Bch Fixed
  Shutter Speed
  59.94 Hz mode
  59.94i/59.94p: 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000,
  1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec
  29.97p: 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000,
  1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec
  23.98p: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750,
  1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
  50.00 Hz mode
  50i/50p: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000,
  1/3000, 1/4000, 1/8000 sec
  25p: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000,
  1/3000, 1/4000, 1/8000 sec
  Slow Shutter Speed
  59.94 Hz mode
  59.94i/59.94p: 1/8, 1/15, 1/30 sec
  29.97p: 1/8, 1/15 sec
  23.98p: 1/6, 1/12 sec
  50.00 Hz mode
  50i/50p: 1/6, 1/12, 1/25 sec
  25p: 1/6, 1/12 sec
  Synchro Scan
  59.94 Hz mode
  59.94i/59.94p: 1/60.0 ― 1/249.6 sec
  29.97p: 1/30.0 ― 1/249.8 sec
  23.98p: 1/24.0 ― 1/249.7 sec
  50.00 Hz mode
  50i/50p: 1/50.0 ― 1/250.0 sec
  25p: 1/25.0― 1/250.0 sec
  VFR Recording Frame Rate
  59.94 Hz mode
  2, 12, 15, 20, 22, 24, 26, 28, 30, 32, 34, 36, 45, 48 ,60 fps
  50.00 Hz mode
  2, 12, 21, 23, 25, 27, 30, 37, 50 fps
  Super Slow Recording Frame Rate
  59.94 Hz mode
  FHD 120 fps (1/2 speed at 60p, 1/4 speed at 30p, 1/5 speed at 24p)
  50.00 Hz mode
  FHD 100 fps (1/2 speed at 50p, 1/4 speed at 25p)
  Iris
  Auto / Manual
  Image Stabilizer
  Ball O.I.S., 5-Axis HYBRID O.I.S.+ (UHD/FHD)
• RECORDING SECTION
  Recording Media
  SDHC/SDXC Memory Card, UHS-I compatible
  Recording Format
  MOV, MP4, AVCHD
  Video Compression Method
  MOV(HEVC)/MP4(HEVC): H.265/MPEG-4 HEVC Main10 Profile
  MOV, MP4: H.264/MPEG-4 AVC High Profile
  AVCHD: H.264/MPEG-4 AVC High Profile
  Audio Compression Method
  MOV: LPCM, 48kHz/24bit, 2ch
  MP4: AAC, 48kHz/16bit, 2ch
  AVCHD: Dolby Audio, 48kHz/16bit, 2ch
  2-slot Function
  Relay recording, simultaneous recording, background recording, dual codec recording
  System Frequency
  59.94Hz / 50.00Hz
  Recording / Playback Mode
  MOV (HEVC)
  [4:2:0 10bit] UHD 3840×2160 59.94p/50.00p HEVC LongGOP 200M: Average 200Mbps (VBR)
  UHD 3840×2160 59.94p/50.00p HEVC LongGOP 100M: Average 100Mbps (VBR)
  UHD 3840×2160 29.97p/25.00p/23.98p HEVC LongGOP 150M: Average 150Mbps (VBR)
  MOV
  [4:2:0 8bit] UHD 3840×2160 59.94p/50.00p 420LongGOP 150M: Average 150Mbps (VBR)
  UHD 3840×2160 29.97p/25.00p/23.98p 420 LongGOP 100M: Average 100Mbps (VBR)
  [4:2:2 10bit] UHD 3840×2160 29.97p/25.00p/23.98p 422 LongGOP 150M: Average 150Mbps (VBR)
  FHD 1920×1080 59.94p/50.00p ALL-I 200M: Average 200Mbps (VBR)
  FHD 1920×1080 59.94i/50.00i ALL-I 100M: Average 100Mbps (VBR)
  FHD 1920×1080 29.97p/25.00p/23.98p ALL-I 100M: Average 100Mbps (VBR)
  FHD 1920×1080 59.94p/50.00p 422 LongGOP100M: Average 100Mbps (VBR)
  FHD 1920×1080 59.94i/50.00i/29.97p/25.00p/23.98p 422 LongGOP 50M: Average 50Mbps (VBR)
  MP4 (HEVC)
  [4:2:0 10bit] UHD 3840×2160 59.94p/50.00p HEVC LongGOP 100M: Average 100Mbps (VBR)
  UHD 3840×2160 29.97p/25.00p/23.98p HEVC LongGOP 72M: Average 72Mbps (VBR)
  MP4
  [4:2:0 8bit] UHD 3840×2160 29.97p/25.00p/23.98p 420 LongGOP 72M: Average 72Mbps (VBR)
  FHD 1920×1080 59.94p/50.00p/23.98p 420 LongGOP 50M: Average 50Mbps (VBR)
  AVCHD
  [4:2:0 8bit] PS 1920×1080 59.94p/50.00p: Average 25Mbps (VBR)
  PH 1920×1080 59.94i/50.00i/23.98p: Average 21Mbps (VBR)
  HA 1920×1080 59.94i/50.00i: Average 17Mbps (VBR)
  PM 1280×720 59.94p/50.00p: Average 8Mbps (VBR)
• DUAL CODEC SECTION
  Recording Format
  MOV
  Video Compression Method
  H.264/MPEG-4 AVC High Profile, 420LongGOP
  Audio Compression Method
  LPCM, 48kHz/24 bit, 2ch
  Recording format
  FHD 50Mbps
  [Main recording] MOV: 2160-29.97p, 25.00p, 23.98p/420LongGOP
  [Sub recording] MOV: FHD 29.97p, 25.00p, 23.98p/420LongGOP
  FHD 8Mbps
  [Main recording] MOV: 2160-29.97p, 25.00p, 23.98p/420LongGOP
  MOV: 1080-59.94p, 50.00p/422LongGOP
  MOV: 1080-59.94p, 50.00p, 59.94i, 50.00i, 29.97p, 25.00p, 23.98p/422ALL-I
  [Sub recording] MOV: FHD/59.94p, 50.00p, 59.94i, 50.00i, 29.97p, 25.00p, 23.98p/420LongGOP
  * The frame rate for sub recording is the same as for main recording.
• LIVE STREAMING
  Video Compression Format
  H.264/MPEG-4 AVC Main Profile, High Profile
  Video Resolution
  1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 320 x 180
  Streaming Method
  Unicast, Multicast
  Frame Rate
  System frequency = 59.94 Hz: 60 fps, 30 fps, 24 fps
  System frequency = 50.00 Hz: 50 fps, 25 fps
  Bit Rate
  24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps, 4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps, 0.5 Mbps
  Audio Compression Format
  AAC-LC, 48 kHz/16 bit, 2ch
  Network Protocol
  RTSP/RTP/RTMP/RTMPS
• STILL IMAGE SECTION
  Recording Format
  JPEG (DCF/Exif2.2)
  Recording Image Size*
  Video Playback Mode: 3840 x 2160 (16:9), 1920 x 1080 (16:9), 1280 x 720 (16:9)
• GENERAL SECTION
  Power Supply
  7.28V (Battery) / 12V (AC Adaptor)
  Power Consumption
  20.6W (LCD Monitor)
  Dimensions (W x H x D)
  Approx. 173 x 195 x 344 mm (6.82 x 7.68 x 13.55 inch) (including lens hood, excluding eye cup and microphone holder)
  Weight
  Approx. 2040g (4.50 lb) (main unit only (including grip belt), excluding lens hood, battery, and supplied accessories)
  Approx. 2490g (5.49 lb) (including lens hood, supplied battery, eye cup, two SD cards, microphone holder and INPUT terminal caps)
  LCD Monitor
  3.5-inch Wide LCD monitor (About 2,760,000 dots)
  Viewfinder
  0.39-inch Wide OLED EVF (About 2,360,000 dots), video display area: About 1,770,000 dots
  Manual Ring
  Focus / Zoom / Iris
  Accessory Shoe
  Yes
• INTERFACE SECTION
  Video
  SDI OUT
  BNC x 1, 0.8V[p-p], 75Ω, 3G/1.5G HD-SDI, supports time code output and SDI remote recording control
  Output format 4:2:2 10bit
  1080/59.94p LEVEL-A/50.00p LEVEL-A, 1080/29.97PsF/25.00PsF/23.98PsF, 1080/29.97p/25.00p/23.98p, 1080/59.94i/50.00i, 720/59.94p/50.00p
  HDMI
  Type A x 1 (VIERA Link not supported), supports time code output and remote recording control
  Output format: 4:2:2 10bit
  2160/59.94p/50.00p/29.97p/25.00p/23.98p,
  1080/59.94p/50.00p/29.97p/25.00p/23.98p/59.94i/50.00i,
  720/59.94p/50.00p, 480/59.94p, 576/50.00p
  Audio Input
  Built-in Microphone
  Stereo microphone
  Audio Input
  XLR (3 pins) x 2
  Input high impedance, LINE/MIC/MIC+48 V (switchable SW)
  LINE：+4dBu/0dBu (switchable menu)
  MIC: –40dBu/–50dBu/–60dBu (switchable menu)
  Audio Output
  SDI OUT
  2 ch (LPCM)
  HDMI
  2 ch (LPCM)
  Headphone
  3.5 mm diameter stereo mini jack x 1
  Speaker
  20 mm diameter, round x 1
  Other Input/Output
  TC IN/OUT
  BNC x 1, input/output (switchable menu)
  Input: 1.0V ― 4.0V [p-p], 10kΩ
  Output: 2.0V±0.5V[p-p], low impedance
  Camera Remote
  2.5mm diameter super mini jack x 1
  USB
  Type-C x 1, USB3.1 Gen 1, HOST/DEVICE combined (switchable menu)
  HOST: Bus power supported (5V, 0.9A), USB tethering function
  DEVICE: mass storage function (read only)
  LAN
  RJ-45×1, 1000BASE-T/100BASE-TX
  DC IN
  DC 12V (11.4V ― 12.6V) EIAJ Type4
• Wi-Fi
  Standard
  IEEE 802.11b/g/n
  Frequency
  2412 MHz to 2462 MHz [1 to 11ch]
• STANDARD ACCESSORY
  AC Adaptor
  Yes
  AC Cable
  Yes
  Rechargeable Battery Pack
  Yes (5,900mAh)
  Battery Charger
  Yes
  IR Remote
  —
  HDMI Cable
  —
  AV Cable
  —
  USB HOST Conversion Cable
  —
  USB Ethernet Adaptor
  —
  Microphone Holder
  Yes
  Microphone Holder Screws
  Yes
  Input Terminal Cap
  Yes
  Eye Cup
  Yes
  Lens Hood
  Yes
  Editing Software
  —
  Note
  * Only images cut from video in video playback mode are supported.
