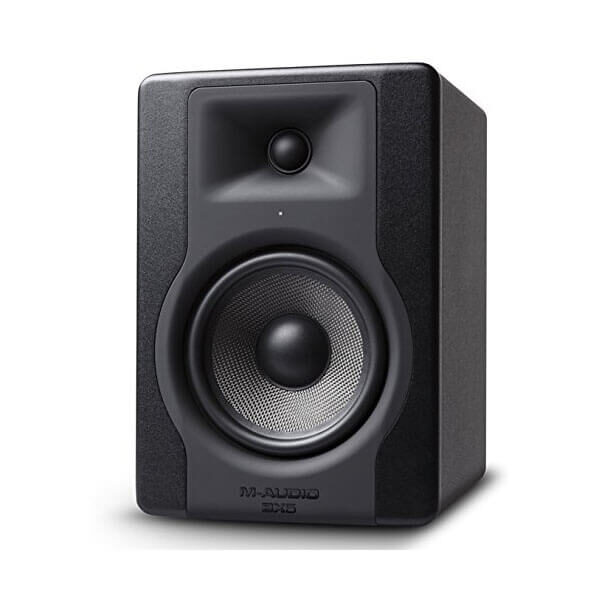

M-Audio BX5 D3 5″ Powered Studio Reference Monitor

Listen with confidence

M-Audio has a long history of designing and manufacturing monitors that satisfy the most demanding professional requirements. There is no substitute for our experience. M-Audio’s BX5 studio reference monitors are perfect for larger studios and recording spaces. You’ll hear everything in lifelike detail, so your mixes and recordings will sound their best!

Technical Specifications:

Type:

• 2-way near-field studio reference monitors

Low Freq. Driver:

• 5 inch (127mm) Kevlar curved cone with high temperature voice coil and damped rubber surround. Magnetically shielded

High Freq. Driver:

• 1 inch (25mm) magnetically shielded natural silk dome

Frequency Response:

• 52Hz – 35kHz

Crossover Frequency:

• 0kHz

Low Freq. Amplifier Power:

• 65W

High Freq. Amplifier Power:

• 55W

Maximum Peak SPL：

• 105dB

Input Sensitivity:

• 85mV pink noise input produces 96dBA output SPL at 1

Input Connectors:

• 1x XLR balanced input connector
• 1x TRS balanced/unbalanced input connector

Input Impedance:

• 10kΩ balanced, 20kΩ unbalanced

Polarity:

• Positive signal at + input produce outward LF cone displacement

Protection:

• RF interference, output current limiting, over temperature, turn on/off transient, subsonic filter, external mains fuse

Power Requirements:

• Factory-programmed for 115V ~50/60Hz, 230V ~50/60Hz, or 100V ~50/60Hz

Cabinet:

• Vinyl-laminated high-acoustic-efficiency MDF

Dimension: (height x width x depth):

• x 6.9in. x 7.8in
• 254mm x 176mm x 197mm
