Lilliput 10.1″ A11 4K HDMI & 3G-SDI Monitor with L-Series Battery Plate

Original price was: ₹34,990.Current price is: ₹28,990. & Free Shipping

In stock

10.1″ 1920 x 1200 HDMI & 3G-SDI Monitor
320 cd/m² Brightness
4K HDMI Input/Output
Interchangeable L-Series Battery Plate
1000:1 Contrast Ratio
175° Viewing Angle
Peaking / False Color / Histogram
Exposure / Audio Meter / Image Flip
1/4″-20 and VESA 75 Mounting Options

EXTRA 2% Discount: ₹28410.2

FLAT 2% Off when you make a payment via Bank Transfer at Check Out.

Free shipping on orders!

GST Invoice For Input Credit
Price Includes GST
Secure Payments
No Hassle Refunds

GUARANTEED SAFE CHECKOUT

SKU: 3601 Category: Video Broadcast Monitor

Description
Additional information

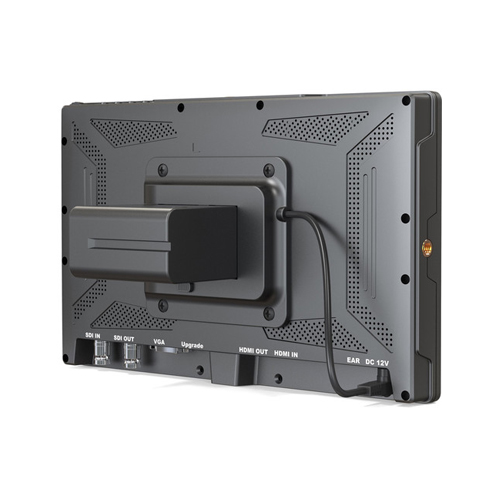

Lilliput 10.1″ A11 4K HDMI & 3G-SDI Monitor with L-Series Battery Plate

The 10.1″ A11 4K HDMI & 3G-SDI Monitor from Lilliput is a field monitor designed for on-camera use with video, DSLR, and mirrorless cameras. This Full HD panel monitor features both 4K HDMI input/output, 3G/HD/SD-SDI input and output, a VGA input, 1000:1 contrast, and 320 cd/m² brightness.

Integrated tools include focus peaking, histogram, selectable aspect ratios, false color, zoom, image flip, and an audio level meter. These display tools assist users in accurately monitoring their video when recording or playing back footage in post-production. Two user-assignable buttons enable you to quickly access your most-used tools.

Power the A11 monitor using one Sony L-series type battery and the included plate, or use a separately available V-mount or Gold mount battery plate with your compatible battery. Mounting options include a 1/4″-20 thread for use with a support arm and a 75 x 75mm VESA pattern.

Specifications

Display

Panel Type	LCD
Display Size	10.1″ / 25.7 cm
Aspect Ratio	16:10
Viewing Angle	Horizontal: 175° Vertical: 175°
Touchscreen	No
Maximum Brightness	320 cd/m²
Contrast Ratio	1000:1
Bit Depth / Color Support	8-Bit (16.7 Million Colors)
Pixels Per Inch (ppi)	224 ppi
Image Controls	Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, Underscan, Zebra
Wi-Fi	None

I/O

Video	1 x HDMI Type A (HDMI 1.4b) Input 1 x BNC (3G-SDI) Input 1 x DE-15/DB-15 (VGA) Input 1 x HDMI Type A (HDMI 1.4b) Output 1 x BNC (3G-SDI) Loop Output
Embedded Audio	HDMI SDI
Audio	1 x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker	1
Power	1 x Barrel (24 VDC) Input
Other I/O	1 x USB 2.0 (USB Type-B)
Card Slot	None

Format Support

Video Format

HDMI
UHD 4K: 30
1080p: 30
1080i: 30
720p: 30
576p: 30
576i: 30
480p: 30
480i: 30

Power

Battery Type	1 x L-Series (Interchangeable Mount)
Power Consumption	13 W

Mounting

Mounting-Hole Pattern	75 x 75 mm
Mounting	1 x 1/4″-20 Female

Environmental

Operating Temperature	32 to 122°F / 0 to 50°C
Storage Temperature	-4 to 140°F / -20 to 60°C

General

Dimensions	9.9 x 6.2 x 1″ / 252 x 157 x 25 mm
Weight	1.21 lb / 550 g
