Hollyland Cosmo 1000 Long Range Wireless HDMI/SDI HD Video Transmission Suite

Hollyland
Compare

219,989.00 199,990.00

Hassle Free Returns

No questions asked, 7 days return policy.

Fast Shipping

All orders are shipped in 1-3 business days.

Secure Checkout

SSL Enabled Secure Checkout

Only 2 left in stock

SKU: 13588 Category:

Description

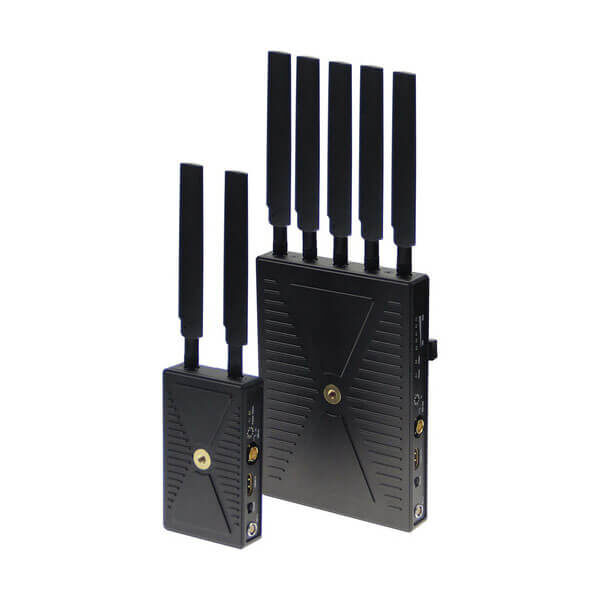

The Cosmo 1000 Long Range Wireless HDMI/SDI HD Video Transmission Suite from Hollyland transmits uncompressed 3G-SDI and HDMI video signals at a distance up to 984′, with no compression and zero delay. The suite includes one transmitter and one receiver, with the transmitter providing 3G/HD/SD-SDI and HDMI inputs, and the receiver providing 3G/HD/SD-SDI and HDMI outputs. The wireless HD suite has two stick antennas in the transmitter side and five stick antennas in the receiver side, and can work in the 5.1 to 5.9 GHz frequency bands. Its software can be configured to licensed or for ISM bands of different global regions. The side panel for both transmitter and receiver comes with a frequency selection knob that provides a maximum of 10 workable frequency channels, and supports a maximum of four working sets simultaneously. The receiver is enclosed in an industrial-grade metal case and employs an efficient heat dissipation mechanism for durability and reliability. This suite can accept a wide DC power input range, and is suitable for use with many camera battery types.

Maximum resolution of 1080p, 60 Hz with no delay and no compression
AES-128 encryption with air interface HD video data stream
HDMI and 3G-SDI inputs and outputs
Supports point-to-point and point-to-multipoint network topologies
Each receiver can be paired to the unique transmitter in the factory
5 GHz ISM frequency band with Wi-Fi and a maximum of 10 frequency channels, selected by user knob
984′ maximum transmission distance
Signal indicators for DC power status, video status, and receiver RSSI
Power voltage input range adapts most kinds of camera batteries
Input and output ports with ±8 kV ESD protection level (HBM, contact discharge)

Additional information

Brands

Specifications

Receiver
Interface SDI output (BNC, female)
HDMI output (Type A, female)
Five antenna port (SMA, male)
DC input (4-pin LEMO, female)
Output Video Format HDMI Type A:
525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p 23.98/24/25/29.9/30/50/59.94/603G/HD/SD-SDI (1 x BNC, Auto-Selected):
SMPTE-259/274/292/296/372/424/425
Output Audio Format SDI embedded 4-channel 24-bit/48 kHz
Signal Indicator Power: Green
Wireless RSSI: Green (5 LEDs)
Video: Yellow
Frequency Band 5.1 to 5.9 GHz, configurable with China, North America, Europe, etc.
Modulation Mode OFDM 16QAM
Receiver Sensitivity -75 dBm
Occupied Bandwidth 20/40 MHz
Supply Voltage 7 to 36 VDC
Power Consumption < 7.5 W
Temperature Range Operating Temperature: 32 to 104°F (0 to 40°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Compliance FCC, CE
Dimensions 6.2 x 4.3 x 0.9″ (160 x 110 x 25 mm), not including antenna
Weight 19 oz (540 g)
Transmitter
Interface SDI input (BNC, female)
HDMI input (type A, female)
Two antenna port (2 SMA, male)
DC input (4-pin LEMO, female)
Input Video Formats HDMI Type A:
525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p 23.98/24/25/29.9/30/50/59.94/603G/HD/SD-SDI (1 x BNC, Auto-Selected):
SMPTE-259/274/292/296/372/424/425
Input Audio Format SDI embedded 4-channel 24-bit/48 kHz
Signal Indicator Power: Green
Video: Yellow
Frequency Band 5.1 to 5.9 GHz, configurable with China, North America, Europe, etc.
Modulation Mode OFDM 16QAM
Transmission Power Maximum 21 dBm
Occupied Bandwidth 40 MHz
Supply Voltage 7 to 36 VDC
Power Consumption < 6.5 W
Temperature Range Operating Temperature: 32 to 104°F (0 to 40°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Compliance FCC, CE
Dimensions 4.7 x 2.7 x 1.0″ (120 x 70 x 25 mm), not including antenna
