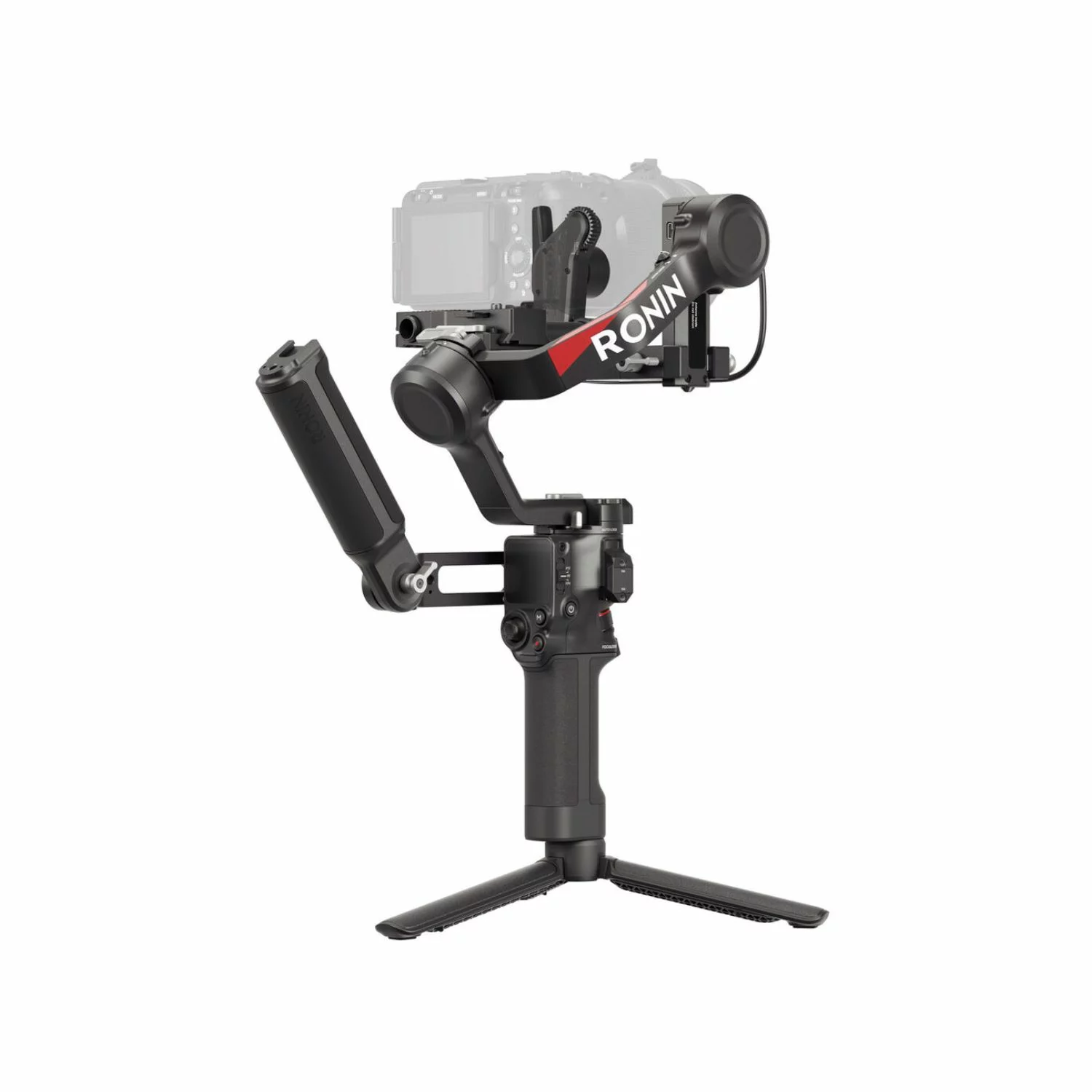

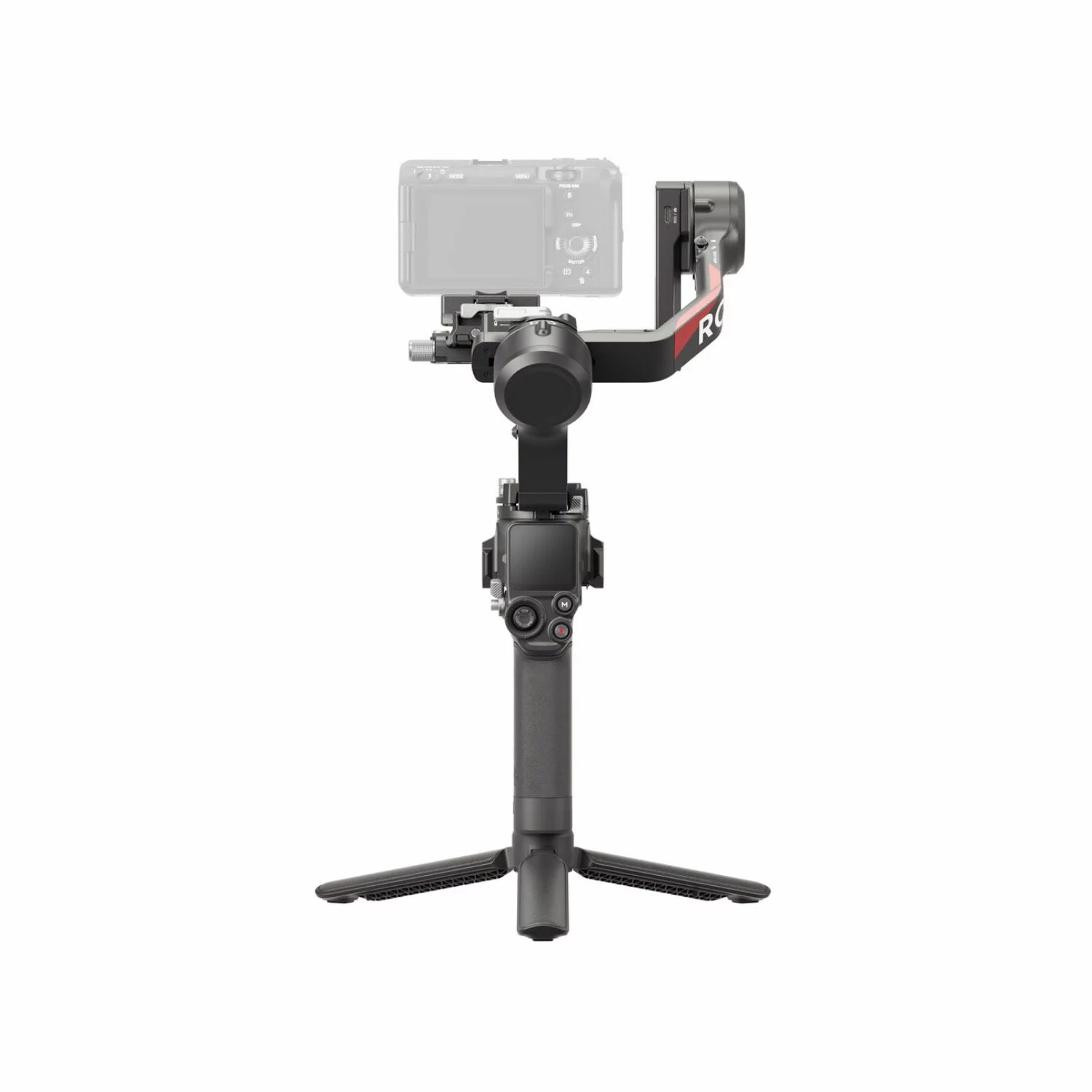

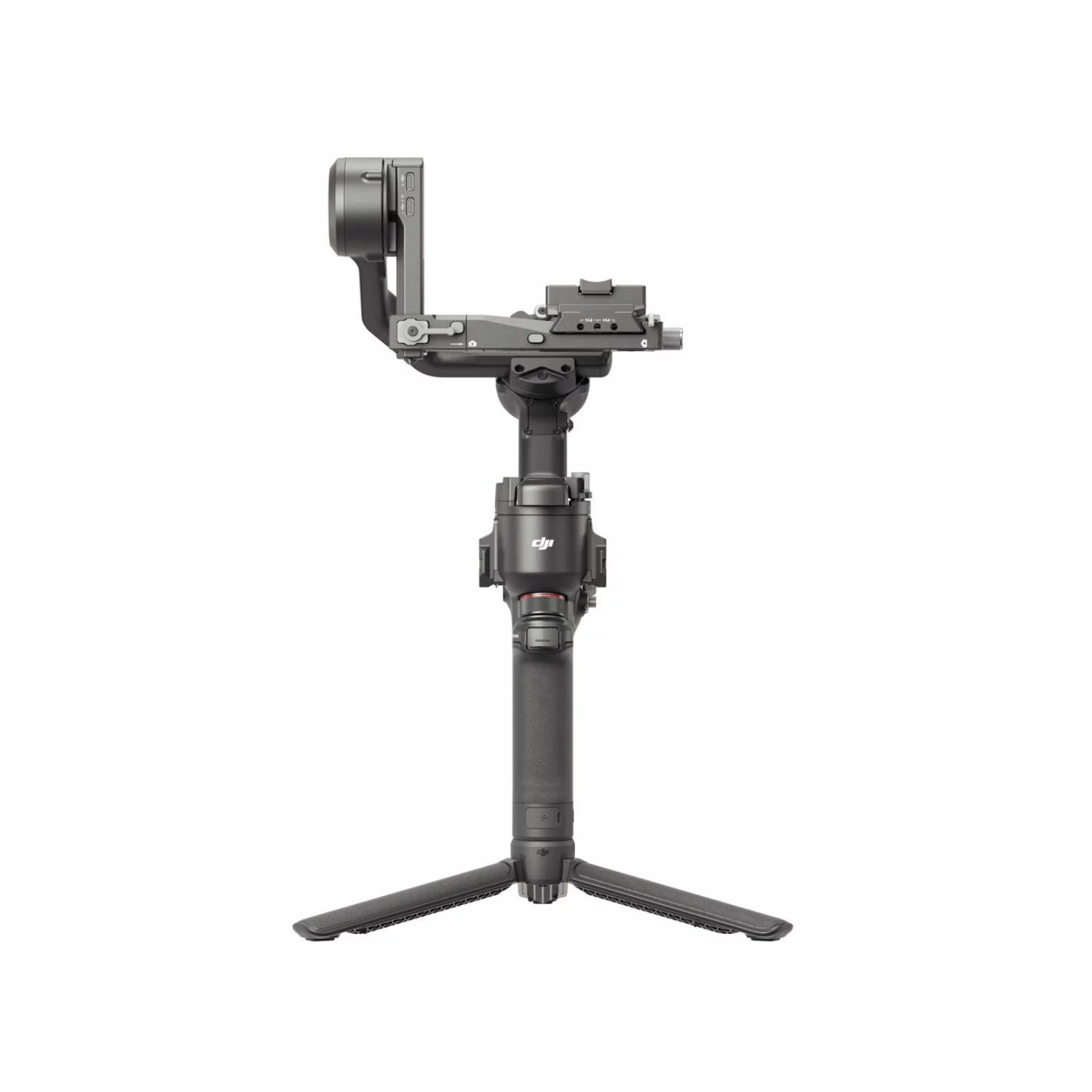

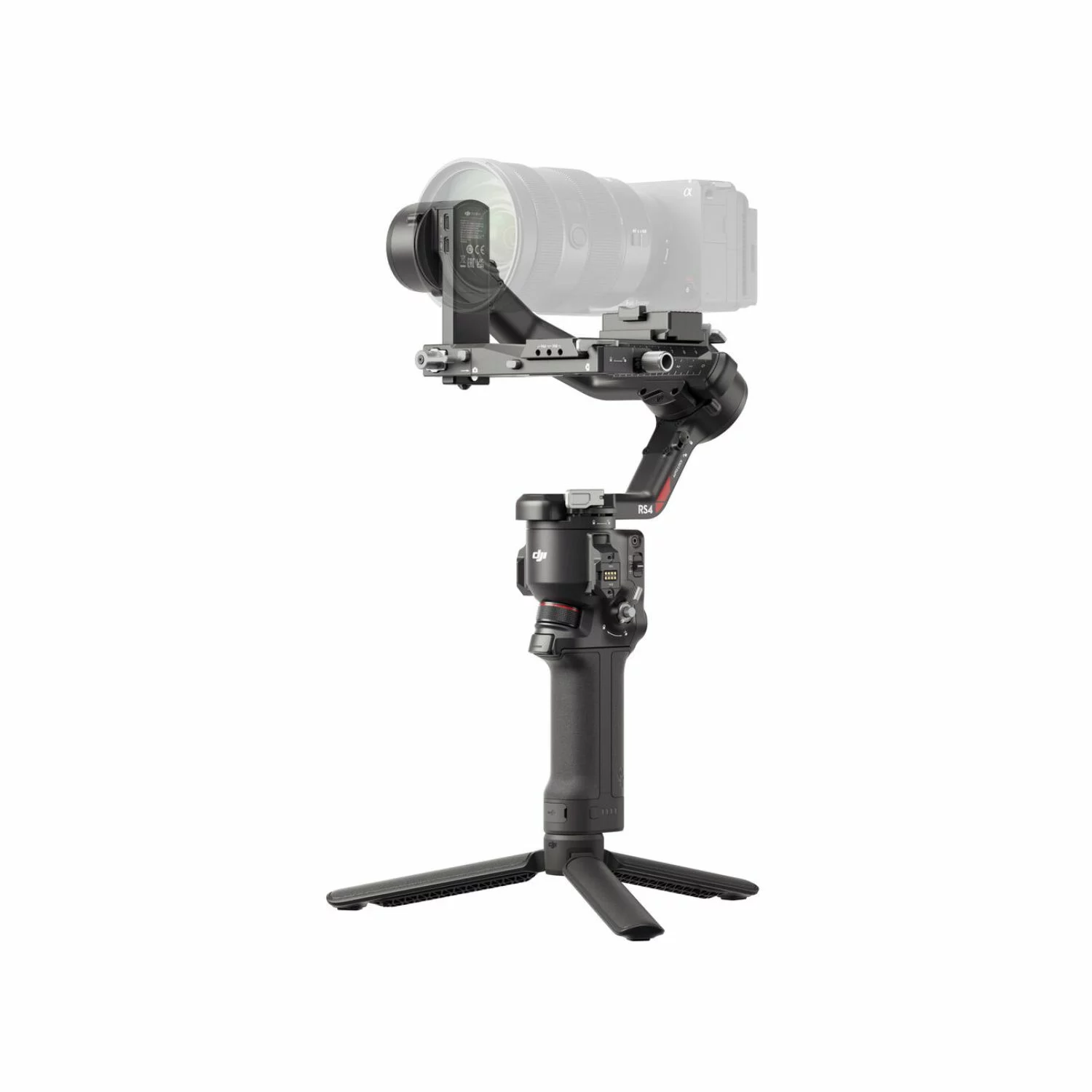

DJI RS 4 Gimbal Stabilizer Combo Kit

DJI RS 4 Gimbal Stabilizer Combo Kit

Unleash Cinematic Magic: Effortless Stabilization for Mirrorless Cameras
Imagine capturing breathtaking, professional-looking footage with smooth, shake-free transitions. The DJI RS 4 Gimbal Stabilizer Combo Kit empowers you to do just that. This advanced 3-axis gimbal is specifically designed for mirrorless cameras, providing exceptional stability and control for all your filmmaking endeavors. Whether you’re a seasoned videographer or an aspiring creator, the RS 4 Combo Kit is your key to unlocking stunning visuals that will captivate your audience.

Power and Performance: Handle Demanding Shoots with Confidence
The RS 4 boasts a lightweight yet robust design, capable of supporting mirrorless camera setups weighing up to 6.6 lbs (3kg). Its powerful motors ensure unwavering stability even during fast-paced action sequences or handheld shots. Say goodbye to shaky footage and hello to silky-smooth cinematic quality.

Intuitive Operation and Unmatched Efficiency: Streamline Your Workflow
The DJI RS 4 prioritizes user experience. The ergonomic design and intuitive controls allow for effortless operation, keeping you focused on capturing the perfect shot. The combo kit includes a Focus Pro Motor, enabling precise focus control directly from the gimbal handle. Additionally, the second-generation quick-release plate system facilitates seamless camera mounting and transitions between horizontal and vertical shooting.

Designed for the Modern Creator: Embrace the Power of Vertical Video
The RS 4 embraces the ever-growing trend of vertical video. The second-generation design allows for a natural transition to portrait mode, perfect for creating captivating content for social media platforms. Whether you’re a vlogger, filmmaker, or social media influencer, the RS 4 empowers you to produce professional-grade vertical content that stands out.

Expand Your Creative Horizon: A Versatile Ecosystem of Tools
The RS 4 isn’t just a gimbal; it’s a gateway to a world of creative possibilities. The built-in RSA communication port opens doors to a vast ecosystem of compatible accessories, including Ronin Image Transmitter, for extended range wireless monitoring, and DJI D-Log support for enhanced post-production flexibility. Unleash your creativity and explore new filmmaking techniques with the ever-expanding RS 4 ecosystem.

Specifications

• Peripheral
  Accessory Port
  Ronin Series Accessories (RSA)/NATO Ports
  1/4″-20 Mounting Hole
  ‌Cold Shoe
  Video Transmission Port (USB-C)
  RSS Camera Control Port (USB-C)
  Focus Motor Port (USB-C)
  Battery
  Model: BHX711-3000-7.2‌‌V
  Type: LiPo 2S
  Capacity: 3000 mAh
  Energy: 21 Wh
  Max Runtime: 12 hours (Measured with the gimbal balanced in a level and stationary state. ‌When the gimbal is in motion, the operating time will be reduced.)
  Charging Time: Approx. 2.5 hours (Measured with a charger supporting 18W fast charging. It is recommended to use chargers supporting PD protocol.)
  Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
  Connections
  Bluetooth 5.1
  Charging Port (USB-C)
  Ronin App Requirements
  iOS 11.0 or above
  Android 8.0 or above
  Languages Supported by the Touchscreen
  English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
• Working Performance
  Tested Payload
  3 kg (6.6 lbs)
  Maximum Controlled Rotation Speed
  Pan: 360°/s
  Tilt: 360°/s
  Roll: 360°/s
  Mechanical Range
  Pan Axis: 360° continuous rotation
  Roll Axis: -95° to +240°
  Tilt Axis: -112° to +214°
• Mechanical & Electrical Properties
  Operating Frequency
  2.400-2.4835 GHz
  Bluetooth Transmitter Power
  < 8 dBm
  Operating Temperature
  -20° to 45° C (-4° to 113° F)
  Weight
  ‌Gimbal: Approx. 1066 g (2.35 lbs)
  Grip: Approx. 203 g (0.45 lbs)
  ‌Extended Grip/Tripod (Plastic): Approx. 183 g (0.4 lbs)
  Upper and Lower Quick-Release Plates: Approx. 98 g (0.22 lbs)
  Dimensions
  ‌Folded: 245×255×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
  Unfolded: 370×191×189 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)
• DJI Ronin Image Transmitter
  Connections
  Power/Communication Port (USB-C)
  HDMI Port (Mini HDMI)
  RSS Camera Control Port (USB-C)
  Expansion Port
  Cold Shoe
  Operating Frequency
  2.400-2.4835 GHz
  5.725-5.850 GHz
  Weight
  126 g (0.27 lbs)
  Dimensions
  82×63×24 mm (L×W×H)
  Transmitter Power (EIRP)
  ‌2.400-2.4835 GHz:
  < 25 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)
  5.725-5.850 GHz:
  < 25 dBm (FCC/SRRC)
  < 14 dBm (CE)
  Battery
  Capacity: 2970 mAh
  Compatible Charger: 5 V/2 A
  Charging Time: Approx. 2.5 hours
  Operating Time: Approx. 3.5 hours
  Transmission Range
  200 m (SRRC/FCC)
  100 m (CE)
  ‌Measured in an unobstructed environment free of interference.
  Latency
  60 ms
  Operating Current/Voltage
  900 mA/3.7 V
  Operating Temperature
  0° to 45° C (32° to 113° F)
