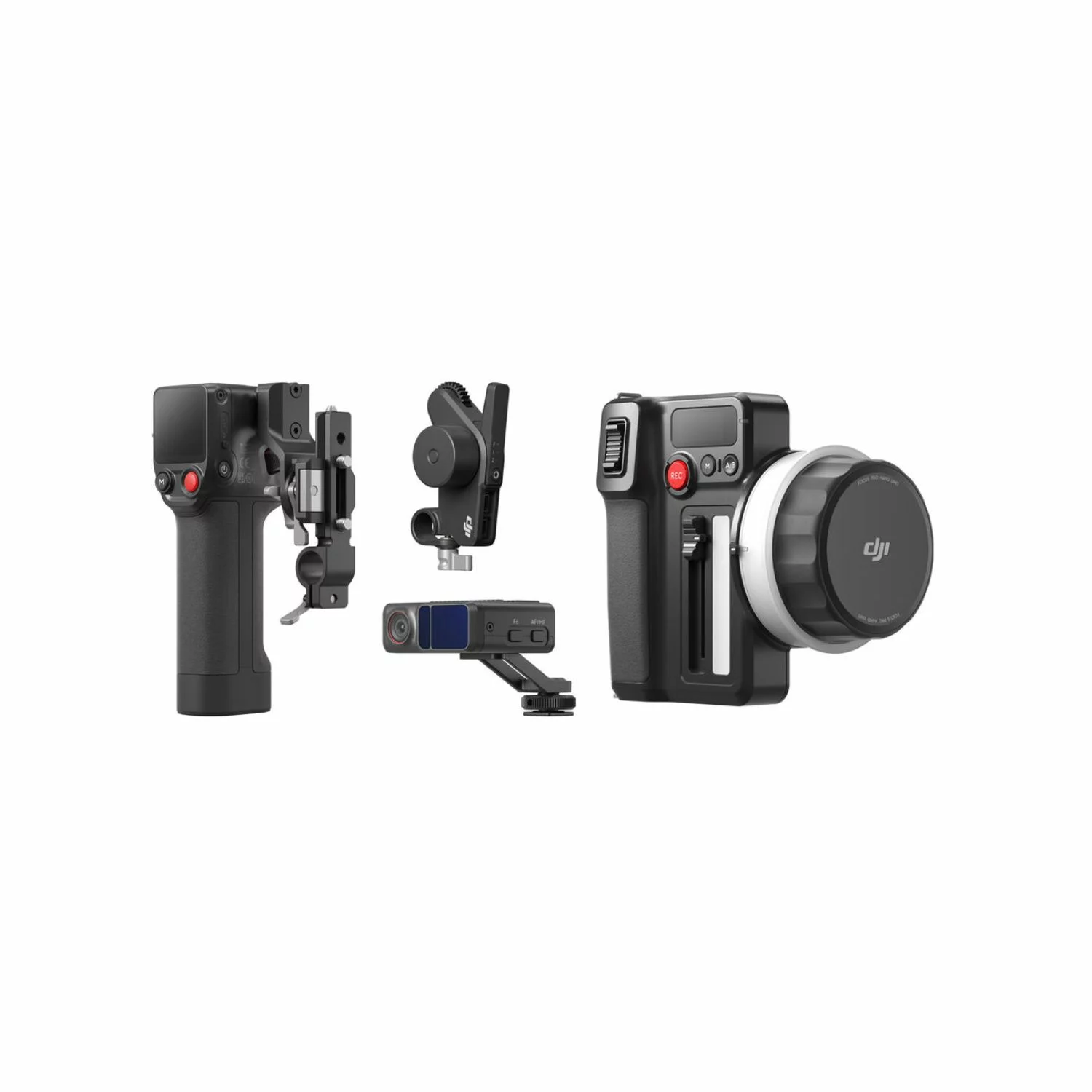

DJI Focus Pro All-In-One Combo

DJI Focus Pro All-In-One Combo

Unleash Your Creativity with DJI Focus Pro
The DJI Focus Pro All-In-One Combo is your ultimate companion for capturing stunning visuals and unleashing your creative vision. With advanced features and cutting-edge technology, this combo is designed to elevate your filmmaking experience to new heights.

Precision Control for Professional Results
Experience unparalleled precision and control with the DJI Focus Pro. Whether you’re a seasoned professional or a budding filmmaker, this combo offers smooth and accurate focus control, allowing you to capture every moment with perfection.

Enhance Your Filmmaking Workflow
Streamline your filmmaking workflow with the DJI Focus Pro All-In-One Combo. From fast-paced action shots to intricate details, this versatile tool enhances your filming experience, making every shot count.

Specifications

• LiDAR
  Accessory Port
  Cold Shoe
  1/4″-20 Threaded Hole
  USB-C Firmware Update Port (Power/USB)
  USB-C Data Port (Power/CVBS/CAN)
  Image Sensor
  Resolution: 1920×1440
  FOV:
  ‌57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
  Frame Rate: 30fps
  Equivalent Focal Length: 30 mm
  ToF Sensor
  Ranging Points: 76,800
  Sensing Range: 0.5-20 m
  FOV:
  Wide-Angle Mode: 65° (horizontal), 40° (vertical), 76.1° (diagonal)
  Telephoto Mode: 20° (horizontal), 20° (vertical), 28.3° (diagonal)
  Frame Rate: 30fps
  Equivalent Focal Length: 30 mm (wide-angle mode)
  Ranging Accuracy: ±1% to 3% (affected by the distance)
  Machine Learning
  Tracking Subject: Can recognize up to five subjects at the same time, and choose one to follow
  Smart Object Identification: Human, vehicle
  Focus Area: Flex Spot (activate focus lock by framing the subject and pressing the trigger; supports autofocus only, not ActiveTrack); Wide (when subject-locked on human, supports both autofocus and ActiveTrack*; when subject-locked on vehicle, supports autofocus only, not ActiveTrack)
  * ActiveTrack is available only when used in conjunction with DJI RS 4 Pro or DJI RS 3 Pro.‌
  Electrical Properties
  ‌Power Consumption: Average approx. 6.3 W, max 6.8 W
  Input Voltage: 6.6-17.2 V
  Operating Temperature
  -20° to 45° C (-4° to 113° F)
  Mechanical Properties
  Main Body Dimensions: Approx. 68×25×57 mm (L×W×H)
  Weight: Approx. 140 g (0.31 lbs)
  Mounting Method and Position
  Can be mounted directly via cold shoe or using the 1/4″ threaded hole
  It is recommended to mount the DJI Focus Pro LiDAR close to the camera’s optical axis.

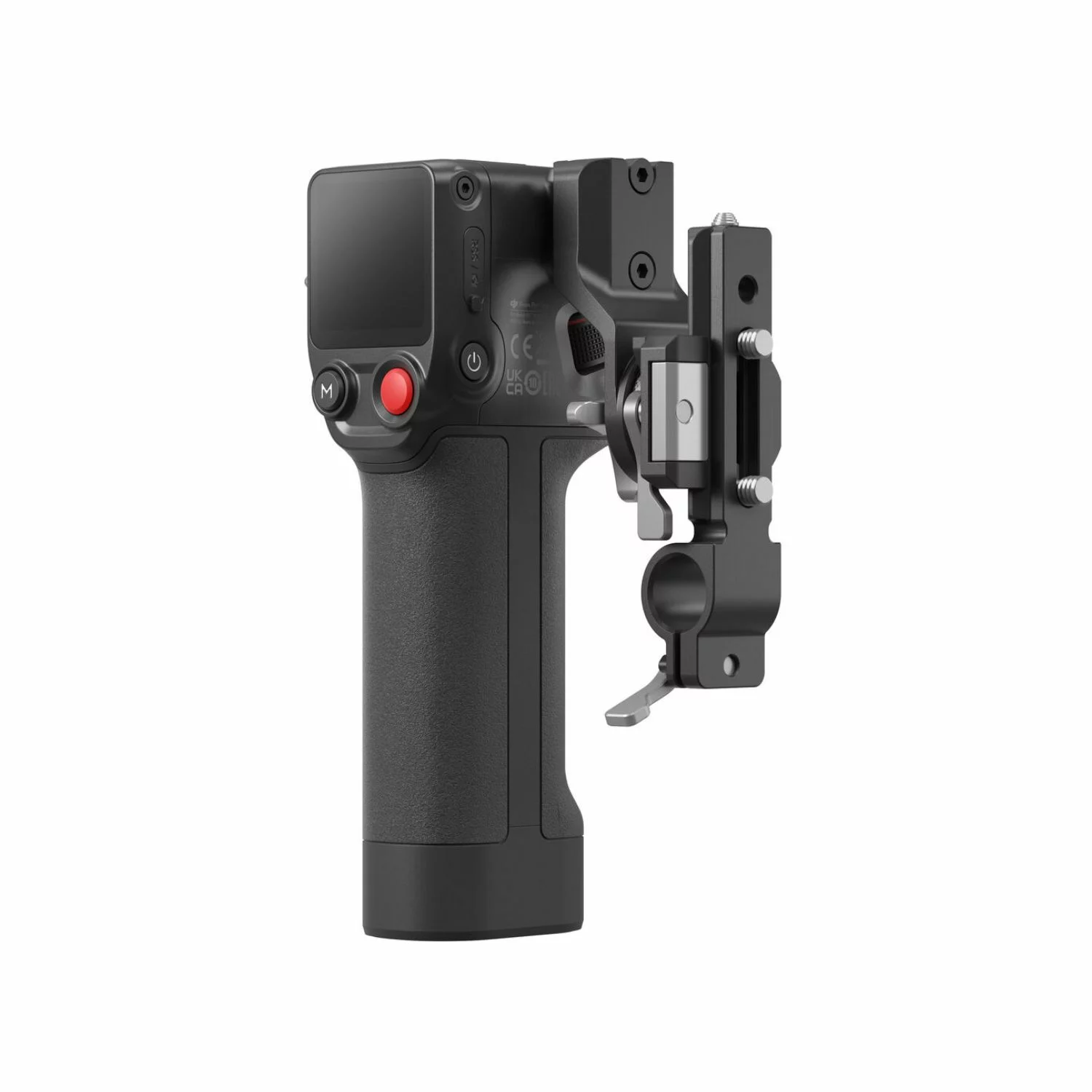

• Grip
  Operating Frequency
  2.400-2.4835 GHz
  Bluetooth Transmitter Power
  < 8 dBm
  Mechanical Properties
  Main Body Dimensions: Approx. 59×73×162 mm (L×W×H)
  Main Body Weight: Approx. 482 g (1.06 lbs)
  Mounting Method
  Flexible mounting on either left or right side of the cage via NATO port
  Screen
  1.8-inch full-color touchscreen
  Port
  USB-C Port (DJI Focus Pro LiDAR)
  USB-C Port (DJI Focus Pro Motor)
  USB-C Port (Camera Control Port)
  USB-C Port (Battery Charging Port)
  Operating Time
  ‌Approx. 2.5 hours
  Measured in a 25° C (77° F) environment while simultaneously powering the grip screen, LiDAR, and a focus motor, with AF continuously on, and paired with a manual lens.
  Charging Power
  Supports 18W PD fast charging
  Battery Model
  BHX711-3000-7.2V
  Power Supply Voltage
  6.6-8.4 V
  Operating Temperature
  -20° to 45° C (-4° to 113° F)
• Hand Unit
  Operating Frequency
  2.400-2.4835 GHz
  Bluetooth Transmitter Power
  < 8 dBm
  2.4GHz Transmitter Power (EIRP)
  ‌< 20 dBm (CE/SRRC/MIC)
  < 26 dBm (FCC)
  2.4GHz Transmission Distance
  160 m*
  100 m**
  ‌* Measured under FCC standard in an unobstructed environment free of interference.
  ‌‌‌‌** Measured under CE/SRRC/MIC standards in an unobstructed environment free of interference.
  Mechanical Properties
  ‌Dimensions: Approx. 128×87×87 mm (L×W×H)
  Weight: Approx. 555 g (1.22 lbs) (without battery)
  Battery
  Model: NP-F550
  Input: 6.3-8.4 V
  Dimensions: 71×38.6×21.1 mm (L×W×H)
  Screen
  1.09-inch full-color touchscreen
  Static Power Consumption
  0.83 W
  Operating Temperature
  -20° to 45° C (-4° to 113° F) (excluding battery temperature)
• Motor
  2.4GHz Transmitter Power (EIRP)
  ‌< 20 dBm (CE/SRRC/MIC)
  < 26 dBm (FCC)
  2.4GHz Transmission Distance
  160 m*
  100 m**
  ‌* Measured under FCC standard in an unobstructed environment free of interference.
  ‌‌‌‌** Measured under CE/SRRC/MIC standards in an unobstructed environment free of interference.
  Mechanical Properties
  ‌Dimensions: Approx. 100×61×34 mm (L×W×H)
  ‌Weight: Approx. 123 g (0.27 lbs)
  Rod Diameter: 15 mm
  Output Gear Teeth: 30
  Output Gear Module: 0.8
  Performance
  Max Torque: 0.6 N·m (8 V)
  Max Speed: 300 rpm (8 V)
  Power Supply Voltage
  6.6-17.2 V
  Stall Current
  2 A, 8 V
  Free Current
  60 mA, 8 V
  Operating Temperature
  -20° to 45° C (-4° to 113° F)
  Output Voltage
  6.6-17.2 V
