Blackmagic Design UltraStudio 4K Mini Thunderbolt

Blackmagic Design UltraStudio 4K Mini Thunderbolt

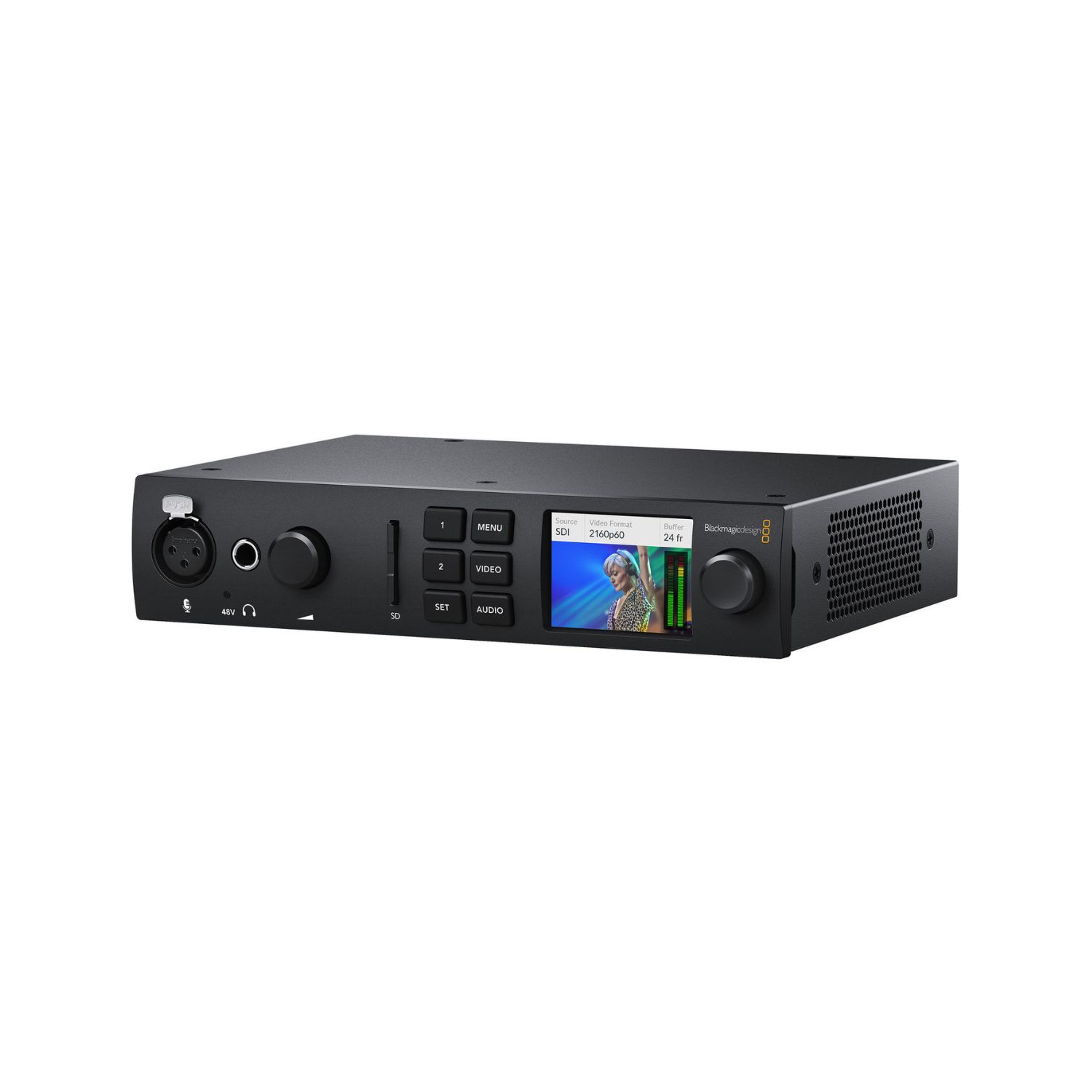

UltraStudio 4K Mini is a portable Thunderbolt 3 capture and playback solution packed with the latest broadcast technology! You get broadcast quality 8 and 10‑bit high dynamic range capture in all formats up to 4K DCI at 60p, and 12‑bit high dynamic range capture in all formats up to 4K DCI at 30p. Plus, the built in SD card reader lets you mount camera media directly on your computer so you can start editing immediately!

Specifications

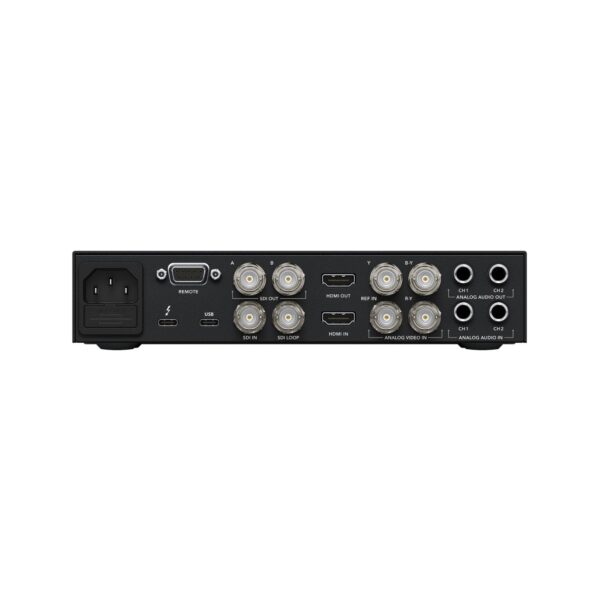

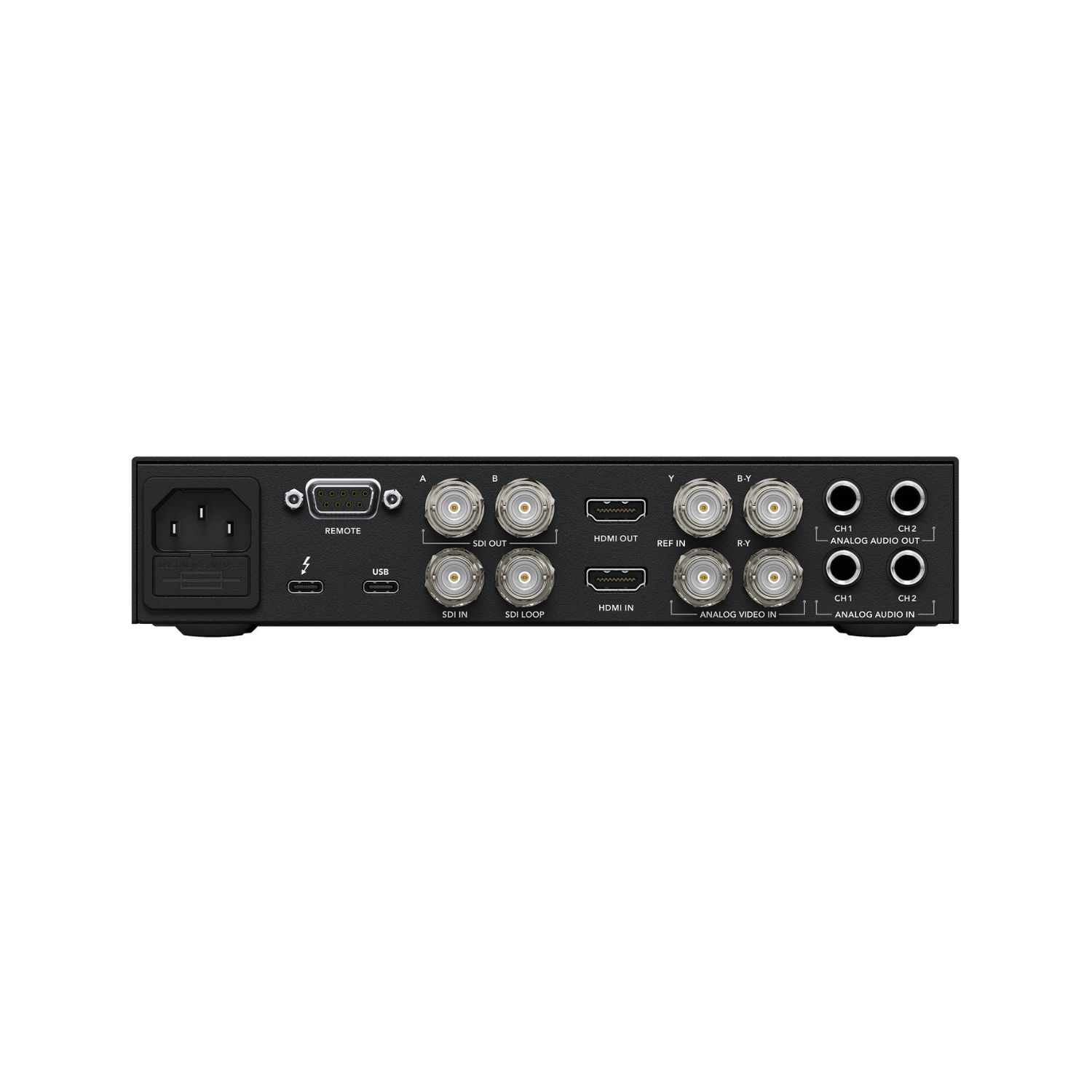

• Connections
  SDI Video Inputs
  1
  SDI Video Outputs
  2 x program out, 1 x loop out.
  SDI Rates
  270Mb, 1.5G, 3G, 6G, 12G.
  Analog Video Inputs
  Component YUV or Composite NTSC/PAL. Component is switchable between SD and HD.
  Analog Audio Inputs
  2 channels of professional balanced analog audio with 1/4 inch Jack connectors.
  Analog Audio Outputs
  2 channels of professional balanced analog audio with 1/4 inch Jack connectors.
  SDI Audio Inputs
  16 Channels embedded in SD/HD/2K/UHD/4K.
  SDI Audio Outputs
  16 Channels embedded in SD/HD/2K/UHD/4K.
  HDMI 2.0b Video Inputs
  1
  HDMI 2.0b Video Outputs
  1
  HDMI Audio Inputs
  8 Channels embedded in SD/HD/UHD/4K.
  HDMI Audio Outputs
  8 Channels embedded in SD/HD/UHD/4K.
  Mic Input
  1 x XLR microphone input. 48V Phantom Power switchable via software control.
  Sync Input
  Tri-Sync or Black Burst.
  Device Control
  Sony™ compatible RS-422 deck control port. Serial ports TxRx direction reversible under software control.
  USB
  1 x USB-C 3.1 Gen 1 (up to 5 Gb/s).
  SD Card Reader
  UHS-I and UHS-II compatible.
  Computer Interface
  Thunderbolt™ 3 (Mac OS, Windows and Linux) with 45W host charging capability.
• Supported Codecs
  AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
• Software
  Software Included
  DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
  Internal Software Upgrade
  Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
• Other supported applications include:
  The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Derivative TouchDesigner, Assimilate Scratch, Burst Video Webclip2Go & [REC]Marker, Autodesk Flame, Zoom.
  These are third party applications and support may vary, check with your software vendor.
• SDI Video Standards
  SD Video Standards
  525i59.94 NTSC, 625i50 PAL
  HD Video Standards
  720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
  1080i50, 1080i59.94, 1080i60
  2K Video Standards
  2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
  2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
  Ultra HD Video Standards
  2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  4K Video Standards
  4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
  3D Video Standards
  720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
  1080i50, 1080i59.94, 1080i60
  2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
  2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
  4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
  * Playback only
  SDI Compliance
  SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2036-1, SMPTE 2048-1, SMPTE 2081-10, SMPTE 2082-10 and SMPTE ST2108-1.
  SDI Metadata Support
  RP 188/SMPTE 12M-2 and closed captioning.
  Multiple Rate Support
  SDI video connections are switchable between SD/HD/2K/UHD and 4K.
  SDI Audio Sampling
  Television standard sample rate of 48 kHz and 24-bit.
  SDI Video Sampling
  4:2:2, 4:4:4
  SDI Color Precision
  8, 10, 12-bit RGB 4:4:4 in 2D modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 in all 2D modes.
  8, 10, 12-bit RGB 4:4:4 in 3D modes up to 2Kp60 DCI and 8, 10-bit YUV 4:2:2 in all 3D modes.
  SDI Color Space
  REC 601, REC 709 and REC 2020
  HDR Support
  HDR static metadata packing, HLG and PQ transfer characteristics.
• HDMI Video Standards
  SD Video Standards
  525i59.94 NTSC, 625i50 PAL
  HD Video Standards
  720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  1080i50, 1080i59.94, 1080i60
  Ultra HD Video Standards
  2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  4K Video Standards
  4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
  3D Video Standards
  720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  1080i50, 1080i59.94, 1080i60
  2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
  4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI.
  HDMI Audio Sampling
  Television standard sample rate of 48 kHz and 24-bit.
  HDMI Video Sampling
  4:4:4, 4:2:2 and 4:2:0
  HDMI Color Precision
  8, 10 and 12-bit
  HDMI Color Space
  REC 601, REC 709 and REC 2020
  HDR Support
  HDR static metadata packing, HLG and PQ transfer characteristics.
  HDMI Configuration
  HDMI 2.0b supports Deep Color and HDR. Automatically configures to connected display.
  Multiple Rate Support
  HDMI video connections are switchable between SD/HD/UHD and 4K.
  Copy Protection
  HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
• Processing
  Real Time Effects
  DaVinci Resolve, Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
  Colorspace Conversion
  Hardware based real time.
  3D Processing
  Dual stream and frame packed capture and playback. 3D capture supported via HDMI input only.
  Physical Installation
  Requires a computer with a Thunderbolt™ 3 port. Please check support pages to see the full system requirements.
• Operating Systems
  Mac 11.1 Big Sur,
  Mac 12.0 Monterey or later.
  Windows 10, 64-bit.
  Windows 11.
  Linux
• Power Requirements
  Power Supply
  1 x Internal 100 – 240V AC
  Power Usage
  75.3W max
• Environmental Specifications
  Operating Temperature
  5° to 40° C (41° to 104° F)
  Storage Temperature
  -20° to 45° C (-4° to 113° F)
  Relative Humidity
  0% to 90% non-condensing
• What’s Included
  UltraStudio 4K Mini
  Welcome wallet with QR code for software download
