Blackmagic Design SmartView Duo Rackmountable Dual 8″ LCD Monitors

Blackmagic Design SmartView Duo Rackmountable Dual 8″ LCD Monitors

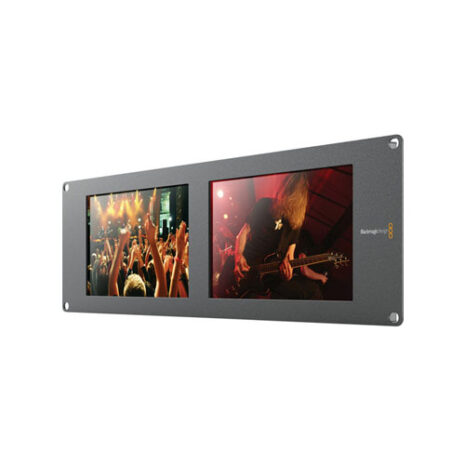

Featuring two large independent 8 inch LCD screens in a compact rack mount design, SmartView Duo handles SD, HD and 3Gb/s SDI video standards. SmartView Duo is perfect for post production, broadcast and live event monitoring. For easy setup, all screens can be remotely adjusted via ethernet connection. With SmartView Duo you can install SDI monitoring everywhere you need!

Specifications

• Connections
  SDI Video Input
  Automatically switches between SD, HD and 3G-SDI. Reclocked loop through output.
  Multi Rate Support
  Auto detection of 2K, HD or standard definition inputs.
  Updates and Configuration
  Via USB 2.0 high speed (480 Mb/s)
  Ethernet
  10/100 BaseT with loop through.
  Tally
  9-pin D connector
• Standards
  SDI Compliance
  SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M.
  SDI Color Space
  REC 601, REC 709
  SDI Auto Switching
  Automatically selects between SD, HD and 3 Gb/s SDI.
  Video Sampling
  4:2:2 and 4:4:4
  SDI Format Support
  525i59.94 NTSC, 625i50 PAL
  720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
  1080i50, 1080i59.94, 1080i60
  2K Format Support
  2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
  2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
• Software
  Internal Software Upgrade
  Via included firmware updater software.
  SmartView Utility Software
  Via USB or Ethernet.
• Operating Systems
  Mac 10.15 Catalina,
  Mac 11.1 Big Sur or later.
  Windows 10, 64-bit.
• Display
  Display Element
  TFT Active Matrix LCD.
  Display Resolution
  800 x 480 pixels
  Response
  < 15 ms
  Contrast Ratio
  Typically 500:1
  Color Depth
  16.7 Million Colors.
  Display Orientation
  Displays can rotate upside down for optimum viewing angle.
• Power Requirements
  Power Supply
  12V universal power supply included with international socket adapters for all countries.
  Power Consumption
  < 20 Watts
  Operational Voltage Range
  12V – 15V
• Environmental Specifications
  Operating Temperature
  0° to 40° C (32° to 104° F)
  Storage Temperature
  -20° to 45° C (-4° to 113° F)
  Relative Humidity
  0% to 90% non-condensing
• What’s Included
  SmartView Duo
  Power Supply
  SD card with software and manual
