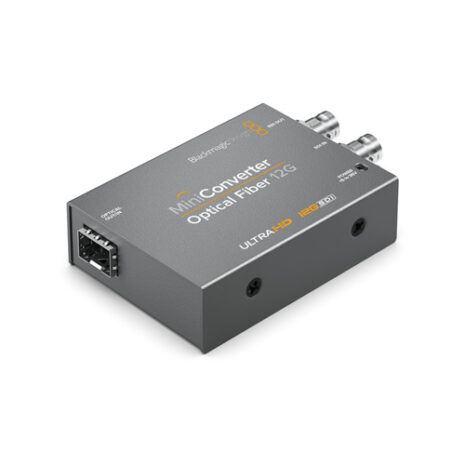

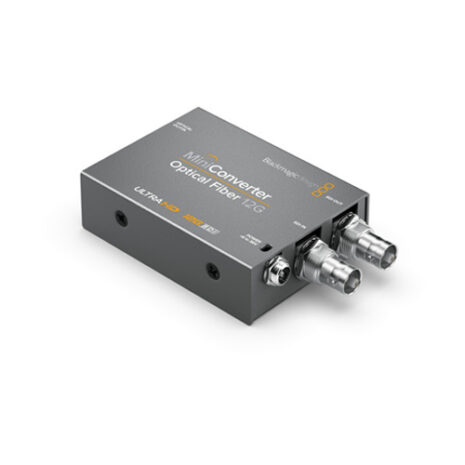

Blackmagic Design Mini Converter Optical Fiber 12G-SDI

Blackmagic Design Mini Converter Optical Fiber 12G-SDI

Mini Converter Optical Fiber 12G converts SDI to optical fiber and optical fiber to SDI in both directions at the same time, you can even have different video standards going in each direction! The 12G‑SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices. You can install any standard 3G, 6G or 12G‑SDI SFP optical fiber module so you can send SDI using the same low cost optical fiber cables that are commonly used for computer networks.

Specifications

• Connections
  SDI Video Inputs
  1 x SD, HD and 12G-SDI Video and 1 x Optical Fiber Input.
  SDI Video Outputs
  Automatically matches the SD, HD and 12G-SDI video input on the Optical Fiber.
  Optical Fiber Connection (optional)
  1 x SMPTE optical fiber SFP socket.
  Optical fiber SFP module sold separately.
  Optical Fiber Video Inputs
  1 x 10 bit SD/HD/12G-SDI switchable.
  Optical Fiber Video Outputs
  Automatically matches the SD, HD and 12G-SDI video input.
  Optical Fiber Audio Inputs
  16 channel embedded.
  Optical Fiber Audio Outputs
  16 channel embedded.
  Multi Rate Support
  Auto detection of SD, HD or 12G-SDI.
  Reclocking
  Yes
• Standards
  SD Video Standards
  525i59.94 NTSC, 625i50 PAL
  HD Video Standards
  720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
  2K Video Standards
  2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
  Ultra HD Video Standards
  2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  4K Video Standards
  4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
  SDI Compliance
  SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI.
  SDI Video Rates
  SDI video inputs are automatically detected between standard definition, high definition, level A or level B 3G‑SDI, 6G-SDI and 12G-SDI.
  SDI Video Sampling
  4:2:2 and 4:4:4
  SDI Audio Sampling
  Television standard sample rate of 48 kHz and 24-bit.
  SDI Color Precision
  4:2:2 and 4:4:4
  SDI Color Space
  YUV and RGB
  SDI Auto Switching
  Automatically detects SD, HD or 12G-SDI.
  ASI Support
  Yes
• Operating Systems
  Mac 10.15 Catalina,
  Mac 11.1 Big Sur or later.
  Windows 10, 64-bit.
• Settings Control
  No user controls.
• Power Requirements
  Power Supply
  +12V universal power supply included with international socket adapters for all countries. Cable tie point.
  Power Consumption
  2 Watts
  Operational Voltage Range
  6 – 36V DC
• Environmental Specifications
  Operating temperature
  0° to 40° C (32° to 104° F)
  Storage temperature
  -20° to 45° C (-4° to 113° F)
  Relative Humidity
  0% to 90% non-condensing
• What’s Included
  Mini Converter Optical Fiber 12G
  +12V universal power supply with international socket adapters
