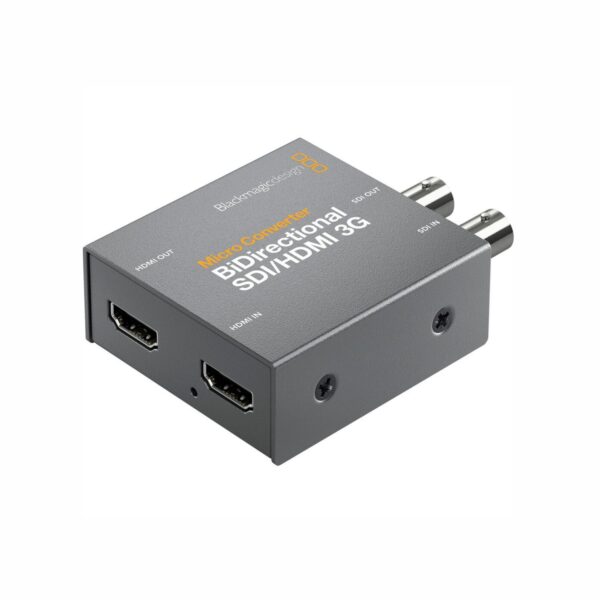

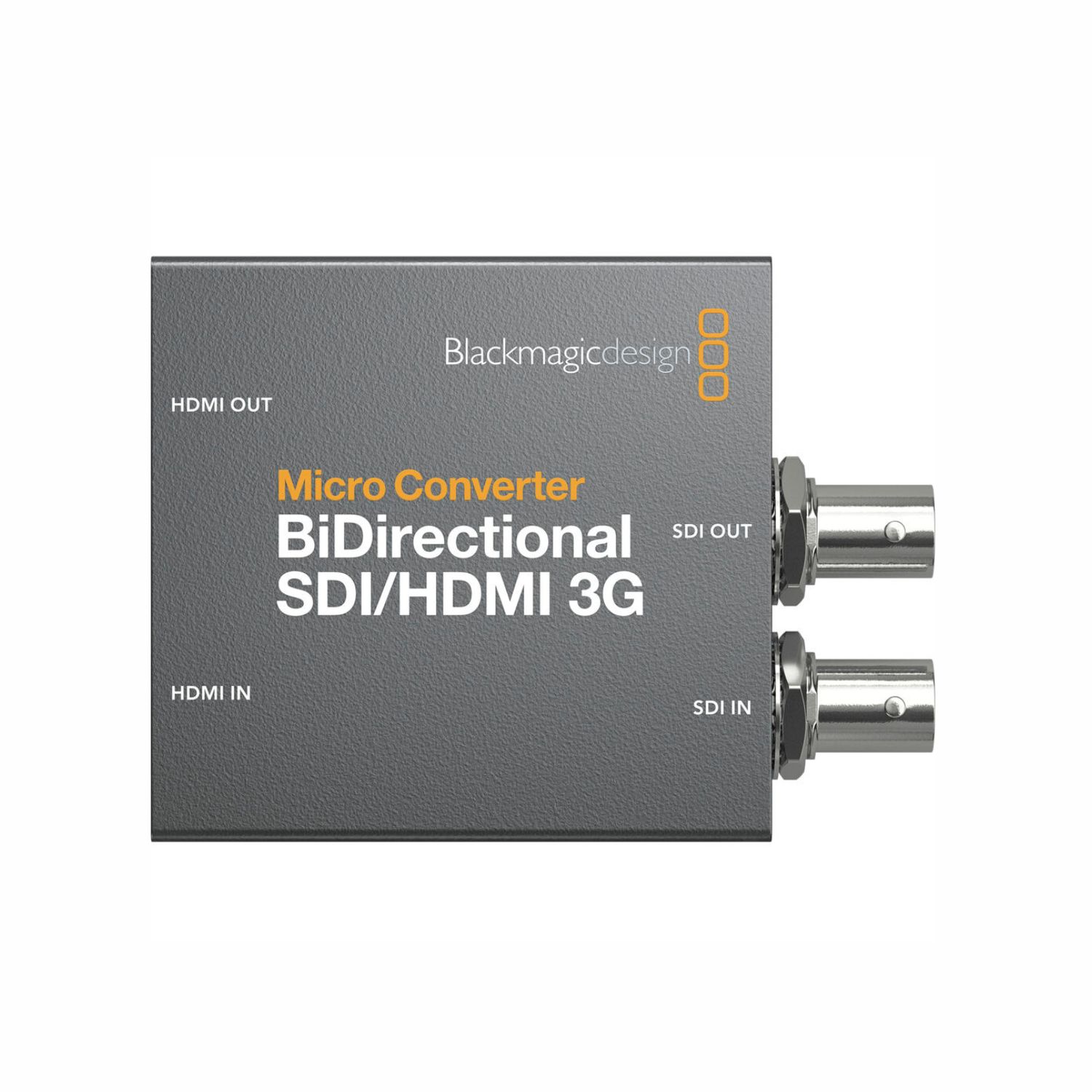

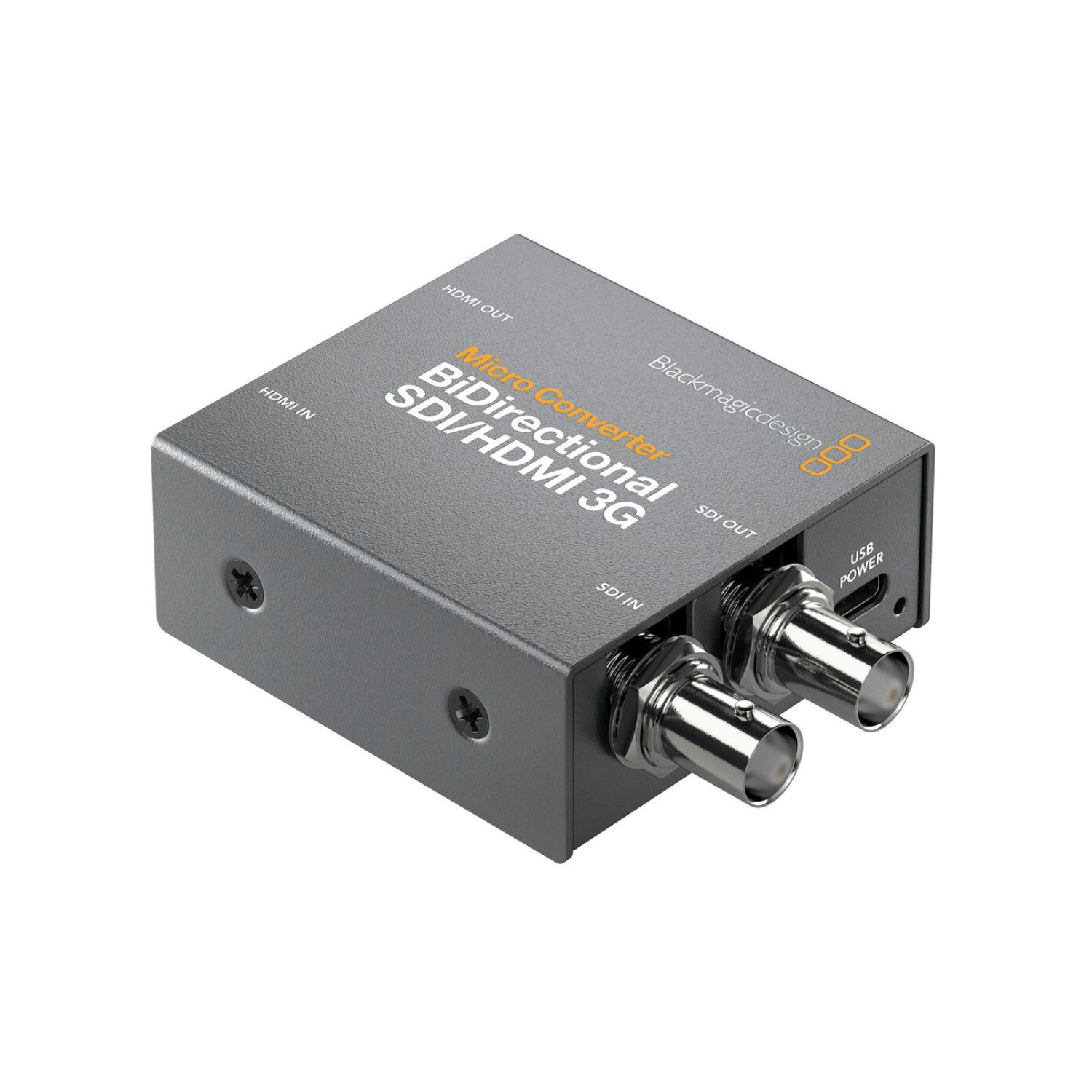

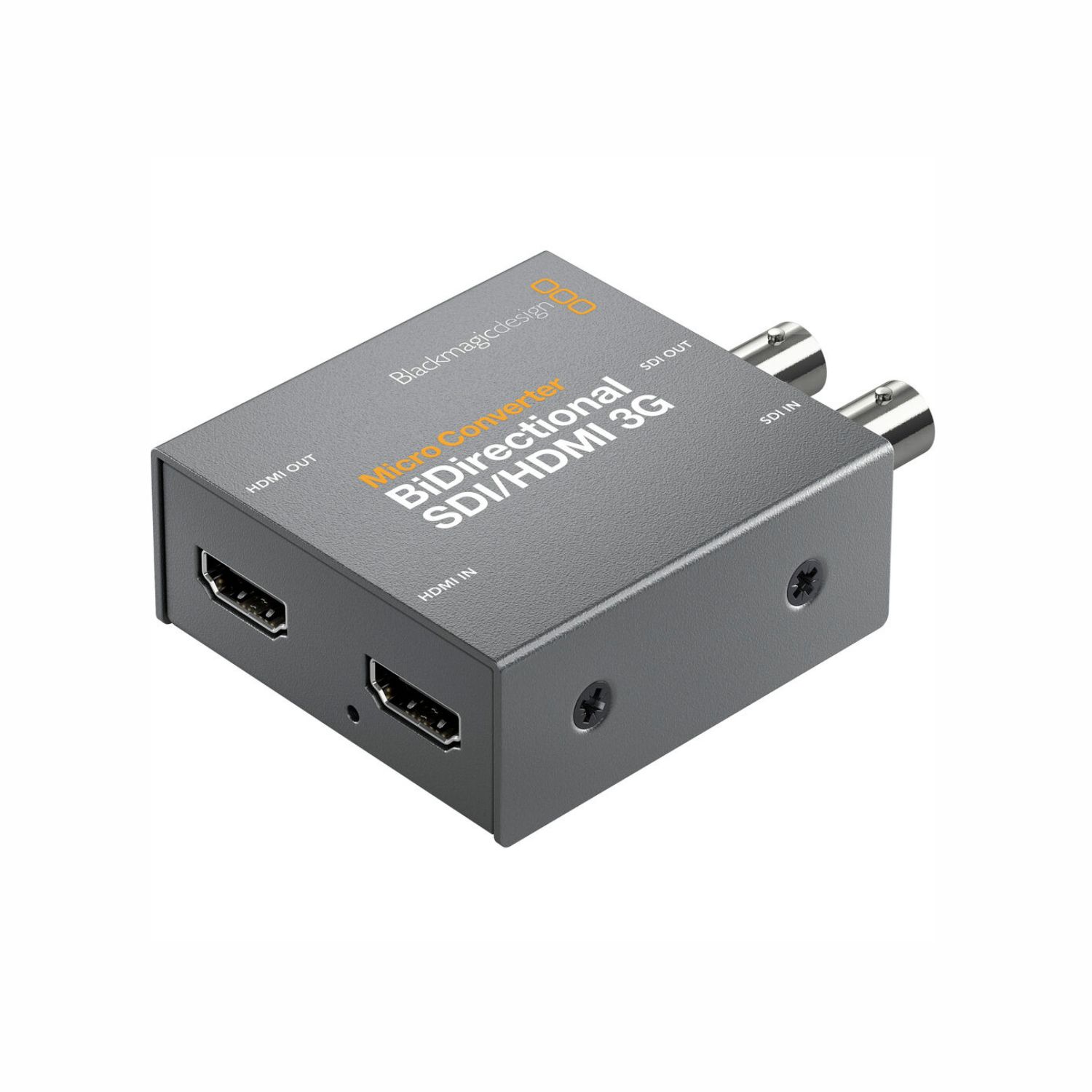

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G with Power Supply

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G

Transform Your Video Workflow with the Blackmagic Design Micro Converter BiDirectional
Upgrade your video production game with the Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G with Power Supply. This versatile device allows seamless conversion between SDI and HDMI signals in both directions, making it a must-have tool for content creators, broadcasters, and videographers. Whether you’re working with professional SDI equipment or consumer-grade HDMI devices, this converter ensures smooth compatibility and hassle-free integration.

Bidirectional Conversion:
Easily convert SDI to HDMI and HDMI to SDI in real-time, even when using different formats. With this capability, you can now connect your Blackmagic Pocket Cinema Cameras to professional SDI live production switchers, unlocking new creative possibilities.

Compact and Portable:
The world’s smallest bidirectional broadcast quality converter, the Blackmagic Design Micro Converter, fits in the palm of your hand. Take it with you on shoots, events, or in the studio, and experience the power of professional video conversion wherever you go.

Camera Control Protocol Support:
This converter goes beyond simple signal conversion. It also supports camera control protocol conversion, enabling seamless communication between your cameras and SDI production switchers. Enjoy full control over your cameras during live shoots, streamlining your workflow and enhancing your production value.

International Power Supply:
The package includes a 100-240V AC power supply with international socket adapters, ensuring compatibility across various power standards worldwide. Travel with confidence, knowing that your converter can adapt to different power systems.

Why Choose the Blackmagic Design Micro Converter BiDirectional?

Versatility:
With bidirectional conversion and camera control protocol support, this Micro Converter empowers you to create, stream, and produce with unmatched flexibility. Seamlessly integrate different video equipment and elevate your productions to new heights.

Reliability:
Trust in Blackmagic Design’s renowned quality and reliability. The Micro Converter is built to withstand demanding environments, ensuring your video signals stay stable and secure throughout your shoots.

Portability:
Its compact size allows for easy transport and setup anywhere. From remote locations to studio setups, the Micro Converter fits effortlessly into your workflow.

Specifications

• Connections
  SDI Video Inputs
  1 x SD, HD or 3G-SDI.
  SDI Video Outputs
  Automatically matches the HDMI video input.
  HDMI Video Inputs
  HDMI Type A in.
  HDMI Outputs
  HDMI Type A out.
  Multi Rate Support
  Auto detection of SD or HD.
  Updates, Configurations and Power
  USB Type‑C.
  Reclocking
  Yes
• Standards
  SDI Video Standards
  525i59.94 NTSC, 625i50 PAL
  HD Video Standards
  720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
  1080PsF25, 1080PsF29.97, 1080PsF30
  1080i50, 1080i59.94, 1080i60
  2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
  2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
  SDI Compliance
  SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
  SDI Video Rates
  SDI video connections are automatically switchable between standard definition and high definition, and user selectable for level A or B via setup utility.
  SDI Color Precision
  4:2:2
  SDI Color Space
  YUV
  SDI Auto Switching
  Automatically detects SD, HD and 3G-SDI
  HDMI Video Standards
  525i29.97 NTSC, 625i25 PAL
  720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
  1080i50, 1080i59.94, 1080i60
  HDMI Color Precision
  4:2:2
  HDMI Color Space
  YUV
• Copy Protection
  HDMI input is unable to capture from copy protected HDMI sources.
  Always confirm copyright ownership before capture or distribution of content.
• Camera Control
  Bidirectional signal conversion supports Blackmagic Camera Control and Tally.
• Settings Control
  Via MacOS™ and Windows™ software utility connected by USB.
• Operating Systems
  Mac 10.15 Catalina,
  Mac 11.1 Big Sur or later.
  Windows 10, 64-bit.
• Software
  Internal software upgrade via USB.
• Power Requirements
  Power Consumption
  2.5 W
  Operational Voltage Range
  4.4 to 5.25V DC
• Environmental Specifications
  Operating Temperature
  0° to 40° C (32° to 104° F)
  Storage Temperature
  -20° to 60° C (-4° to 140° F)
  Relative Humidity
  0% to 90% non-condensing
