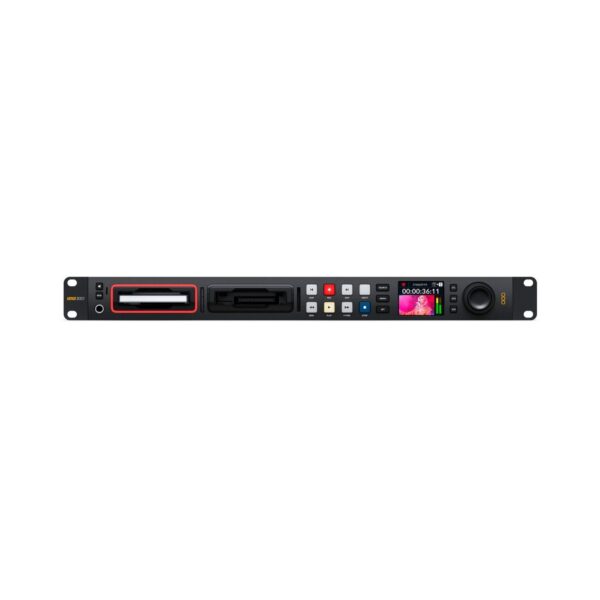

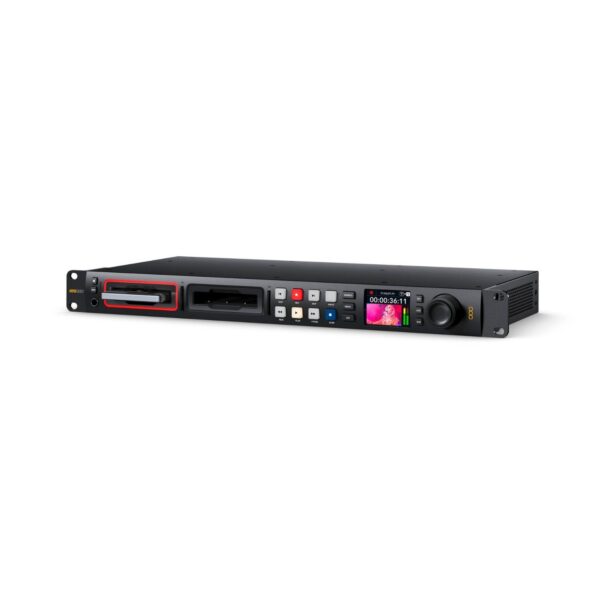

Blackmagic Design HyperDeck Studio 4K Pro

Blackmagic Design HyperDeck Studio 4K Pro

For extreme power, the HyperDeck Studio 4K Pro has all the features of the HD models, combined with incredible processing for working in Ultra HD. This model’s SDI has been upgraded to full 12G-SDI with a loop 12G-SDI output. The two SDI outputs are both 12G-SDI so you can play ProRes 4444 files for true Ultra HD fill and key out. The HDMI connections and the ProRes and DNx file formats all switch between SD, HD and Ultra HD television standards. Like the other models, H.264 is included for SD and HD, but then switches to H.265 when recording in Ultra HD. Even the networking has been upgraded to 10G Ethernet for incredible speed! You also get 2 redundant AC power supplies!

Specifications

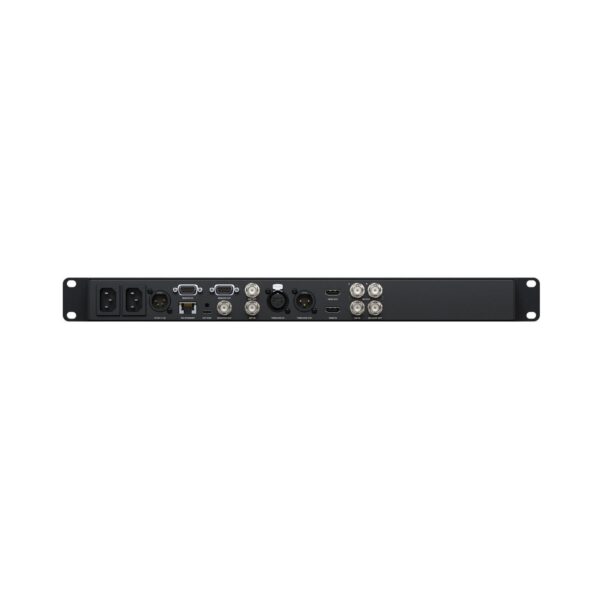

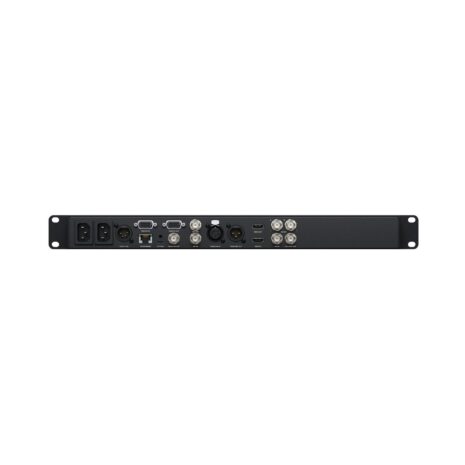

• Connections
  SDI Video Inputs
  1
  SDI Video Outputs
  2
  SDI Monitor Outputs
  1
  SDI Rates
  270Mb, 1.5G, 3G, 6G, 12G.
  HDMI 2.0 Video Inputs
  1
  HDMI 2.0 Video Outputs
  1
  Built in Speaker
  Mono
  Audio Output
  1 x 6.35 mm headphone jack.
  Screen
  2.2 inch LCD.
  Timecode Connections
  1 x XLR In, 1 x XLR Out.
  Reference Connections
  1 x BNC In, 1 x BNC Out.
  Tri-Sync or Black Burst.
  SDI Audio Inputs
  16 channels embedded audio.
  SDI Audio Outputs
  16 channels embedded audio.
  HDMI Audio Inputs
  8 channels embedded audio.
  HDMI Audio Outputs
  8 channels embedded audio.
  Remote Control
  1 x RS-422 In, 1 x RS-422 Out.
  Recorder Configuration
  Via user interface or
  Blackmagic HyperDeck Ethernet Protocol.
  Ethernet
  10Gb/s
  Computer Interface
  1 x USB Type-C 3.1 Gen 2 (up to 10Gb/s)
  for external drive recording, webcam out,
  software configuration and updates.
• Standards
  SD Video Standards
  525i59.94 NTSC, 625i50 PAL
  HD Video Standards
  720p50, 720p59.94, 720p60
  1080i50, 1080i59.94, 1080i60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
  2K DCI Video Standards
  2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
  Ultra HD Video Standards
  2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  4K DCI Video Standards
  4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
  SDI Compliance
  SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1.
  SDI Metadata Support
  HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI.
  Supported HDMI Formats
  525i59.94 NTSC, 625i50 PAL,
  720p50, 720p59.94, 720p60,
  1080i50, 1080i59.94, 1080i60,
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
  2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI,
  2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60,
  4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
  Audio Sampling
  Television standard 24‑bit, 48 kHz sample rate.
  Video Sampling
  4:2:2 YUV
  Color Precision
  10‑bit
  Color Space
  REC 601, REC 709, REC 2020.
  33 point 3D LUTS can be applied to SDI monitor out.
  HDR Support
  Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.
  Multi Rate Support
  Auto detection of SD, HD, 6G‑SDI and 12G‑SDI.
  Copy Protection
  HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
• Media
  Media
  2 x 2.5 inch disc slots
  2 x SD card slots
  1 x USB‑C 3.1 Gen 2 expansion port
  for external recording of SD, HD,
  2K DCI, Ultra HD and 4K DCI.
  Media Type
  SATA-II or SATA-III 2.5 inch solid state media.
  UHS-I and UHS-II SD cards.
  Media Format
  Can format media to ExFAT (Windows/Mac)
  or HFS+ (Mac) file systems.
• Supported Codecs
  ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60. Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps.DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps. H.265 SDI 4:2:2 10‑bit, H.265 High 4:2:0 10‑bit, H.265 Medium 4:2:0 10‑bit, H.265 Low 4:2:0 10‑bit for all 2160p formats up to 60 fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60.
• Control
  Built in Control Panel
  16 buttons for transport and device control with search dial featuring electronic clutch and 2.2 inch color display.
  External Control
  RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.
• Software
  Software Included
  Blackmagic OS
  Blackmagic HyperDeck Setup
  Internal Software Upgrade
  Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
• Operating Systems
  Mac 10.15 Catalina,
  Mac 11.1 Big Sur or later.
  Windows 10, 64-bit.
• Displays
  Built in 2.2 inch LCD for video, audio and timecode monitoring and menu settings.
  LED bezel indicator lights around SSD media slots and LED indicator lights above the SD media slots.
• Power Requirements
  Power Supply
  2 x Internal 100 – 240V AC 50/60Hz.
  1 x 4 pin XLR 12V DC In for external power supply
  or battery use.
  Power Usage
  100 W max.
• Accessories
  Optional Accessories
  HyperDeck Extreme Control
• Physical Installation
  1 rack unit height.
• Environmental Specifications
  Operating Temperature
  0° to 40° C (32°to 104° F)
  Storage Temperature
  -20° to 60° C (-4° to 140° F)
  Relative Humidity
  0% to 90% non‑condensing
• What’s Included
  HyperDeck Studio 4K Pro
