Blackmagic Design DeckLink Mini Monitor 4K

Blackmagic Design DeckLink Mini Monitor 4K

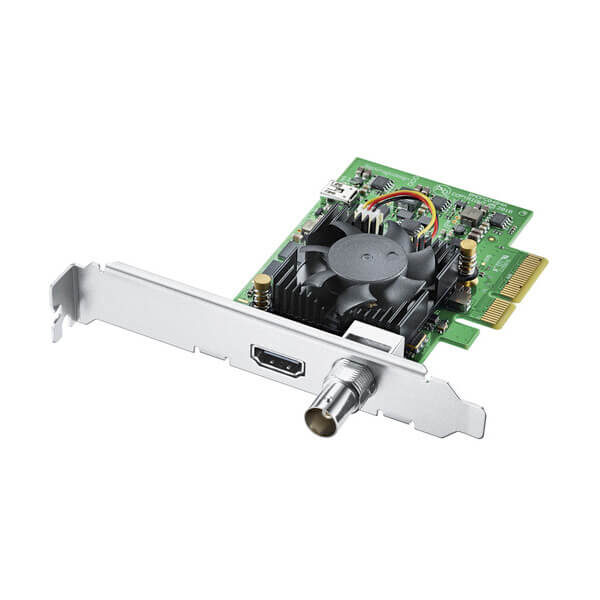

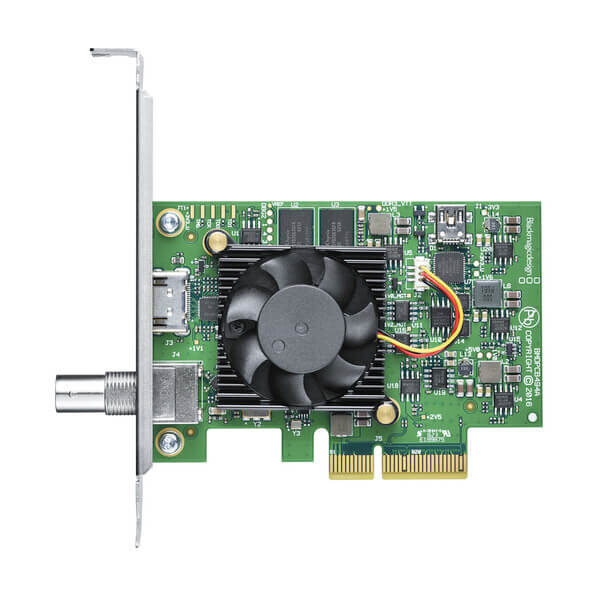

DeckLink Mini Monitor 4K is a low profile PCI Express playback card, featuring 6G-SDI and the latest HDMI 2.0a connections so you can monitor all formats up to 2160p30 from your computer! The SDI and HDMI outputs let you connect to any television or monitor and automatically detect and switch between all video formats. You even get high dynamic range playback and metadata over HDMI. You can even develop your own custom playback solutions using the Blackmagic Desktop Video SDK for Mac OS, Windows and Linux! Includes two PCI Express shields for both full height and low profile slots.

Specifications

• Connections
  SDI Video Outputs
  1 x 10 bit SD/HD/Ultra HD switchable.
  SDI Audio Outputs
  16 channels embedded in SD, HD, Ultra HD.
  HDMI Video Outputs
  1 x HDMI 2.0a connector.
  HDMI Audio Outputs
  8 Channels embedded in SD, HD, Ultra HD.
  Computer Interface
  PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
• Supported Codecs
  AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.
• Software
  Software Included
  Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
  Internal Software Upgrade
  Firmware built into software driver. Loaded at system start or via updater software.
  Physical Installation
  PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
• Video Standards
  SD Video Standards
  525i59.94 NTSC, 625i50 PAL
  HD Video Standards
  720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
  1080i50, 1080i59.94, 1080i60
  Ultra HD Video Standards
  2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
  4K DCI Video Standards
  4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p.
  2K Video Standards (SDI Only)
  2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
  2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI F25PsF
  SDI Compliance
  SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601.
  SDI Metadata Support
  RP 188/SMPTE 12M-2 and closed captioning.
  Audio Sampling
  Television standard sample rate of 48 kHz and 24 bit.
  SDI Color Precision
  8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p60, and 8, 10-bit YUV 4:2:2 in all modes.
  SDI Video Sampling
  4:4:4 & 4:2:2
  Color Space
  REC 601, REC 709, REC 2020.
  SDI HDR Support
  HDR static metadata packing, HLG and PQ transfer characteristics.
  HDMI Video Sampling
  4:4:4, 4:2:2 & 4:2:0
  HDMI Configuration
  HDMI 2.0a supports Deep Color and HDR. Automatically configures to connected display.
  HDMI Resolution
  Pixel for pixel HD resolution output to connected device.
  HDMI Color Precision
  Up to 12-bit (Deep Color)
  HDMI HDR Support
  HDR static metadata packing, HLG and PQ transfer characteristics.
  Multiple Rate Support
  HDMI and SDI video connections are switchable between SD/HD/2K and 4K.
• Processing
  HD to SD Down Conversion
  Software based down conversion during video playback.
  HD Cross Conversion
  Software based cross conversion from 720p to 1080HD on playback.
  Colorspace Conversion
  Hardware based real time.
  Real Time Effects
  DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
• Operating Systems
  Mac 11.1 Big Sur,
  Mac 12.0 Monterey or later.
  Windows 8.1, 10 and 11, all 64-bit.
  Linux
• Power Requirements
  Power Consumption
  10 Watts
• Environmental Specifications
  Operating Temperature
  5° to 40° C (32° to 104° F)
  Storage Temperature
  -20° to 45° C (-4° to 113° F)
  Relative Humidity
  0% to 90% non-condensing
• What’s Included
  DeckLink Mini Monitor 4K
  Low profile slot bracket
