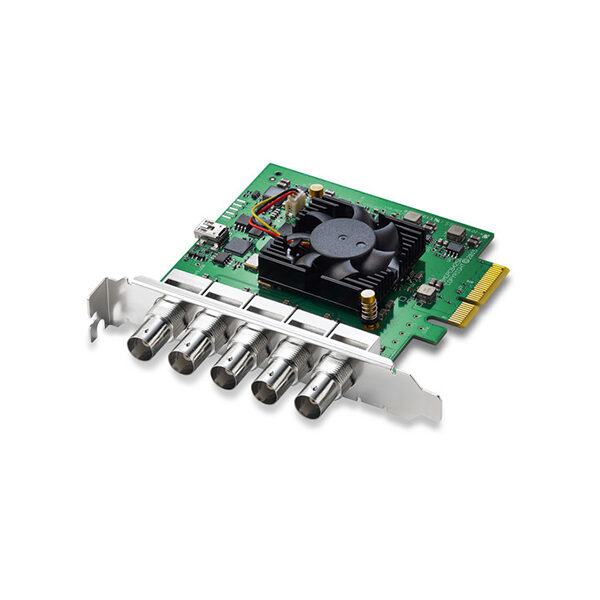

Blackmagic Design DeckLink Duo 2

Blackmagic Design DeckLink Duo 2

Featuring 4 independent 3G-SDI connections, DeckLink Duo 2 is a PCI Express capture and playback card that supports SDI formats in SD and HD up to 1080p60! You get the flexibility of 4 separate capture or playback cards in one! Plus, it’s completely customizable so it’s perfect for media play-out systems, multi screen digital signage servers, real time multi channel capture systems and more!

Specifications

• Connections
  SDI Video Inputs
  4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output.
  SDI Video Outputs
  4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output.
  SDI Audio Inputs
  16 channels embedded in SD and HD.
  SDI Audio Outputs
  16 channels embedded in SD and HD.
  Sync Input
  Tri-Sync or Black Burst.
  Computer Interface
  PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
• Supported Codecs
  AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10‑bit 4:4:4
• Software
  Software Included
  Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
  Internal Software Upgrade
  Firmware built into software driver. Loaded at system start or via updater software.
  Physical Installation
  PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
• Other supported applications include:
  The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video WebClip2Go & [REC]Marker, Autodesk Flame, Zoom.
• Video Standards
  SD Video Standards
  525i59.94 NTSC, 625i50 PAL
  HD Video Standards
  720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60
  1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
  1080i50, 1080i59.94, 1080i60
  SDI Compliance
  SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601.
  SDI Metadata Support
  RP 188/SMPTE 12M-2 and closed captioning.
  Audio Sampling
  Television standard sample rate of 48 kHz and 24 bit.
  SDI Color Precision
  8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback.
  SDI Video Sampling
  8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback.
  Color Space
  REC 601, REC 709
• Processing
  Colorspace Conversion
  Hardware based real time.
  HD Down Conversion
  Built in, high quality software down converter on playback and capture. Down converted SD selectable between letterbox and anamorphic 16:9 styles.
  HD Up Conversion
  Built in, high quality software up converter from SD to 720HD or 1080HD on input. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom.
  Cross Conversion
  Built in, high quality software cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback.
  Real Time Effects
  DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
• Operating Systems
  Mac 10.15 Catalina,
  Mac 11.1 Big Sur or later.
  Windows 8.1 and 10, both 64-bit.
  Linux
• Power Requirements
  Power Consumption
  10 Watts
• Environmental Specifications
  Operating Temperature
  5° to 40 ° C (32° to 104° F)
  Storage Temperature
  -20° to 45° C (-4° to 113° F)
  Relative Humidity
  0% to 90% non-condensing
• What’s Included
  DeckLink Duo 2
