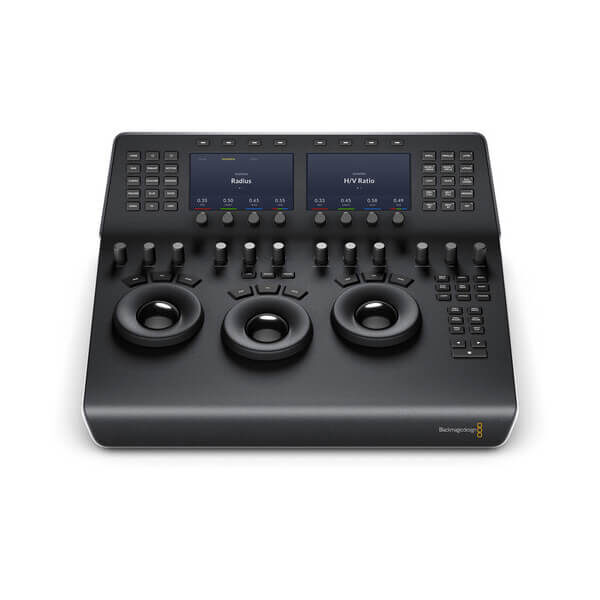

Blackmagic Design DaVinci Resolve Mini Panel

Name: Blackmagic Design DaVinci Resolve Mini Panel
Brand: Blackmagic Design
SKU: 1603
Price: 199999 INR
Availability: OutOfStock

Original price was: ₹228,700.Current price is: ₹199,999.
You save ₹28,701! & Free Shipping

Out of stock

Key Features

3 x High-Resolution Track Balls
12 Primary Correction-Control Knobs
18 Navigation and Transport Keys
Dedicated Feature Buttons

EXTRA 2% Discount: ₹195999.02

FLAT 2% Off when you make a payment via Bank Transfer at Check Out.

Free shipping on orders!

GST Invoice For Input Credit
Price Includes GST
Secure Payments
No Hassle Refunds

GUARANTEED SAFE CHECKOUT

SKU: 1603 Categories: Accessories, Video Accessories, Video Mixer / Switcher / Converters

Description
Additional information

Blackmagic Design DaVinci Resolve Mini Panel

The DaVinci Resolve Mini Panel from Blackmagic Design is a step-up in functionality from the Micro panel but without all the features of the Advanced panel. It is a portable control surface suitable for those that need to switch between editing and color grading. It can sit on your desk top, in a rack, or be bolted to a surface. As with the Micro panel, it features three high-resolution, weighted trackballs and 12 control knobs for accessing essential primary color-correction tools in the Resolve software. 18 dedicated keys on the right side also give you access to the most commonly used grading features and playback controls.

However, the Mini Panel also features two LCD screens that allow you to display menus or the parameters of the tools you are working with. Eight customizable soft knobs provide precise control and a quick reset by pushing the knob. Dedicated feature buttons allow you to change tools without needing to use the mouse. The Mini panel incorporates a USB Type-C and Ethernet interface. It is compatible with Mac, Windows, and select Linux systems. You can power the panel via an AC power source, a 4-pin XLR connector, or PoE. For the panel to work with Resolve, your computer must be running DaVinci Resolve 12.5.5 or DaVinci Resolve Studio 12.5.5 or later. An included USB 3.0 Type-A to USB Type-C cable provides backward compatibility for systems that are limited to USB Type-A connectors.

Small enough to take with you, so you can bring it to any Resolve system (12.5.5 or later) and do color correction on location or at the editor’s suite

Shares basic layout with both Micro and Advanced Panels

Interfaces with and controls software

Three track balls with outer control rings

Log and Offset color-correction selection buttons

Buttons are backlit and light up when actuated

Two LCD display screens for displaying the menu system or the parameters of the tools you are wotking with

Custom control knobs with 4096 steps per rotation and push button reset

Primary Correction Creative Control Knobs: Control knobs are grouped into four sets of three knobs

Luminance

Y Lift Control: Adjust the contrast of the image in the darker areas, specifically in the Y (luminance) channel only. This adjustment allows changing the black point without changing saturation.
Y Gamma Control: Adjust the contrast of the image in the mid-tone areas, specifically in the Y (luminance) channel only. This control helps add depth and extra vibrancy to shots
Y Gain: You can reduce hot spots or tweak the whites to define a look.

Contrast

Contrast Control: Increase contrast to make the blacks darker and the whites brighter, or decrease contrast to do the opposite.
Pivot: Change the center of tonality about which dark and bright parts of the image are stretched or narrowed during a contrast adjustment.
Mid-Tone Detail: Affect the contrast of regions of the image with high edge detail to increase or decrease the perception of image sharpness and definition. Often used for softening facial features making it popular for beauty shots.

Detail

Color Boost Control: Raise the saturation in regions of the image with low saturation while leaving properly saturated areas alone. Also known as a vibrance operation, this is useful for adding color without over-saturating the image.
Shadow Control: Selectively lighten or darken shadow detail without affecting your images mid-tones.
Highlight Control: Enable retrieving blown-out highlight detail in high dynamic range media by lowering this parameter. This allows you to achieve a smooth blend between the retrieved highlights and unadjusted mid tones for a natural-looking image.

Saturation

Increases or decreases overall image saturation — you can turn your color image into a grayscale image with this control.

Hue Control: Rotates all hues of the image around 360° of the color wheel. The default setting is 50, which retains the original distribution of hues.
Luminance Mix Control: Controls the balance between the YRGB adjustments and Y only adjustments made using the Y channel lift, gamma, and gain controls.

The system powers from either AC power or a 12 VDC source via the 4-pin XLR connector.

The Mini panel can sit on a desktop, be mounted in a rack, or mounted to a surface to prevent theft or be used in a moving vehicle or on a cart.
