Blackmagic Design ATEM SDI Switcher

Blackmagic Design ATEM SDI Switcher

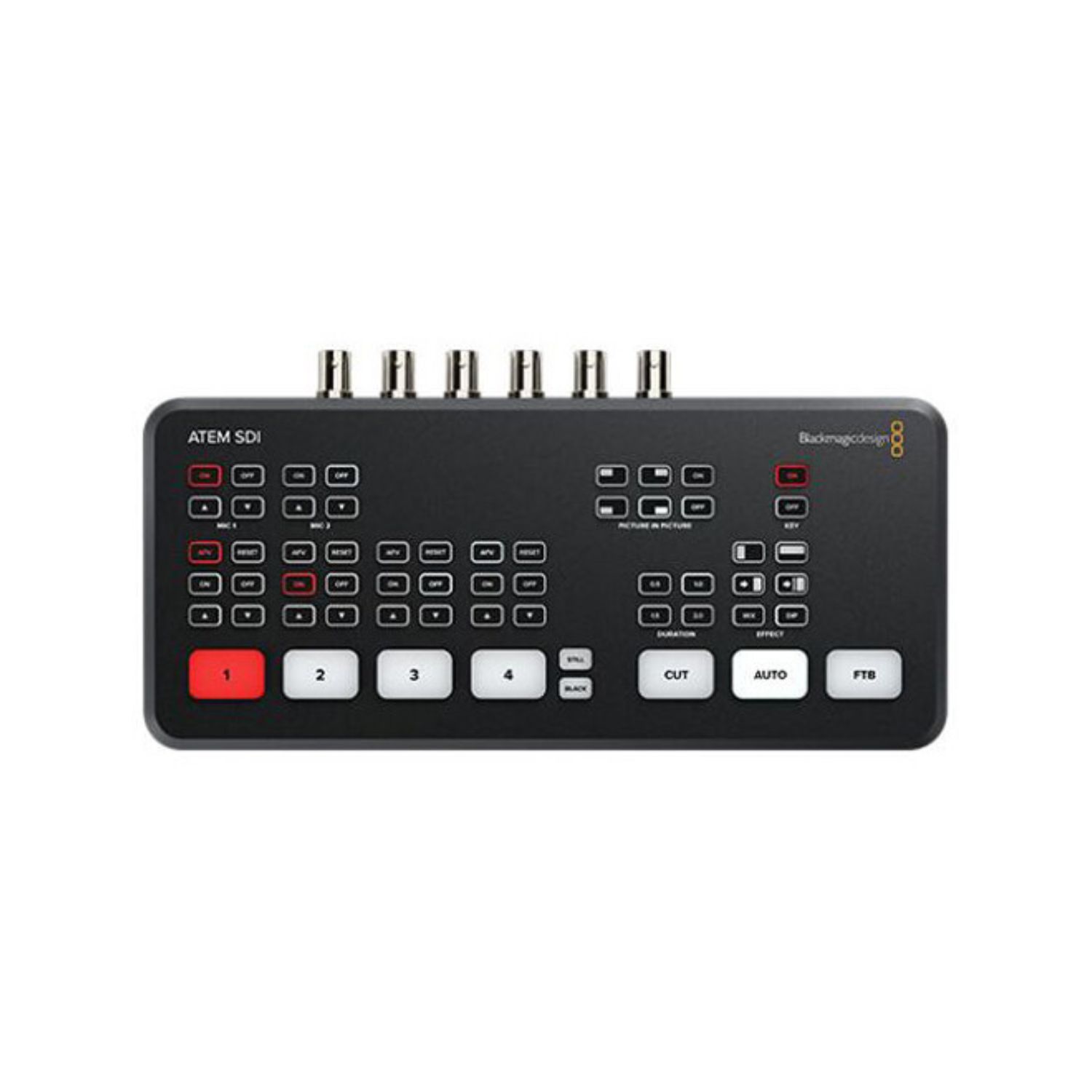

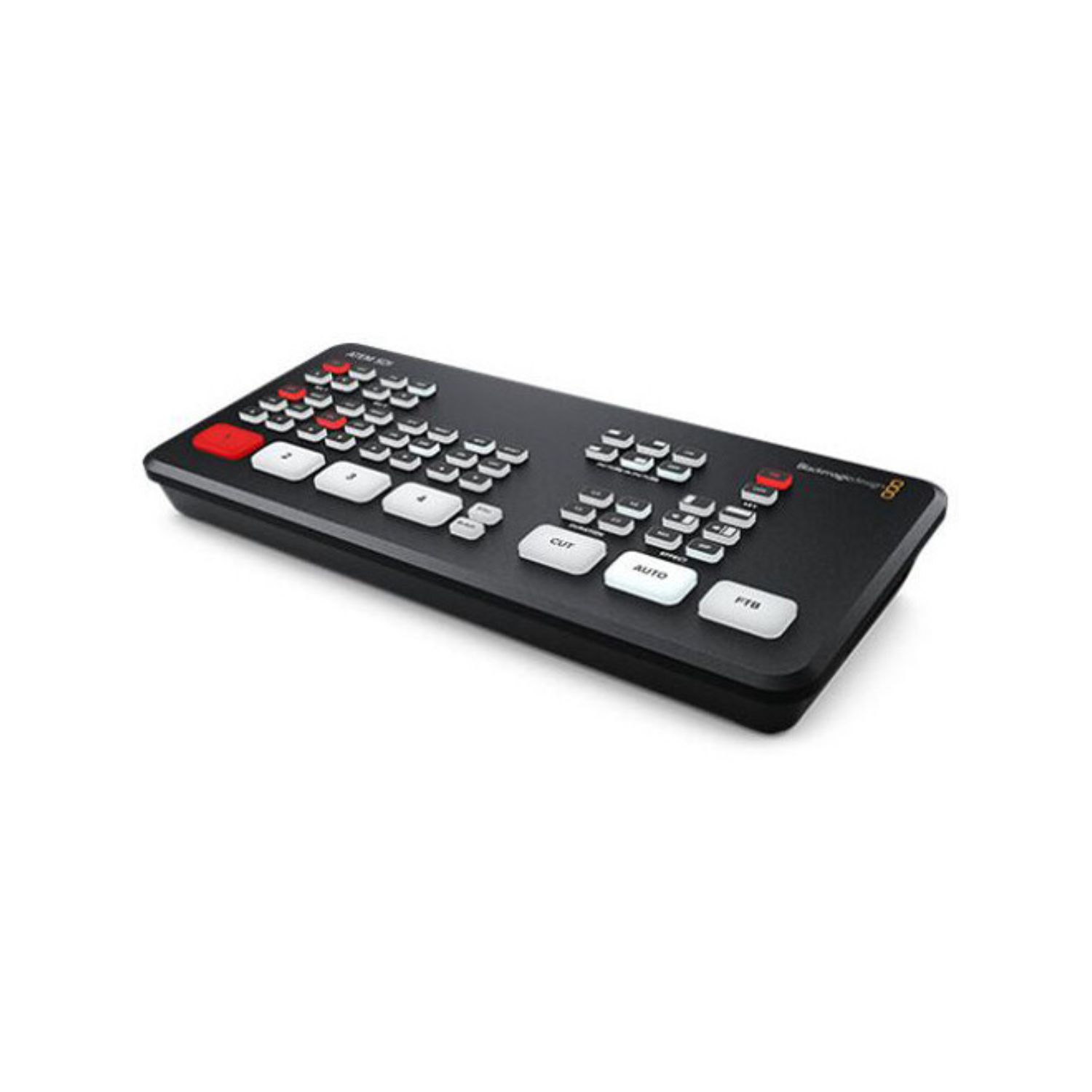

ATEM SDI is fast to set up and easy to use. It includes 4 standards converted SDI inputs, USB webcam, 2 SDI outputs, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control.

Specifications

• Connections
  Total Video Inputs
  4
  Total Outputs
  3
  Total Aux Outputs
  2
  Total Audio Inputs
  2 x 3.5mm stereo mini jack.
  Total Audio Outputs
  None, embedded audio only.
  Timecode Connection
  None

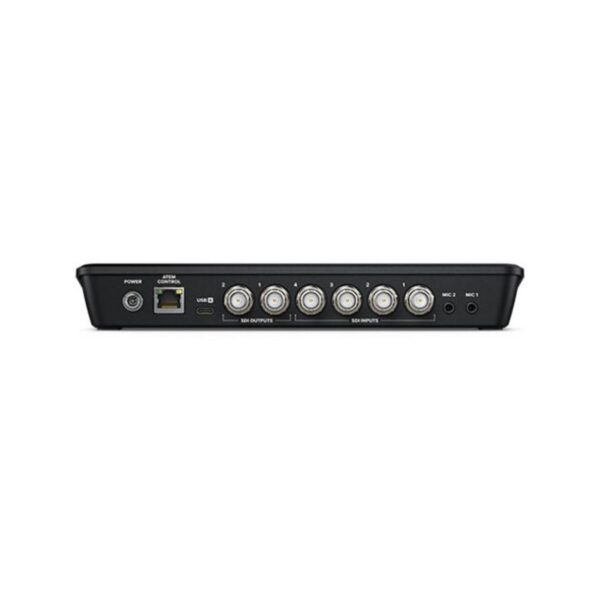

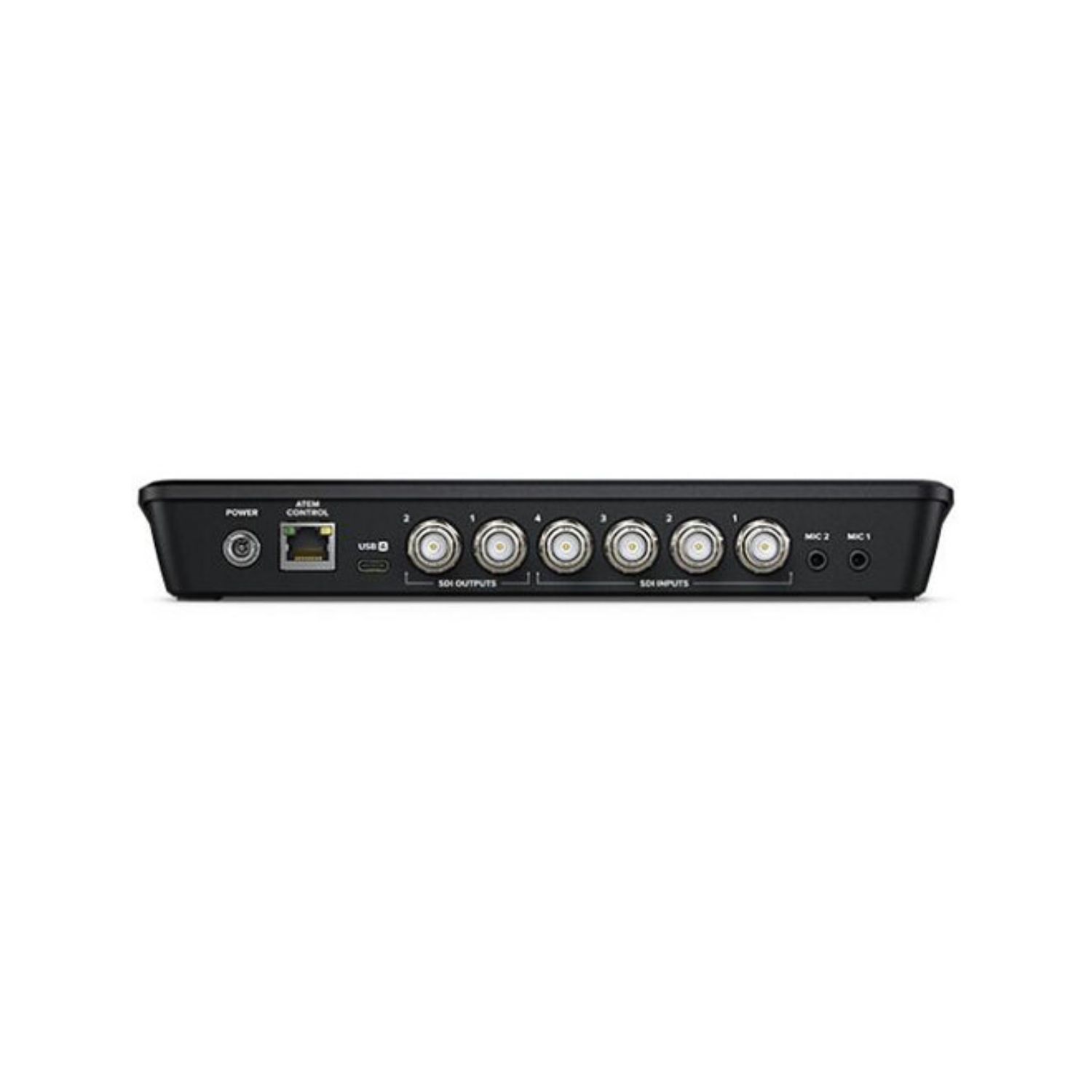

  SDI Video Inputs
  4 x 3G-SDI, 10-bit HD switchable.
  2 channel embedded audio.
  Video Input Re-Sync
  On all 4 SDI inputs.
  Frame Rate and Format Converters
  On all 4 SDI inputs.
  SDI Program Outputs
  2
  Ethernet
  Ethernet supports 10/100/1000 BaseT software control, software updates and direct or network panel connection.
  Computer Interface
  1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection.
• Standards
  HD Video Input Standards
  720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  1080i50, 1080i59.94, 1080i60
  HD Video Output Standards
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  Video Streaming Standards
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  Ultra HD Video Standards
  None
  Video Sampling
  4:2:2 YUV
  Color Precision
  10-bit
  Color Space
  Rec 709
  Colorspace Conversion
  Hardware based real time.
• Product Specifics
  Upstream Keyers
  1
  Downstream Keyers
  1
  Advanced Chroma Keyers
  1
  Linear/Luma Keyers
  2
  Transition Keyer
  DVE only.
  Total Number of Layers
  5
  Pattern Generators
  1
  Color Generators
  2
  DVE With Borders and Drop Shadow
  1
  Interface
  Minimum monitor resolution of 1366 x 768.
• Audio
  Audio Mixer
  6 input x 2 channel mixer.
  Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
  Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
  Analog Input
  Unbalanced stereo
  Analog Input Delay
  Up to 8 frames
  Input Impedance
  1.8k
  Max Input Level
  +6dBV
  Mic Plug In Power
  Available on both 3.5mm mini jack connections.
• Media Player
  Media Players
  1
  Channels
  Fill and key for each Media Player.
  Media Pool Still Image Capacity
  20 with fill and key.
  Media Pool Still Image Format
  PNG, TGA, BMP, GIF, JPEG and TIFF.
• Control
  Control Panel
  Built in control panel. Software control panel included. Supports optional hardware panel.
  Control Panel Connection
  Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM SDI supports direct USB-C connection.
  Control Panel Compatibility
  Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel.
  Control Panel Included
  ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 or 11.
• Software
  Software Updates
  Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
  Configuration
  Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
• Operating Systems
  Mac 11.0 Big Sur,
  Mac 12.0 Monterey or later.
  Windows 10 and 11.
• Power Requirements
  Power Supply
  1 x External 12V power supply.
  Power Usage
  18W
• Environmental Specifications
  Operating Temperature
  5° C to 40° C (41° – 104° F)
  Storage Temperature
  -10° to 60° C (14° to 140° F)
  Relative Humidity
  0% to 90% non-condensing
• What’s Included
  ATEM SDI
  External 12V DC power supply with international socket adapters
• Warranty
  12 Months Limited Manufacturer’s Warranty.
