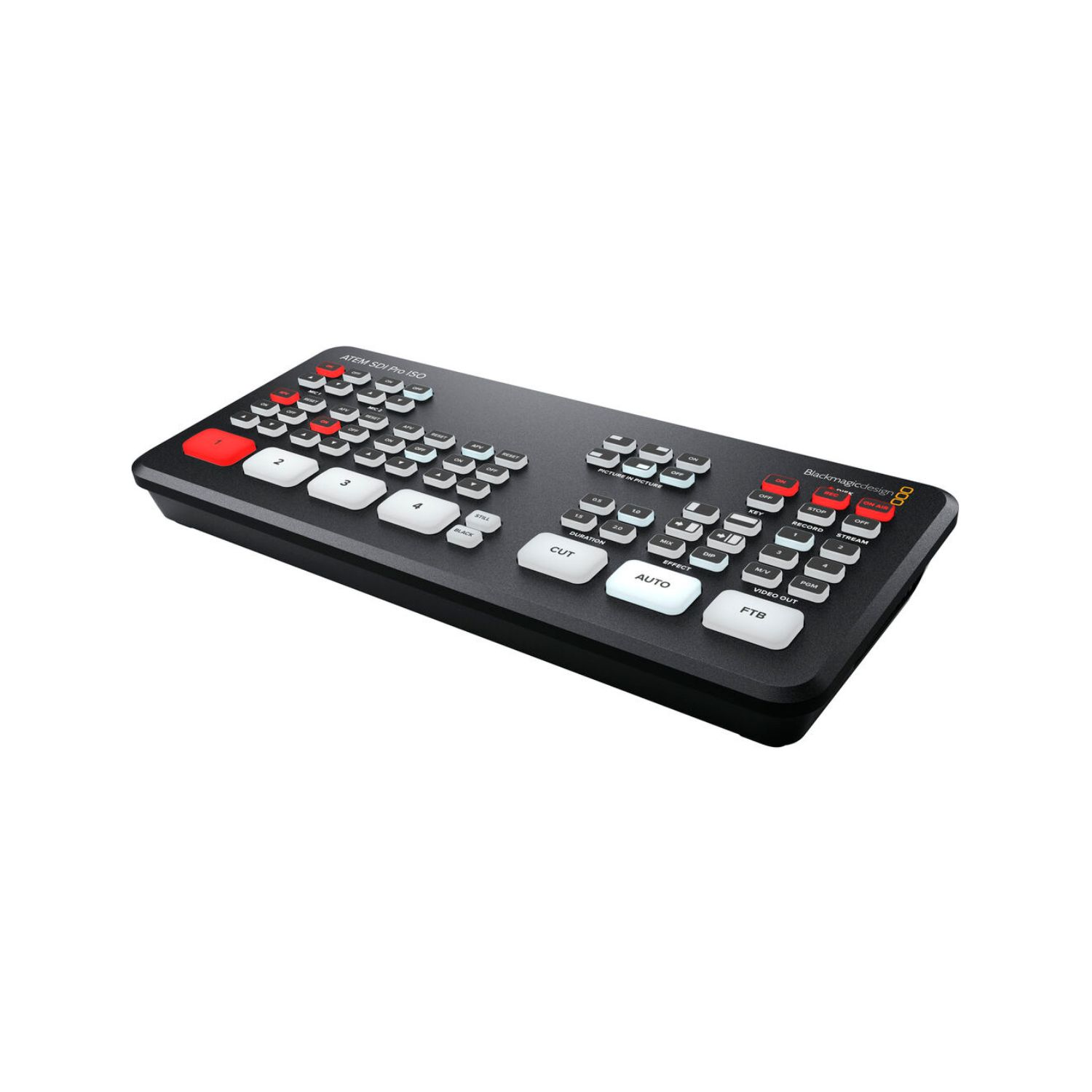

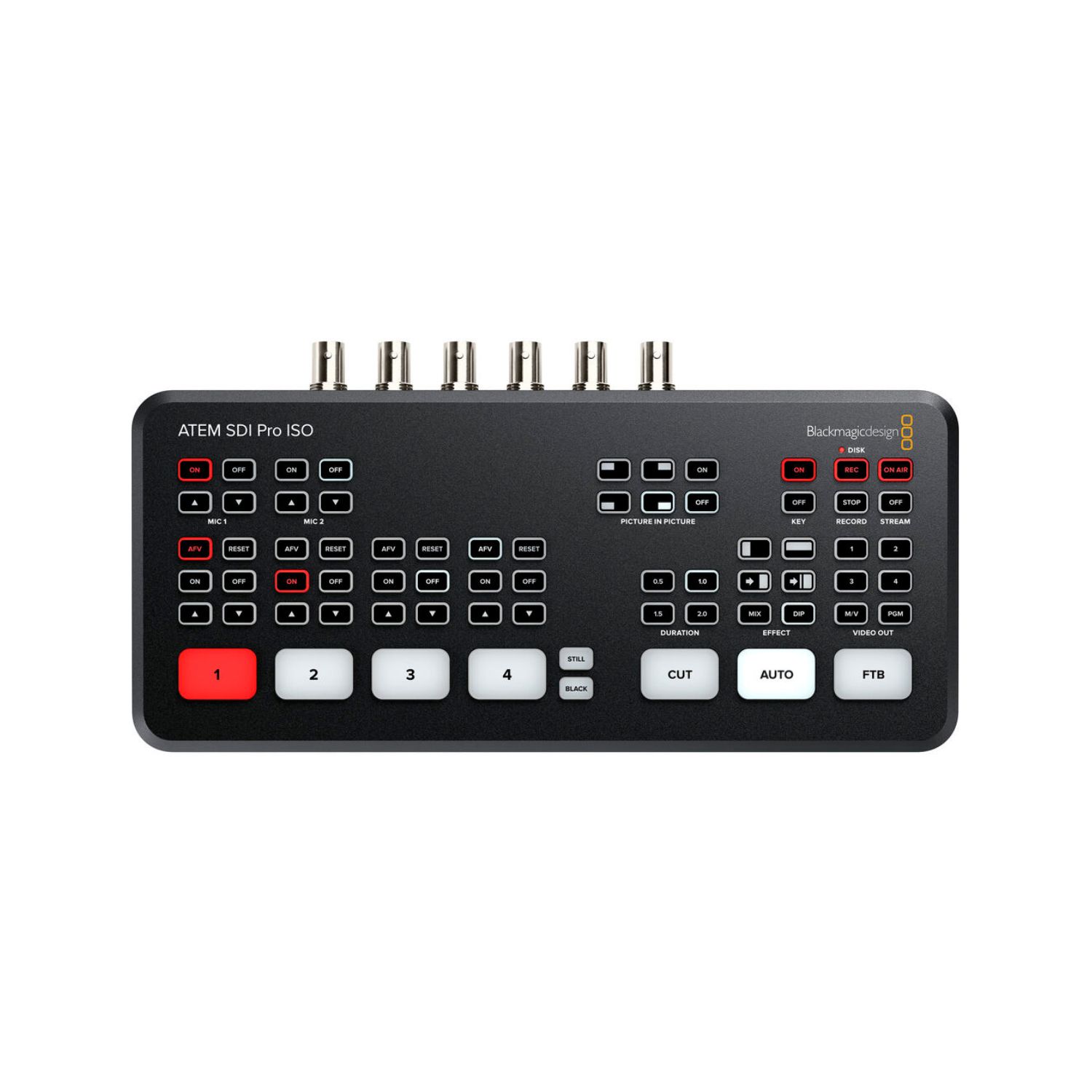

Blackmagic Design ATEM SDI Pro ISO Switcher

Blackmagic Design ATEM SDI Pro ISO Switcher

This model includes the features of ATEM SDI plus it adds built in streaming and recording to 5 video streams in real time! That’s a clean feed of all inputs for multi‑cam editing! A DaVinci Resolve project is saved so you can open your live production to edit, remix audio and add color correction!

Connecting a USB drive to the ATEM Mini Pro ISO’s USB port enables capturing the switched program stream, up to four isolated (ISO) recordings of input video, and embedded audio, analog input audio, graphics, and a DaVinci
Resolve project file of your switched program

• The device has the same footprint, layout, and connections of the ATEM Mini Pro
• Stream video up to 1080p HD
• Quick stream, on-air, and record buttons
• Hardware encoder so there’s no need for additional streaming software
• Control and configure timecode, stream status
• Full support and control features for BMPCC 6K/4K cameras
• Simultaneous USB recording
• Integration with MultiDock for live hard drive switching
• Customize advanced settings with XML files
• Software multiview with program previews, graphics, record status, on-air status, and audio meters
• Program preview input and output buttons
• Tally light control for BMPCC 6K/4K cameras
• Automatic timecode sync for all cameras

Specifications

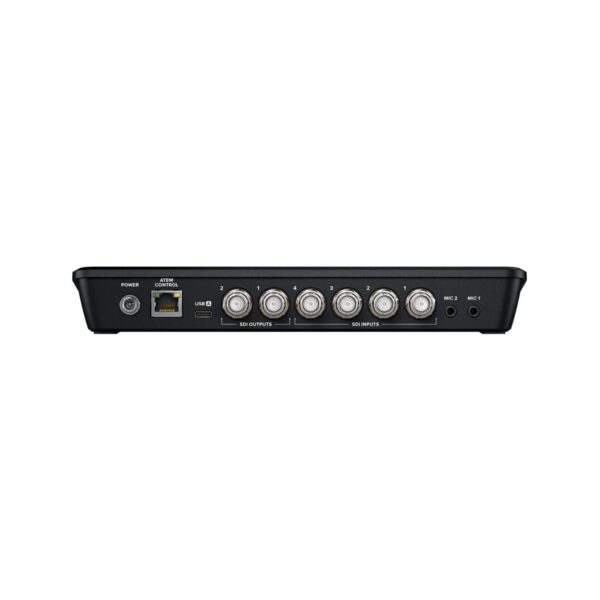

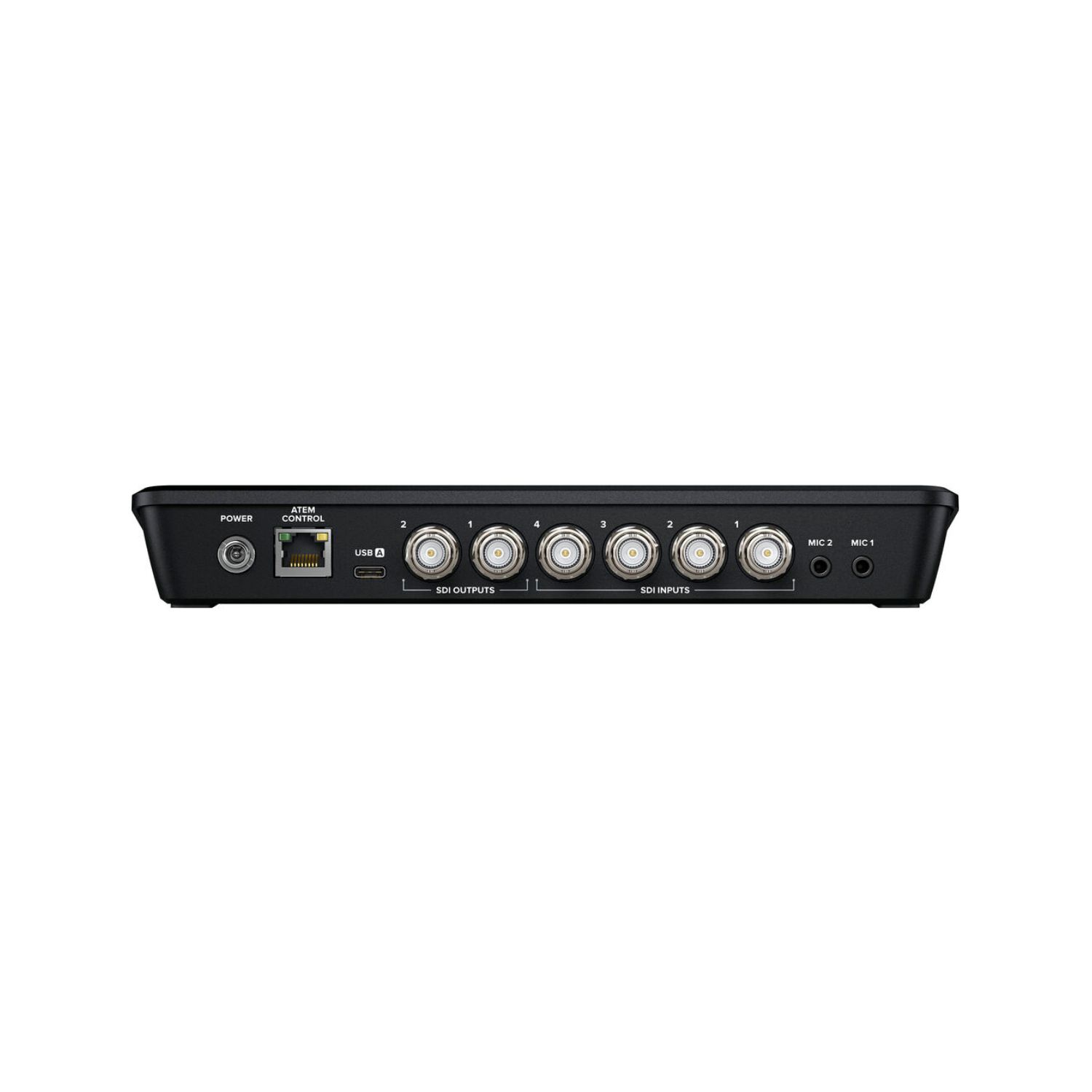

• Connections
  Total Video Inputs
  4
  Total Outputs
  3
  Total Aux Outputs
  2
  Total Audio Inputs
  2 x 3.5mm stereo mini jack.
  Total Audio Outputs
  None, embedded audio only.
  Timecode Connection
  None
  SDI Video Inputs
  4 x 3G-SDI, 10-bit HD switchable.
  2 channel embedded audio.
  Video Input Re-Sync
  On all 4 SDI inputs.
  Frame Rate and Format Converters
  On all 4 SDI inputs.
  SDI Program Outputs
  2
  Ethernet
  Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
  Computer Interface
  1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
• Standards
  HD Video Input Standards
  720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  1080i50, 1080i59.94, 1080i60
  HD Video Output Standards
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  Video Streaming Standards
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  Ultra HD Video Standards
  None
  Video Sampling
  4:2:2 YUV
  Color Precision
  10-bit
  Color Space
  Rec 709
  Colorspace Conversion
  Hardware based real time.
• Product Specifics
  Upstream Keyers
  1
  Downstream Keyers
  1
  Advanced Chroma Keyers
  1
  Linear/Luma Keyers
  2
  Transition Keyer
  DVE only.
  Total Number of Layers
  5
  Pattern Generators
  1
  Color Generators
  2
  DVE With Borders and Drop Shadow
  1
  Interface
  Minimum monitor resolution of 1366 x 768.
• Audio
  Audio Mixer
  6 input x 2 channel mixer.
  Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
  Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
  Analog Input
  Unbalanced stereo
  Analog Input Delay
  Up to 8 frames
  Input Impedance
  1.8k
  Max Input Level
  +6dBV
  Mic Plug In Power
  Available on both 3.5mm mini jack connections.
• Streaming
  Direct Streaming
  ATEM SDI Pro ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
• Recording
  Direct Recording Video and Audio
  USB-C 3.1 Gen 1 expansion port can record directly to external media.
  Video Recording
  4 x SDI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.
  1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
  Audio Recording
  6 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x SDI 2 channel embedded audio inputs.
  Switching
  Program switching recorded as a DaVinci Resolve project .drp file.
  Media Format
  Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
• Multi View Monitoring
  Multi View Monitoring
  1 x 10 Views including left right configurable Program/Preview, 4 SDI inputs, Media Player, Streaming Status, Recording Status and Audio Meters.
  Multi View Video Standard
  HD
• Media Player
  Media Players
  1
  Channels
  Fill and key for each Media Player.
  Media Pool Still Image Capacity
  20 with fill and key.
  Media Pool Still Image Format
  PNG, TGA, BMP, GIF, JPEG and TIFF.
• Control
  Control Panel
  Built in control panel. Software control panel with camera control included. Supports optional hardware panel.
  Control Panel Connection
  Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM SDI Pro ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
  Control Panel Compatibility
  Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM SDI Pro ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
  Control Panel Included
  ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 64 bit or Windows 11.
• Software
  Software Updates
  Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
  Configuration
  Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
• Operating Systems
  Mac 11.0 Big Sur,
  Mac 12.0 Monterey or later.
  Windows 10, 64-bit.
  Windows 11.
• Power Requirements
  Power Supply
  1 x External 12V power supply.
  Power Usage
  36W
• Environmental Specifications
  Operating Temperature
  5° C to 40° C (41° – 104° F)
  Storage Temperature
  -10° to 60° C (14° to 140° F)
  Relative Humidity
  0% to 90% non-condensing
• What’s Included
  ATEM SDI Pro ISO
  External 12V DC power supply with international socket adapters
