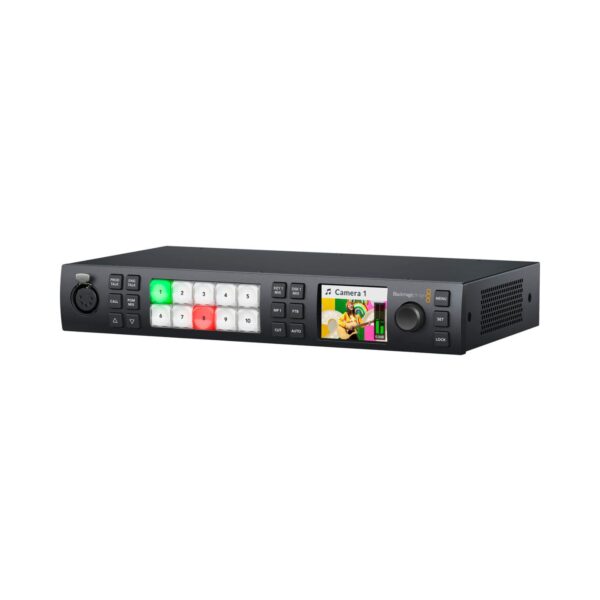

Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher

Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher

ATEM 1 M/E Constellation HD is a high definition live production switcher packed with advanced features! The single M/E design includes 10 standards converted 3G‑SDI inputs and 6 independent 3G‑SDI aux outputs! It also includes a USB webcam output, DVE, chroma keyers, media players, multiview and more!

Specifications

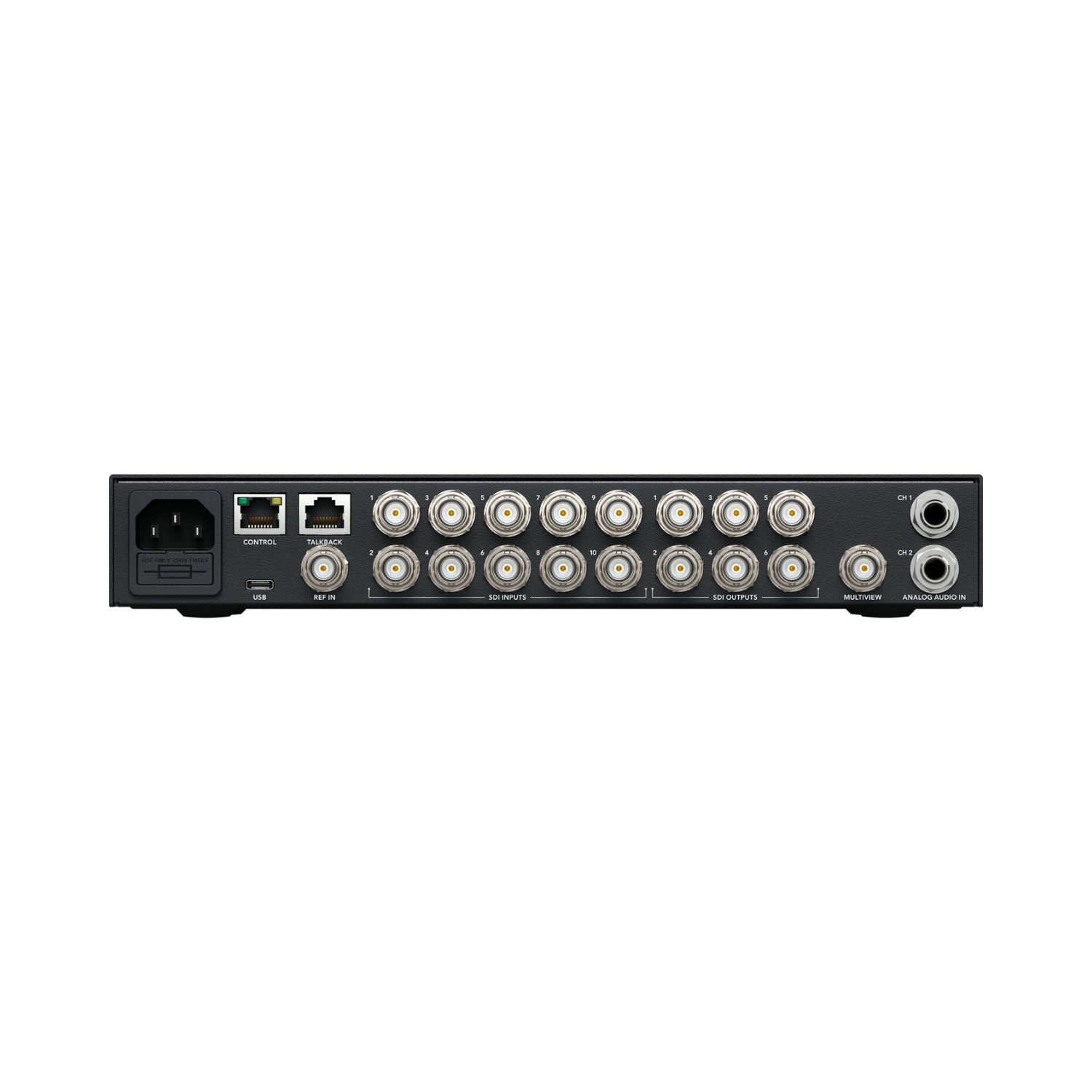

• Connections
  Total Video Inputs
  10
  Total Video Outputs
  6
  SDI Rates
  1.5G, 3G
  Total Audio Inputs
  2 x balanced 1/4 inch Jack,
  1 x 5 pin XLR Talkback.
  Total Audio Outputs
  1 x 5 pin XLR Talkback.
  SDI Audio Inputs
  2 Ch embedded audio on all SDI inputs.
  SDI Audio Outputs
  2 Ch embedded audio on all SDI outputs.
  Timecode Connections
  None
  Reference Input
  Tri-Sync or Black Burst.
  Video Input Re-Sync
  On all 10 inputs.
  Frame Rate and Format Converters
  On all 10 inputs.
  SDI Aux Outputs
  Any of the 6 SDI outputs.
  SDI Preview Outputs
  Any of the 6 SDI outputs.
  SDI Program Outputs
  Any of the 6 SDI outputs.
  Down Converted SDI Program Output
  None
  Webcam Output
  1 x USB-C supporting 720p or 1080p at PGM frame rate.
  Total Multi Views
  1 x 3G-SDI
  Control Panel Connection
  Ethernet. Direct connection between panel and chassis, or via network.
  Internal Timecode Generator
  Yes
  Talkback
  RJ45 for 3rd party talkback systems.
  Tally Output
  Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
  Ethernet
  Supports 10/100/1000 BASE-T.
  Computer Interface
  1 x USB-C supports USB 3.1 Gen 1 (5Gb/s)
• Standards
  SD Video Standards
  None
  HD Video Standards
  720p50, 720p59.94, 720p60
  1080i50, 1080i59.94, 1080i60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  SDI Compliance
  SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
  Video Sampling
  4:2:2
  Color Precision
  10-bit.
  Color Space
  REC 709
  SDI Auto Switching
  Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
• Product Specifics
  Upstream Keyers
  4
  Downstream Keyers
  1
  Advanced Chroma Keyers
  4
  Talkback Support
  Yes
  Mix Minus Support
  Yes
  Linear/Luma Keyers
  5
  Transition Keyer (Stinger/DVE)
  1 Stinger, 1 DVE.
  Total Number of Layers
  7
  Pattern Generators
  5
  Color Generators
  2
  Control Panel
  Front fascia emergency switching, software or optional hardware panel.
  Routable Windows
  16
  Tally
  Red for program and green for preview indication.
  Windows Source Labels
  Yes
• Multi View Monitoring
  Multi View Monitoring
  1 x multi view configurable to 16, 13, 10, 7 or 4 up view. Includes monitoring of Program, Preview, Inputs, Media Players, DSK, Clean Feed with optional labels and audio meters.
  Multi View Video Standard
  HD
  Display Minimum Resolution
  1366 x 768
• Media Player
  Media Players
  2
  Channels
  Fill and key for each media player.
  Media Pool Still Image Capacity
  20
  Media Pool Clip Capacity
  2 x up to 1080p60.
  Media Player Clip Length in 720 HD
  400 frames.
  Media Player Clip Length in 1080 HD
  200 frames.
  Media Pool Still Image Format
  PNG, TGA, BMP, GIF, JPEG and TIFF.
  Media Pool Video File Format
  TGA Sequence.
  Media Pool Audio File Format
  WAV, MP3 and AIFF.
• Display
  Front panel

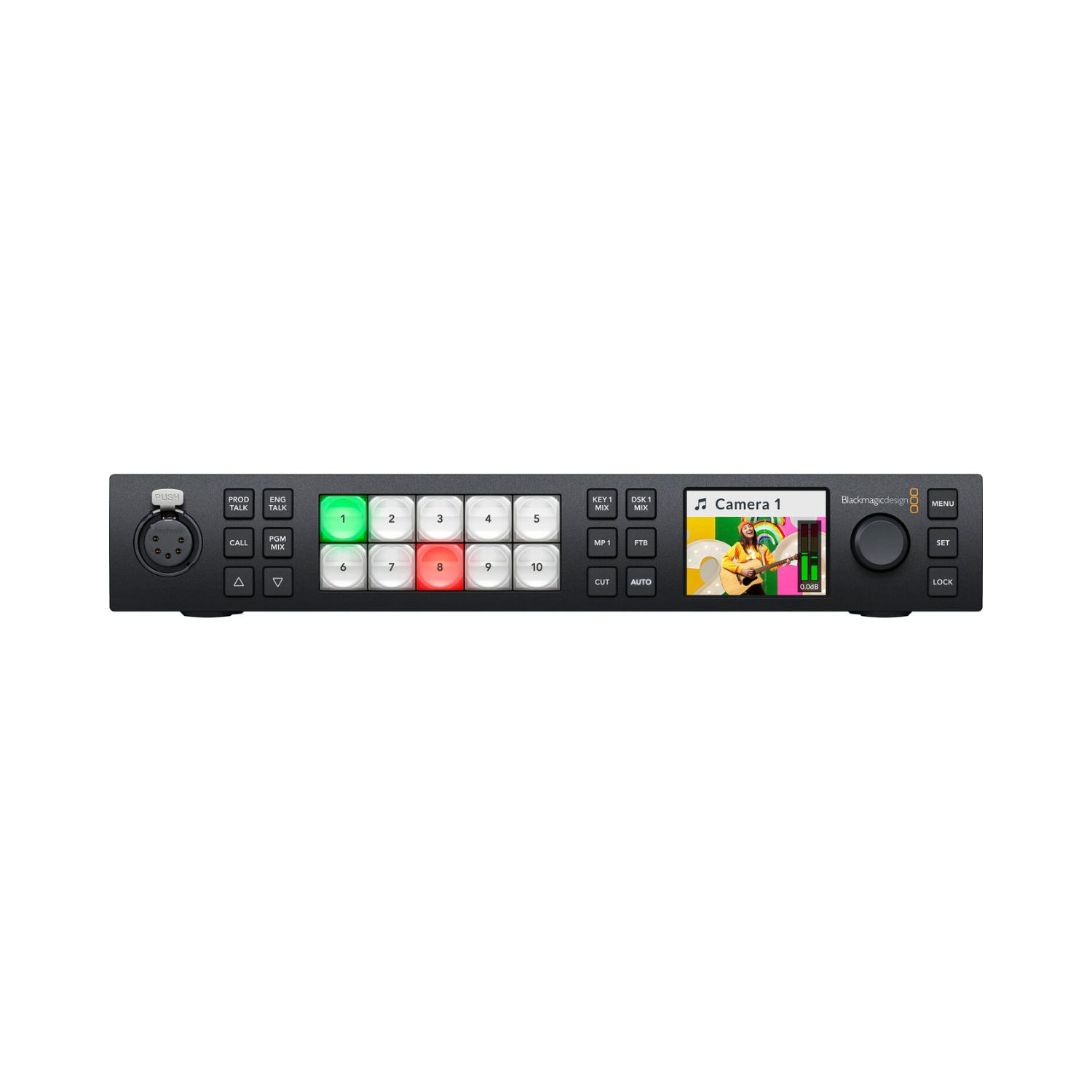

  Built in 2.2 inch LCD monitor for video, 10 LED buttons for setup and emergency switching, 4 source buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
• Processing
  Processing Delay
  < 10 lines.
  Audio Mixer
  28 Channel mixer
  Selectable On/Off/Audio-Follow-Video.
  Level and Peak metering.
  Master gain control.
  6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
  Down Conversion
  None
• Software
  Control Panel Included
  ATEM Software Control Panel included free for Mac 11.11 Big Sur, Mac 12 Monterey or later and Windows 10 or 11.
  Software Updates
  Using USB or Ethernet connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility.
  Configuration
  Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
• Operating Systems
  Mac 11.1 Big Sur,
  Mac 12.0 Monterey or later.
  Windows 10 and 11.
• Power Requirements
  Power Supply
  1 x Internal 100 – 240 AC.
  Power Usage
  36W
• Physical Installation
  Physical Installation
  2/3 rack unit width, 1 rack unit height.
  Optional Accessories
  Teranex Mini Rack Shelf
• Environmental Specifications
  Operating Temperature
  0° to 40° C (32° to 104° F)
  Storage Temperature
  -20° to 60° C (-4° to 140° F)
  Relative Humidity
  0% to 90% non-condensing
• What’s Included
  ATEM 1 M/E Constellation HD
  Welcome wallet with QR code for software download
