Behringer XENYX 802S 8-Input Mixer with USB Streaming Interface

Original price was: ₹18,965.Current price is: ₹12,490. & Free Shipping

EXTRA 2% Discount: ₹12240.2

FLAT 2% Off when you make a payment via Bank Transfer at Check Out.

Free shipping on orders!

  • Done GST Invoice For Input Credit
  • Done Price Includes GST
  • Done Secure Payments
  • Done No Hassle Refunds
GUARANTEED SAFE CHECKOUT
  • BHIM
  • Visa
  • MasterCard
  • RuPay
  • Net Banking
SKU: 5027 Categories: ,

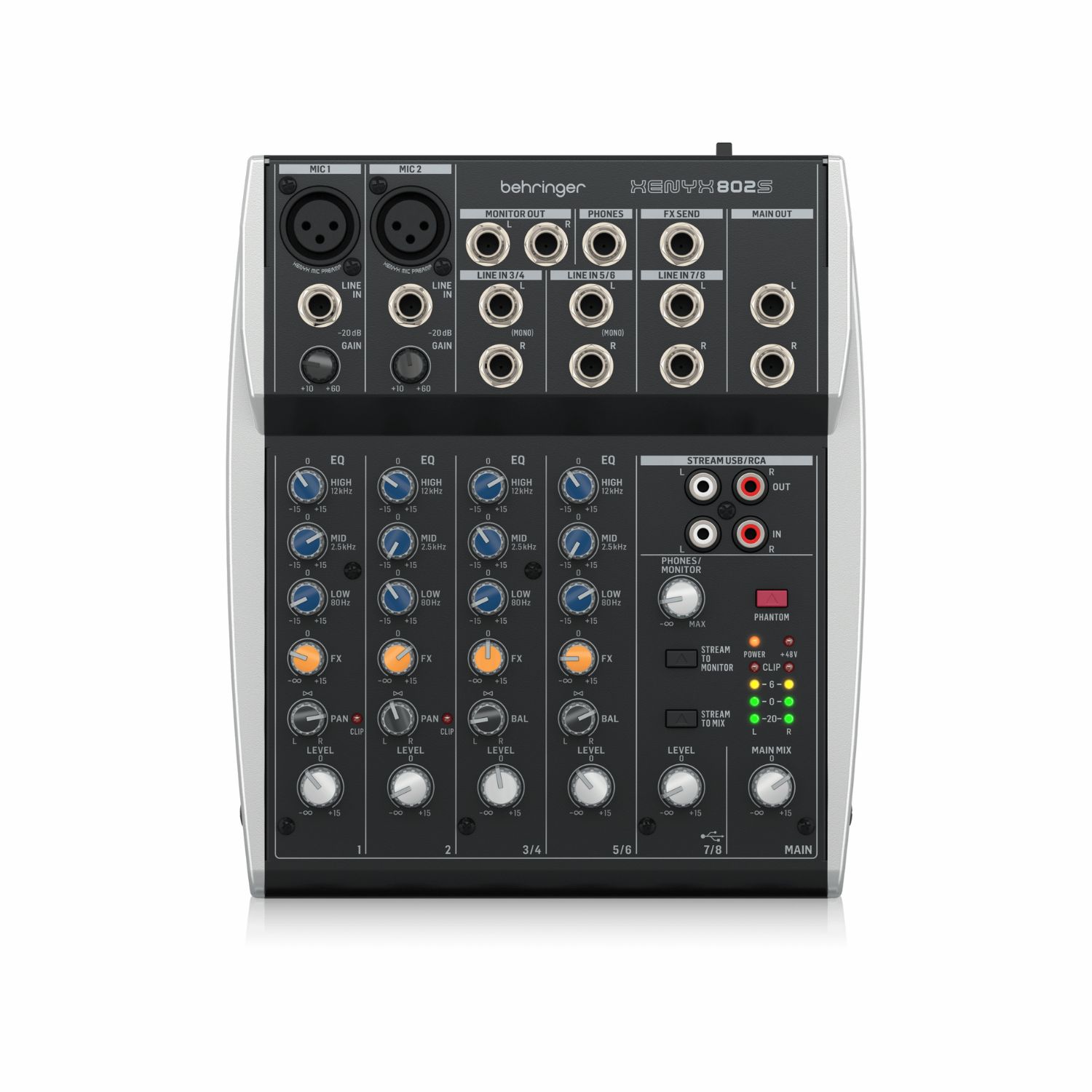

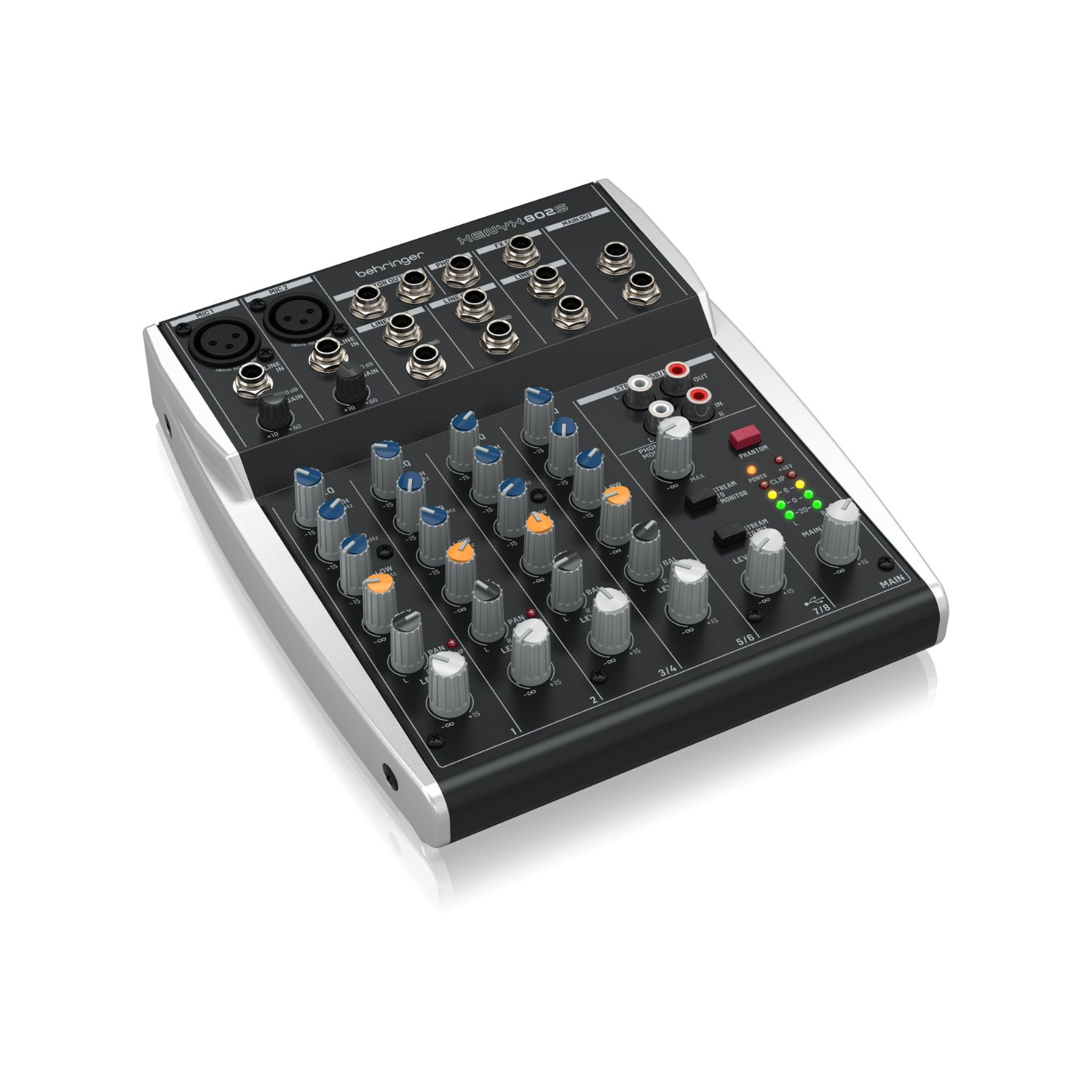

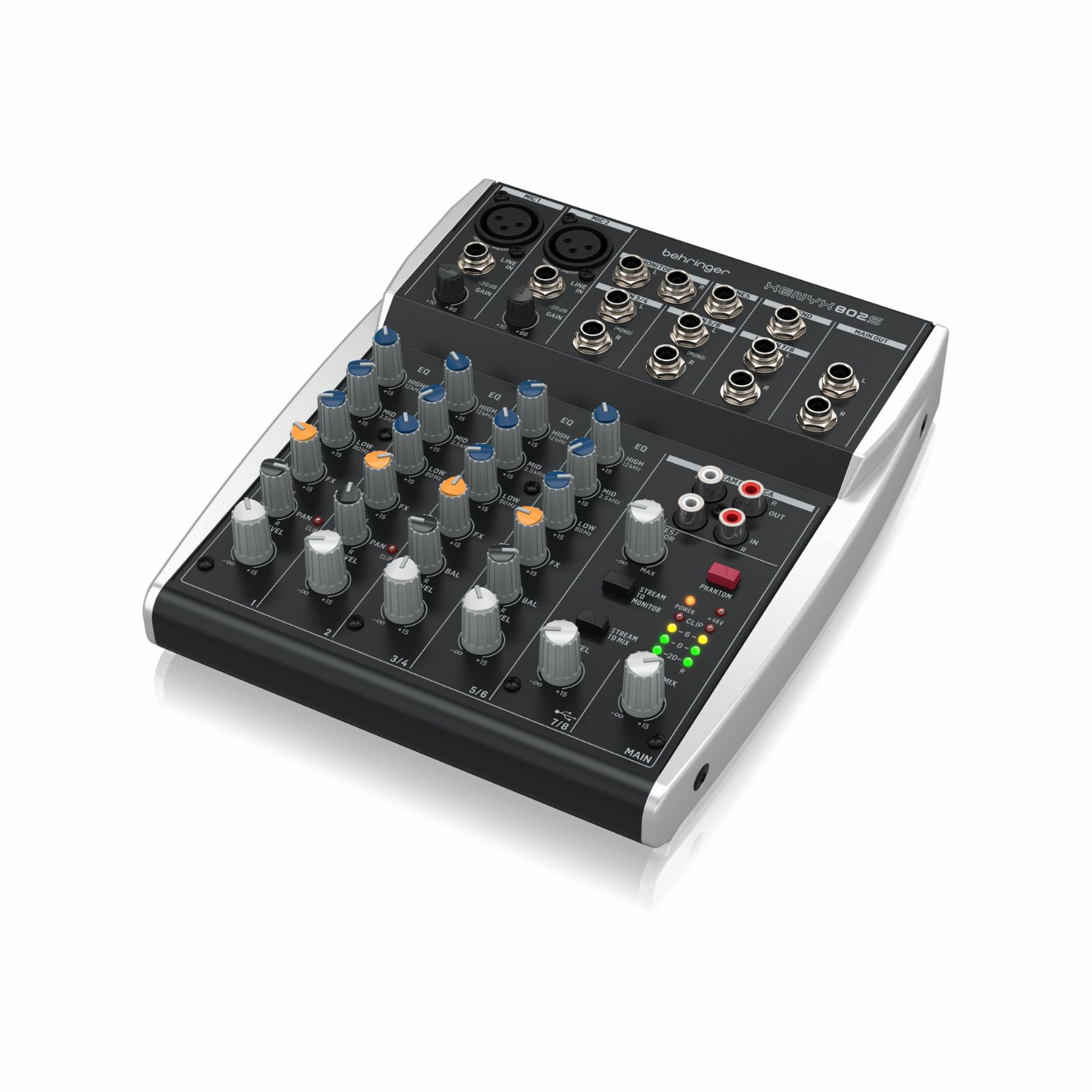

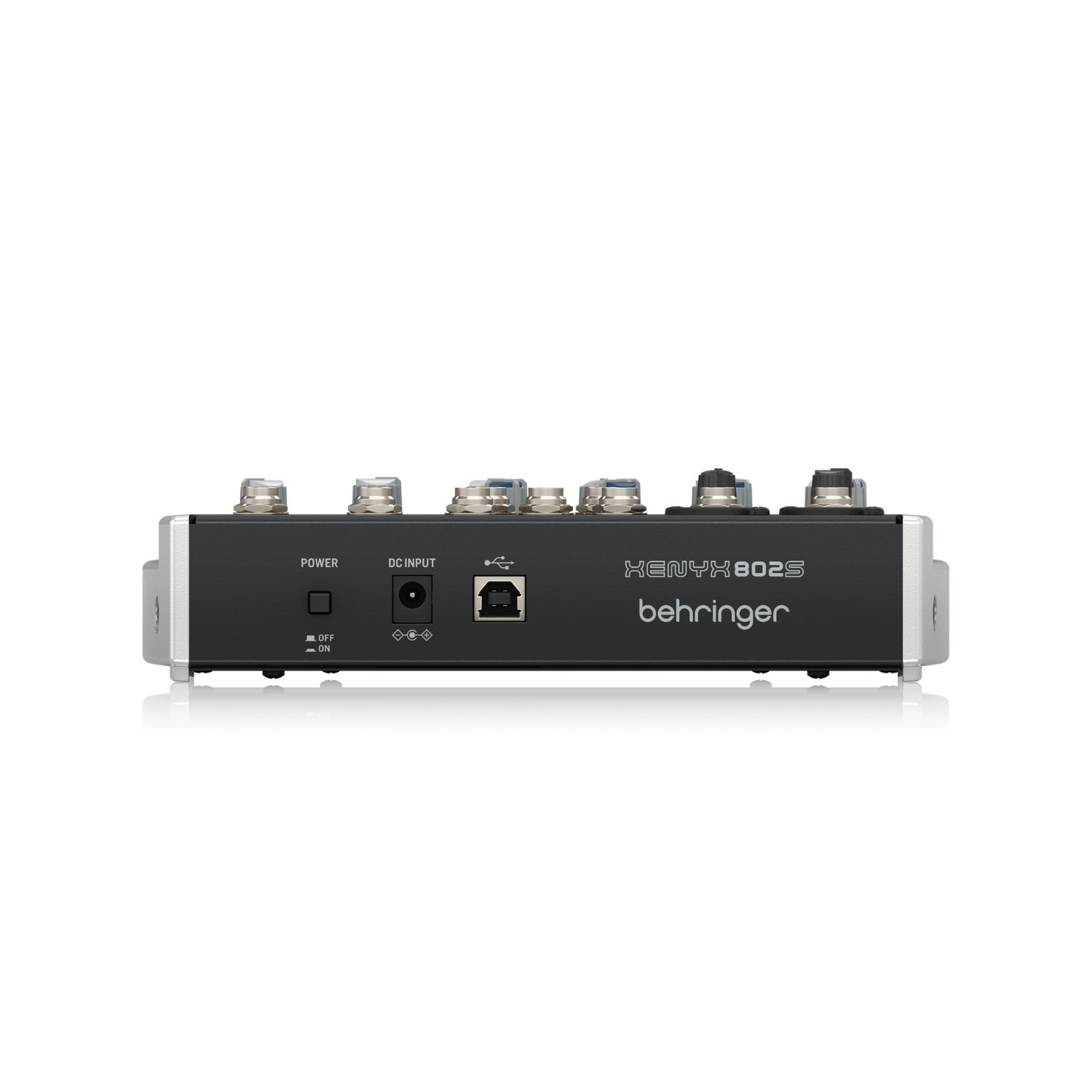

Behringer XENYX 802S 8-Input Mixer with USB Streaming Interface

The compact XENYX 802S mixer’s 8 inputs allow you to effortlessly achieve premium-quality sound that’s perfect for streaming, podcasting and recording. It provides a warm and ultra-musical sound thanks to its award-winning XENYX microphone preamps featuring 48V Phantom Power for hi-end studio microphones.

Great for Any Setup
The new XENYX “S” series can be connected to computers or mobile devices via USB making it super easy to integrate digital sources with analog equipment. Two mono and 2 stereo channels with EQ, plus another stereo channel, a stereo RCA streaming input and stereo USB input allow you to blend a total of 12 crystal-clear audio signals for monitoring via headphones or on high-quality TRS outputs. Hence, the 802S can also be used as a versatile sub mixer for combining network enabled audio devices with several other audio signals.

Control Made Easy
The 802S features a 3-band EQ on Mono and Stereo inputs and allows for precise sound shaping for any input source. An integrated FX send control per channel lets you plug in any external FX processor of your choice, such as the Behringer FX2000, for amazing audio effects flexibility. When nothing is plugged into the stereo line inputs 7/8, then the Level 7/8 control can be used to adjust the USB input level conveniently.

Specifications

Mono Inputs

Microphone InputBalanced XLR, discrete input circuit

Mic EIN (22 Hz-22 kHz) @ 50 Ω: 132 dB, A-weighted

Frequency response Gain +10 dB: 10 Hz to 150 kHz

Frequency response Gain +60 dB: 20 Hz to 70 kHz

Gain range: +10 dB to +60 dB

Max input level @ +10 dB Gain: +12 dBu

Input Impedance: 2 kΩ balanced

Distortion (THD + N) 1 kHz @ +10 dB Gain: 0.005%

Mono Line Inputs1/4″ TRS connector balanced

Impedance: 22 kΩ balanced, 10 kΩ unbalanced

Gain range: -10 dB to +40 dB

Max input level @ 0 dB Gain: +21 dBu

Stereo Inputs

Stereo Line1/4″ TRS connector balanced

Frequency response: 20 Hz to 200 kHz

Impedance: 22 kΩ balanced, 10 kΩ unbalanced

Max input level @ 0 dB Gain: +21 dBu

STREAM Inputs (Analog)RCA connector unbalanced

Impedance: 10 kΩ unbalanced

Max input level: 10 dBu

EQUALIZER

Low80 Hz/±15 dB
Mid2.5 kHz/±15 dB
High12 kHz/±15 dB

Main, Monitor & FX Send Outputs

Type1/4″ TRS connector impedance-balanced
Impedance120 Ω
Max output leve21 dBu

Phones Out

Type1/4″ TRS connector unbalanced
Impedance23 Ω
Max output level19 dBu/150 Ω

STREAM out (Analog)

TypeRCA connector unbalanced
Impedance1 kΩ unbalanced
Max output level10 dBu

Main Mix noise

Main Mix @ -∞-109 dBu A-weighted
Channel @ -∞-109 dBu A-weighted

USB

TypeType-B connector
USB Audio Data48 kHz 16 bit
UAC2 Class Compliantstereo in/out

Power Supply

Power Consumption12 W
Adaptor input100 – 240 V~, 50/60 Hz, 0.5 A
Adaptor output18 V DC 1.0 A
