AVMatrix VS0601 Mini 6-Channel SDI/HDMI Multi-format Video Switcher

Original price was: ₹65,490.Current price is: ₹59,500.
You save ₹5,990! & Free Shipping

Out of stock

  • 6 channel inputs: 4×SDI and 2×HDMI inputs
  • 2×SDI &1×HDMI PGM outputs, 1×SDI AUX output, 1×SDI &1×HDMI multiview outputs
  • T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
  • PiP mode, both size and position is adjustable
  • Audio mixer: 3.5mm stereo/ RCA audio & SDI/ HDMI embedded audio
  • GPIO interface for live tally system
  • FTB for emergency situation

EXTRA 2% Discount: ₹58310

FLAT 2% Off when you make a payment via Bank Transfer at Check Out.

Free shipping on orders!

  • Done GST Invoice For Input Credit
  • Done Price Includes GST
  • Done Secure Payments
  • Done No Hassle Refunds
GUARANTEED SAFE CHECKOUT
  • BHIM
  • Visa
  • MasterCard
  • RuPay
  • Net Banking
SKU: 3579 Categories: ,

AVMatrix VS0601 Mini 6-Channel SDI/HDMI Multi-format Video Switcher

Switch up to six different HDMI and SDI video inputs while monitoring the program feed with the VS0601 Mini 6-Channel SDI/HDMI Multi-Format AV Switcher from AVMATRIX. Concert productions, events, houses of worship, virtual studios, educational institutions, and live sports programming are some of the use cases where the VS0601 could be utilized. Its portable form factor makes it a TV studio you can take anywhere and set up with minimal effort or additional equipment.

You can output multiview layouts via SDI and HDMI that show preview, program, and input sources, all on the same screen with configurable PiP functionality. The VS0601 features four 3G-SDI and two HDMI inputs that can be connected to cameras or other consumer or professional sources for switching up to 1080p60 video with embedded audio. You can also mix the audio using the analog stereo 2RCA and 3.5mm inputs and outputs along with the embedded audio.

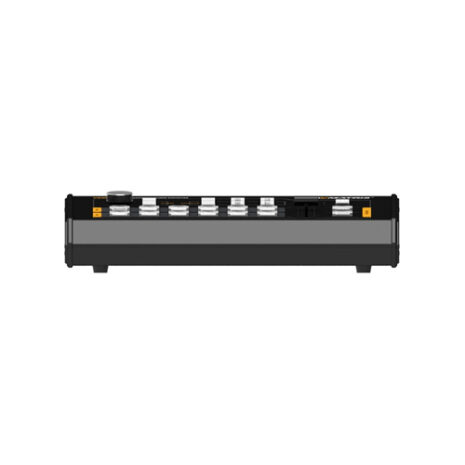

Its interface features source and destination buttons and a T-bar for transitions and cuts as well as mix, fade, and wipe effects. It features a tally interface and emergency fade-to-black (FTB) functionality.

Specifications

Mix Effects
Effect Types1 x Transition
Processing
Switching TypeT-Bar
Processing Resolution1080p
Input
Number of Video Input Sources6
Video Input Connectors4 x BNC (3G-SDI / HD-SDI / SD-SDI) Female
2 x HDMI Female
Input Video FormatHDMI
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 23.98/24/25/29.97/30/50/59.94/60 fps
576p: 50 fps
PAL: 50 fps
SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 23.98/24/25/29.97/30/50/59.94/60 fps
PAL: 50 fps
NTSC: 59.94 fps
Audio Input Connectors1 x 1/8″ / 3.5 mm TRS Stereo Analog Female
1 x 2RCA Stereo Analog Female
Input Audio FormatAnalog
Embedded Audio InputHDMI
SDI
Output
Video Output Channels6
Video Output Connectors2 x BNC (3G-SDI / HD-SDI / SD-SDI) Female (Program)
1 x HDMI Female (Program)
2 x BNC (3G-SDI / HD-SDI / SD-SDI) Female (Monitor)
1 x HDMI Female (Monitor)
Output Video FormatHDMI / SDI
1080p: 24/25/30/50/60 fps
1080i: 50/60 fps
Audio Output Connectors1 x 2RCA Stereo Analog Female
1 x 1/8″ / 3.5 mm TRS Stereo Analog Female
Output Audio FormatAnalog
Embedded Audio OutputHDMI: 2-Channel (per Output)
SDI: 2-Channel (per Output)
Multiview Output6-Way Multiview viaHDMI, SDI

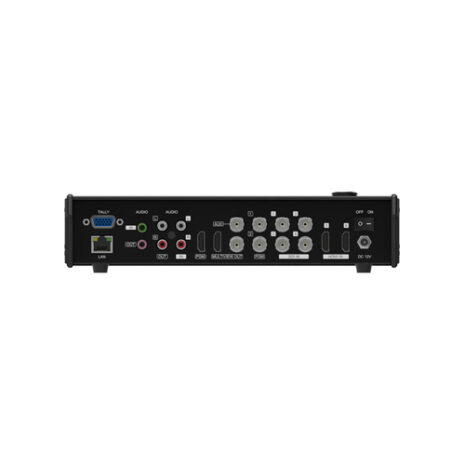

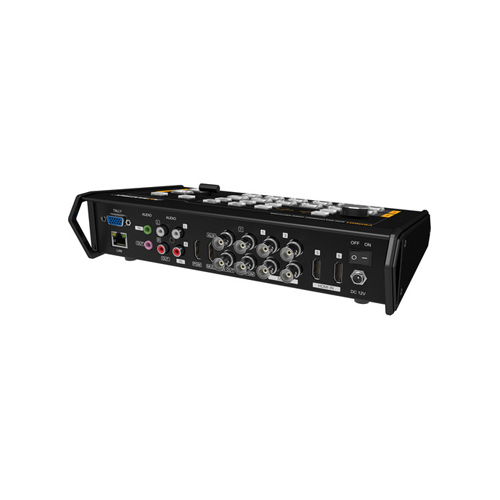

Connectivity
Other I/O1 x DE-15/DB-15 Tally Input
1 x RJ45 LAN Input/Output
Video Standard ComplianceSMPTE 259M/292M/424M
HDCP SupportNone
Power
Power Connector1 x Barrel (12 VDC at 1.2 A) Input
Power ConsumptionPower Supply: 12 VDC at 2 A
Environmental
Operating Temperature-4 to 140°F / -20 to 60°C
Storage Temperature-22 to 158°F / -30 to 70°C
General
Dimensions9.81 x 6.78 x 2.2″ / 24.92 x 17.23 x 5.5 cm
Weight2.2 lb / 1 kg
