AVMatrix HVS0401E Micro 4-Channel HDMI & DP Video Switcher

Original price was: ₹49,990.Current price is: ₹47,990. & Free Shipping

  • Inputs 1~3: HDMI, Input 4: HDMI/DP
  • Outputs: HDMI PGM×2, HDMI multiview×1, USB type-C×1, LAN×1
  • LAN port for RTMP streaming and upgrade
  • USB disk/ SD card for PGM recording
  • USB Type-C for video capturing (UVC)
  • PIP function, adjustable size and position
  • Audio mixer: 3.5mm MIC/ RCA/ HDMI embedded audio
  • AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
  • GPIO interface for live tally system
  • FTB for emergency situation

EXTRA 2% Discount: ₹47030.2

FLAT 2% Off when you make a payment via Bank Transfer at Check Out.

Free shipping on orders!

  • Done GST Invoice For Input Credit
  • Done Price Includes GST
  • Done Secure Payments
  • Done No Hassle Refunds
GUARANTEED SAFE CHECKOUT
  • BHIM
  • Visa
  • MasterCard
  • RuPay
  • Net Banking
SKU: 4726 Categories: ,

AVMatrix HVS0401E Micro 4-Channel HDMI & DP Video Switcher

Switch up to one DisplayPort and four HDMI video inputs while monitoring the program feed with the Micro 4-Channel HDMI & DP Video Switcher from AVMATRIX. This compact switcher offers RTMP streaming via its LAN port, supports up to 1080p60 video input and output with embedded audio, and offers audio mixing using the two analog stereo 3.5mm mic/line inputs and output along with the embedded audio. Switcher control options include push buttons, a T-bar, and IP control via the LAN port.

Live Stream via Ethernet
Supports IP streaming via the LAN port and RTMP protocols
Compatible with platforms like YouTube, Skype, Facebook, and Twitch

USB Capture
Built-in USB-C port can be used to connect the switcher to a computer for USB capture using software like OBS, PotPlayer, or vMix.
The USB-A port can be used to record the program feed at resolutions up to 1080p60 and bitrates up to 32Mb/s.
Encodes using H.264/H.265 with MP4/TS file format support.

Web Page Control
Can be easily controlled via an IP address with settings clearly viewed and controlled on the page.

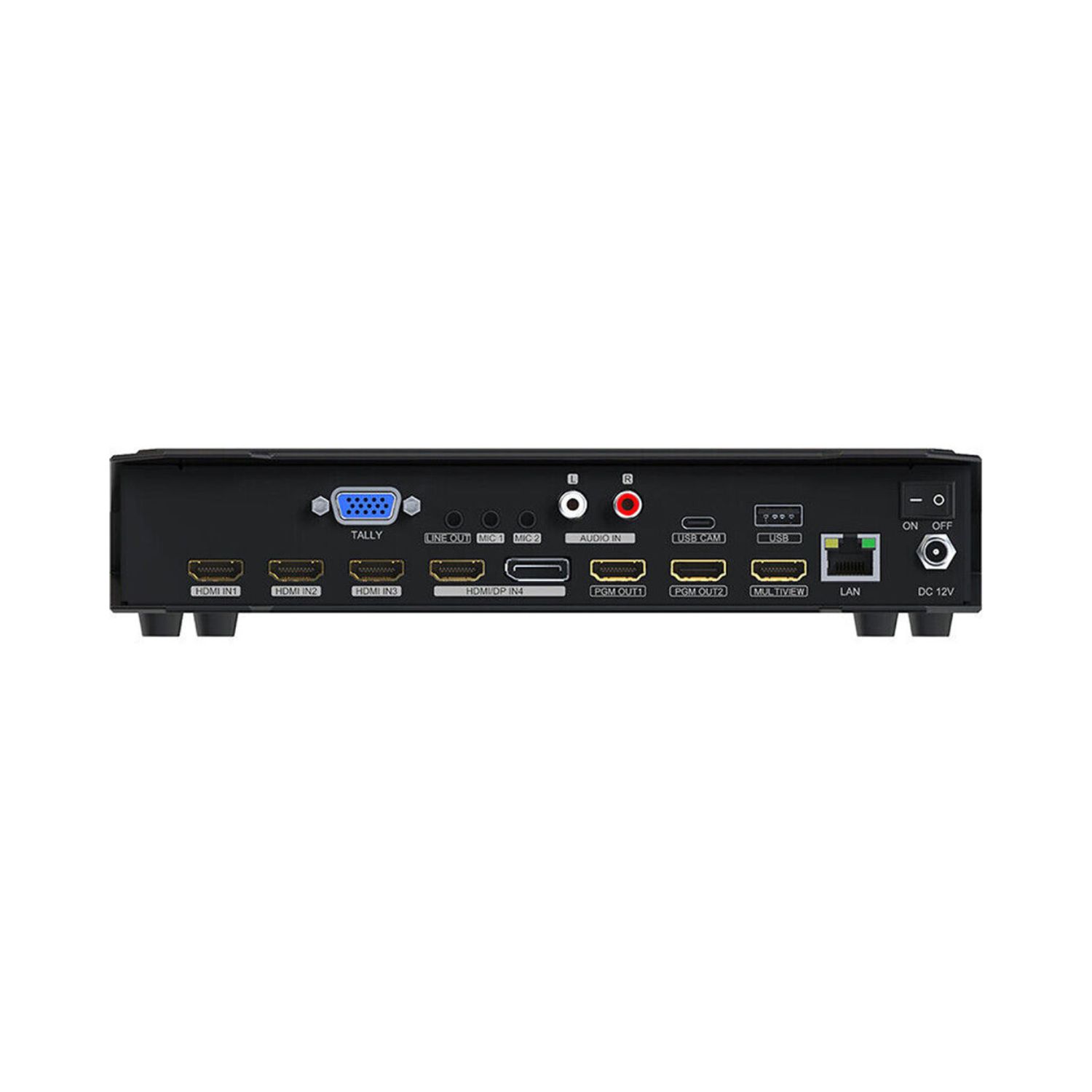

Multiple Interfaces
Multiple interfaces include HDMI and DisplayPort inputs, Program outputs, multiview output, audio inputs, streaming, and recording ports.

Specifications

Processing
Switching TypePushbutton, Software, T-Bar
Processing Resolution1080p at 23.98/24/25/29.97/30/50/59.94/60
Color ProcessingRGB
YCbCr
Input
Video Inputs4 x HDMI Female
1 x DisplayPort Female
Input Video FormatHDMI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 24/25/30/50/59.94/60 fps
576p at 50 fps
576i / 625 lines at 50 fps
480p at 59.94/60 fps
480i / 525 lines at 59.94/60 fps
Audio Inputs2 x 1/8″ / 3.5 mm TRS Stereo Analog Female
1 x 2RCA Stereo Analog
Input Audio FormatAnalog
Output
Video Outputs2 x HDMI Female (Program)
1 x HDMI Female (Monitor)
1 x USB-C (USB Video) Female
Output Video FormatHDMI
1080p at 24/25/30/50/60 fps
1080i at 50/60 fps
USB-C
1080p at 60 fps
Audio Outputs1 x 1/8″ / 3.5 mm TRS Stereo Analog Female (Loop Output)
Connectivity
Other I/O1 x RJ45 LAN Input/Output
1 x DE-15/DB-15 Tally Input
HDCP SupportNone
Wi-FiNone
BluetoothNone
Power
Power I/O1 x Barrel (12 VDC at 1.2 A) Input
Power ConsumptionDevice: 14.4 W
Environmental
Operating Temperature12 to 92°F / -20 to 60°C
Storage Temperature-22 to 158°F / -30 to 70°C
General
Dimensions9.4 x 5.5 x 1.7″ / 23.8 x 14 x 4.4 cm
Weight2.1 lb / 968.3 g
