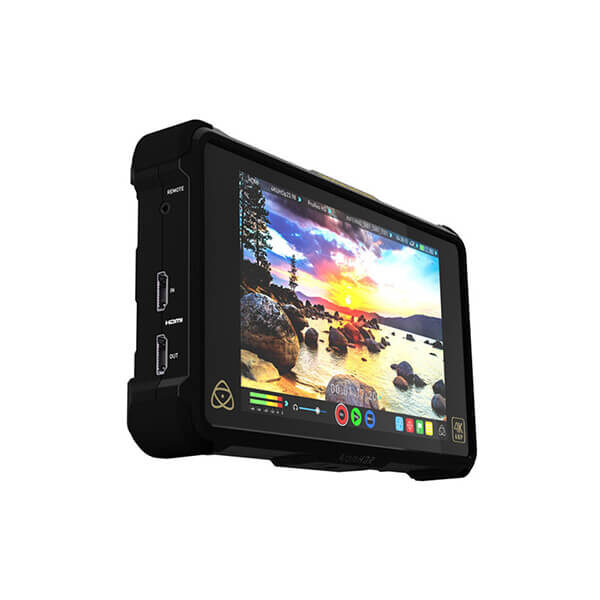

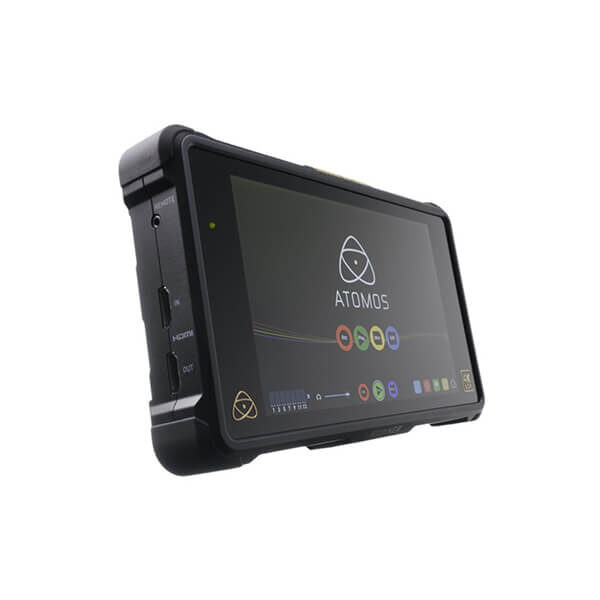

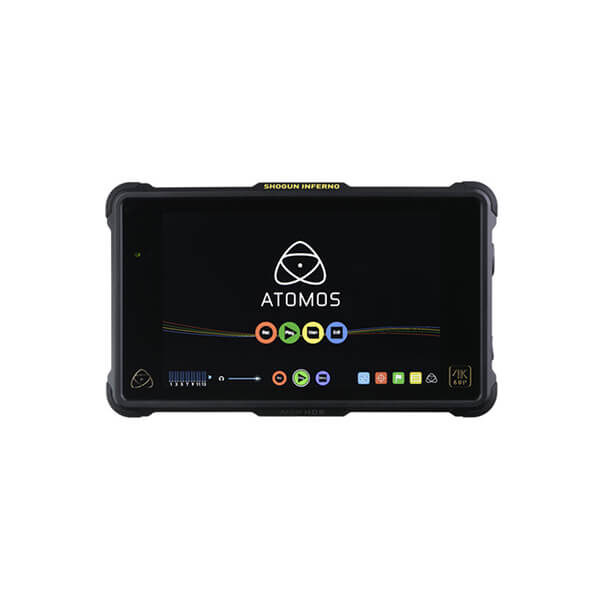

Atomos Shogun Inferno 7″ 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor

The Atomos Shogun Inferno is a 7″, 1920 x 1200 on-camera recording monitor that combines 4K recording with a 10-bit FRC panel that supports native display of HDR (log) footage as well as high brightness viewing of Rec. 709 footage. It utilizes 4K HDMI and 12G-SDI inputs to support clean output signals at resolutions up to UHD 4K (3840 x 2160) at 60 fps, recording it to 2.5″ SSDs using 10-bit, 4:2:2 Apple ProRes and Avid DNxHR codecs. The Inferno, unlike the similar Shogun Flame, supports Quad 3G-SDI input. It even supports DCI 4K (4096 x 2160) raw video streams over SDI from select Sony and Canon cameras, encoding it as ProRes/DNxHR files.

The monitor features 10-bit FRC processing and AtomHDR display technology support a 10-stop brightness range, allowing you to more accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor offers built-in pre-sets to accurately translate popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remained unaltered.

In addition to HDR monitoring, the monitor also offers a High Bright mode for traditional Rec. 709 monitoring. This mode takes advantage of the full 1500 cd/m² brightness to allow for more confident monitoring in bright outdoor environments, even without a sun hood. In HDR mode, use of an included snap-on sun hood is required, as displaying a wider brightness range reduces the overall brightness of the monitor.

Built to withstand the rigors of production, the Shogun Inferno features built-in protective armor that features silicone-covered corners and chamfered edges. Compared to the original Shogun, the Inferno now features dual Sony L-Series battery plates that support battery hot-swapping, enabling longer run times. For audio recording, the monitor supports balanced XLR inputs with +48V phantom power via an included audio breakout cable. Additional features included genlock/LTC input, SDI/HDMI cross-conversion, and a variety of onscreen exposure analysis, framing, and focus assist tools. Two NP-F750 batteries are included, along with a fast charger, D-tap power cable, AC power adapter, control cable, USB 3.0 docking station, and five Master Caddy SSD/HDD cases. All items come packaged in a custom HPRC hard case.
