Atomos SHOGUN CONNECT 7″ Network-Connected HDR Video Monitor & Recorder
Original price was: ₹182,999.₹121,990Current price is: ₹121,990.
You save ₹61,009! & Free Shipping
Out of stock
- 7″ 1920 x 1200 Touchscreen Display
- 2000 cd/m² Brightness
- 2 x 12G-SDI, 2 x HDMI, 1 x USB Type-C
- Records up to 4K Video
- Adobe Frame.io Camera to Cloud Support
- Wi-Fi 6, Bluetooth LE, Gigabit Ethernet
EXTRA 2% Discount: ₹119550.2
Free shipping on orders!
- GST Invoice For Input Credit
- Price Includes GST
- Secure Payments
- No Hassle Refunds

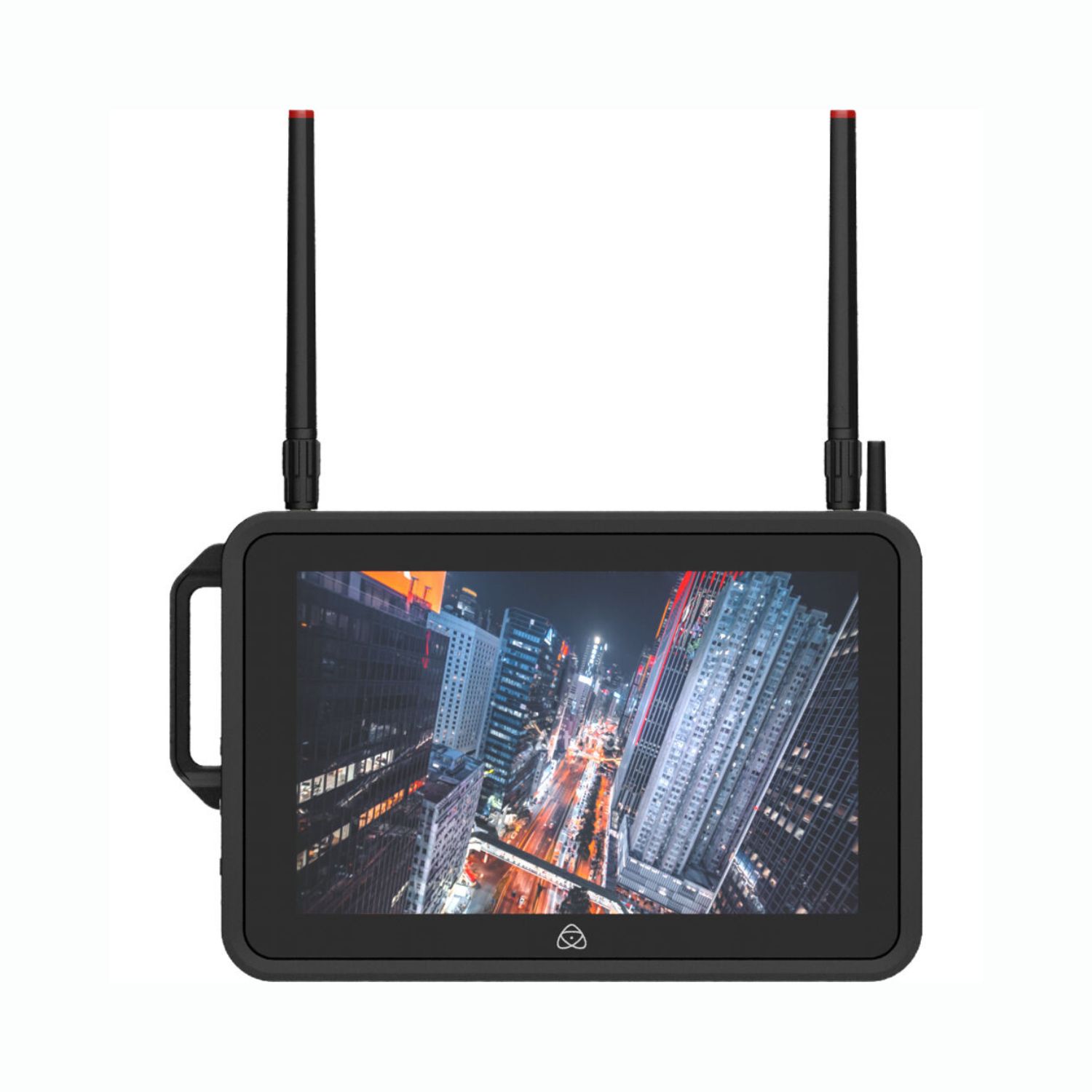

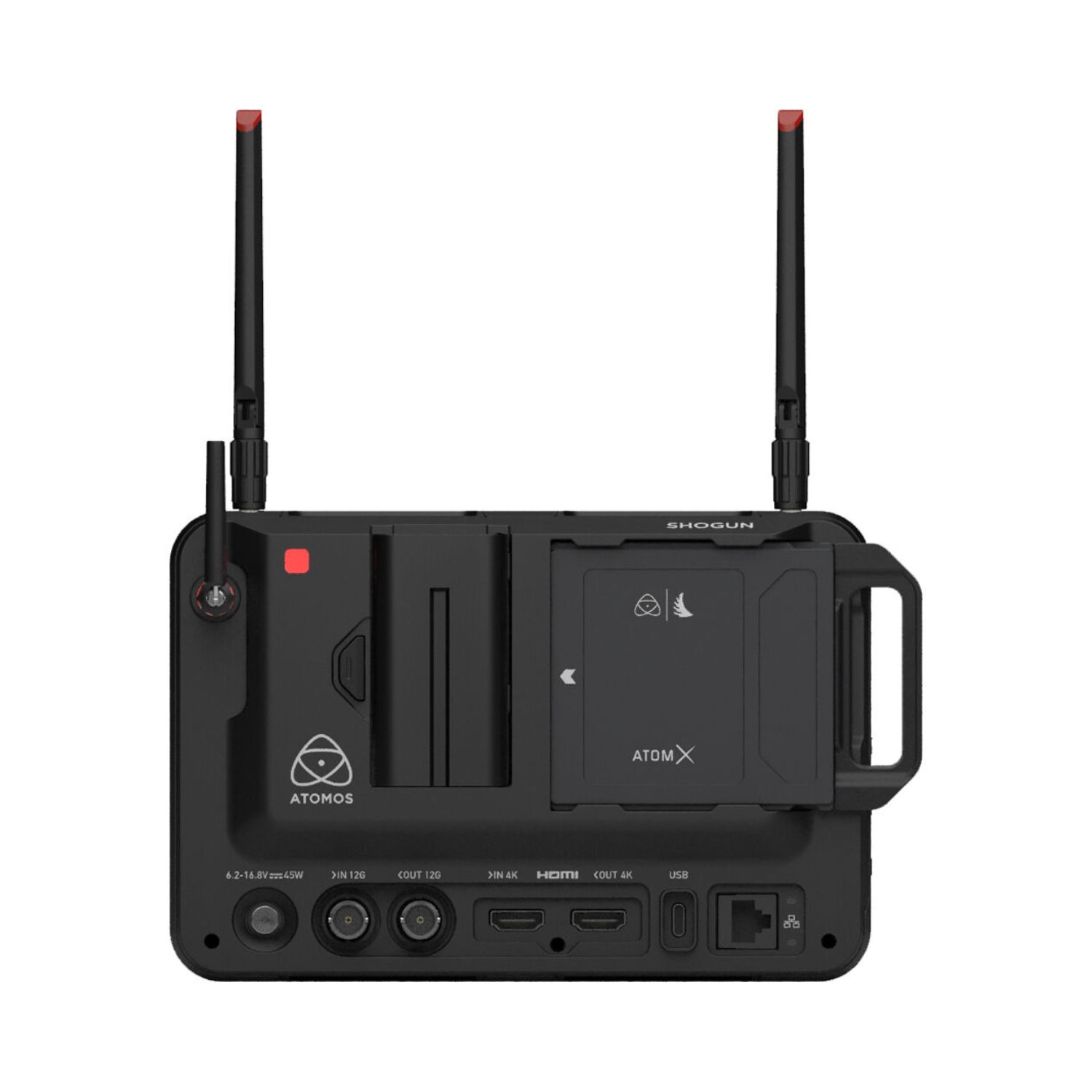

Atomos SHOGUN CONNECT 7″ Network-Connected HDR Video Monitor & Recorder
The first all-in-one device for HDR monitoring, RAW recording, and a connection to the world.
The SHOGUN CONNECT builds on the ground-breaking SHOGUN product-line. Featuring a brighter screen and multiple recording options, the SHOGUN CONNECT is the first fully integrated product in the CONNECT range. It combines HDR monitoring, RAW recording, and cloud workflows. The SHOGUN CONNECT features a loop through 12G SDI IN and OUT interface with SDI RAW support included and send a signal to multiple devices. ATOMOS AirGlu™ wireless sync timecode technology which enables direct, long-range communication between devices, multiple power options to accommodate a variety of long range on-set scenarios, plus Wi-Fi 6, Gigabit Ethernet, Bluetooth LE, and USB C to ensure flexible, all-round connectivity. The SHOGUN CONNECT transforms professional cinema, mirrorless, and DSLR cameras into fully connected devices that support a range of advanced cloud-based workflows.
Keep it in the Family
A new generation of connected workflows has arrived
Registered owners of qualifying 7-inch ATOMOS devices receive $100 cash back plus, NDI activation and an additional 3-month subscription to ATOMOS Cloud Studio for free on every pre-order of the SHOGUN CONNECT. Offer valid on all pre-orders until the 30th June, terms and conditions apply.
Stream from Anywhere
SHOGUN CONNECT supports livestreaming to a range of online services including, Facebook Live, Twitch, and YouTube. With Wi-Fi 6, Gigabit Ethernet, and the ability to join cellular hotspots all built-in, the SHOGUN CONNECT helps filmmakers, streamers and video content producers reach their audience from anywhere.
Collaboration for Everyone
SHOGUN CONNECT is a fully integrated Frame.io Camera to Cloud (C2C) device. Through support of HDMI and SDI equipped cameras, the device offers advanced online workflows and remote collaboration to many more filmmakers, streamers, and video content creators. With Frame.io for Adobe Creative Cloud now part of the Creative Cloud subscription, even more filmmakers will have access to cloud-based workflows.
Dual Record
C2C brings the domains of production and post closer together, enabling new ways for remote teams to collaborate. The dual record feature of the SHOGUN CONNECT creates matching “hero” Apple ProRes, ProRes RAW, Avid DNxHR/HD and “proxy” HEVC (H.265) files simultaneously. Proxy files can also be uploaded during capture using ATOMOS progressive transfer technology so that these files are available in the cloud as soon as recording stops.
Bring Your Own Camera
The 7-inch SHOGUN CONNECT features a new, brighter HDR screen and comprehensive range of built-in interfaces including, loop through 12G SDI IN and OUT for SDI RAW and HDMI to support an expansive range of professional cinema, DSLR and mirrorless cameras. The device also features ATOMOS AirGlu™ technology which enables direct, long-range communication between devices and provides a wireless timecode lock.
CONNECT to the World
SHOGUN CONNECT enables filmmakers, streamers, and video content producers of every kind to record, monitor, and share their work with an audience from anywhere, easily, and seamlessly.
ATOMOS Cloud Studio
ATOMOS Cloud Studio is a collection of video production services which represents a radical innovation for all video creators, streamers, and filmmakers. Cloud Studio will launch one 8th July 2022 with ATOMOS Stream allowing ATOMOS network enabled device to live stream to popular platforms like Facebook Live, Twitch, YouTube, and more. ATOMOS Capture to Cloud uploads files from ATOMOS network connected devices to cloud-based platforms, with Frame.io (an Adobe Company) Camera to cloud launching soon.
Specifications
Physical Specifications | |
---|---|
Dimensions (W x H x D mm) | 198mm / 7.8″ x 133mm / 5.2″ x 40mm / 1.57″ |
Weight | 730g / 1.6 lbs |
Mount points | Top: 1 x 1/4″20 or 3/8″ with anti rotational points, Bottom: 1 x 1/4″20 or 3/8″ with anti rotational points, Right: 1 x 1/4″20 or 3/8″ with anti rotational points |
Environmental | |
Ambient operating temperature | Up to 40 Degrees Celsius |
Construction and Control | |
Body | Aluminium alloy chassis with ABS Polycarbonate back plate |
Cooling | Actively controlled fan and heat sink |
Tally light | Yes |
Touch Screen | Yes |
On Unit Buttons | Power button – multi function |
Camera Control | Remote to USB – Z CAM |
Power | |
Input voltage | 6.2 – 16.8v |
Compatible batteries | 1 x NP-F / L-Series |
DC in connector | Locking DC Jack (5.5mm OD & 2.1mm ID) |
Dtap | Via optional D-Tap to DC cable |
Power On Function | Button On/Off, SW Off |
Fan Control | Record priority modes / Display dim |
Display | |
Touchscreen | SuperAtom IPS panel (capacitive touch) |
Size | 7″ |
Resolution | 1920 x 1200 |
Viewing angle | 178 + H & V |
PPI | 325 |
Bit depth | 10-Bit (8+2 FRC) |
Backlight Type | Edge lit |
Brightness (cdm2 / nits) | 2000nit +/- 10% |
Aspect ratio | 16:9 Image Display |
Color Gamut | Rec709 |
Calibration support | ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus |
Color Pipeline | |
Gamma | Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log, Z CAM Z-Log2, Olympus OM-Log400 / Flat, Leica L-Log |
Gamut | BT2020, DCI P3, PDCI P3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut |
3D LUT Display | .Cube Format |
3D LUT Output | Loop out |
3DLUT 50/50 | Yes |
Monitoring Modes | Native / 709 / HLG / PQ / 3D LUT |
HDR output Conversion | HLG / PQ |
Color Management | |
Calibration | ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus |
Display Controls | Backlight, Lift, Gamma, Gain |
AtomHDR | Built in Technical Log to HDR EOTF |
3D LUTs | Display, monitor and output, Record, Load via SSD |
Legalize | Full to Legal conversion available on Input |
Video Input | |
HDMI | 1 x HDMI 2.0 |
SDI | 1 x 12G SDI |
Bit Depth | 8 / 10 bit |
Video Chroma Subsampling | YCbCr 420 & 422 |
HDR | Yes with HDMI Auto detection |
Metadata | |
HDMI | RAW – white balance, Exposure index, Shutter speed/angle, Iris F stop, ISO, Gamma, gamut |
SDI | File Name from Arri, RED. RAW – white balance, Exposure index, Shutter speed/angle, Iris F stop, ISO, Gamma, gamut |
File Naming | |
Standard | S/S/T & Rolling |
Via SDI | Red, Arri |
Video Output | |
HDMI | 1 x HDMI 2.0 |
SDI loop out | 1 x 12G SDI |
SDI Play out | 1 x 12G SDI |
HDR | Yes with Auto detection |
Network | |
Ethernet | 1GbE RJ45 |
Wi-fi | Wi-Fi 6 |
Wireless RF | AirGlu™ SYNC Time code Network |
Atomos Cloud | Capture to Cloud, Live Stream |
Cellular | Connect to Hot Spot via Wi-Fi |
Web Streaming | |
RTMP / S | Yes, Destination configured via Atomos Cloud Studio |
Video Signal Conversion | |
HDMI to SDI | Yes |
SDI to HDMI | Yes |
Audio In/Out | |
Audio Quality | 24-Bit / 48kHz |
Audio Codec | PCM |
HDMI | 8ch 24Bit, input dependent |
SDI | 12ch 24Bit, input dependent |
Analogue Audio in | 3.5mm Jack – 5v power |
Analogue Audio Out | 3.5mm Jack |
Headphone out | 3.5mm Jack |
Audio input delay | Frame delay on analogue input |
Timecode / Sync | |
Embedded | HDMI and SDI |
Time of day | Yes |
Wireless SYNC | AirGlu™ SYNC Time code Network |
RF Network range | 300m |
RF Frequency | Region dependant |
Number of Channels | 12 RF Channels per Region |
Number of RF clients | Region dependant |
Bluetooth Network Range | 10-15m (line of sight) |
Number of BT clients | 6 clients |
Resolution and Frame Rates (Record, Monitor & Playback) | |
4k DCI | up to 4Kp60 |
4k UHD | up to 4Kp60 |
2K DCI 2046 x 1080 | up to 2Kp60 |
FHD 1920 x 1080 Progressive | up to 1080p120 |
FHD 1920 x 1080 PsF | only via Pull down to P |
FHD 1920 x 1080 Interlaced | 1080i50 / 1080i60 |
1280 x 720p | 60p |
8K RAW | up to 8Kp30 Via HDMI |
6K RAW | up to 6Kp60 Via HDMI & 6Kp30 SDI |
4K RAW | up to 4Kp120 via HDMI / SDI |
3.5K Anamorphic RAW | up to 3.5Kp60 via HDMI |
2K RAW | up to 2Kp240 via SDI |
Recording CODEC | |
Apple ProRes RAW | up to 12bit 8Kp30 / 4Kp120 |
Apple ProRes | HQ / 422 / LT up to 4Kp60 |
Avid DNxHD | up to 1080p60 |
Avid DNxHR | up to 4Kp60 |
H.265 | up to 4Kp60 (MOV container) |
Camera to Cloud | Support from Adobe Frame.io |
Gang Control | SYNC record control across devices |
Playback | |
Playlist | Yes, Selected, Favourites or Combined |
Apple ProRes Raw | Yes, recorded clips |
Apple ProRes | HQ / 422 / LT with linear PCM |
Avid DNx | Yes with linear PCM |
H.265 | Recorded clips only |
Monitoring | |
SDR | Native ,709, LUT |
HDR | HLG, PQ Rec2020 |
De-Interlace | Selectable mode |
Freeze Frame Overlay | Optional Activation |
Recording functions | |
Pre-roll record | 8 secs HD / 4 secs 4K ProRes & DNx |
Timelapse | Yes |
Simultaneous proxy record | ProRes RAW / ProRes / DNx with H.265 proxy |
Supported media | |
Master Caddy I | No |
SSDmini | Yes |
CFast II | Yes via AtomX CFast Adapter |
Network | Capture to Cloud via Atomos Cloud Studio |
File System | exFAT |
Interface | SATA 3 |
Master Caddy III | Yes |
On screen tools | |
Waveform | 3 sizes |
RGB parade | 3 sizes |
Vector scope | Small / large |
1 x Zoom | Tap to zoom |
2 x Zoom | Tap to zoom |
Focus peaking | Colour and slider for threshold |
False colour | With IRE scale |
Zebra | Customisable |
Isolate color channel | Blue only |
Cine Frame Guides | Preset and Custom |
Social Frame guides | Preset and Custom |
Safe areas | SMPTE frame size – Action and Safe |
Grid markers | 9 grid |
Anamorphic desqueeze | Display 1.25x, 1.33x, 1.5x, 1.8x and 2x |
Display Flip | Vertical |
False Color | With IRE scale |
Frame Grab and Onion Skin Overlay | Lossless PNG 1920 x 1080 |
Onboard Signal Processing | |
4K UHD Downscale for HD | Available On loop out |
DCI Crop | Available On loop out |
8K RAW to 4K Video Loop Out | Available On loop out |
I > P | 2:2 and 3:2 |
PSF > P | 2:2 and 3:2 |
Optional Activation Keys | |
SDI RAW | Included Activation |
H.265 | Included Activation |
Remote control | |
HDMI | Auto HDMI Trigger, Supported Protocols – Canon, Sony, Atomos Open Standard |
SDI | SDI trigger camera selectable |
Serial 2.5mm Jack | LANC control and calibration via optional USB to serial cable |
Bluetooth LE | Via AtomControl App for Monitor Assist Tools |
Wireless RF | AirGlu™ Remote start stop trigger |
External Device Control | |
Serial 2.5mm Jack | Remote to USB – Z CAM |
Cut & Tag | |
FCP XML | Yes, with 10 tags |
Supported Applications | |
XML | Apple Final Cut Pro |
Apple ProRes RAW | Apple Final Cut Pro, Adobe Premiere, Avid Media Composer, Grass Valley Edius, ASSIMILATE SCRATCH |
Video Codecs | All NLE applications that support Apple ProRes, Avid DNx and H.265 in .MOV wrapper |
What’s in the box | |
Accessories included | SHOGUN CONNECT, International Power supply, 7″ protective Pouch, AtomX SSDmini Handle, MasterCaddy III with screws, Wifi Antenna with Black caps, RF antenna, Antenna storage Pouch, 3.5mm audio jack to jack cable, Antenna coloured caps, Antenna mount covers, Screen Cloth |
Optional extras | AtomX Monitor Mount, AtomX Magic arm 10″ / 13″, USB-C Dock, PowerKit, HDMI cables |
